Description
Double the LED density for an even light
With 120 LEDs per metre – double the density of the 60-LED version – the individual dots of light merge into a noticeably more even, more continuous band of light. At just 6 W/m, this version offers the best balance of brightness, even illumination and energy use, making it the ideal all-rounder – for indirect main lighting as well as atmospheric accents in residential, commercial and protected outdoor areas.
Your benefits at a glance

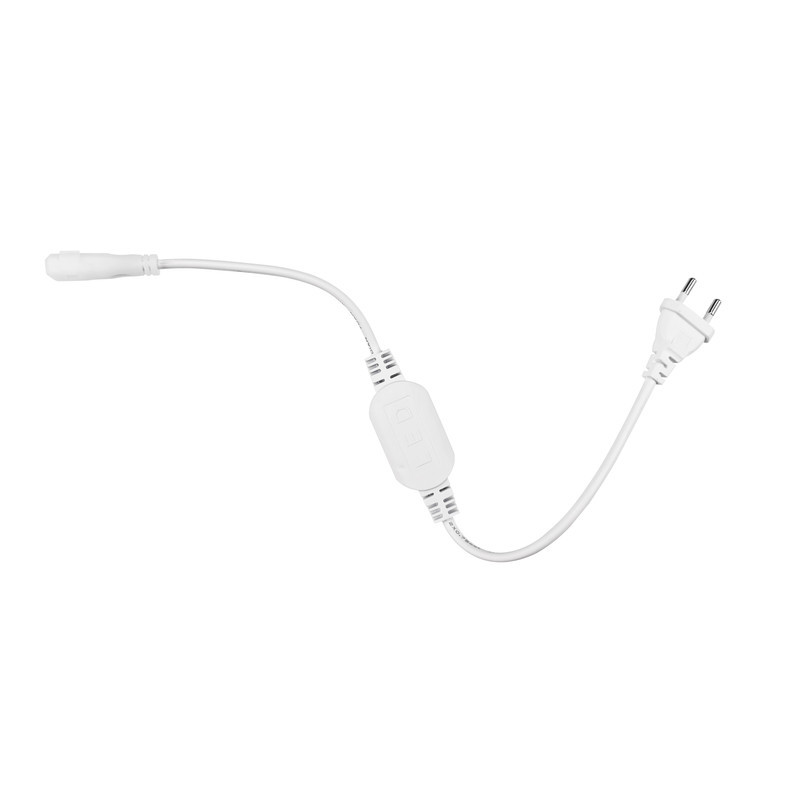

No external power supply Direct 230 V connection via the supplied plug – no transformer or power supply required. |
120 LEDs/m – even Dense LED grid for a homogeneous light with barely visible individual dots. |
IP65 – splash-proof Fully encapsulated PVC housing – suitable for damp rooms and protected outdoor areas. |
High-quality Sanan LEDs Long-life SMD 2835 LEDs from Sanan with good colour rendering (CRI Ra ≥ 80). |
3 light colours selectable 3000 K warm white, 4000 K neutral white or 6000 K daylight white. |
Cuttable every 1 m Cut to length at the marked points; each section can be operated separately. |
Choose your light colour
Technical Data
| Property | Value |
| Operating voltage | AC 230 V (200–240 V, direct connection) |
| Power | 6 W/m (approx. 300 W at 50 m) |
| Energy efficiency class | F (EU 2019/2015, 100 lm/W) |
| LED type | SMD 2835 (Sanan) |
| LED density | 120 LEDs/m |
| Luminous flux | 600 lm/m |
| Luminous efficacy | 100 lm/W |
| Light colour | 3000 K / 4000 K / 6000 K (selectable when ordering) |
| Colour rendering (CRI) | Ra ≥ 80 |
| Protection rating | IP65 |
| Length / reel | 50 m |
| Dimensions (W × H) | 11 × 7 mm |
| Beam angle | 120° |
| Cuttable every | 1 m (at marked points) |
| Min. bending diameter | ≥ 6 cm |
| Operating temperature | -25 °C to +50 °C |
| Housing material | PVC (transparent surface, white base) |
| Mounting | mounting clips + screws (incl.) |
| Certification | CE, RoHS |

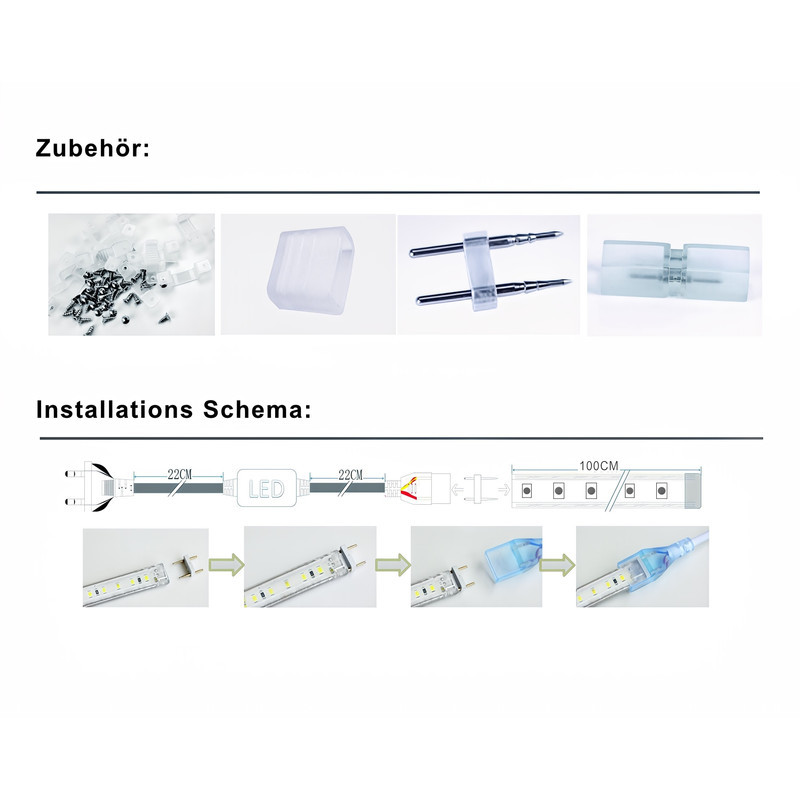

Mounting & accessories
Mounting is straightforward using the supplied mounting clips and screws. Matching accessories – from additional clips and mid-connectors to plugs and end caps – are also available in our shop, so you can tailor your installation to your needs.
Extending or cutting to length?
The 50 m strip can be shortened to the length you need every 1 m at the marked cut points. Seal the open end with an end cap afterwards. The benefit: each section you cut off can be put back into operation with a separate 230 V connection plug – so a single reel gives you several independent runs of light. For cutting and connecting the strip properly, we recommend consulting an electrician or qualified specialist.
Applications
The 120-LED version is the versatile all-rounder: indirect main and mood lighting in living spaces, kitchens, hotels and restaurants, accent light in display cases and shelving, plus even linear lighting along ceilings, stairs and facades.
