Description
Tunable white – adjust the light colour steplessly
This CCT strip combines warm white and daylight white LEDs on a single board. Using a CCT controller (available separately), you can adjust the light colour steplessly from a cosy 2700 K to a crisp 6500 K – and dim the strip as well. It runs on safe 24 V DC via a suitable power supply, so you can match the lighting mood to the time of day, room and occasion at any time.
Your benefits at a glance
Tunable white 2700–6500 K Light colour adjustable steplessly from warm white to daylight white via a CCT controller, plus dimming. |
High colour rendering CRI >90 Colours and materials appear natural and brilliant – ideal for living and prestige spaces. |
608 LEDs/m – dot-free COB light Extremely dense LED grid for an utterly even band of light with no visible dots. |
Self-adhesive & flexible Strong 3M adhesive tape on the back, bendable and cuttable every 26 mm. |
24 V extra-low voltage Safe low-voltage operation via a 24 V power supply; up to 5 m per run. |
5-year warranty Long-life quality (50,000 h), CE/RoHS, antistatic packaging. |
Light colour from warm white to daylight
Technical Data
| Property | Value |
| Input voltage | DC 24 V |
| Power | 7 W + 7 W/m (max. 14 W/m) |
| Energy efficiency class | F (EU 2019/2015) |
| Luminous efficacy | > 90 lm/W (warm white > 80 lm/W) |
| LED type | COB |
| LED density | 608 LEDs/m |
| Light colour | CCT 2700–6500 K (tunable white) |
| Colour rendering (CRI) | Ra > 90 |
| Beam angle | 170° |
| Protection rating | IP20 (optional IP65 with silicone sleeve) |
| Length / reel | 5 m |
| Dimensions (W × H) | 10 × 2.3 mm |
| Min. cutting length | 26.32 mm |
| Min. bending diameter | > 1 cm |
| PCB | double-sided, electrolytic copper |
| Connection | double-ended 15 cm (V+ / warm white / cool white) |
| Mounting | 3M adhesive tape (double-sided) |
| Operating temperature | -20 °C to +40 °C |
| Lifespan | 50,000 h |
| Warranty | 5 years |
| Packaging | antistatic bag, 5 m/reel |
| Certification | CE, RoHS |
Operation & connection
The strip runs on 24 V DC. You will need a suitable 24 V power supply and a CCT controller for colour and brightness control (both available separately). Observe the polarity (+/-) and make sure the strip’s total power does not exceed 80 % of the power supply’s rated output. Run a maximum of 5 m per line; connect longer runs in parallel.
Cutting & bending
The strip can be shortened every 26.32 mm at the marked cut points. Thanks to its flexible board it can be bent – the bending diameter should be greater than 1 cm, and sharp kinks must be avoided. For a waterproof version (IP65), the strip can be encased in a silicone sleeve.
Applications

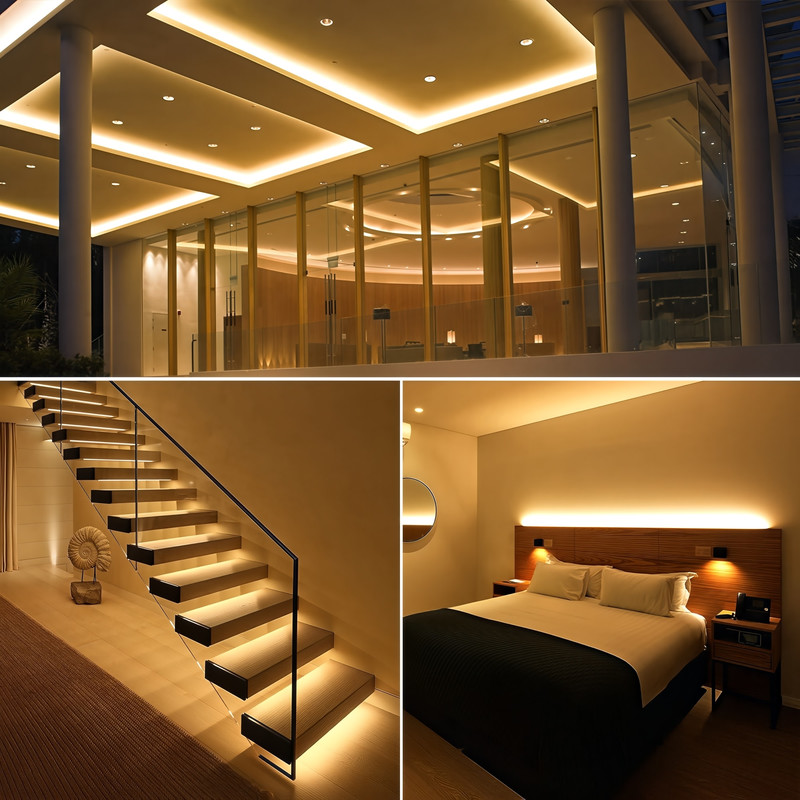

With its adjustable light colour and high colour rendering, this COB strip is ideal for premium residential and commercial lighting: indirect ceiling and wall lighting, coves and shadow gaps, under-cabinet and shelf lighting, display cases and decorative accents in homes, hotels and practices. Standard IP20 version for dry indoor areas.
