24V COB LED strip 5m 320 LEDs/m 2200/2700/3000/4000/6000K CRI>90 IP20

Item number: COB24V5M2

Category: 24V LED Stripes

54,90 €

including 19% VAT., plus shipping

From	Price per unit
3	49,90 €
10	43,90 €
20	38,90 €

Available

Description

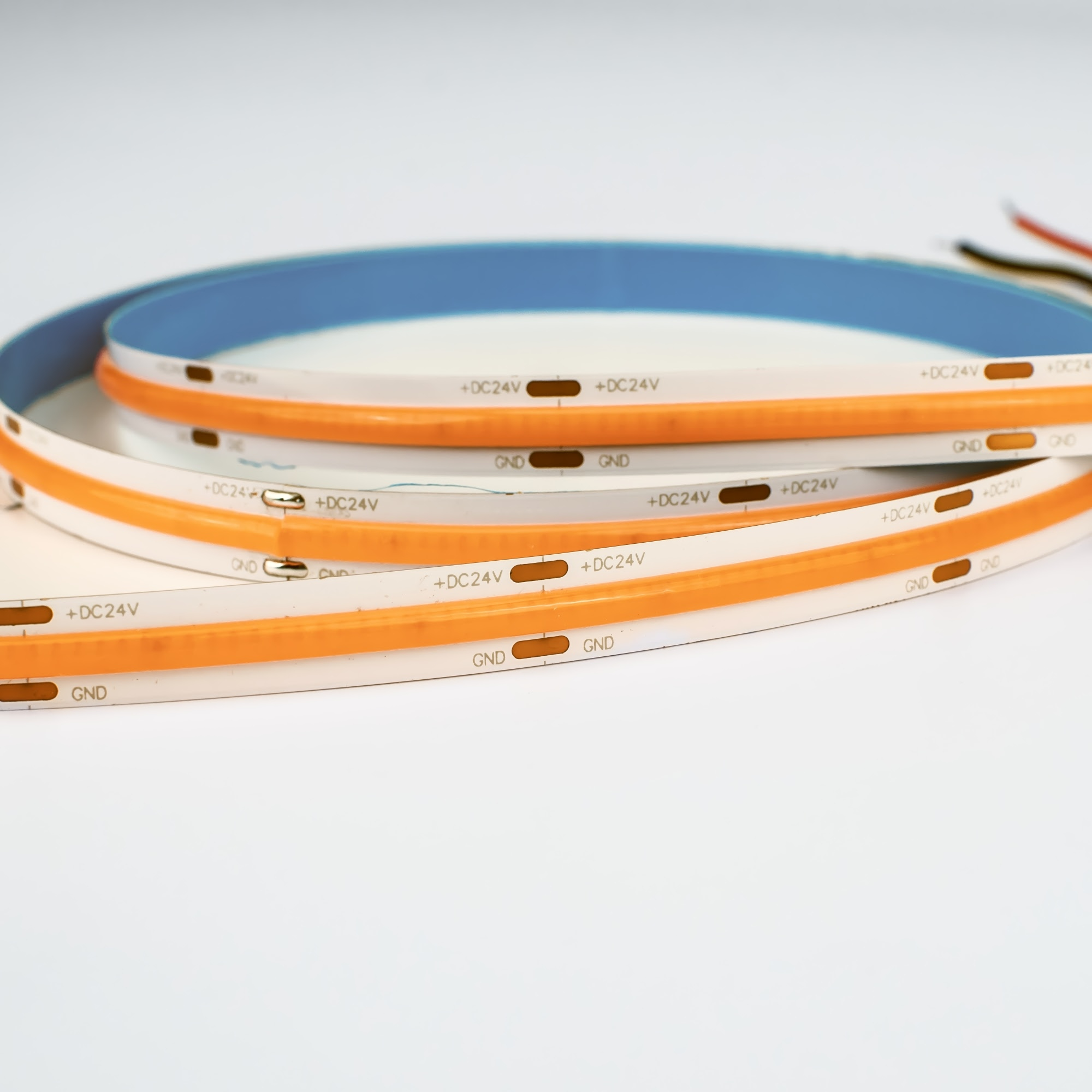

COB LED Strip 24 V – Dot-Free Line of Light with 320 LEDs/m

8 W/m · 720 lm/m · CRI > 90 · IP20 · 5 m reel · in five colour temperatures – select now

320 LEDs/m8 W/m720 lm/mCRI > 9024 VIP205 m

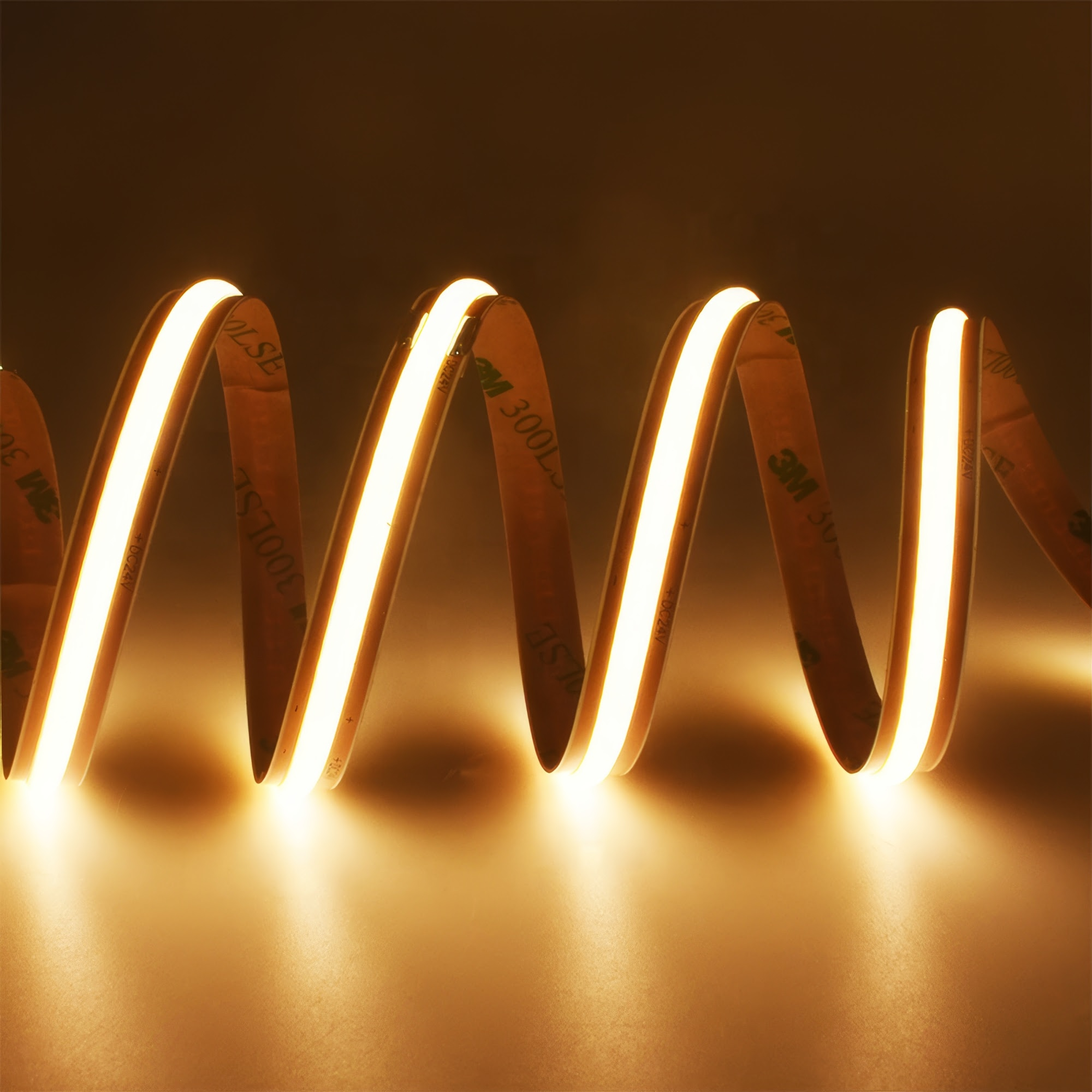

The COB LED strip creates a continuous line of light with no visible individual points. Whereas conventional strips leave the single LEDs recognisable as dots, here 320 tiny diodes per metre sit closely together beneath a shared cover. The result is a soft, even band of light – ideal for indirect lighting, display cases, furniture and ceiling coves.

Key benefits at a glance

No light dots 320 LEDs per metre create a continuous, even line.	Excellent colours CRI > 90 renders wood, fabrics and food true to life.
Cuttable every 5 cm Adapts to any length without wasting offcuts.	Safe 24 volts Low-voltage technology for furniture, cases and reachable areas.
Easy to install Strong adhesive tape on the back, no tools required.	Long service life 50,000 hours with LED chips by Sanan.

Features in detail

COB technology with 320 LEDs per metre for dot-free light
Colour rendering CRI > 90 Ra for natural colours
170° beam angle for wide, soft light distribution
Cuttable every 50 mm at the marked points
Double-sided adhesive tape on the back, 15 cm lead at both ends
Only 8 mm wide and 2.3 mm high – fits narrow profiles and joints
Sanan LED chips for consistent colour temperature across the whole reel

What does COB mean – and why are there no dots?

What sets COB apart from a normal LED strip? In classic SMD strips, individual LEDs sit on the board at intervals of roughly one to two centimetres. Look directly at it, or shine it onto a nearby wall, and you see those dots as a row. COB stands for chip on board: here the diodes are considerably smaller, sit much closer together and are covered jointly by a silicone layer. Light therefore emerges as a closed line.

CRI > 90: colours that are true

With a colour rendering index above 90, this strip sits well above the usual standard. The value describes how natural colours look under the light – 100 would equal daylight. Above 90 even subtle colour nuances are reproduced correctly: wood keeps its warm tone, fabrics do not look washed out, food looks fresh. That matters wherever the strip lights goods, materials or dishes – in display cases, at counters and in the kitchen.

Choose your colour temperature

2200 K extra warm white – a very warm, slightly amber light reminiscent of candlelight
2700 K warm white – the light of a classic incandescent bulb – warm, soft and homely
3000 K warm white – warm white but somewhat brighter and crisper than 2700 K
4000 K neutral white – neutral white and looks businesslike without appearing cold
6000 K cool white – cool white and delivers the brightest, crispest light in this range

This strip is available in five colour temperatures. For living spaces and hospitality we recommend 2200 to 3000 K, for work areas and display cases 4000 K, and for workshops and technical applications 6000 K.

High-quality LED chips by Sanan

The light source consists of LED chips by Sanan. Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is regarded as China's largest LED chip manufacturer as well as one of the three largest worldwide. This matters particularly with LED strips: because many hundreds of chips sit on one reel, they all have to share exactly the same colour temperature. A manufacturer of this scale works with very tight production tolerances – so no visible colour differences appear along the length of the strip.

Choosing the right driver

The strip runs on 24 volt direct current and therefore needs a driver. A simple rule applies when choosing one: calculate the total load and pick a driver with at least 20 percent headroom. A full reel means 5 metres × 8 watts = 40 watts, so the driver should supply at least 50 watts. A unit permanently run at its limit gets hot and fails considerably sooner. Suitable drivers are in our accessories category.

Installation, cutting and routing

Installation is straightforward: a strong double-sided adhesive tape on the back holds the strip securely on clean, grease-free surfaces. It can be shortened every 50 millimetres at the marked cutting points, where the contacts for connection are located. The strip may be bent lengthwise but not sharply creased; as a rule of thumb allow a bending diameter of at least one centimetre. It is also important to run no more than 5 metres per feed. The reason: voltage drops along the narrow copper tracks of the board as length increases. Connect two reels one after another and less voltage arrives at the end – the strip visibly dims there. Longer runs are therefore connected in parallel, with each reel having its own supply from the driver. Brightness then stays even across the whole length.

Technical data

Type	COB (chip on board), continuous line of light
LED density	320 LEDs per metre
LED chips	Sanan SMD
Power	8 W per metre (40 W per 5 m reel)
Luminous flux	approx. 720 lm per metre
Efficacy	> 90 lm/W
Colour temperature	2200 / 2700 / 3000 / 4000 / 6000 K – select your preferred colour temperature when ordering
Colour rendering	CRI > 90 Ra
Beam angle	170°
Voltage	DC 24 V (driver required)
Protection rating	IP20 (dry indoor areas only)
Dimensions	5,000 × 8 × 2.3 mm
Reel length	5 m per reel
Cuttable every	50 mm
Board	double-sided PCB, electrolytic copper
Fixing	double-sided adhesive tape on the back
Connection	15 cm lead at both ends
Min. bending diameter	10 mm
Service life	50,000 h
Ambient temperature	−20 °C to +40 °C
Storage temperature	−20 °C to +45 °C
Certification	CE, RoHS
Energy efficiency class	F (EU scale A–G, EU 2019/2015)

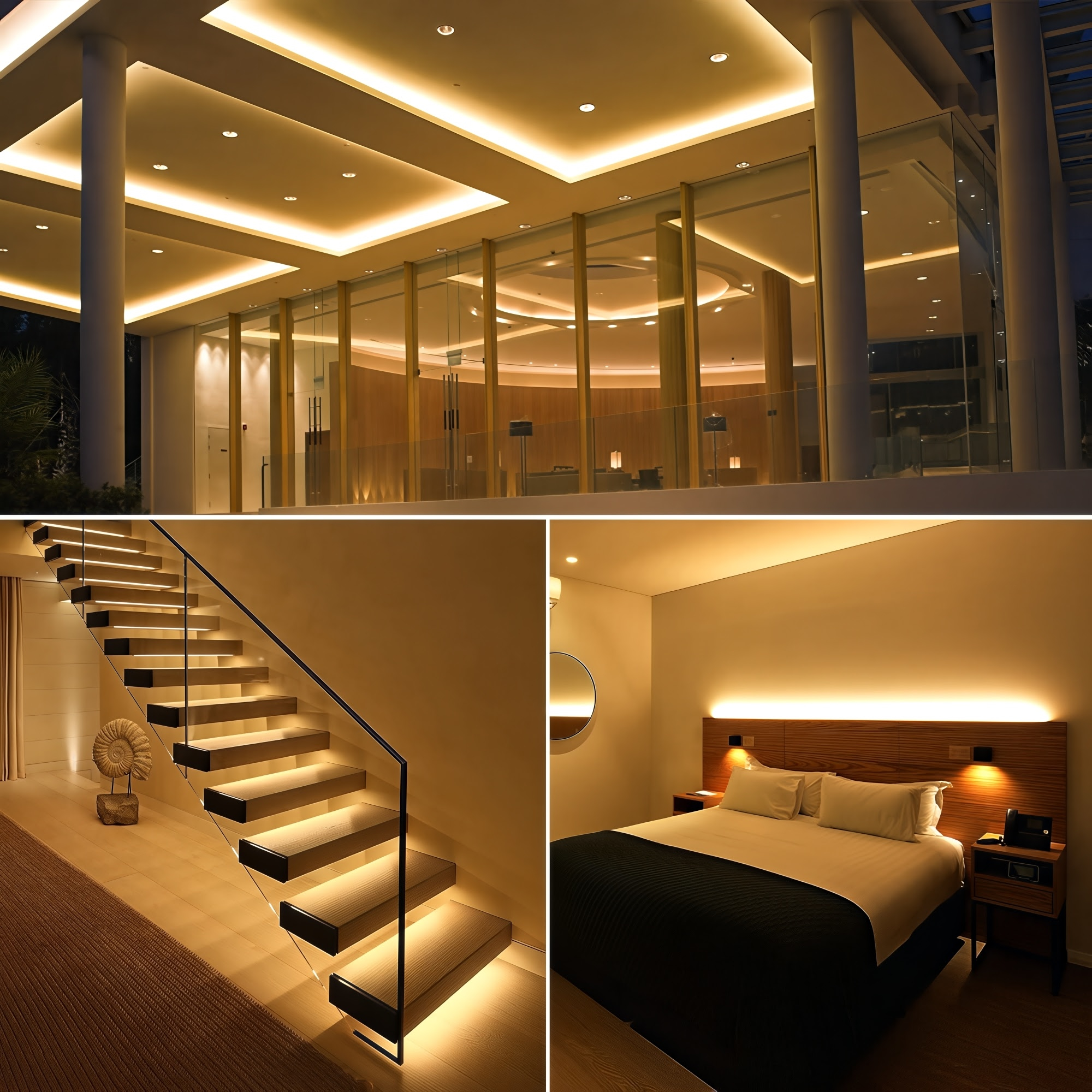

Applications

Typical locations are display cases and showcases, kitchen wall units, shelves and furniture, alcoves and ceiling coves for indirect lighting, stairs and handrails as well as counters in retail. As the strip is only 8 millimetres wide and 2.3 millimetres high, it disappears into narrow profiles and joints too. Note the IP20 rating, though: for dry interior spaces only – not in bathrooms, outdoors or in damp rooms.

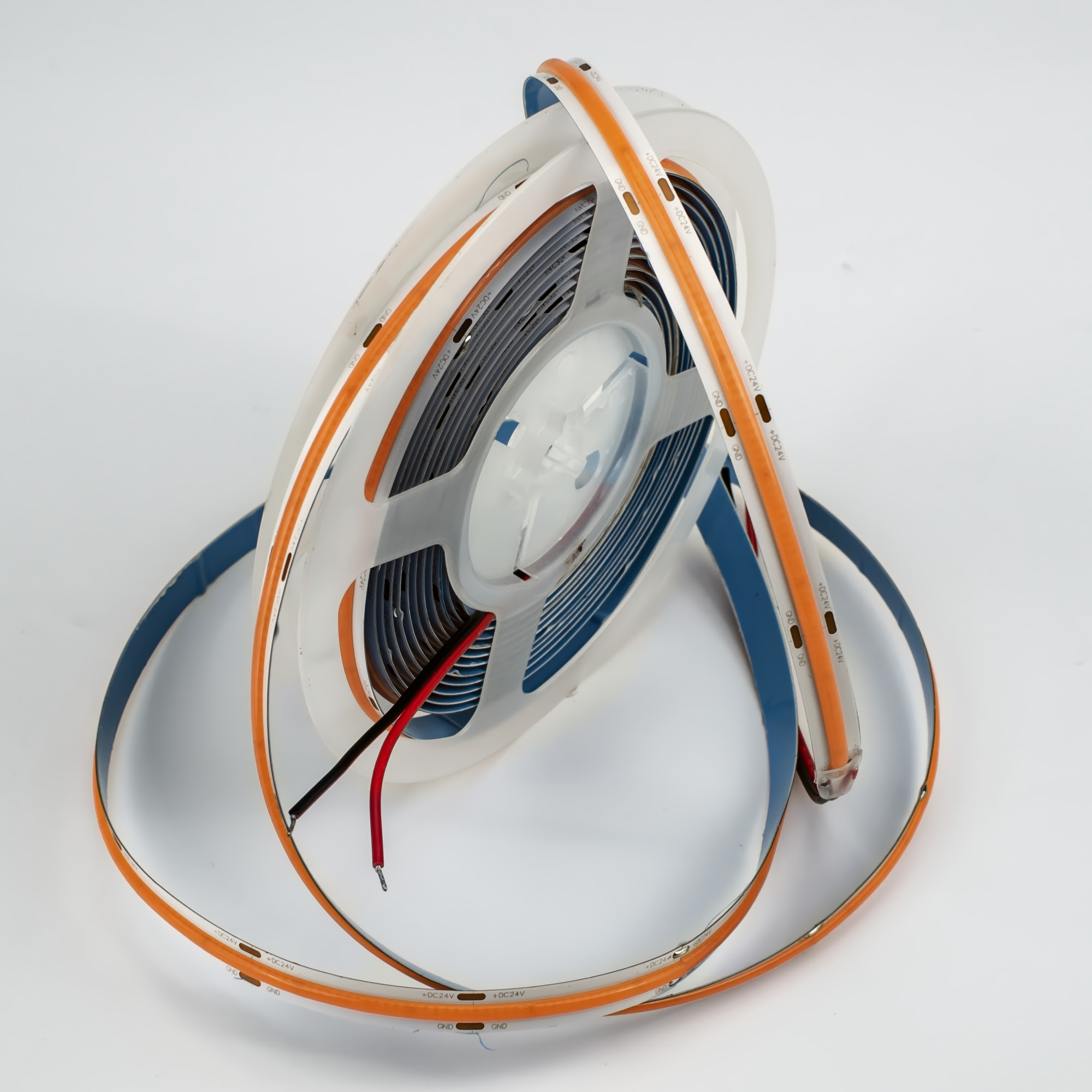

Scope of delivery

1× COB LED strip, 5 m on reel
15 cm connection lead at both ends
