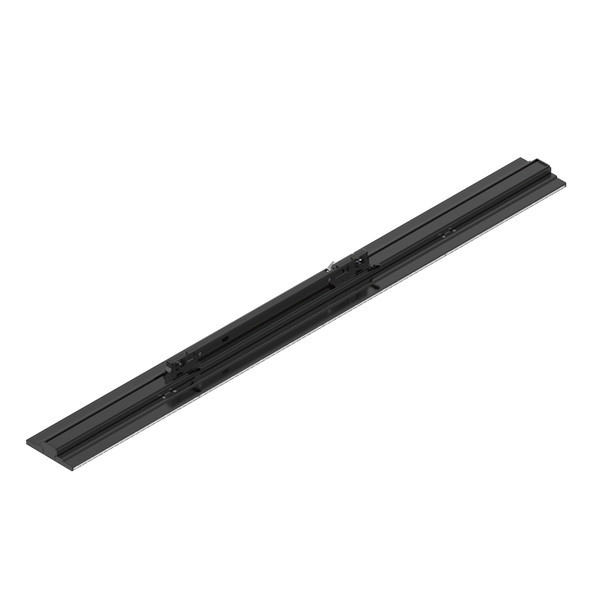

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

600 mm · black · 3000 K warm white · CRI > 80

This linear luminaire for 3-phase track systems merges wide central lighting with two tiltable accent spots. The result is even base illumination that can be focused precisely on individual areas whenever needed – ideal for retail, office and workshop environments. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

Features in detail

• Combined optic: 100° central light + two tiltable 30° × 90° spots
• Colour rendering CRI > 80 for natural, rich colours
• Switchable power 48 W / 40 W / 34 W / 27 W without tools
• Optionally DALI-2 dimmable on request
• For 3-phase track – compatible with common track systems
• Rugged aluminium housing in black, PMMA lens, IK04

Central light + two tiltable spots

At its core is the mix of a 100° central module for flat illumination and two tiltable 30° × 90° spots. The 0° to 30° tilt directs light onto walls, displays or work surfaces – variable and adjustable at any time.

The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.

Efficient & bright

With CRI > 80 this version offers good, natural colour rendering at maximum efficiency. The high efficacy of 145 lm/W noticeably lowers energy costs – ideal for large-area lighting in retail, office, storage and workshop settings where brightness and efficiency come first.

Long service life – L80 at 100,000 hours

The L80 / 100,000 h value describes flux stability: even after 100,000 operating hours the LEDs deliver at least 80 % of their initial brightness. Instead of a sudden failure, brightness drops only gradually – making maintenance easy to plan.

High-quality LED chips by Sanan

For light generation we rely on high-quality Sanan LEDs. Sanan Optoelectronics is one of the world's largest LED chip makers and the market leader in China; the company invests continuously in R&D and holds over a thousand patents. Its chips deliver high efficacy, precise colour rendering and a long, low-maintenance service life – ideal conditions for professional continuous operation.

Mounting & track compatibility

The LED VU3 linear luminaire is designed for the 3-phase track system and clicks onto the busbar via an adapter. Thanks to the three phases, luminaires can run on separate circuits and be switched independently. It is compatible with the common track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 16 luminaires can be connected per circuit (< 800 W). Safety Class I ensures a secure protective-earth connection.

Colour temperature 3000 K – warm white

Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.

Black housing: luminous flux & look

The black housing delivers somewhat fewer lumens than the white one because of the different reflection inside the luminaire. Part of the LED light is redirected off the internal surfaces before it leaves the fixture. White surfaces reflect almost completely, whereas black surfaces absorb a share and release it as heat. As a result, luminous flux and efficacy (lm/W) are slightly lower with a black housing. The trade-off pays off wherever a discreet, low-glare and premium look matters more than the last lumen – for example in boutiques, shops and upscale interiors.

Technical data

Applications

At 600 mm this luminaire is ideal for compact areas such as checkout zones, back rooms and short aisle sections. Warm white light creates a cosy, homely atmosphere – suited to hospitality, boutiques, hotels and reception areas.

Scope of delivery

• 1× LED VU3 linear luminaire
• Mounting and connection accessories
• Installation instructions
