4000K

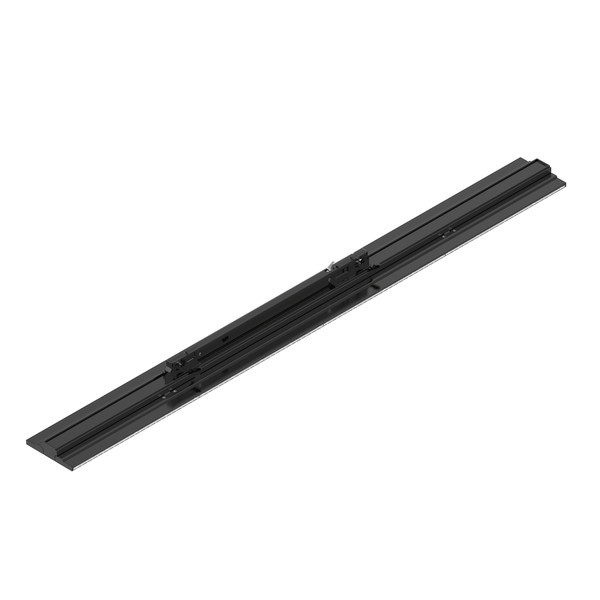

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

600 mm · black · 4000 K neutral white · CRI > 90

This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

Features in detail

• Combined optic: 100° central light + two tiltable 30° × 90° spots
• Colour rendering CRI > 90 for natural, rich colours
• Switchable power 48 W / 40 W / 34 W / 27 W without tools
• Optionally DALI-2 dimmable on request
• For 3-phase track – compatible with common track systems
• Rugged aluminium housing in black, PMMA lens, IK04

Central light + two tiltable spots

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.

The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.

Perfect colour rendering for retail & boutiques

With a colour rendering index of CRI > 90 this luminaire shows colours almost as they appear in daylight. Reds, skin tones and material shades stay rich and natural – a decisive advantage in boutiques, fashion stores, jewellers and anywhere goods need to look their best. Fabrics, food and displays appear more premium, actively supporting the buying decision.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours means: after 100,000 operating hours the LEDs still emit at least 80 % of their initial luminous flux. Light output declines only slowly and evenly over the entire service life, so the luminaire stays bright even after years of continuous use.

High-quality LED chips by Sanan

This luminaire uses high-quality LED chips from Sanan. Founded in 2000 and headquartered in Xiamen, China, Sanan Optoelectronics is China's largest LED chip producer and ranks among the world's leading LED chip manufacturers. Its chips are known for high efficacy, excellent colour consistency and reliable long-term stability – qualities relied upon by many renowned lighting brands worldwide. This forms the basis for the high efficiency and long service life of the VU3 luminaire.

Mounting & track compatibility

As a track spotlight for the 3-phase busbar, the luminaire is flexible to place, aim and extend. Via its adapter it is compatible with the common standards: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The three phases allow separately switchable lighting groups on one track. Up to 16 luminaires per circuit (< 800 W), Safety Class I with protective earth.

Colour temperature 4000 K – neutral white

Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.

Why CRI > 90 delivers slightly fewer lumens

Why does the CRI > 90 version deliver slightly fewer lumens than the CRI > 80 one? A very high colour rendering requires a broader, more balanced LED spectrum – especially with a higher share of red. This additional red and deep-red content sits in a range to which the human eye is less sensitive, and the phosphor conversion needed for it introduces extra losses. As a result, at the same power the perceived luminous flux (lumens) and thus the efficacy in lm/W decrease. In return you get more true-to-life, more brilliant colours – at the cost of a marginally lower lumen figure.

Black housing: luminous flux & look

The black housing delivers somewhat fewer lumens than the white one because of the different reflection inside the luminaire. Part of the LED light is redirected off the internal surfaces before it leaves the fixture. White surfaces reflect almost completely, whereas black surfaces absorb a share and release it as heat. As a result, luminous flux and efficacy (lm/W) are slightly lower with a black housing. The trade-off pays off wherever a discreet, low-glare and premium look matters more than the last lumen – for example in boutiques, shops and upscale interiors.

Technical data

Applications

At 600 mm this luminaire is ideal for compact areas such as checkout zones, back rooms and short aisle sections. Neutral white light feels businesslike and aids concentration – the right choice for office, retail, boutiques, showrooms and workshops.

Scope of delivery

• 1× LED VU3 linear luminaire
• Mounting and connection accessories
• Installation instructions
