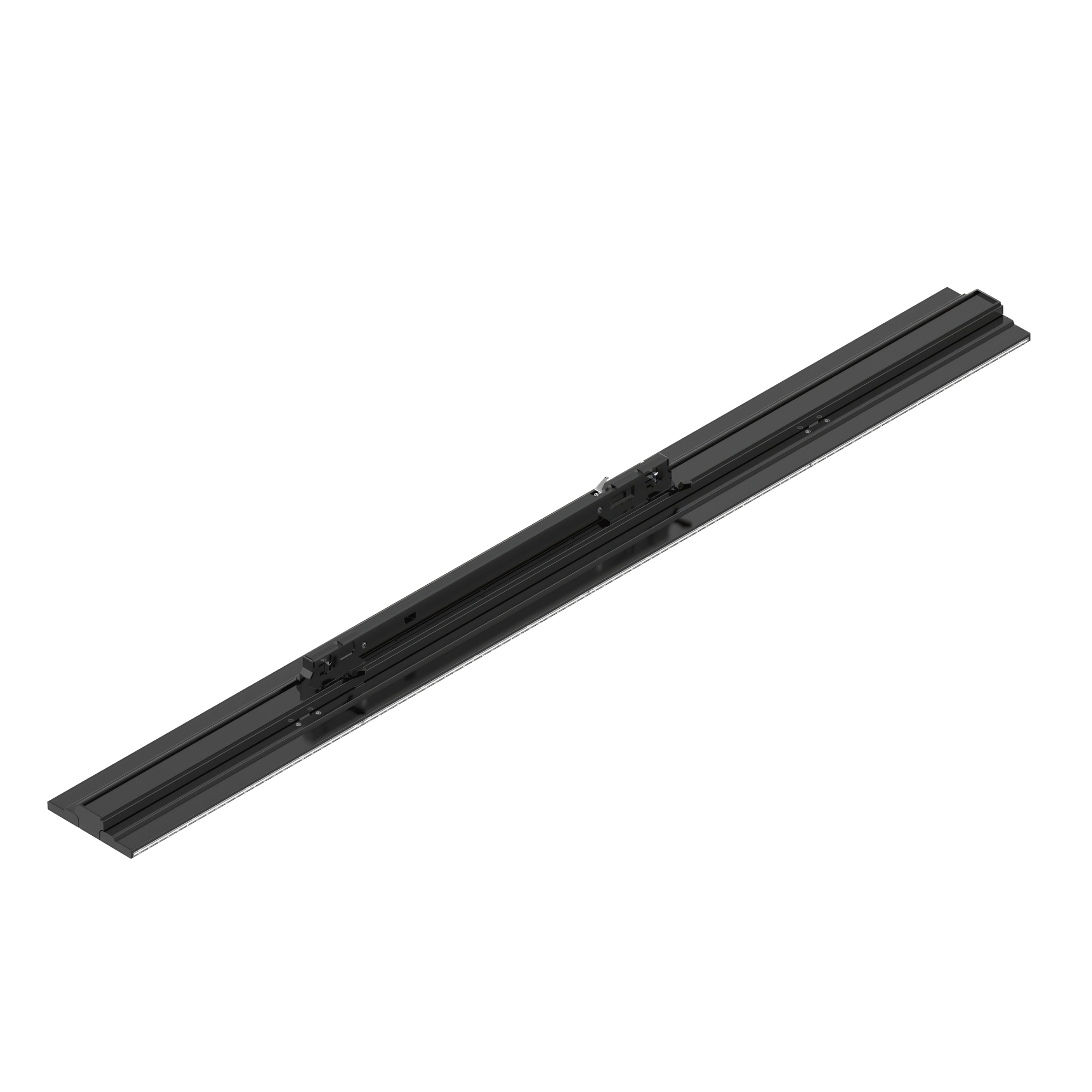

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots
900 mm · black · 5000 K daylight white · CRI > 80
This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.
Key benefits at a glance
100° central light Wide beam for even, low-glare base brightness. | Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents. |
Switchable power 55 W / 47 W / 39 W / 30 W selectable at the switch. | High efficiency 145 lm/W – up to 7,975 lm at 55 W. |
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision. | Long service life L80 at 100,000 h for long maintenance intervals. |
Features in detail
- Combined optic: 100° central light + two tiltable 30° × 90° spots
- Colour rendering CRI > 80 for natural, rich colours
- Switchable power 55 W / 47 W / 39 W / 30 W without tools
- Optionally DALI-2 dimmable on request
- For 3-phase track – compatible with common track systems
- Rugged aluminium housing in black, PMMA lens, IK04

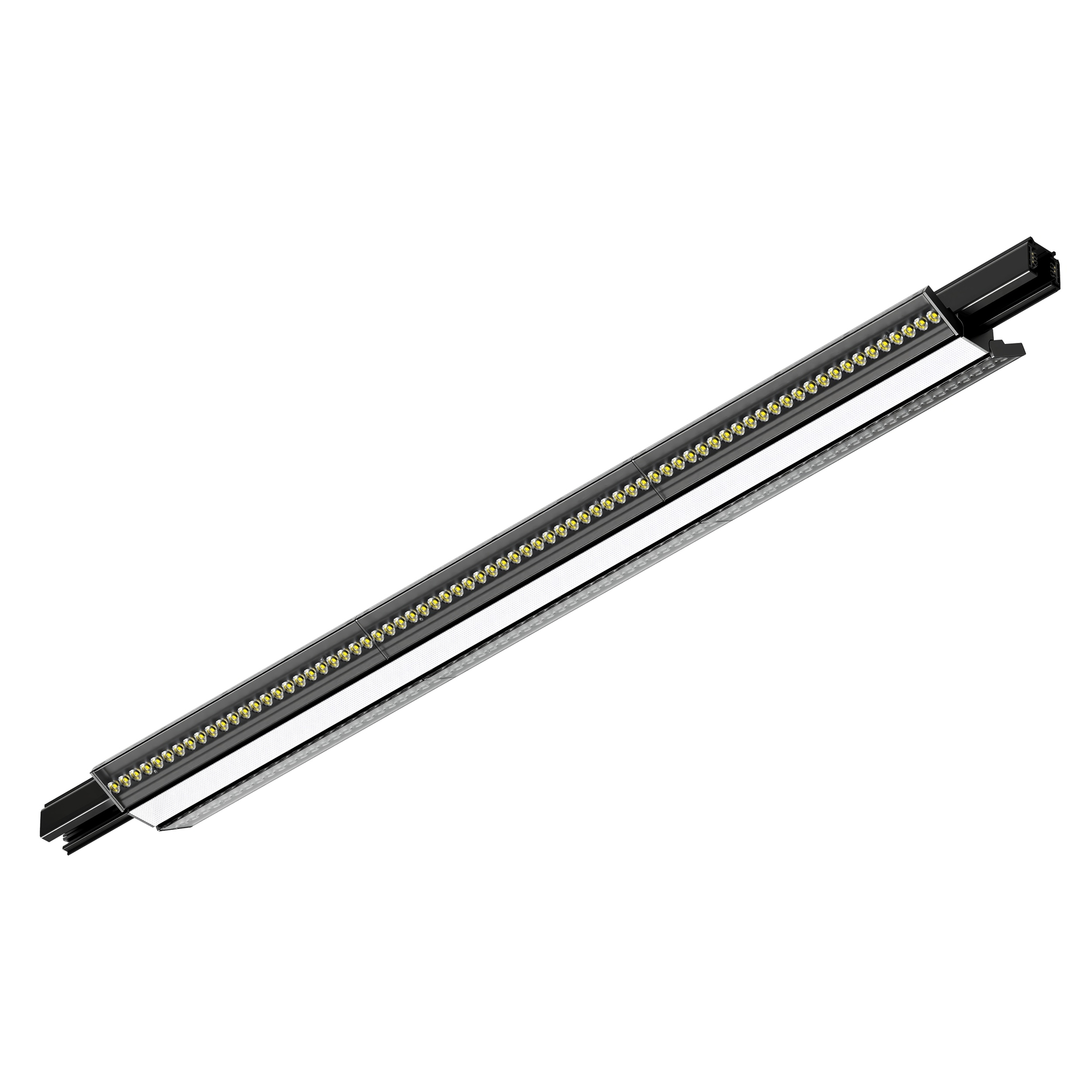

Central light + two tiltable spots
With a 100° beam the central light handles soft base lighting, while the two individually tiltable spots (30° × 90°, 0° to 30° tilt) add directional accents on demand. The lighting stays adaptable as your assortment or room use changes.
The tiltable spots are particularly strong for shelf and shelf-aisle lighting: they direct light precisely onto shelf fronts and displays, so products along the aisles are evenly lit and clearly visible.
Efficient & bright
With CRI > 80 this version offers good, natural colour rendering at maximum efficiency. The high efficacy of 145 lm/W noticeably lowers energy costs – ideal for large-area lighting in retail, office, storage and workshop settings where brightness and efficiency come first.
Long service life – L80 at 100,000 hours
100,000 hours at L80 means that only after this long operating period does luminous flux fall below 80 % of the initial value. Until then illumination stays almost constant – a clear benefit for operators focused on low maintenance and long service life.
High-quality LED chips by Sanan
At the heart of the luminaire are LED chips by Sanan – one of the largest and most respected LED chip manufacturers in the world. The listed company from Xiamen produces several hundred billion LED chips per year and supplies international technology corporations, among others. Sanan chips stand for excellent efficiency, tight colour tolerances and high operational reliability – reflected in even light, stable colour rendering and long service life.
Mounting & track compatibility
The LED VU3 linear luminaire is designed for the 3-phase track system and clicks onto the busbar via an adapter. Thanks to the three phases, luminaires can run on separate circuits and be switched independently. It is compatible with the common track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 14 luminaires can be connected per circuit (< 800 W). Safety Class I ensures a secure protective-earth connection.
Colour temperature 5000 K – daylight white
Daylight white light is crisp and activating – ideal for technical work, assembly, labs and visually demanding areas.
Black housing: luminous flux & look
Why does the black-housing version deliver slightly fewer lumens? The reason lies in the reflection inside the luminaire: bright, white surfaces reflect the generated light very efficiently and direct almost all of it outward. Dark or black surfaces, by contrast, absorb part of the light that hits the internal surfaces – this portion does not leave the luminaire and is lost as heat. That is why the luminous flux, and therefore the efficacy in lm/W, is somewhat lower with a black housing than with a white one. In return, the black version appears less glaring and more discreet – a deliberately chosen advantage in boutiques, shops and premium settings where an understated, elegant look is desired.
Technical data
| Power (switchable) | 55 W / 47 W / 39 W / 30 W (by switch) |
| Luminous flux | 55 W = 7,975 lm / 47 W = 6,815 lm / 39 W = 5,655 lm / 30 W = 4,350 lm |
| Efficacy | 145 lm/W |
| Colour temperature | 5000 K (daylight white) |
| Colour rendering | CRI > 80 |
| Beam angle | 30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request |
| Side spot tilt | 0° to 30° |
| Mounting | 3-phase track (via adapter) |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC 200–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | Black (matt) |
| Dimensions (L×W×H) | 888 × 112 × 58 mm |
| Ambient temperature | −20 °C to +40 °C |
| Energy efficiency class | D (EU scale A–G, EU 2019/2015) |
Applications
At 900 mm this luminaire is ideal for medium areas such as retail aisles, office islands and workshop zones. Daylight white light is crisp and activating – ideal for technical work, assembly, labs and visually demanding areas.
Scope of delivery
- 1× LED VU3 linear luminaire
- Mounting and connection accessories
- Installation instructions
