Description
3CCT and multi-power – maximum planning flexibility

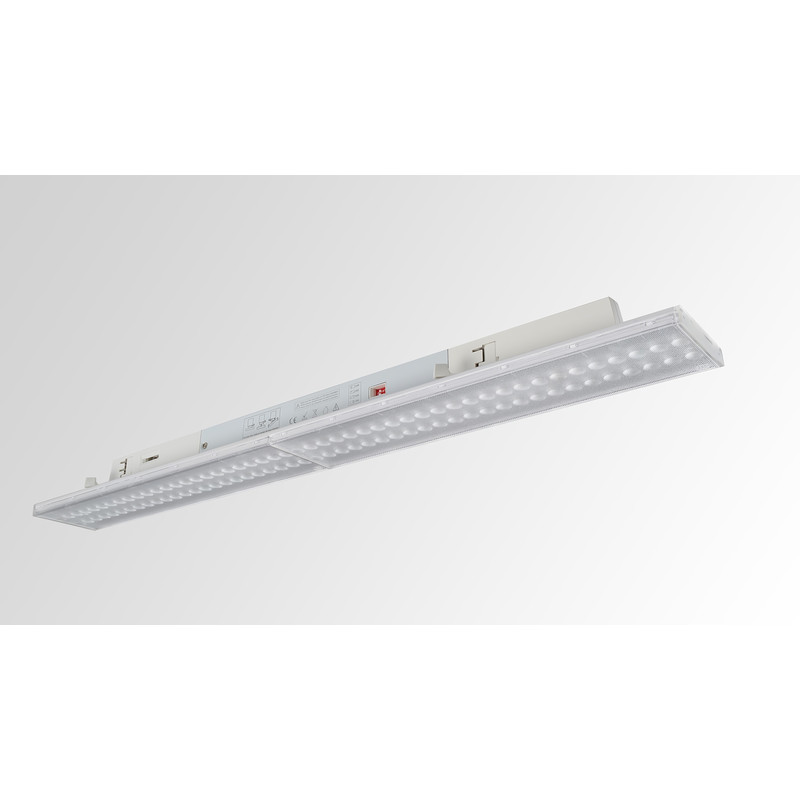

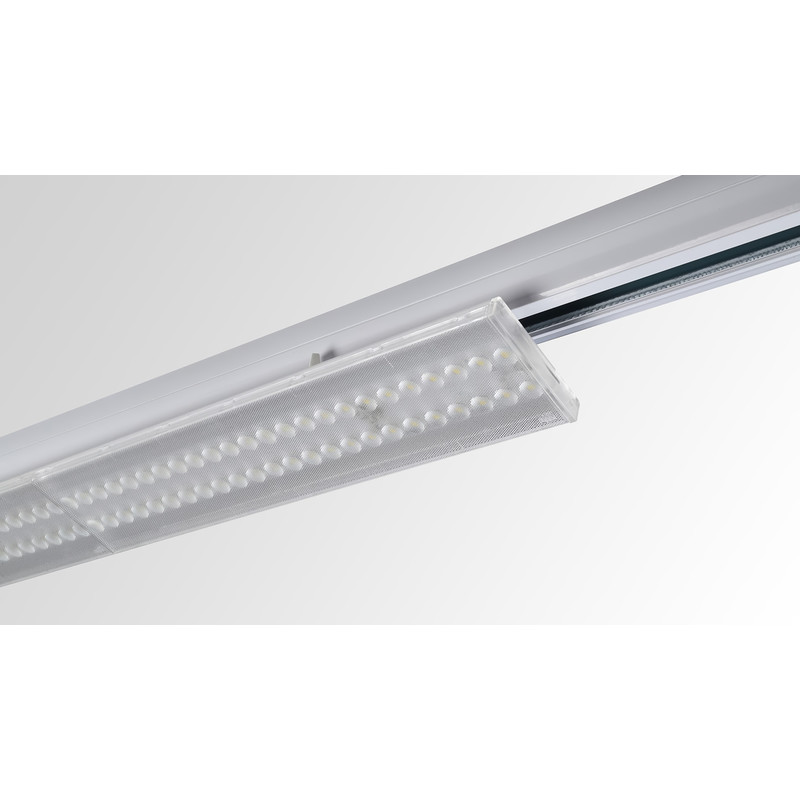

The AXIS linear luminaire was developed for architects and lighting designers and ensures a consistent, high-quality appearance. A switch lets you select the light colour between 3000 K (warm white), 4000 K (neutral white) and 5000 K (daylight white); a DIP switch sets the power in fine steps. In the 1.2 m length, the AXIS is available as 42 W or 55 W. The 1.2 m version is the versatile all-rounder for continuous lines of light in retail and work areas. The white aluminium housing blends discreetly into light ceiling designs.
Your benefits at a glance
3CCT switchable Light colour selectable via switch: 3000 K, 4000 K or 5000 K – one model for many applications. |
Multi-power via DIP switch Power finely adjustable via DIP switch – flexible lighting design and simple stock-keeping. |
High efficacy of 160 lm/W High luminous efficacy for low running costs and sustainable operation. |

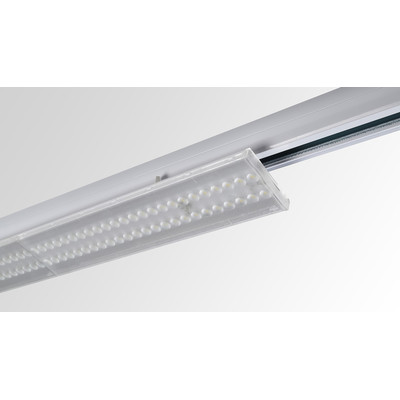

Slides along the track 3-phase adapter (L1/L2/L3) – the luminaire can be positioned freely on the track. |
90° wide + 30° tiltable Wide, even 90° light distribution; each luminaire also tilts individually by ±15° left/right (30° range). |
Aluminium housing in white Discreet white housing that blends harmoniously into light ceilings. |
Optics & tilt

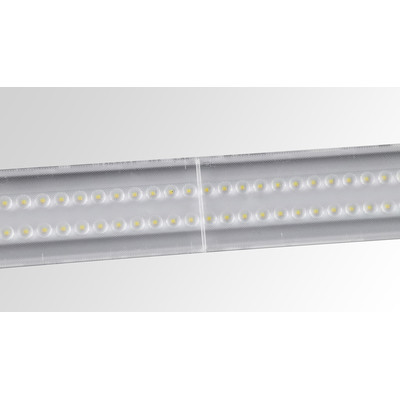

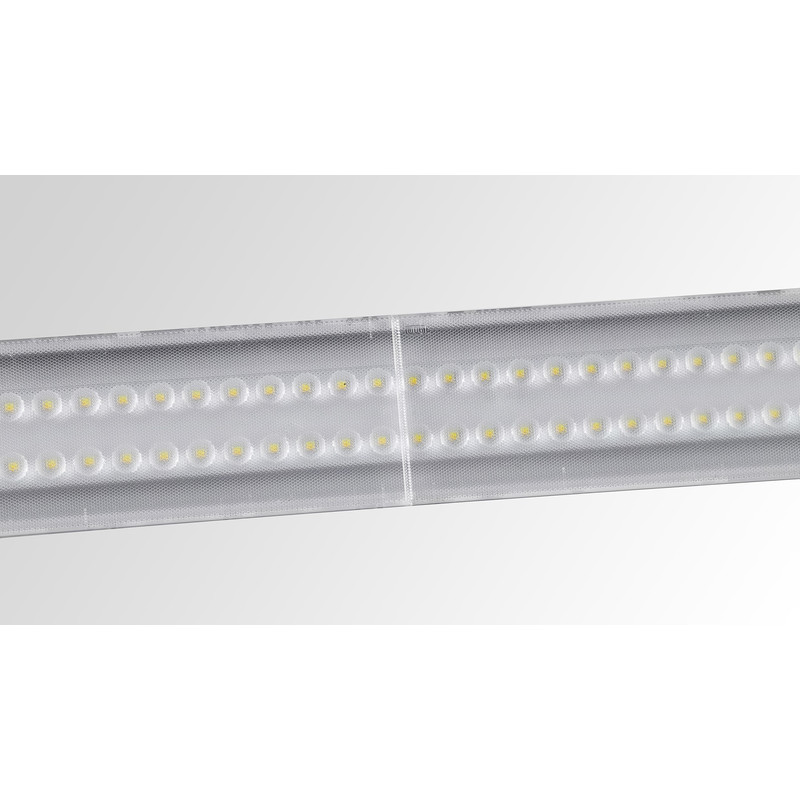

Each AXIS luminaire combines a wide 90° optic with an individually tiltable lens: the optical head tilts ±15° to the left or right (30° range). This lets you aim the light precisely at merchandise, walls or circulation areas – with a consistently even, wide light pattern.
Technical Data
| Property | Value |
| Type | LED linear luminaire for 3-phase track |
| Power | 42 W or 55 W (finely adjustable via DIP) |
| Luminous flux | 6720–8800 lm (depending on power) |
| Luminous efficacy | 160 lm/W |
| Energy efficiency class | D (EU 2019/2015) |
| Light colour | 3000 / 4000 / 5000 K (switchable, 3CCT) |
| Colour rendering (CRI) | > 80 (Ra) |
| Beam angle | 90° (wide) |
| Tilt | ±15° left/right (30° range) |
| Power factor | 0.9 |
| Dimmable | no |
| Protection rating | IP20 |
| Dimensions (L × W × H) | 1196 × 66 × 45 mm |
| Housing | Aluminium, white |
| Track | 3-phase (European standard, 4-wire / 3-phase) |
| Mounting | slides along the track; suspension possible |
| Driver | output-selectable (multi-power) |
| Lifespan | L70B10 > 100,000 h |
| Certification | CE, RoHS |
Mounting & connection

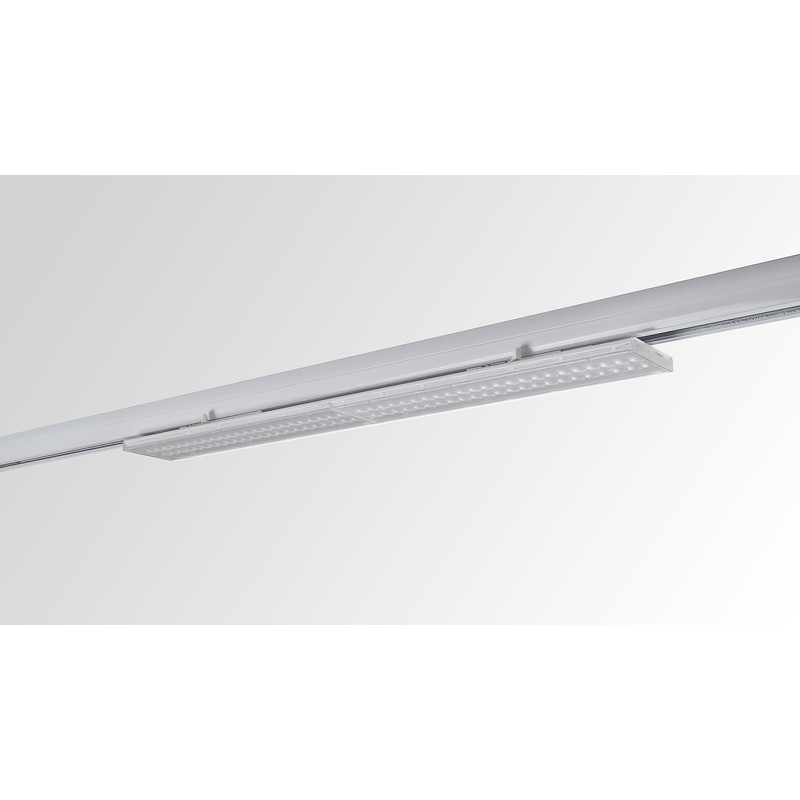

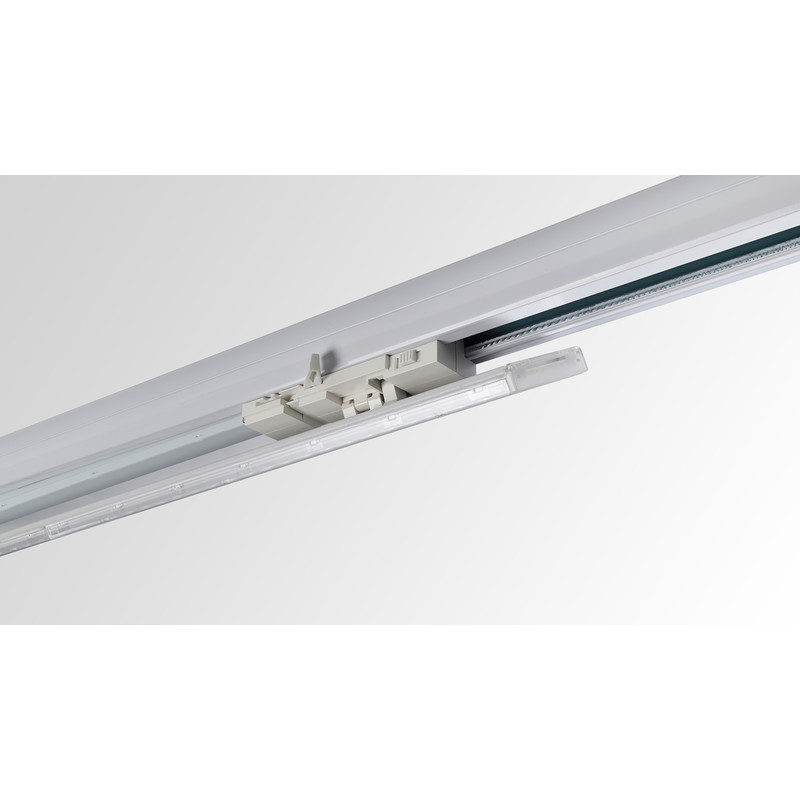

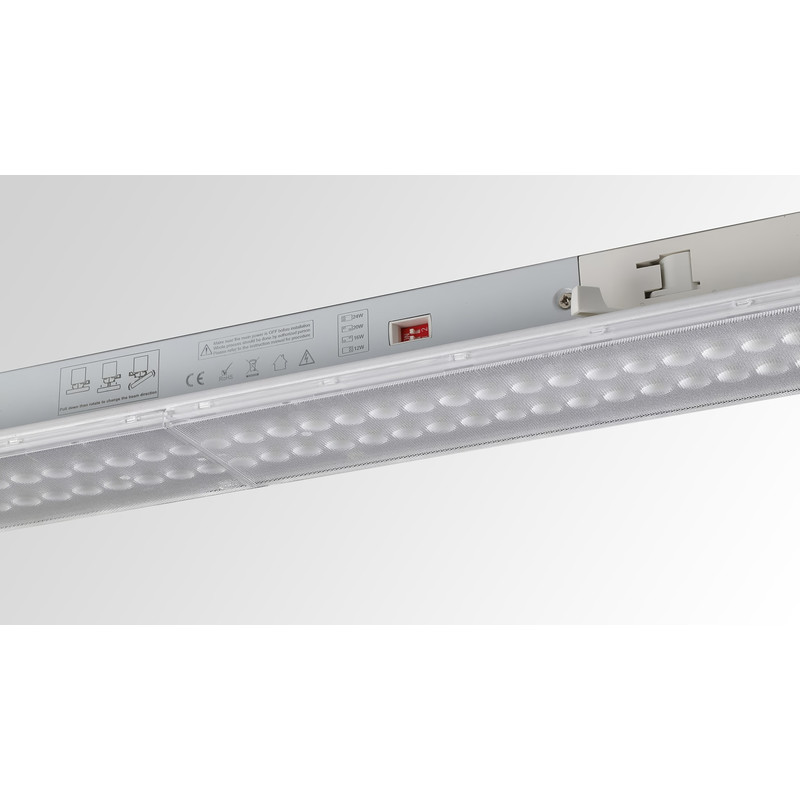

The AXIS is inserted into a 3-phase track to European standard (4-wire / 3-phase; also 3-wire / 1-phase) and slides freely along it. Use the DIP switches to select power and phase (L1/L2/L3) and the switch to set the light colour. The luminaire is then locked onto the track with the adapter knob; suspension is optionally possible. Installation and connection must be carried out only by a qualified electrician with the supply disconnected. The matching track is available separately.
Applications
Ideal for stores and supermarkets, showrooms, offices and circulation areas – as versatile general and product lighting in continuous lines of light.
