AXIS LED linear track light, 1.5 m, 3000/4000/5000 K, black, 66W

Item number: AXL1566WS-2

Category: Axis series

Power:: 55 Watt66 Watt+ 10,00 €

149,00 €

including 19% VAT., no shipping costs

From	Price per unit
2	144,90 €
10	139,90 €

Not available now!

Description

⚡ AXIS LED Linear Track Light · 1.5 m · 66 W · black housing

AXIS LED Linear Track Light 1.5 m 66 W – 10560 lm · 3CCT (3000/4000/5000 K) · 160 lm/W · 90° + 30° tiltable | black housing

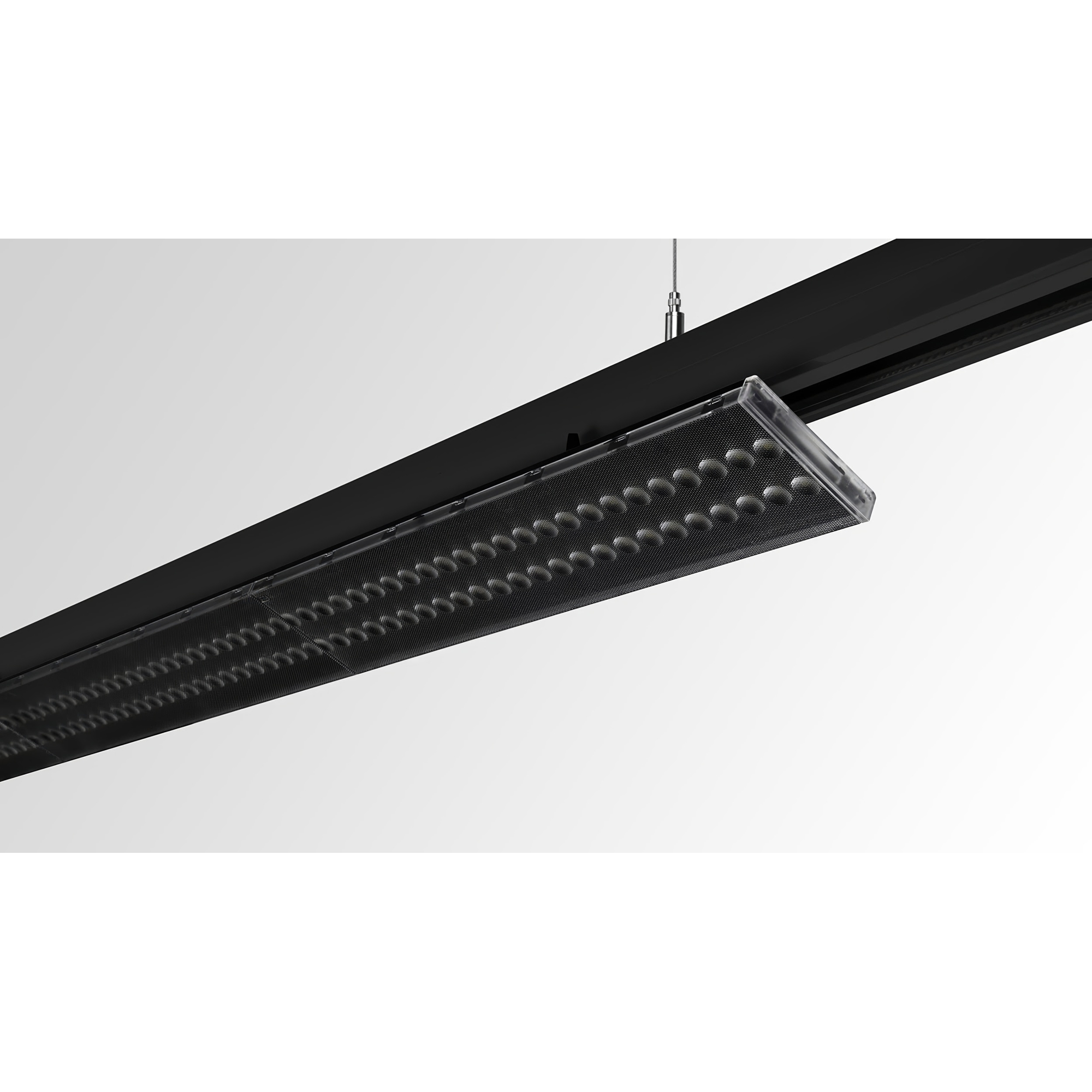

Architectural LED linear luminaire for 3-phase tracks – part of the modular AXIS system for retail, showrooms and offices. With switchable light colour (3000/4000/5000 K), DIP-selectable power and a high efficacy of 160 lm/W. Black aluminium housing, 90° wide and 30° tiltable, slides freely along the track.

1.5 m

LENGTH

66 W

POWER

160 lm/W

EFFICACY

3CCT

LIGHT COLOUR

3CCT and multi-power – maximum planning flexibility

The AXIS linear luminaire was developed for architects and lighting designers and ensures a consistent, high-quality appearance. A switch lets you select the light colour between 3000 K (warm white), 4000 K (neutral white) and 5000 K (daylight white); a DIP switch sets the power in fine steps. In this 66 W version it delivers 10560 lm at 160 lm/W. The long 1.5 m version delivers maximum luminous flux for large areas and continuous lines. The black aluminium housing sets elegant accents on dark ceilings.

Your benefits at a glance

3CCT switchable Light colour selectable via switch: 3000 K, 4000 K or 5000 K – one model for many applications.	Multi-power via DIP switch Power finely adjustable via DIP switch – flexible lighting design and simple stock-keeping.
High efficacy of 160 lm/W High luminous efficacy for low running costs and sustainable operation.	Slides along the track 3-phase adapter (L1/L2/L3) – the luminaire can be positioned freely on the track.
90° wide + 30° tiltable Wide, even 90° light distribution; each luminaire also tilts individually by ±15° left/right (30° range).	Aluminium housing in black Elegant black housing that sets refined accents on dark ceilings.

Optics & tilt

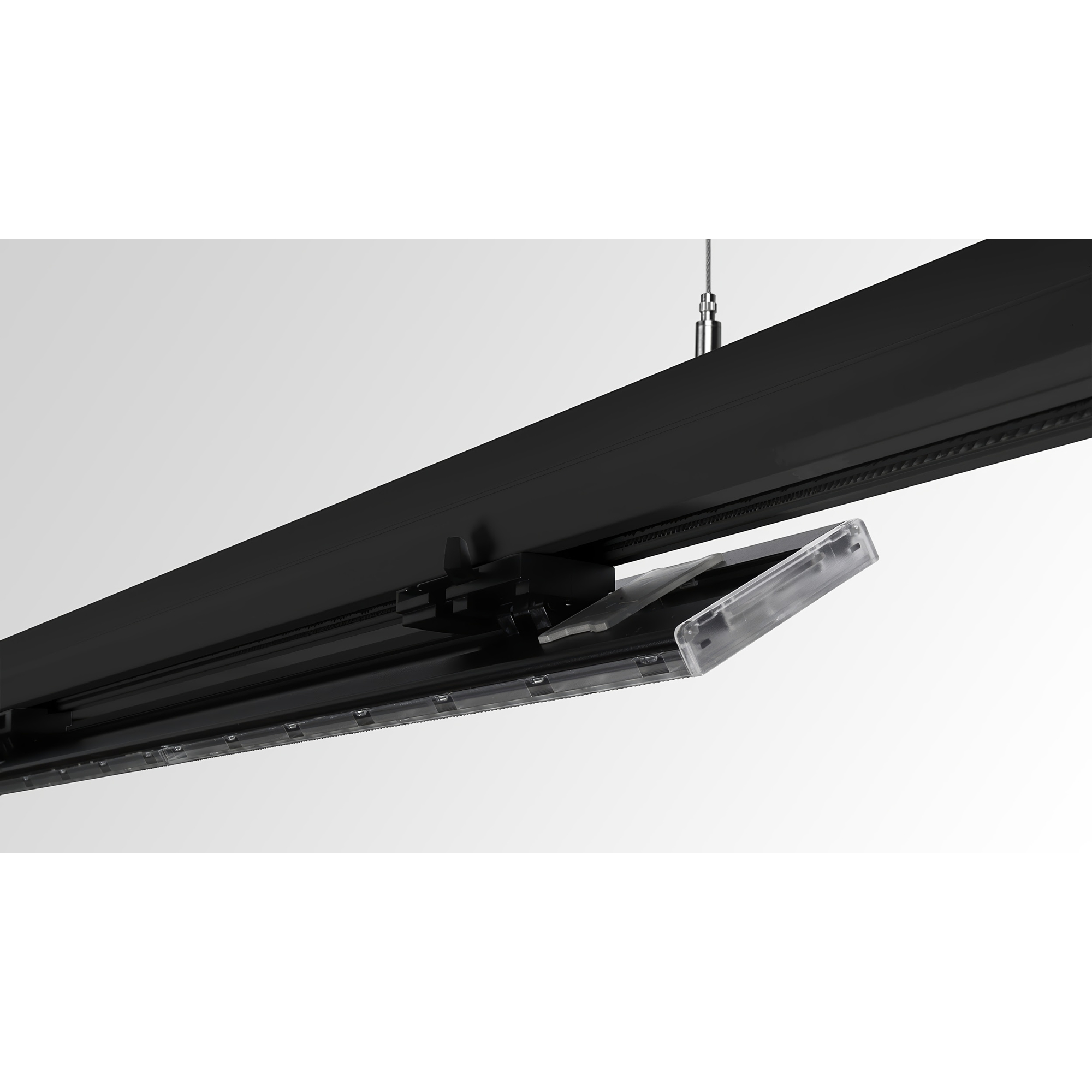

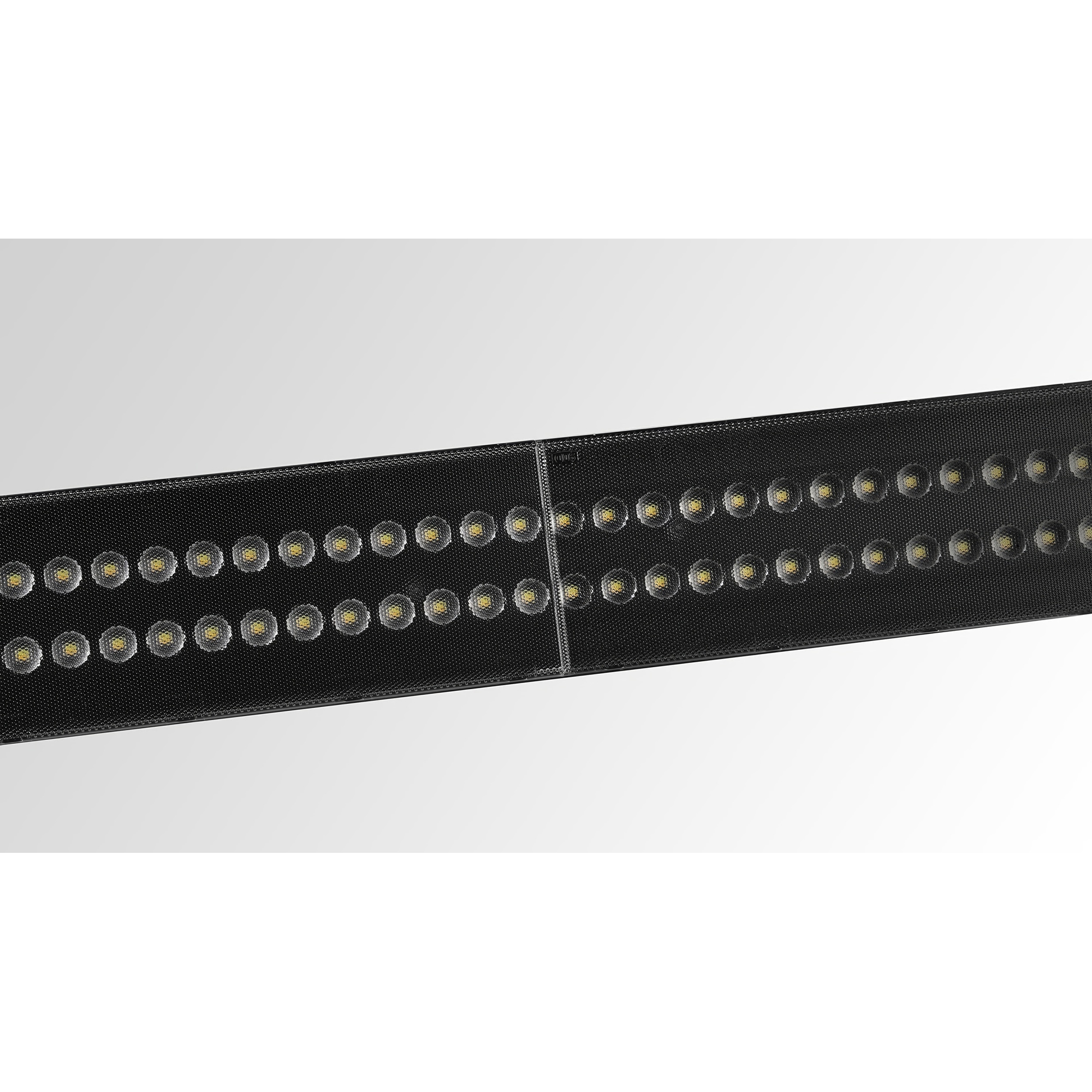

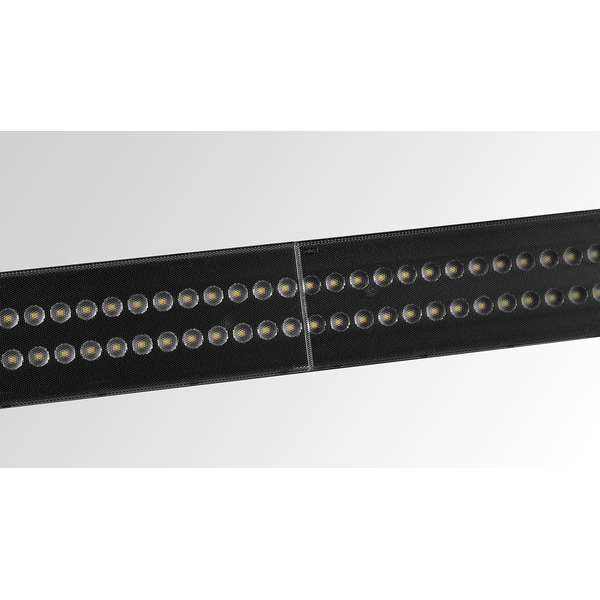

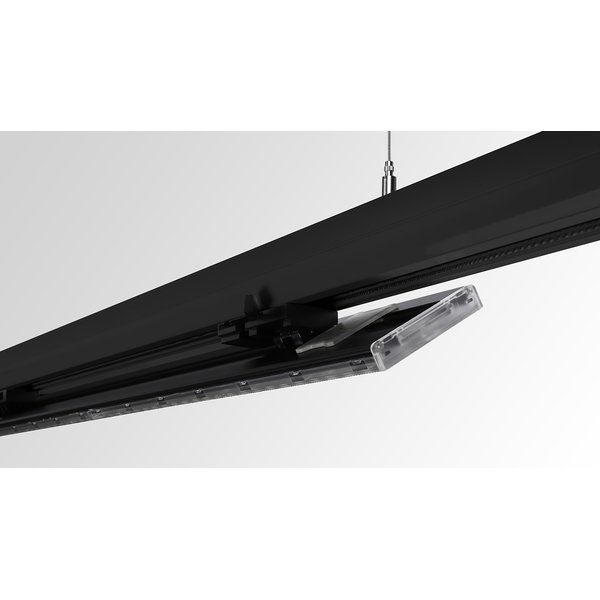

Each AXIS luminaire combines a wide 90° optic with an individually tiltable lens: the optical head tilts ±15° to the left or right (30° range). This lets you aim the light precisely at merchandise, walls or circulation areas – with a consistently even, wide light pattern.

Technical Data

Property	Value
Type	LED linear luminaire for 3-phase track
Power	66 W (via DIP: 51 / 56 / 61 / 66 W)
Luminous flux	10560 lm
Luminous efficacy	160 lm/W
Energy efficiency class	D (EU 2019/2015)
Light colour	3000 / 4000 / 5000 K (switchable, 3CCT)
Colour rendering (CRI)	> 80 (Ra)
Beam angle	90° (wide)
Tilt	±15° left/right (30° range)
Power factor	0.9
Dimmable	no
Protection rating	IP20
Dimensions (L × W × H)	1498 × 66 × 45 mm
Housing	Aluminium, black
Track	3-phase (European standard, 4-wire / 3-phase)
Mounting	slides along the track; suspension possible
Driver	output-selectable (multi-power)
Lifespan	L70B10 > 100,000 h
Certification	CE, RoHS

Mounting & connection

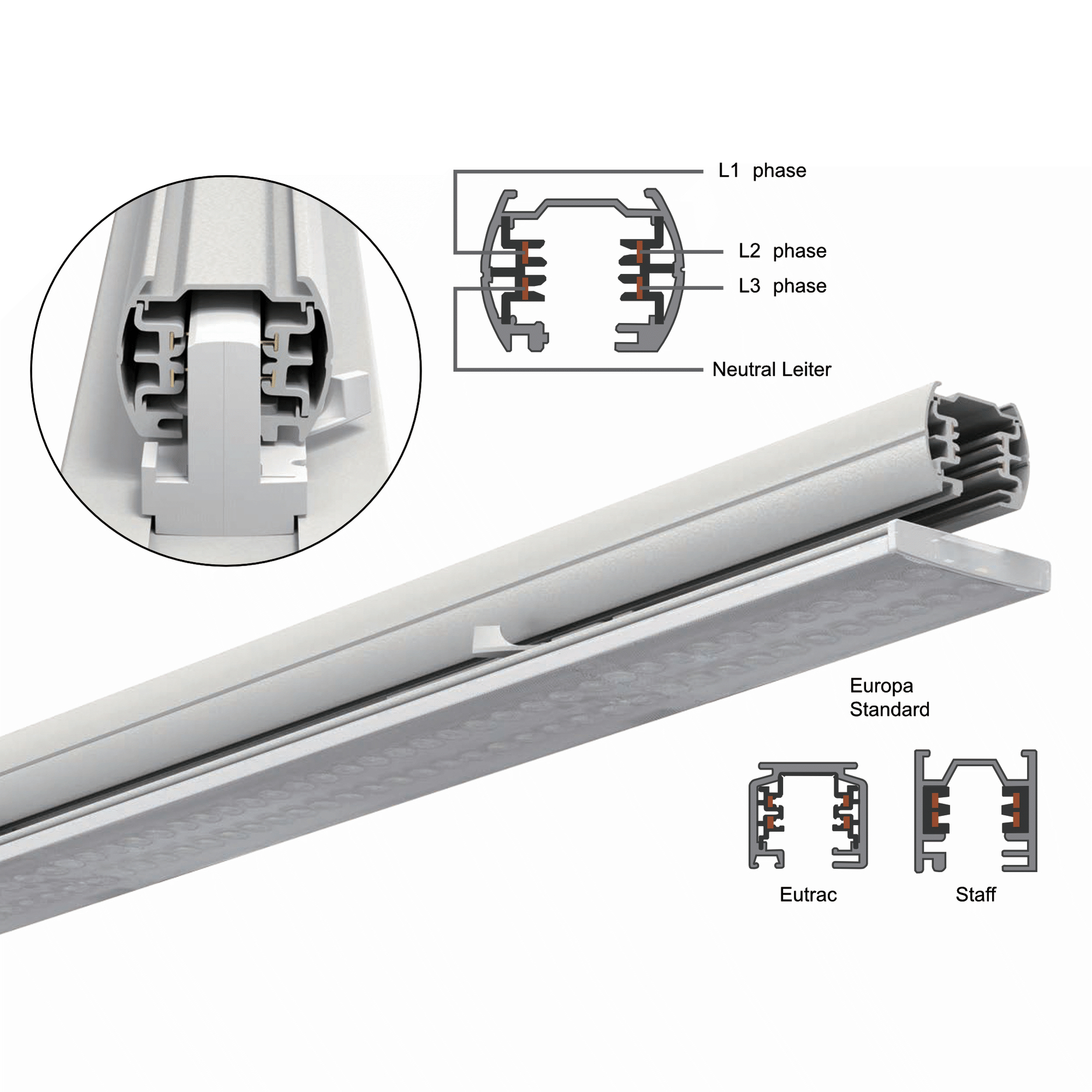

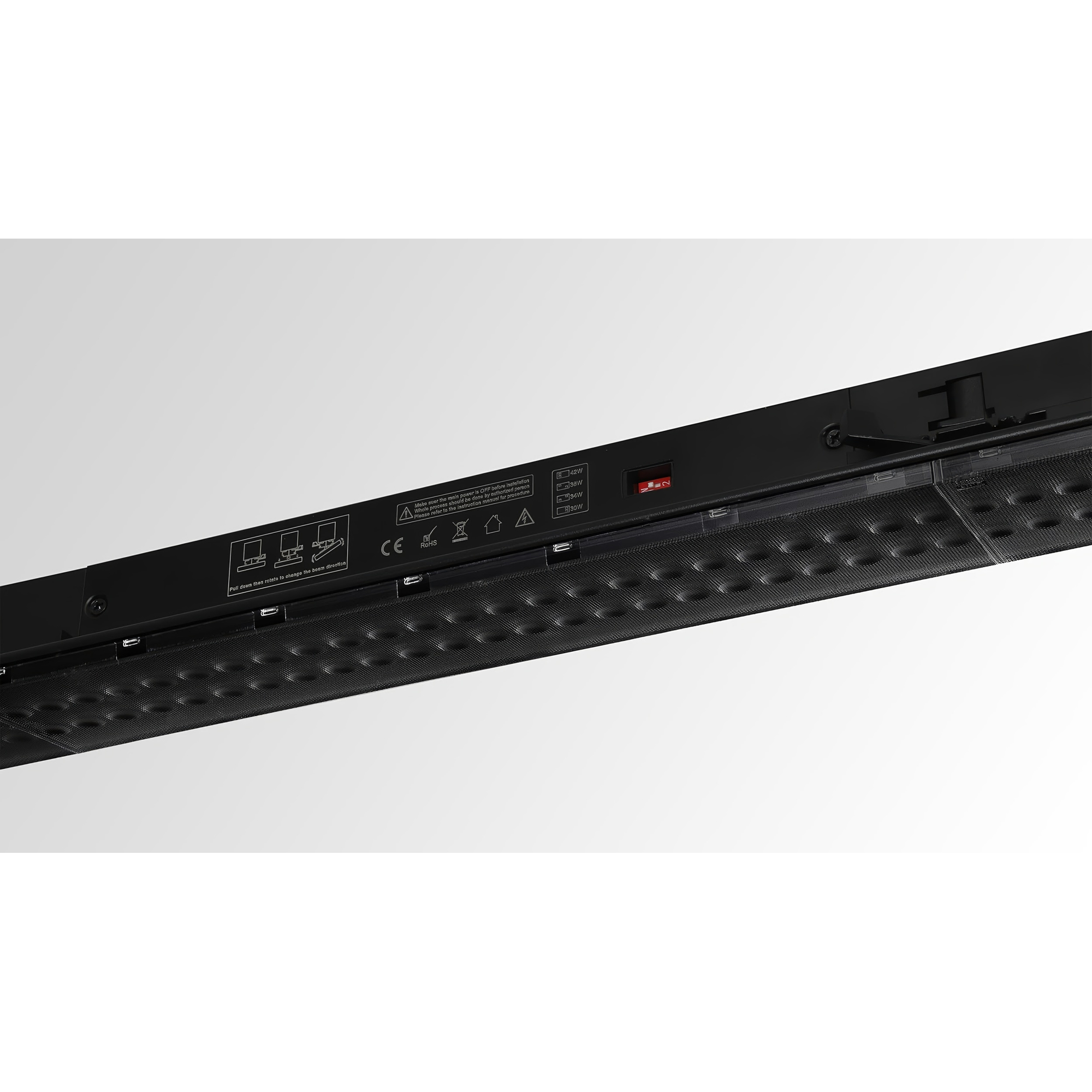

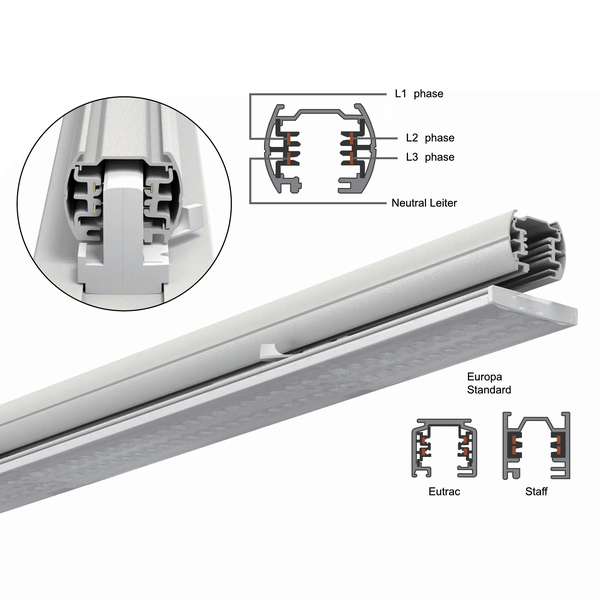

The AXIS is inserted into a 3-phase track to European standard (4-wire / 3-phase; also 3-wire / 1-phase) and slides freely along it. Use the DIP switches to select power and phase (L1/L2/L3) and the switch to set the light colour. The luminaire is then locked onto the track with the adapter knob; suspension is optionally possible. Installation and connection must be carried out only by a qualified electrician with the supply disconnected. The matching track is available separately.

Applications

Ideal for large sales areas, supermarkets, showrooms and halls that call for long, continuous and especially bright lines of light.

Scope of delivery: 1 × AXIS LED linear track light (1.5 m, 66 W, black) with integrated 3-phase adapter and output-selectable driver. Note: matching 3-phase track and suspension kit available separately.
