Extreme 3 LED Flood Light 100W IP66 - 3CCT & 3 Steps Lifud

Extreme 3 LED Floodlight 100W/75W/50W 180 lm/W 3000K/4000K/5000K

Item number: EX3100WC3

119,00 €

From	Price per unit
3	114,90 €

Available now!

Shipping time: 3 - 4 workdays

Description

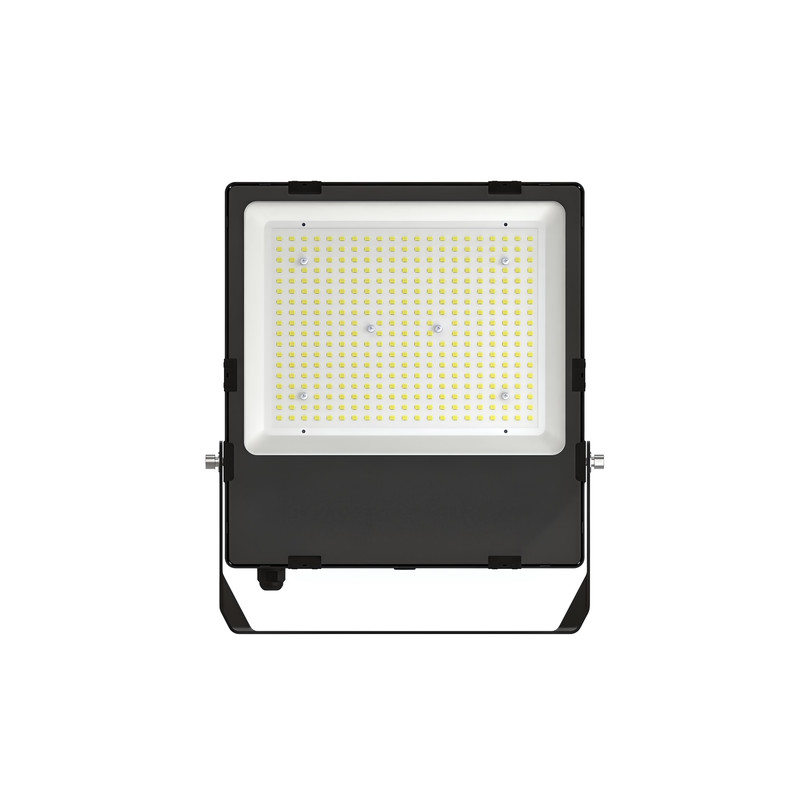

Extreme 3 LED Flood Light 100 W – 3 Colour Temperatures & 3 Power Levels via Switch

The Extreme 3 LED flood light 100 W combines modern LED technology with maximum flexibility: 3 colour temperatures (3000 K / 4000 K / 5000 K) and 3 power levels (100 W / 75 W / 50 W) are selectable directly on the device via switch. With 18,000 lm, 180 lm/W, IP66, IK08 and a Lifud driver, a versatile professional flood light for outdoor applications.

100 W

max. Power

18,000 lm

Luminous Flux

180 lm/W

Efficacy

3 CCT

via switch

IP66 / IK08

Protection

Class C

Energy Efficiency

One Flood Light – Many Applications

The Extreme 3 flood light is the solution for installers and planners who need a flexible standard unit for a wide variety of applications. Instead of stocking three different models, this single flood light covers most use cases thanks to switch-selectable power and colour temperature. Delivery in standard mode 100 W at 100 % – the setting can be changed any time directly on the device.

Adjustable Power & Colour Temperature

Switchable

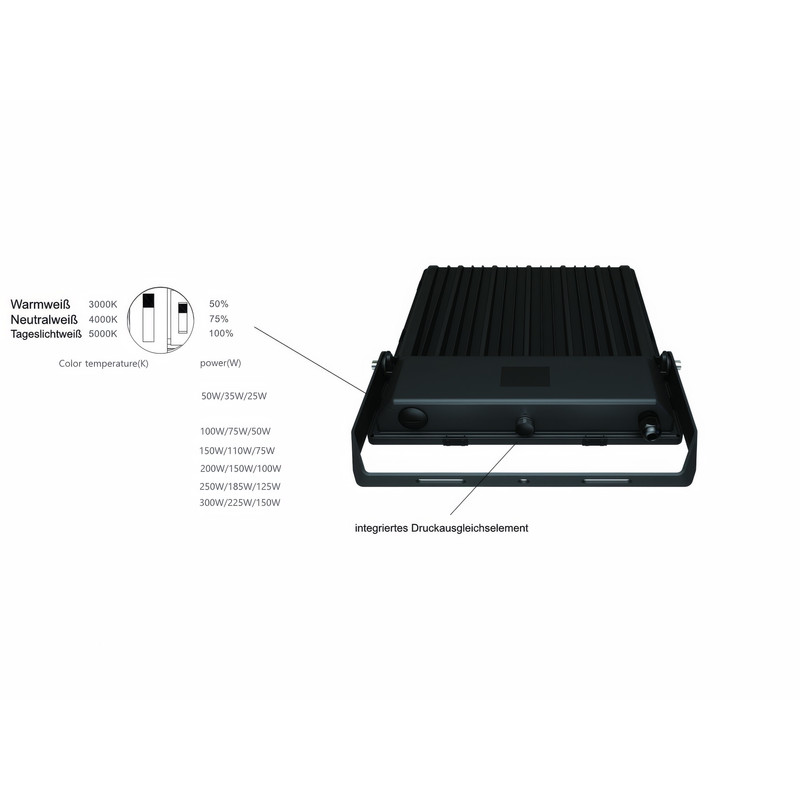

Small switches on the device allow setting the power level (50 % / 75 % / 100 %) and the colour temperature (3000 K / 4000 K / 5000 K). Delivery is in the standard configuration 100 % power (100 W).

Power Level	Consumption	Luminous Flux	Recommendation
100 % (Standard)	100 W	18,000 lm	Full power – maximum brightness
75 %	75 W	13,500 lm	Medium brightness – reduced energy cost
50 %	50 W	9,000 lm	Low brightness – night mode, ambient lighting

Colour Temperature	Character & Application
3000 K Warm White	Warm, welcoming light – facades, restaurant exteriors, hotels, residential buildings
4000 K Neutral White	Universal colour temperature – parking lots, yard lighting, workshops, general outdoor
5000 K Daylight White	Powerful, functional light – industry, logistics, construction yards, security lighting

Your Benefits

Why This Extreme 3 LED Flood Light Is the Right Choice

3-in-1: Switchable Power

One flood light replaces three power variants (100 W / 75 W / 50 W) – ideal for inventory management, late-stage brightness matching and subsequent optimisation of energy consumption.

3 Colour Temperatures in One Unit

3000 K / 4000 K / 5000 K selectable directly via switch – one model replaces three CCT stock variants and significantly simplifies logistics and ordering. As a customer, you simply choose your preferred light colour at installation – and can change the colour temperature any time later via switch, without having to replace the flood light.

Premium Lifud Driver

Brand-name driver from Lifud with integrated switch function, power factor > 0.95 and comprehensive protection functions – significantly more durable than no-name drivers.

180 lm/W Top Efficacy

At 180 lm/W, the flood light ranks among the most efficient on the market – energy efficiency class C per EU 2019/2020, significantly better than typical 80–140 lm/W LED flood lights.

IP66 & IK08 Protection

Complete dust protection, protection against powerful water jets, plus high mechanical impact protection IK08 – ideal for harsh outdoor conditions and areas with vandalism risk.

Premium Aluminium Housing

Robust aluminium housing in black with toughened glass – weather-resistant, corrosion-resistant and with excellent heat dissipation through cooling fins.

Applications

Ideal for smaller parking lots, workshops, storage yards, facades

With 18,000 lm at 100 W, the Extreme 3 is particularly suited to medium and large outdoor areas. Through the combination of three power levels and three colour temperatures, it covers a broad spectrum of applications:

Billboards, advertising panels and illuminated signs
Streets, paths and bridge structures
Sports and tennis courts, equestrian facilities, club houses
Public squares, town hall forecourts, market areas
Tunnels and underpasses
Construction sites, builder’s yards and storage areas
Facades, office buildings, hotels and commercial outdoor areas
Private properties, garage driveways, gardens

Specifications

Specifications of the Extreme 3 LED Flood Light

Property	Value
Product type	LED Flood Light

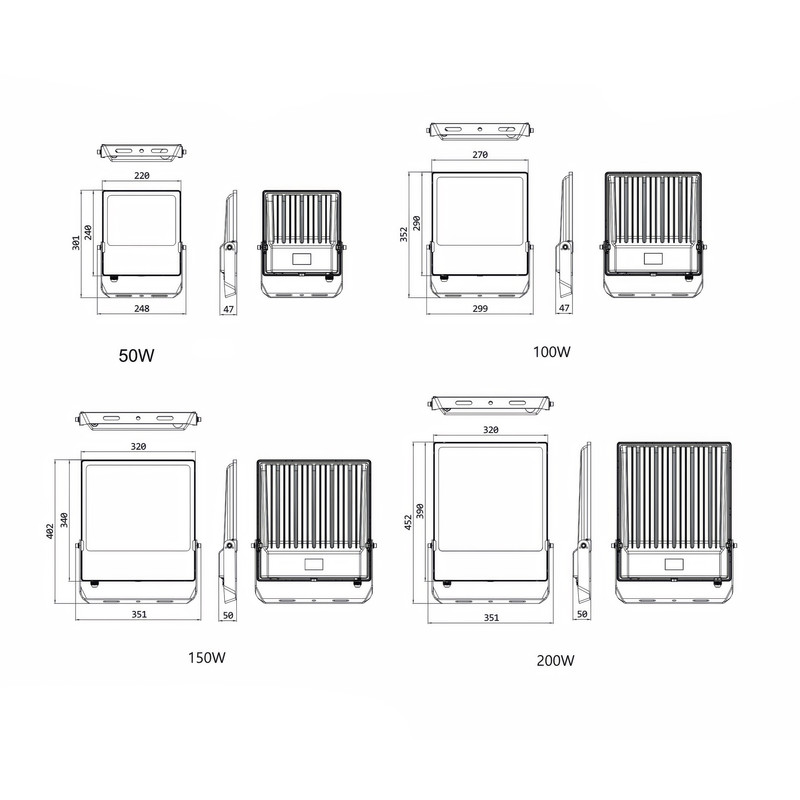

Dimensions	352 × 299 × 47 mm
Housing	Aluminium & toughened glass, black
Weight	2.4 kg
Power (switchable)	100 W (100 %) · 75 W (75 %) · 50 W (50 %)
Initial setting	100 % (100 W) ex factory
Luminous flux	18,000 lm / 13,500 lm / 9,000 lm (±5 %)
Luminous efficacy	180 lm/W
Energy efficiency class	C (EU 2019/2020)
Colour temperature (switchable)	3000 K · 4000 K · 5000 K (via switch)
Beam angle	120°
Colour rendering	CRI / Ra ≥ 80
Protection rating	IP66 · IK08
LED type	SMD 2835
Driver	Lifud constant-current driver, PF > 0.95
Operating voltage	AC 100–240 V, 50/60 Hz
Operating temperature	-40 °C to +50 °C
Humidity	10 % to 90 %
Certificates	CE · RoHS

Installation

Quick Installation with Adjustable Bracket

The flood light is supplied with a sturdy, adjustable mounting bracket. Installation is done in three steps:

Step 1

Fix the mounting bracket to wall or pole with the included screws.

Step 2

Connect the power cable to the 230 V mains supply (by qualified electrician).

Step 3

Align the flood light body to the desired target area and tighten.

Electrical installation must only be performed by a qualified electrician.

FAQ

Frequently Asked Questions About the Extreme 3 Flood Light

How does the 50 % / 75 % / 100 % power switching work?

A small switch with three positions is located on the Lifud driver inside the housing. Via switch position you select between 100 W (100 %), 75 W (75 %) and 50 W (50 %). Delivery is in the standard 100 % mode. The setting can be changed any time without disassembling the flood light – ideal for subsequent adjustments to brightness or energy costs.

How do I change the colour temperature?

A second switch allows selection of the colour temperature: 3000 K Warm White, 4000 K Neutral White or 5000 K Daylight White. The change is made simply on the device, without tools and without opening the flood light.

What area can I illuminate with 100 W?

At a typical mounting height and 120° beam angle, the 100 W flood light covers approximately 100?150 m² at a good general illuminance of around 100–150 lux. At reduced power (75 % / 50 %), correspondingly less area or fewer lux.

What does IK08 mean?

IK08 denotes the impact resistance of the housing against mechanical impact. IK08 corresponds to an impact energy of 5 joules (drop height of a 1.7 kg ball from 30 cm) – ideal for vandalism-prone areas such as public squares, tunnels and schoolyards.

Does this flood light have a motion sensor?

No – this variant is designed without an integrated motion or twilight sensor. For applications with motion control we recommend external connection to a separate PIR or microwave sensor.

Is the flood light dimmable?

The switches enable step-dimming in three steps (50 % / 75 % / 100 %). Continuous dimming (1–10 V / DALI) is not possible with this variant.

Package Contents

1× Extreme 3 LED Flood Light 100 W (aluminium housing, black) with integrated Lifud driver · Adjustable mounting bracket · Power cable · Installation guide
Note: Delivery in standard setting 100 % power (100 W). Colour temperature and power can be changed any time via switch on the device. Electrical installation must only be performed by a qualified electrician.
