Description
Infrared Motion Sensor 180° – Intelligent Light Control for Outdoors
Enhance the safety and convenience around your home. Our Infrared Motion Sensor for surface wall mounting provides precise detection of people and animals. Thanks to modern PIR technology, your lights turn on exactly when needed – perfect for pathways, driveways, or entrance areas.
Precision in Every Angle
The sensor head is both tiltable and swivelable, allowing you to customize the detection area to your specific requirements. With a wide 180° angle and a range of up to 12 meters, this motion detector captures all activity – even in difficult lighting conditions during twilight.
Your Advantages at a Glance:
- High Range: Reliable detection up to a distance of 12 meters.
- All-Weather Protection: IP44 certification – optimally protected against splashes and weather.

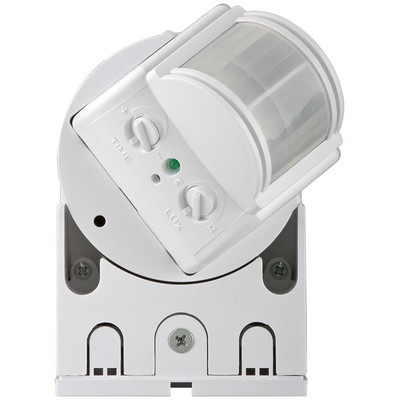

- Individual Settings: Light duration (10 sec. to 7 min.) and light sensitivity infinitely adjustable.
- Easy Installation: Designed for quick surface wall mounting in outdoor areas.
- Flexible Sensor: Swivel and tilt unit for optimal alignment in every corner.
Technical Flexibility & Security
Whether in bright sunshine or total darkness – the integrated twilight switch lets you decide at which light intensity the sensor should react. The robust construction in elegant white blends discreetly into any facade.
Technical Specifications at a Glance
| Feature | Technical Details |
|---|---|
| Sensor Type | Passive Infrared (PIR) |
| Operating Voltage | 230V (AC) |
| Switching Capacity (LED) | Max. 300W (Min. load 1W) |
| Detection Angle | 180° |
| Detection Range | Max. 12m |
| Switch-off Delay | 10 sec. to 420 sec. (adjustable) |
| Light Sensitivity | 3 Lux to 2000 Lux (adjustable) |
| Protection Class | IP44 (Splash-proof) |
| Color | White |
Application Areas
This robust PIR detector is the ideal solution for automated lighting in the following areas:
- Outdoor Areas: House walls, garages, carports, and garden paths.
- Security: Deterrence of uninvited guests through immediate light activation.
- Comfort: Automatic light in the entrance area when arriving home.
