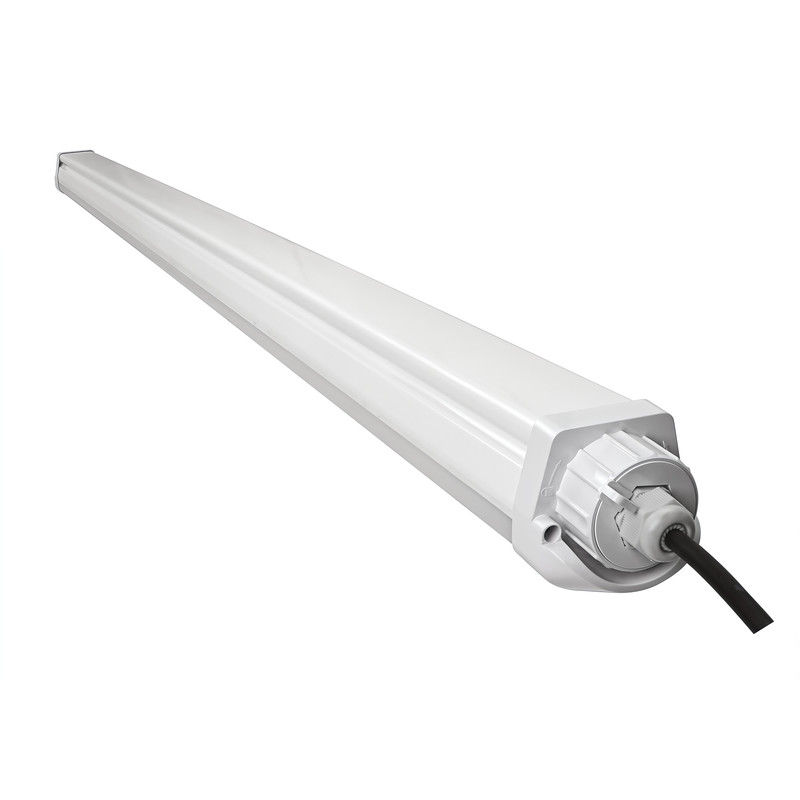

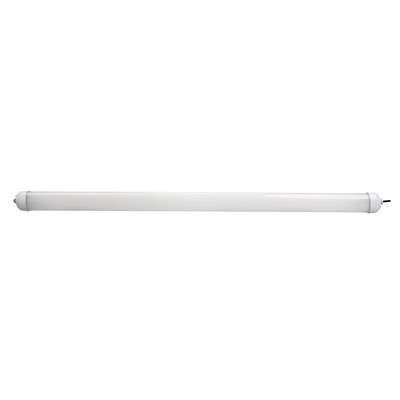

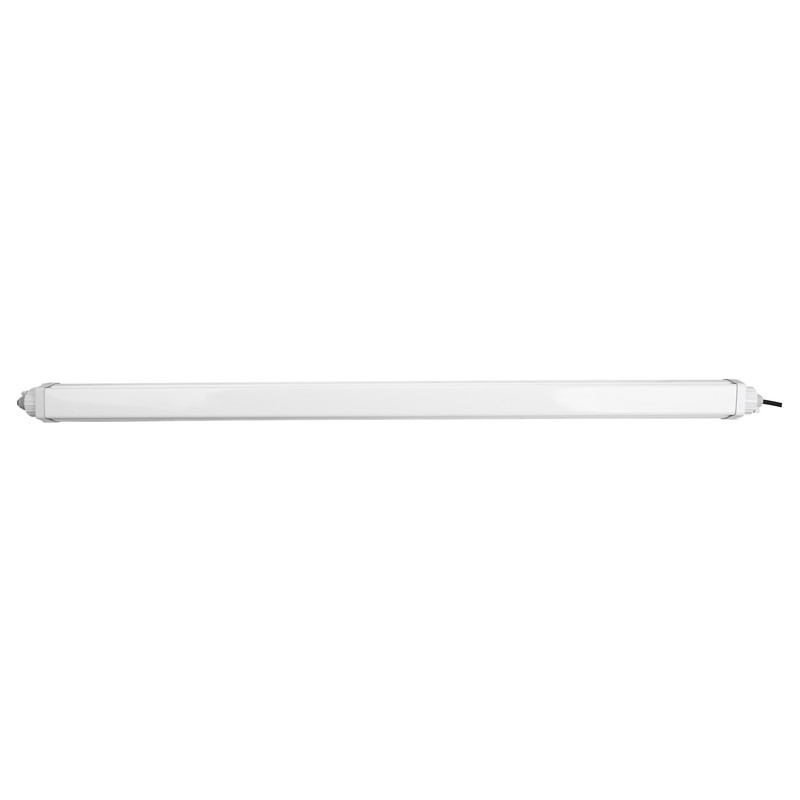

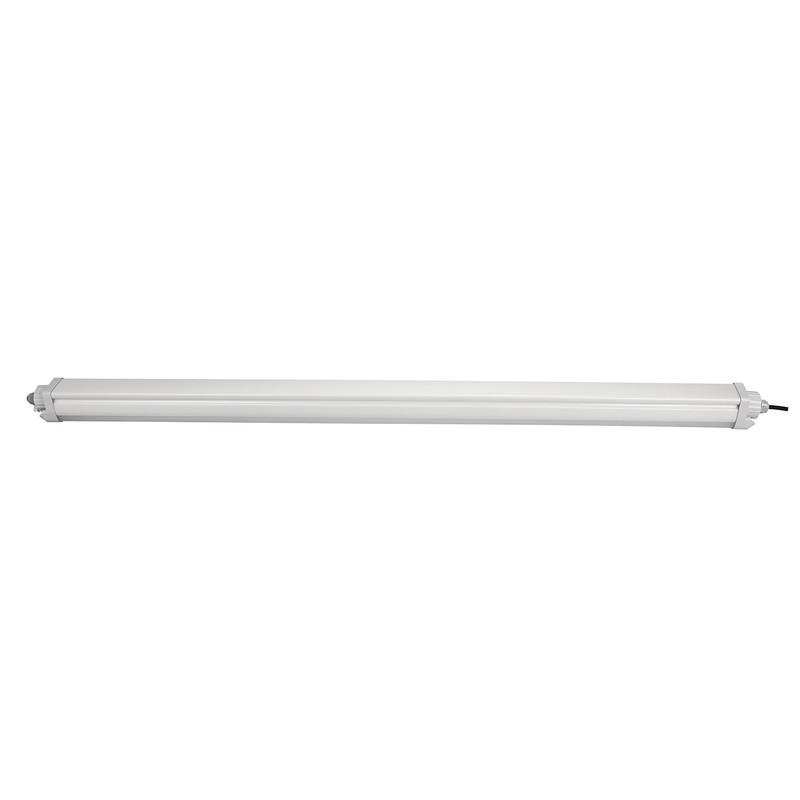

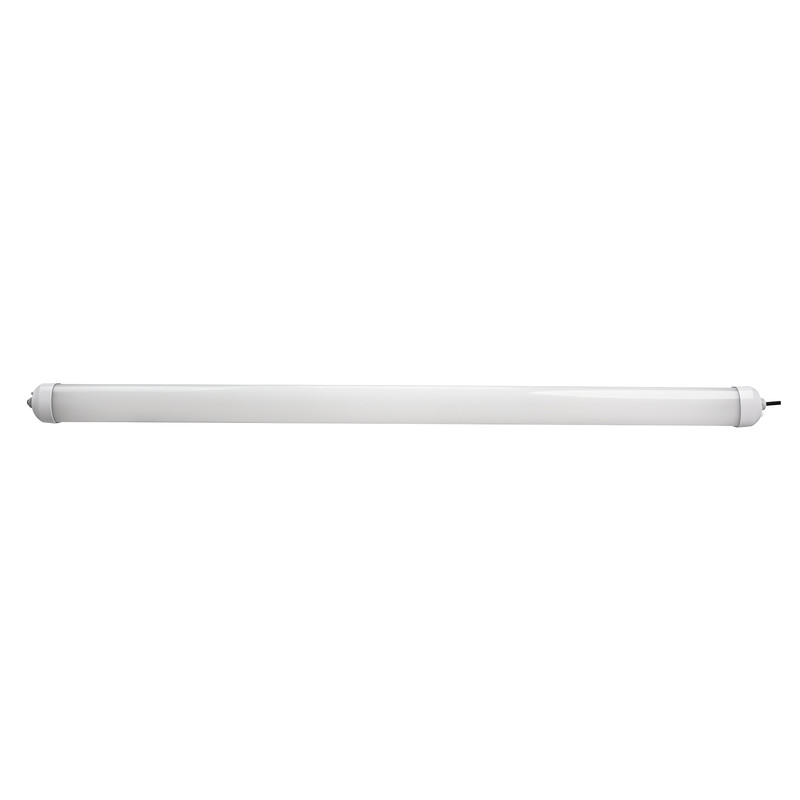

LED Damp-proof Light TR3 Series 120cm ? 6,120 lm, 3000K, Linkable
Description
Professional LED Damp-Proof Light 3000K | 120cm | 36W – 6,120lm | IP65 & IK08 Pro Quality
Maximum luminosity meets uncompromising robustness: Our 120 cm LED Tri-Proof light is the high-efficiency solution for demanding lighting conditions in trade, industry, and households. With a luminous efficacy of an impressive 170 lm/W and a light output of 6,120 lumens, this luminaire replaces classic, power-hungry fluorescent tubes while saving up to 90% in energy costs.
Why this luminaire is the right choice: Whether used as basement lighting, a workshop lamp, or in industrial facilities – thanks to the IP65 protection rating, the system is completely dust-tight and protected against water jets. The housing, made of high-impact polycarbonate (IK08), withstands mechanical stress, making it the ideal partner for harsh environments.
Your Advantages in Installation and Operation
- Pro-Grade vs. Retail Standard: While many budget damp-proof lights also consume 36W, they often only deliver 2,800 to 3,600 lumens. Our luminaire provides high-efficiency 170 lm/W at the LED level, delivering 6,120 lumens of true system performance (Energy Class C).

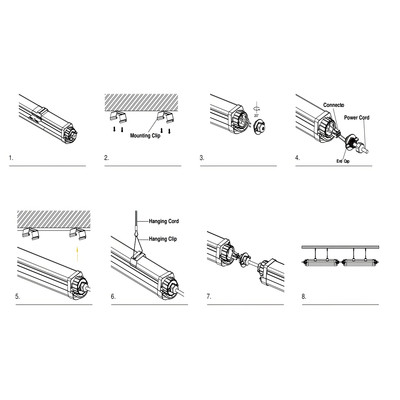

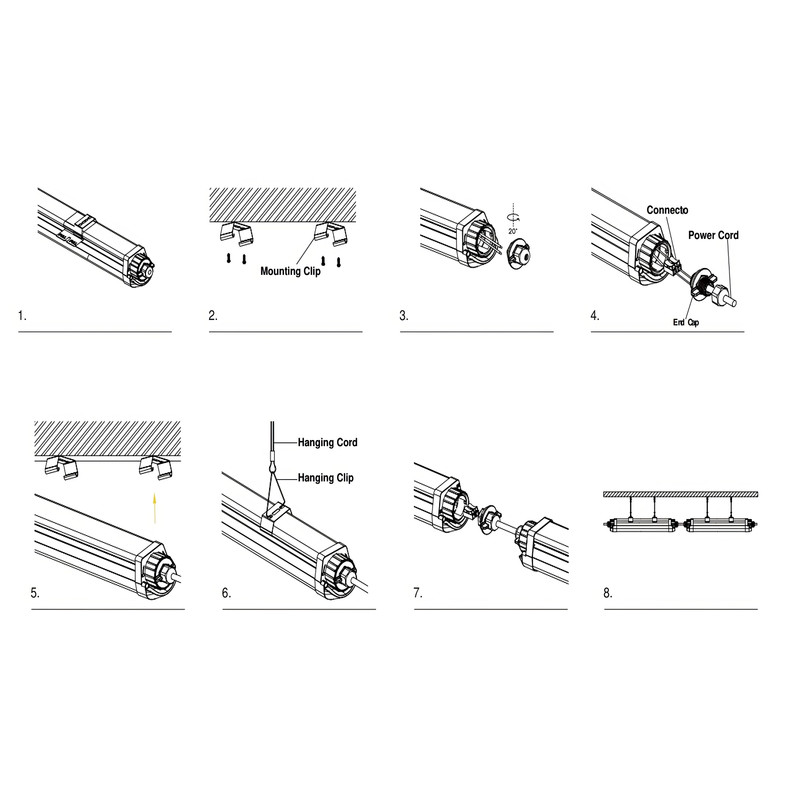

- Quick Mounting System: Installation is completed in record time thanks to the Fast Connector and tool-free twist lock.
- Series Connection: The integrated 3-pin through-wiring allows up to 18 luminaires to be linked in series effortlessly.
- Fatigue-Free Work: The flicker-free light is gentle on the eyes during long working hours.
- Color Fidelity: With a CRI > 80, colors appear natural – essential for workshops and precision painting tasks.
- Flexibility: Sliding stainless steel mounting brackets allow the use of existing drill holes – ideal for "old-to-new" replacements.
- Power Factor 0.95: Cheap power supplies often have a PF of < 0.5. For commercial businesses, this means high costs due to reactive power. Our integrated driver works highly efficiently, saving additional energy.
- Longevity: With a lifespan of 50,000 hours and over 200,000 switching cycles, this luminaire is virtually maintenance-free.
Technical Specifications at a Glance
| Specification | Technical Details |
|---|---|
| Power Consumption | 36 Watts (Energy Class C - new scale) |
| Luminous Flux (Brightness) | 6,120 Lumens |
| Luminous Efficacy | 170 lm/W |
| Color Temperature | 3000 Kelvin (Warm White) |
| Protection / Impact Rating | IP65 (Dust & Waterproof) / IK08 |
| Color Rendering Index | Ra > 80 (Natural Colors) |
| Beam Angle | 120° (Wide Beam) |
| Connection Type | Integrated Fast Connector (3-pin, 1.5mm²) |
| Max. Series Connection | Up to 18 units |

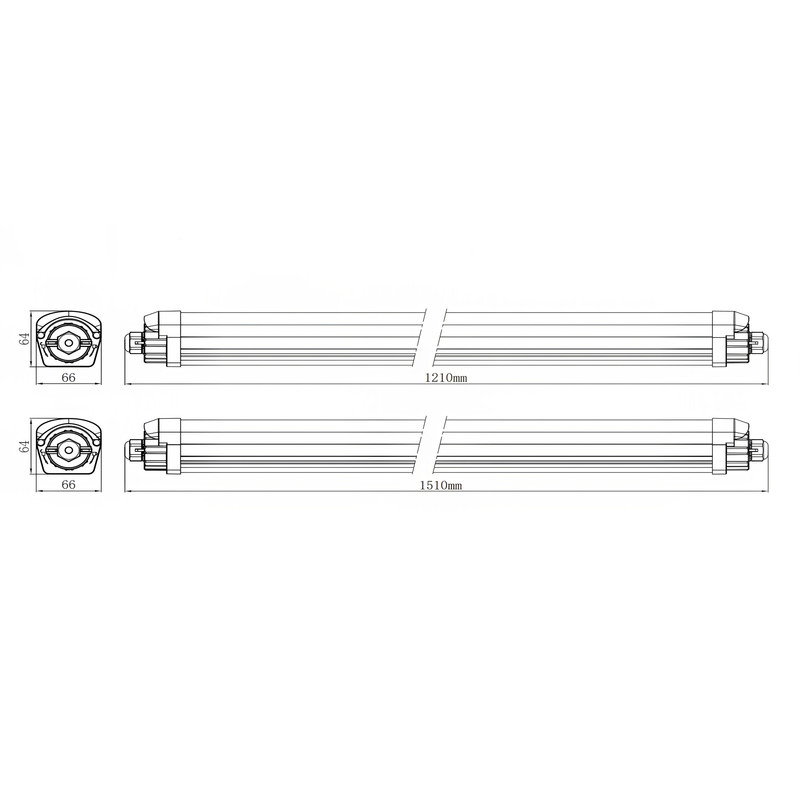

| Dimensions / Weight | 1210 x 66 x 64 mm / approx. 700 g |
| Temperature Range | -25°C to +55°C |
| Special Features | Flicker-free, UV-resistant, Linkable (through-wired) |
Applications
- Trade & Industry: Workshops, warehouses, production sites, and machinery lighting.
- Home & Garden: Basements, garages, carports, attics, and laundry rooms.
- Public Spaces: Parking decks, underground garages (acc. to DIN 67528), and covered outdoor areas.
- Food Industry: Shatterproof construction makes it suitable for IFS-certified areas.
Light Color Details
- 3000K (Warm White): Creates a cozy, inviting, and relaxed atmosphere. Ideal for areas where a welcoming mood is key.
- 4000K (Neutral White): The "gold standard" for productive work environments. Activating light, ideal for production halls and warehouses.
- 6000K (Cold White): Optimized for environments requiring maximum concentration and high contrast (factories, sports halls).
