Description
LED Downlight 3 W dimmable – 3×1 W LED · 60° · 2700/4000/6000 K · Ra>80 · IP40
The compact 3 W LED downlight sets subtle light accents and is ideal for display cases, niches, hallways and small rooms. With up to 240 lm from three 1 W LEDs, a 60° beam angle and high colour rendering (Ra > 80), it replaces classic halogen spots while saving energy. This version is dimmable and can be smoothly adjusted via a compatible 230 V trailing-edge dimmer. Available in three light colours (2700 K, 4000 K, 6000 K) – choose when ordering.
3 W POWER | 240 LUMEN | 60° BEAM ANGLE | Ra > 80 COLOUR RENDERING |

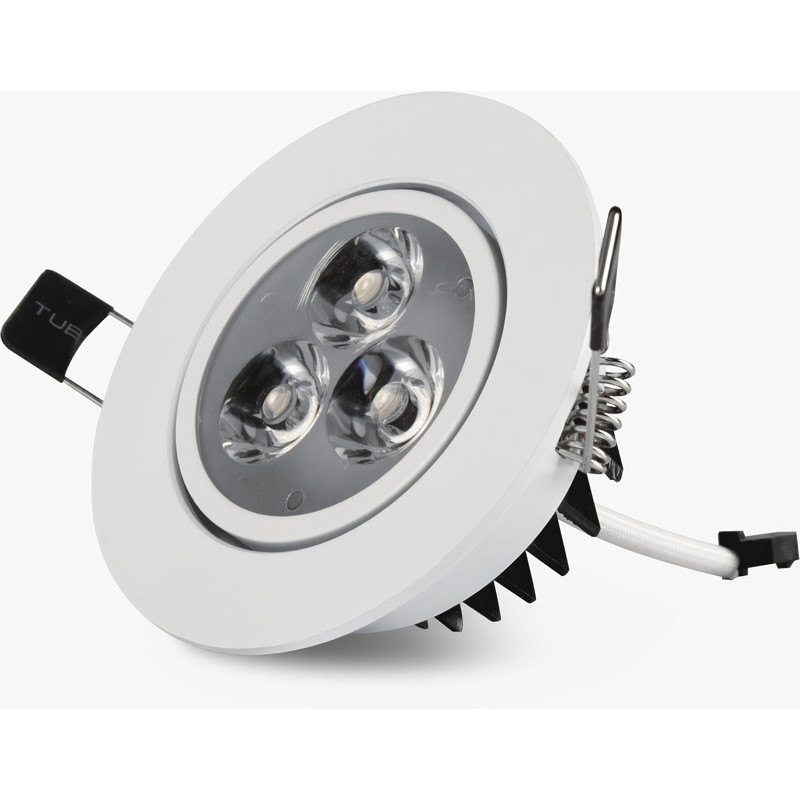

Premium aluminium body with glass cover
The body of precisely lathe-cut aluminium-magnesium, together with the tempered glass cover, provides a premium, elegant look and good heat dissipation. Three 1 W high-power LEDs deliver clear, even light with high colour rendering (Ra > 80). The energy-saving downlight replaces conventional halogen and fluorescent lamps and is designed for dry indoor use (IP40).
Your Benefits at a Glance
Clear, bright light Up to 240 lm from 3 W at a 60° beam angle. |
High colour rendering Ra > 80 – natural, brilliant colours. |
60° beam angle Wide, even light without hard edges. |
Dimmable Smoothly dimmable via a compatible 230 V trailing-edge dimmer. |
3 light colours Warm white (2700 K), neutral white (4000 K) and cool white (6000 K). |
Economical halogen replacement Far lower power use with a long lifespan. |
Choose Your Light Colour
Selectable when ordering – one light colour per downlight.
| 2700 K warm white – cosy, warm light for living spaces & hospitality | |
| 4000 K neutral white – clear, functional light for kitchen, bath & work areas | |
| 6000 K cool white – cool, bright light for shops, technical & utility rooms |
Specifications
| Property | Value |
| Power | 3 W |
| Input voltage | AC 100–240 V, 50/60 Hz |
| Luminous flux | 240 lm |
| Energy efficiency class | G (EU 2019/2015) |
| Light colour | 2700 / 4000 / 6000 K (depending on variant) |
| Colour rendering (CRI) | Ra > 80 |
| Beam angle | 60° |
| LED type | high-power LED (3 × 1 W) |
| Dimming | dimmable (trailing edge) |
| Power factor | ≥ 0.8 |
| Max. current | 0.04 A |
| Protection rating | IP40 |
| Housing | aluminium-magnesium, tempered glass |
| Outer diameter | Ø 85 mm |
| Recessed depth | 40 mm |
| Cut-out | 70 mm |
| Weight | 0.15 kg |
| Certification | CE, RoHS |
Installation & Wiring
The downlight is fitted into a 70 mm ceiling cut-out: compress the spring clips, push the light into the opening and let it click into place. Connection is to 230 V. For this dimmable version, connection is made via a compatible trailing-edge dimmer. Installation only by a qualified electrician with the power switched off; for dry indoor use (IP40).
Applications
The 3 W downlight is ideal for accent and effect lighting: display cases, shelves, niches, hallways, stairs and small rooms. With its compact build-in size and 60° beam angle it sets targeted points of light without glare. As an economical halogen replacement it cuts energy costs and impresses with high colour rendering – suited to hotels, shops, museums and living spaces.
