Description
40 W LED post top lantern in classic design
Atmospheric post top lantern with 5,600 lm, 4000 K and Sosen driver – rugged IP65/IK08 for pathways, parks and driveways. Fits Ø 80 mm poles.

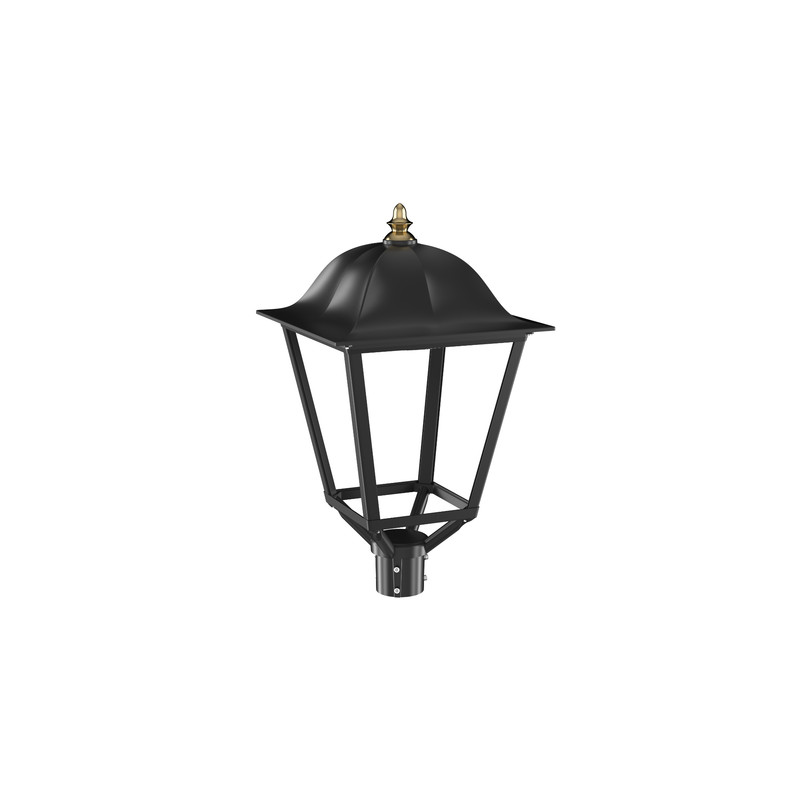

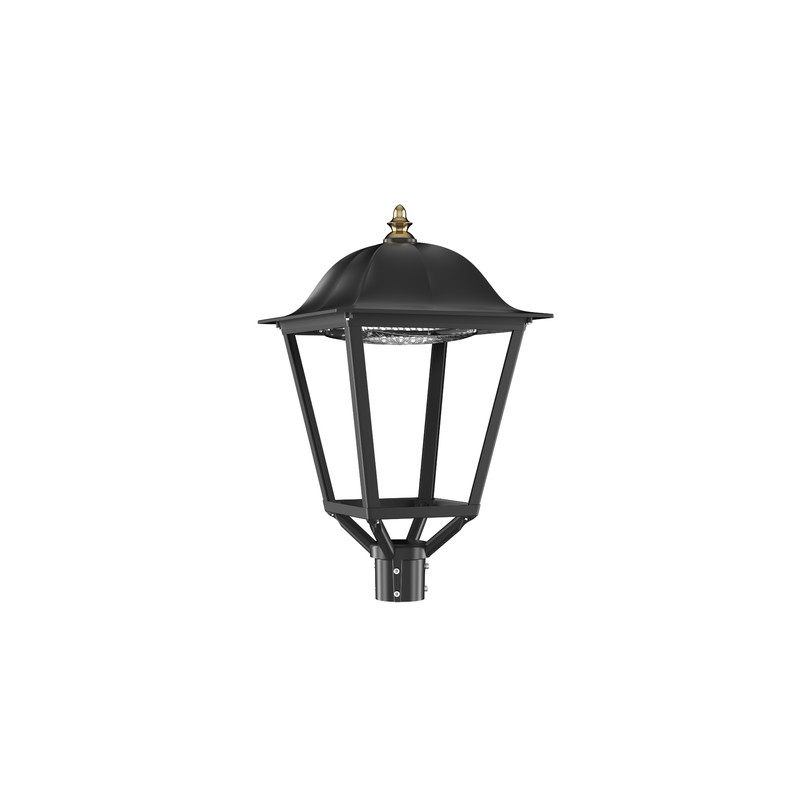

LED post top light in lantern design
This decorative LED post top light in a classic lantern style is for mounting on poles (Ø 80 mm). It combines a timeless die-cast aluminium (ADC12) design with modern LED technology: 40 W power, 5,600 lm luminous flux and a neutral-white 4000 K colour provide bright, pleasant illumination of pathways, parks, driveways and residential streets. The integrated Sosen driver and IP65 rating make the luminaire durable and weatherproof.
Features & quality
- Rugged housing – Die-cast aluminium (ADC12) with PC cover, RAL 9004 finish – corrosion-resistant and low-maintenance.
- Long service life – L70B10 over 108,000 h (per TM-21/LM-80).
- High colour consistency – Tight binning with MacAdam ellipse up to 5 steps.
- Low upward light – Upward Light Ratio (ULR) only 0.00–0.35% – minimal light pollution.
- Wide temperature range – Operation from −40 to +45 °C, protection Class I.
- Non-dimmable (fixed output) – This version runs at constant output – ideal for continuous lighting without control effort.
Technical data
| Power | 40 W |
| Luminous flux | 5,600 lm |
| Efficacy | 140 lm/W |
| Colour temperature (CCT) | 4000 K (neutral white) |
| Colour rendering (CRI) | > 70 |

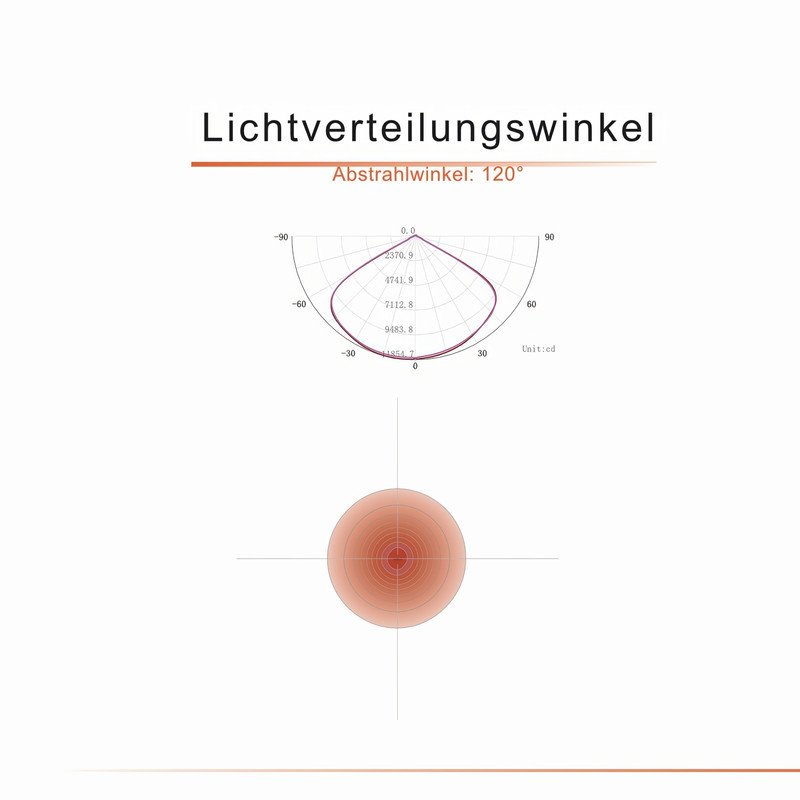

| Beam angle | 120° (symmetric) |
| Driver | Sosen (integrated) |
| Dimming | no (fixed output) |
| Input voltage | 100–277 V, 50–60 Hz |
| Power factor | PF above 0.95 |
| THD | below 8% |
| Surge protection | up to 6 kV / 10 kV (10/20 kV SPD optional) |
| Ingress protection | IP65 (dust-tight, protected against water jets) |
| Impact resistance | IK08 |
| Protection class | I |
| Lifetime | L70B10 over 108,000 h (TM-21/LM-80) |
| Operating temperature | −40 to +45 °C |
| Housing material | die-cast aluminium (ADC12) |
| Cover | polycarbonate (PC) |
| Housing colour | RAL 9004 |
| Pole diameter | 80 mm |
| Dimensions (L × W × H) | 400 × 400 × 701 mm |
| Weight | approx. 5.8 kg |
| Certification | CB, UKCA, CE, RoHS |
Applications
This 40 W luminaire suits footpaths and cycle paths, parks, residential streets, driveways, courtyards as well as commercial and public outdoor areas. Its classic lantern design blends harmoniously into both historic and modern surroundings and creates a welcoming, safe atmosphere.
Scope of delivery
- 1 × LED post top light 40 W
- integrated Sosen driver
- pole entry for Ø 80 mm
