LED VU1-Linearleuchte 30° schwenkbar 1152mm weiß 175lm CRI>80

LED VU1 Linear Luminaire – Slim Track Spotlight, Individually Tiltable

1152 mm · white housing · CRI > 80 · 120° · 3-phase track

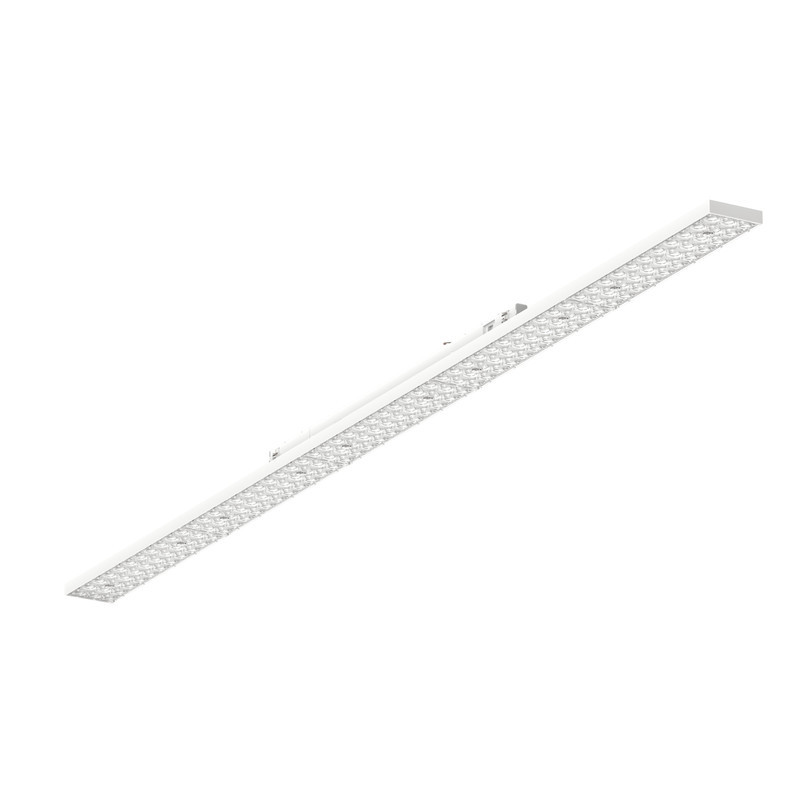

The LED VU1 linear luminaire combines a modern, flat design with high light output. Its standard 120° beam lights large areas softly and with little glare. Because the luminaire folds out and tilts individually up to 30°, you decide whether light spreads evenly through the room or highlights a specific area. For controllable installations the luminaire is also available in a DALI-2 version on request: it can then be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• 120° standard optic, further beam angles optionally available on request
• Fold-down design, individually tiltable 0–30°
• Colour rendering CRI > 80 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems

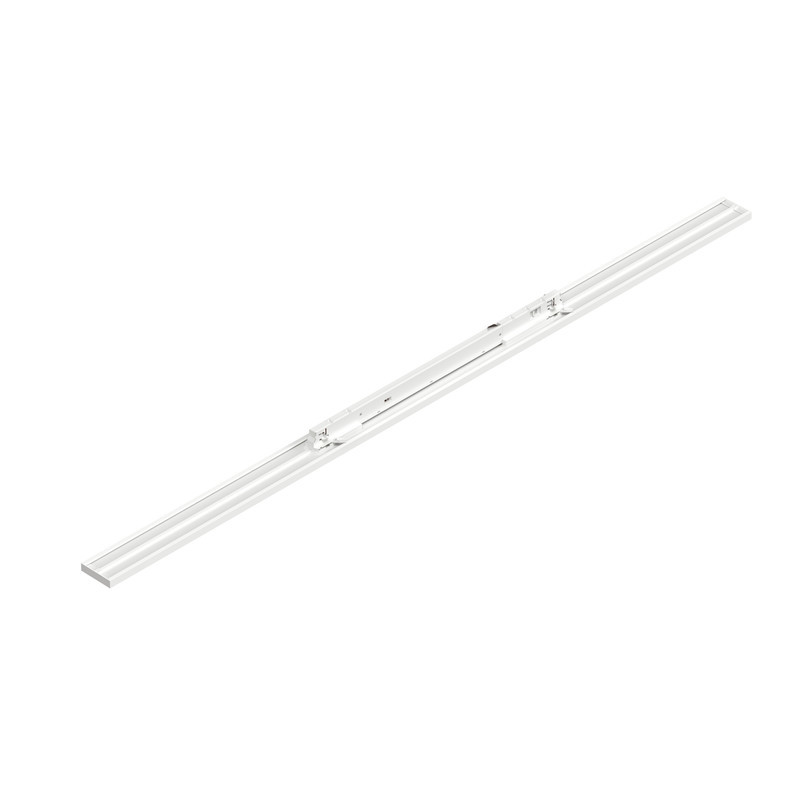

• Slim aluminium housing in white, PMMA lens, IK04

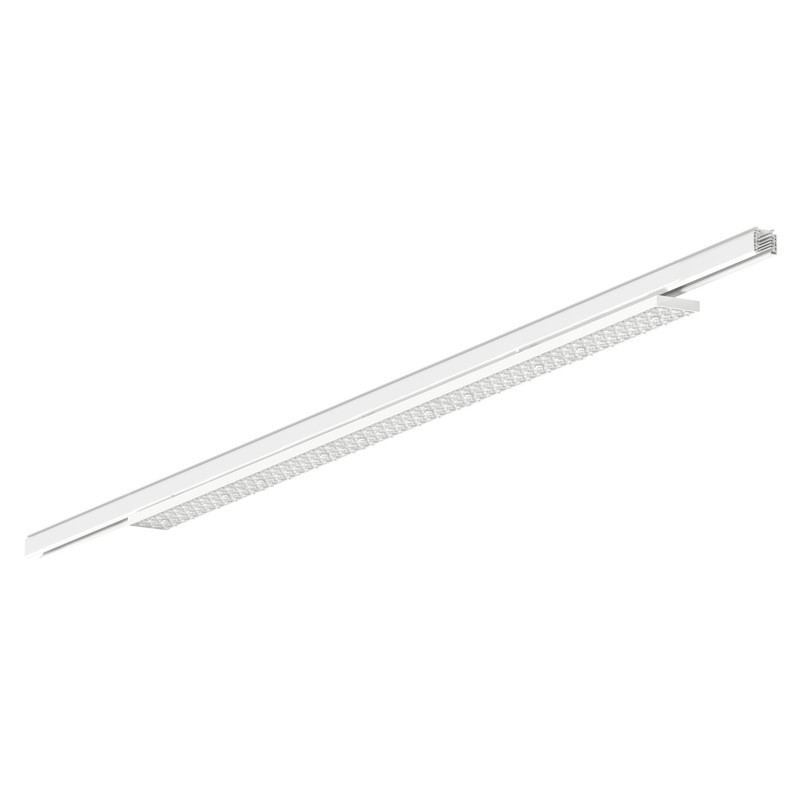

Individually tiltable: light exactly where you need it

The luminaire is not fixed rigidly. It folds down and can then be tilted individually by up to 30° to the side. With one and the same luminaire you can either light a surface evenly or highlight a specific zone. If you rearrange the space later, you realign the light within seconds – no tools, no rebuilding.

Beam angles: which one suits your application?

Ex works the luminaire comes with a 120° optic – the classic angle for area lighting. For special requirements further beam angles are available on request. Here is what the individual versions do:

• 120° (standard) – very wide angle for even base light. First choice for normal ceiling heights up to about 4 m, for aisles, offices, sales rooms and workshops.
• 90° – slightly more focused than 120°. At the same height it puts more light on the floor and reduces stray light on the walls – good for aisles and shelf rows.
• 60° – medium angle for higher ceilings (approx. 4–6 m) or when a certain zone should be noticeably brighter than the rest of the room.
• 30° – narrow spot angle. Creates strong accents on individual products, displays or artworks and suits high ceilings because the light arrives concentrated below.
• 25° double (DS25°) – two narrow beams from one luminaire. Ideal when two opposite shelf sides of an aisle are to be lit at the same time.
• 25° asymmetric (L/R) – throws the light offset to the left or right. Perfect for wall shelves, wall pictures or window walls when the luminaire cannot hang directly in front.
• Opal cover 120° – a milky cover instead of a lens. The light is diffused softly and the luminous surface looks uniform – particularly low-glare for offices and anywhere soft light is desired.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and even brightness the standard 120° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 80: bright and economical

The CRI > 80 version offers good, natural colour rendering with the best possible economy. At 175 lm/W you get a lot of light from every watt – ideal when large areas need to stay bright permanently and energy costs matter, for example in markets, warehouses, offices and workshops.

Long service life – L80 at 100,000 hours

The figure L80 at 100,000 hours describes how slowly the LEDs dim over time. Even after 100,000 operating hours they still emit at least 80 % of their original brightness. There is no sudden failure, only a very slow, barely visible decline – easy to plan for and low on maintenance.

High-quality LED chips by Sanan

We deliberately rely on chips by Sanan as the light source. Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is regarded as the LED chip market leader in China as well as one of the three largest manufacturers worldwide. The company runs its own epitaxy and chip production, invests continuously in research and development and holds more than a thousand patents; its customers include well-known international lighting and technology brands. In practical terms this origin means: plenty of light per watt, precisely maintained colour temperatures and a service life that delivers on its promise even in continuous operation.

Mounting & track compatibility

All you need for installation is a 3-phase busbar – the VU1 is placed with its adapter and locks in immediately. You can change the position and number of luminaires at any time, without electrical rework at the ceiling. Thanks to L1/L2/L3 phase selection you switch lighting groups separately. The luminaire is compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard (Safety Class I).

Choose your colour temperature

• 3000 K warm white – the typical choice for hospitality, hotels, boutiques and reception areas.
• 4000 K neutral white – the all-rounder for sales rooms, boutiques, offices and exhibitions.
• 5000 K daylight white – ideal for assembly, technical work, labs and areas that require close inspection.
• 6000 K cool white – proven in storage, production and high halls.

This luminaire is available in four colour temperatures. Select the variant that suits your room when ordering.

Power steps & luminous flux

Power is selected directly at the luminaire via switch – so you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

Wherever a 3-phase track is in place, the VU1 shows its strengths: in shops and supermarkets for bright, even sales areas; in boutiques and showrooms to stage goods precisely; in offices and meeting rooms as comfortable working light; in galleries and exhibition halls, because the light can be realigned with every rebuild. In corridors, reception areas and workshops it is an uncomplicated solution too.

Scope of delivery

• 1× LED VU1 linear luminaire with 3-phase adapter
• Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
