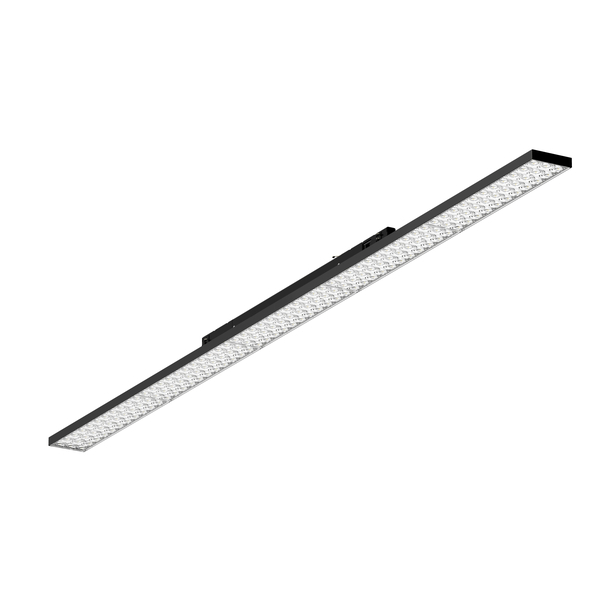

LED VU1 linear light 30° adjustable 1152mm black 160lm CRI>80 3000K

LED VU1 Linear Luminaire – Slim Track Spotlight, Individually Tiltable

1152 mm · black · 3000 K warm white · CRI > 80 · 120°

The LED VU1 linear luminaire combines a modern, flat design with high light output. Its standard 120° beam lights large areas softly and with little glare. Because the luminaire folds out and tilts individually up to 30°, you decide whether light spreads evenly through the room or highlights a specific area. For controllable installations the luminaire is also available in a DALI-2 version on request: it can then be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• 120° standard optic, further beam angles optionally available on request
• Fold-down design, individually tiltable 0–30°
• Colour rendering CRI > 80 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems
• Slim aluminium housing in black, PMMA lens, IK04

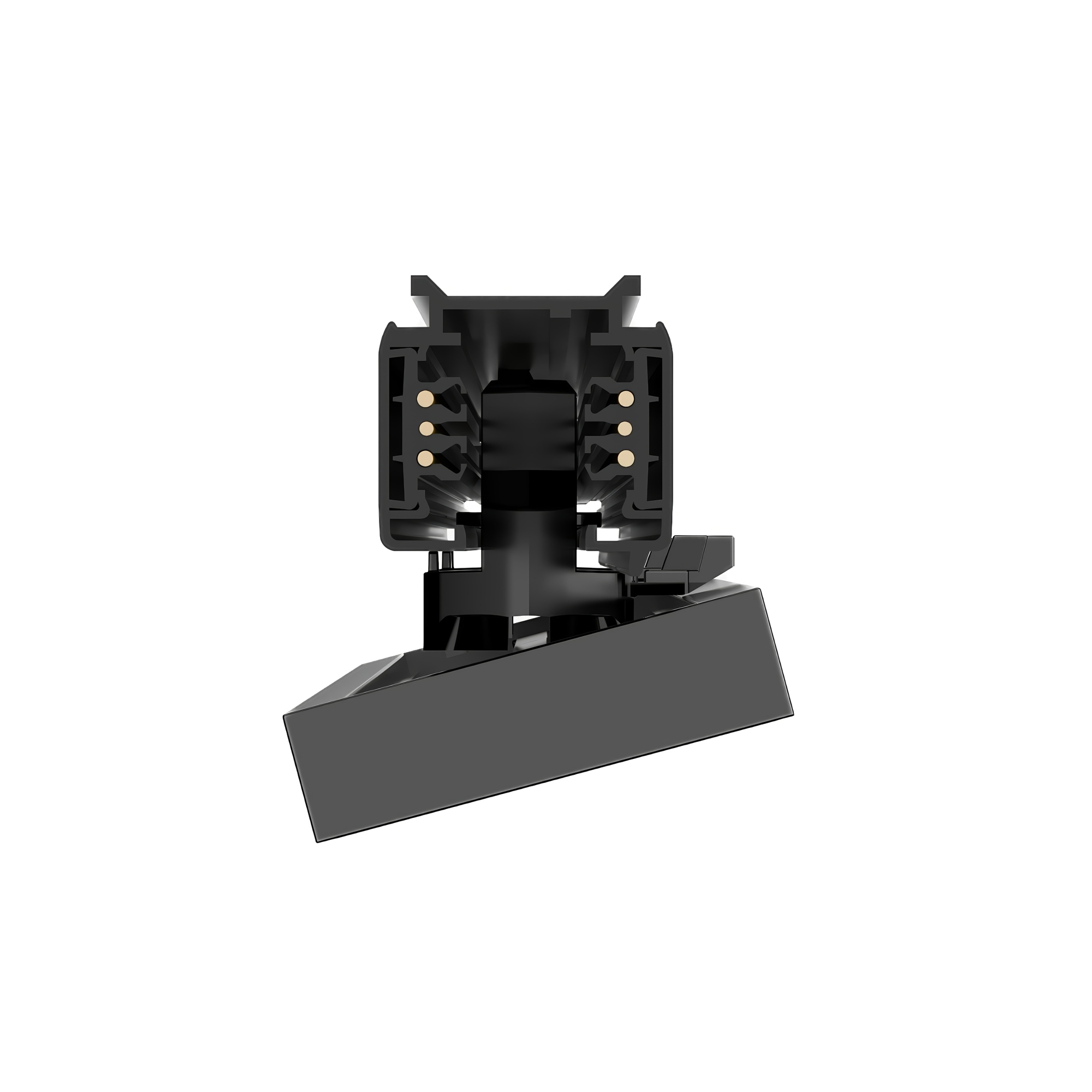

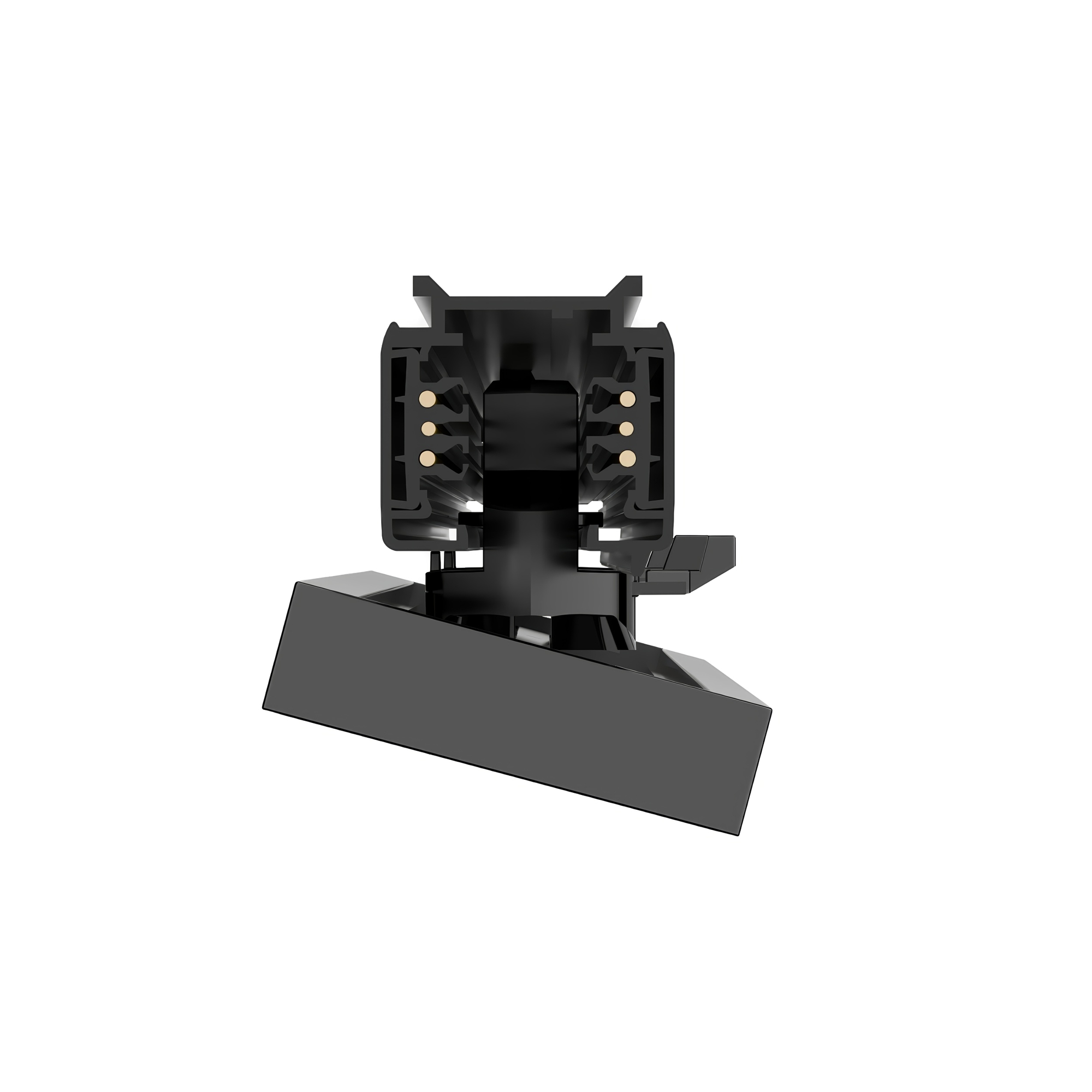

Individually tiltable: light exactly where you need it

Individually tiltable means each luminaire can be folded down out of the track and then turned steplessly between 0° and 30° to the left or right. So you aim the light exactly where it is needed – at a shelf wall, a display or a workstation. This is especially handy when the interior changes: instead of rebuilding, you simply re-aim the luminaires.

Beam angles: which one suits your application?

The standard beam angle is 120°: wide, soft and ideal for general room lighting. If you want to use light more selectively, other lenses are optionally available. The following overview explains which angle best fits which purpose:

• 120° (standard) – very wide angle for even base light. First choice for normal ceiling heights up to about 4 m, for aisles, offices, sales rooms and workshops.
• 90° – slightly more focused than 120°. At the same height it puts more light on the floor and reduces stray light on the walls – good for aisles and shelf rows.
• 60° – medium angle for higher ceilings (approx. 4–6 m) or when a certain zone should be noticeably brighter than the rest of the room.
• 30° – narrow spot angle. Creates strong accents on individual products, displays or artworks and suits high ceilings because the light arrives concentrated below.
• 25° double (DS25°) – two narrow beams from one luminaire. Ideal when two opposite shelf sides of an aisle are to be lit at the same time.
• 25° asymmetric (L/R) – throws the light offset to the left or right. Perfect for wall shelves, wall pictures or window walls when the luminaire cannot hang directly in front.
• Opal cover 120° – a milky cover instead of a lens. The light is diffused softly and the luminous surface looks uniform – particularly low-glare for offices and anywhere soft light is desired.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and even brightness the standard 120° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 80: bright and economical

CRI > 80 is the proven standard for sales and work areas: colours are rendered naturally while the luminaire runs very economically at a high 160 lm/W. This noticeably lowers operating costs when many luminaires run for long hours.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours is a hallmark of durability: only after this very long operating period does brightness fall below 80 % of the initial value. For you that means fewer replacements, less maintenance and a consistent lighting result over many years.

High-quality LED chips by Sanan

We deliberately rely on chips by Sanan as the light source. Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is regarded as the LED chip market leader in China as well as one of the three largest manufacturers worldwide. The company runs its own epitaxy and chip production, invests continuously in research and development and holds more than a thousand patents; its customers include well-known international lighting and technology brands. In practical terms this origin means: plenty of light per watt, precisely maintained colour temperatures and a service life that delivers on its promise even in continuous operation.

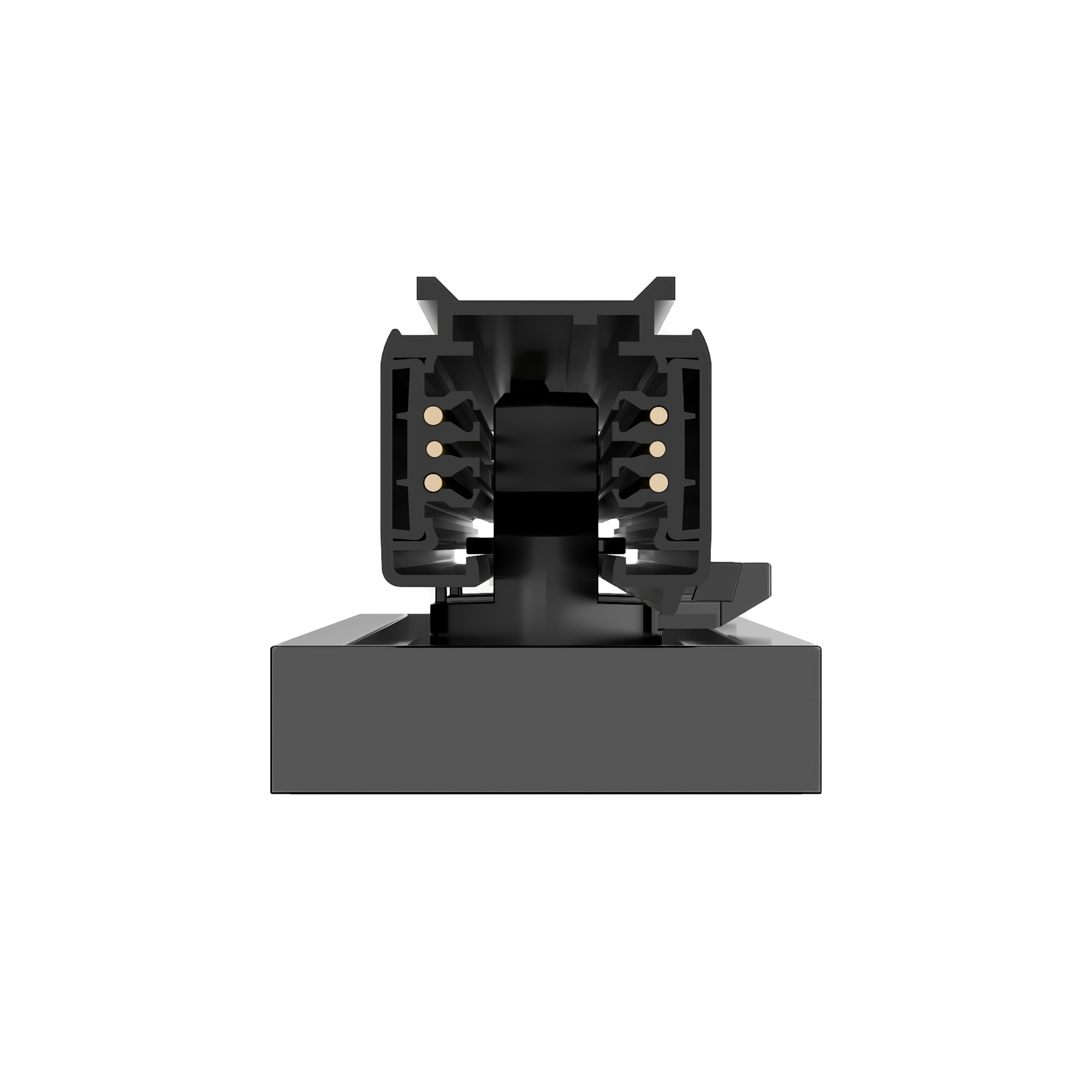

Mounting & track compatibility

Mounting is simple: the luminaire clicks onto a 3-phase busbar via its adapter – place, turn, done. Because the track carries three separate phases, you can switch different groups of luminaires independently. The adapter is compatible with the widespread systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard; the design is Safety Class I.

Colour temperature 3000 K – warm white

Warm white light feels cosy and inviting – the typical choice for hospitality, hotels, boutiques and reception areas.

Black housing: luminous flux & look

Why does the black version state fewer lumens than the white one? The reason is purely optical: light hitting bright surfaces inside the housing is reflected outward with almost no loss. Dark surfaces, by contrast, absorb a share of the light. That share never leaves the luminaire and is missing from the lumen figure – efficacy in lm/W drops slightly as a result. The trade-off: the black look is more restrained, glares less and suits dark ceilings and premium store concepts perfectly.

Power steps & luminous flux

Power is selected directly at the luminaire via switch – so you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

Typical locations are shops, boutiques, supermarkets, showrooms, galleries, offices, conference rooms, corridors and reception areas as well as workshops and exhibition halls. Because the luminaire simply clicks onto the track, the lighting can change along with the room – new shelves, new ranges or a new layout mean no electrical rework, just repositioning and re-aiming the luminaires.

Scope of delivery

• 1× LED VU1 linear luminaire with 3-phase adapter
• Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
