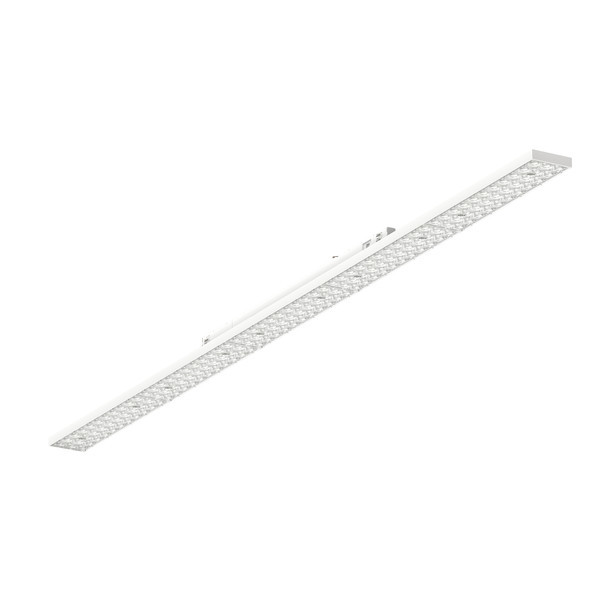

LED VU1 linear light 30° adjustable 1152mm white 160lm CRI>90 5000K

Item number: VU1C911WV-3

Category: VU1 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

105,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	99,90 €
12	94,90 €

Available

Shipping time: 15 - 16 workdays

Description

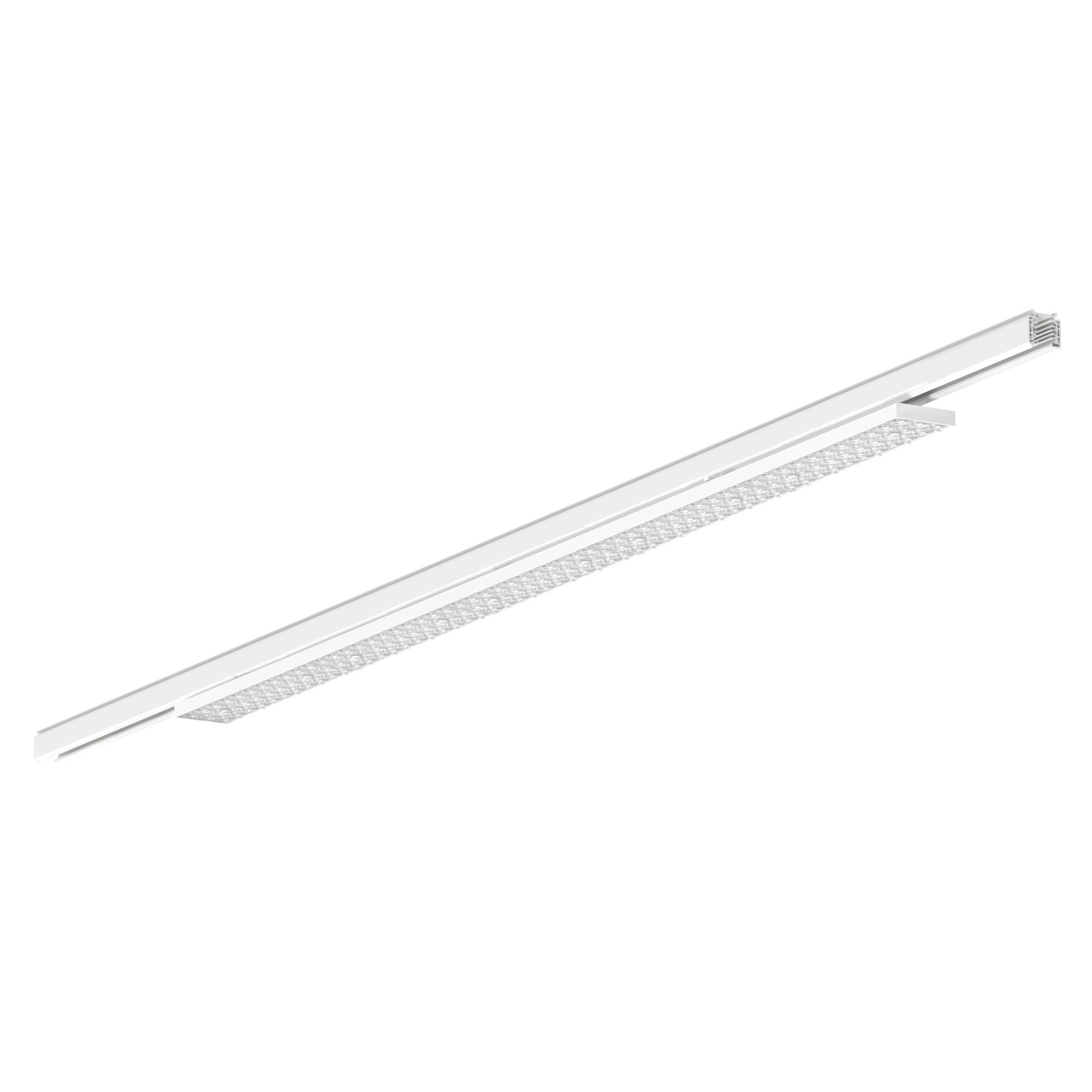

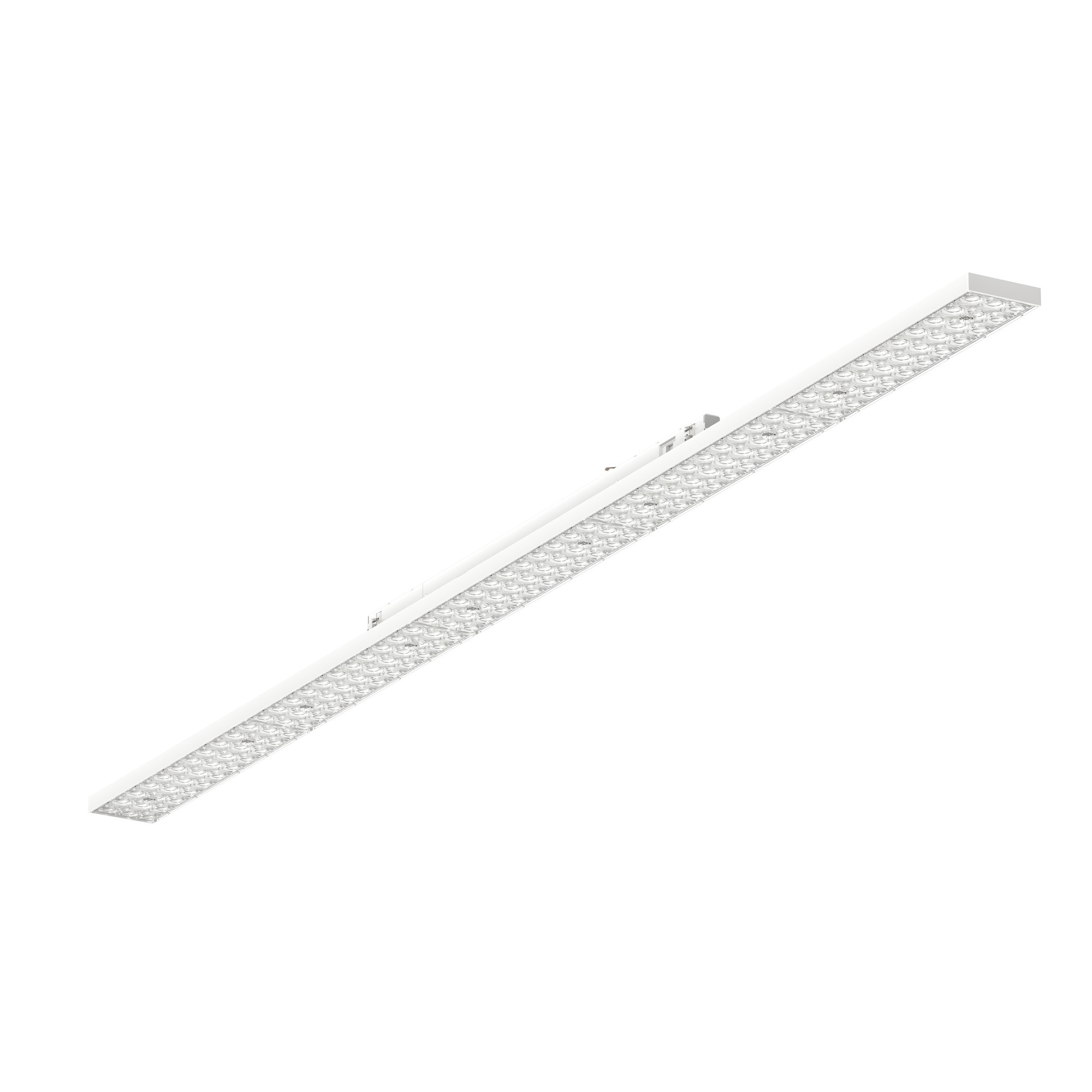

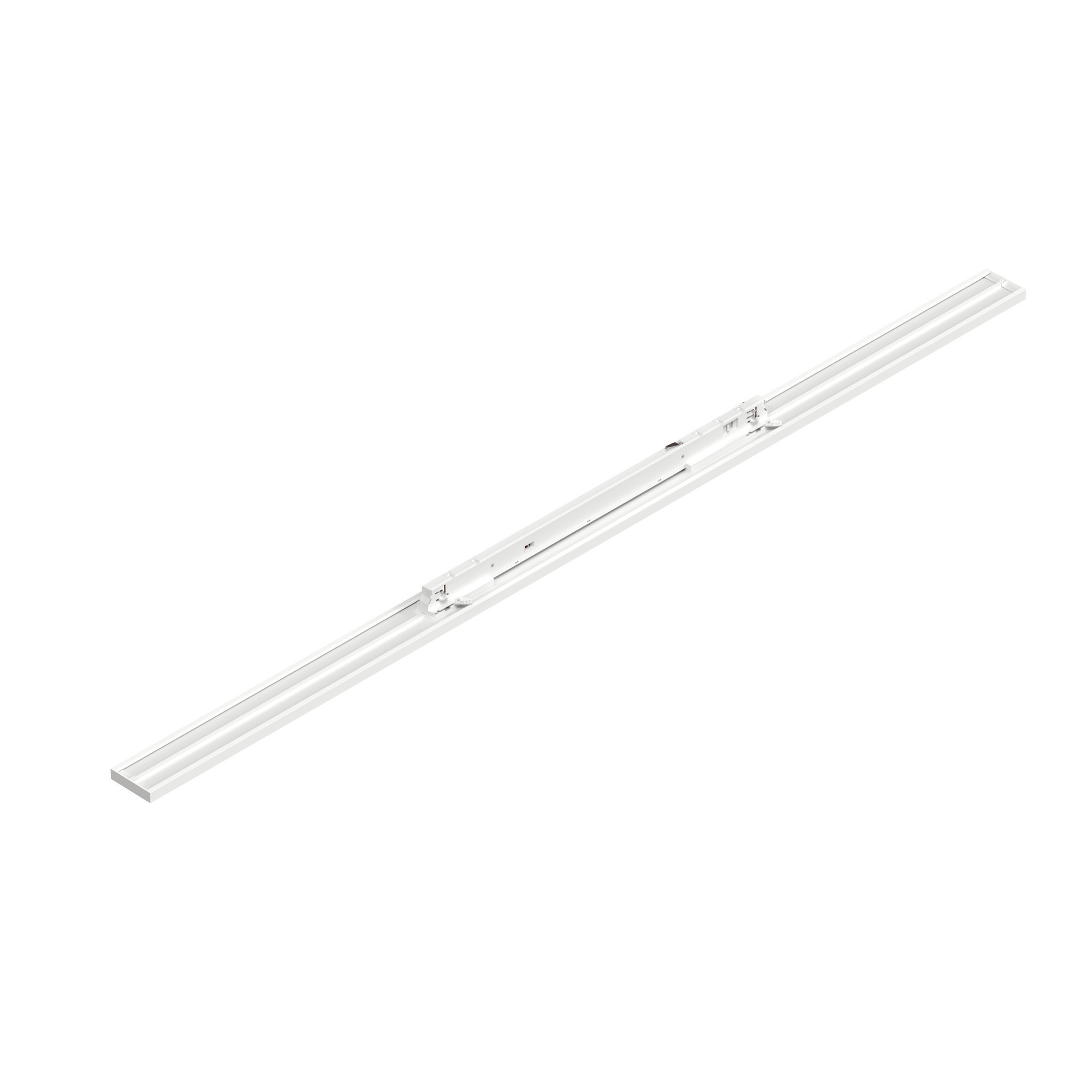

LED VU1 Linear Luminaire – Slim Track Spotlight, Individually Tiltable

1152 mm · white · 5000 K daylight white · CRI > 90 · 120°

1152 mmwhiteCRI > 905000 K120°0–30° tiltable160 lm/WL80 100,000 h

The LED VU1 linear luminaire combines a modern, flat design with high light output. Its standard 120° beam lights large areas softly and with little glare. Because the luminaire folds out and tilts individually up to 30°, you decide whether light spreads evenly through the room or highlights a specific area. For controllable installations the luminaire is also available in a DALI-2 version on request: it can then be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

120° beam angle Wide, soft light for evenly illuminated surfaces.	Individually tiltable Folds down and turns 0–30° to the left or right.
Switchable power 48 W / 40 W / 34 W / 27 W – selectable at the switch.	High efficiency 160 lm/W – up to 7,680 lm at 48 W.
Flicker-free PstLM < 1 and SVM < 0.1 – pleasant for eyes and cameras.	Long service life L80 at 100,000 h thanks to Sanan LED chips.

Features in detail

120° standard optic, further beam angles optionally available on request
Fold-down design, individually tiltable 0–30°
Colour rendering CRI > 90 for natural colours
Switchable power in four steps without tools
Optionally available with DALI-2 dimming on request
For 3-phase track – compatible with common track systems
Slim aluminium housing in white, PMMA lens, IK04

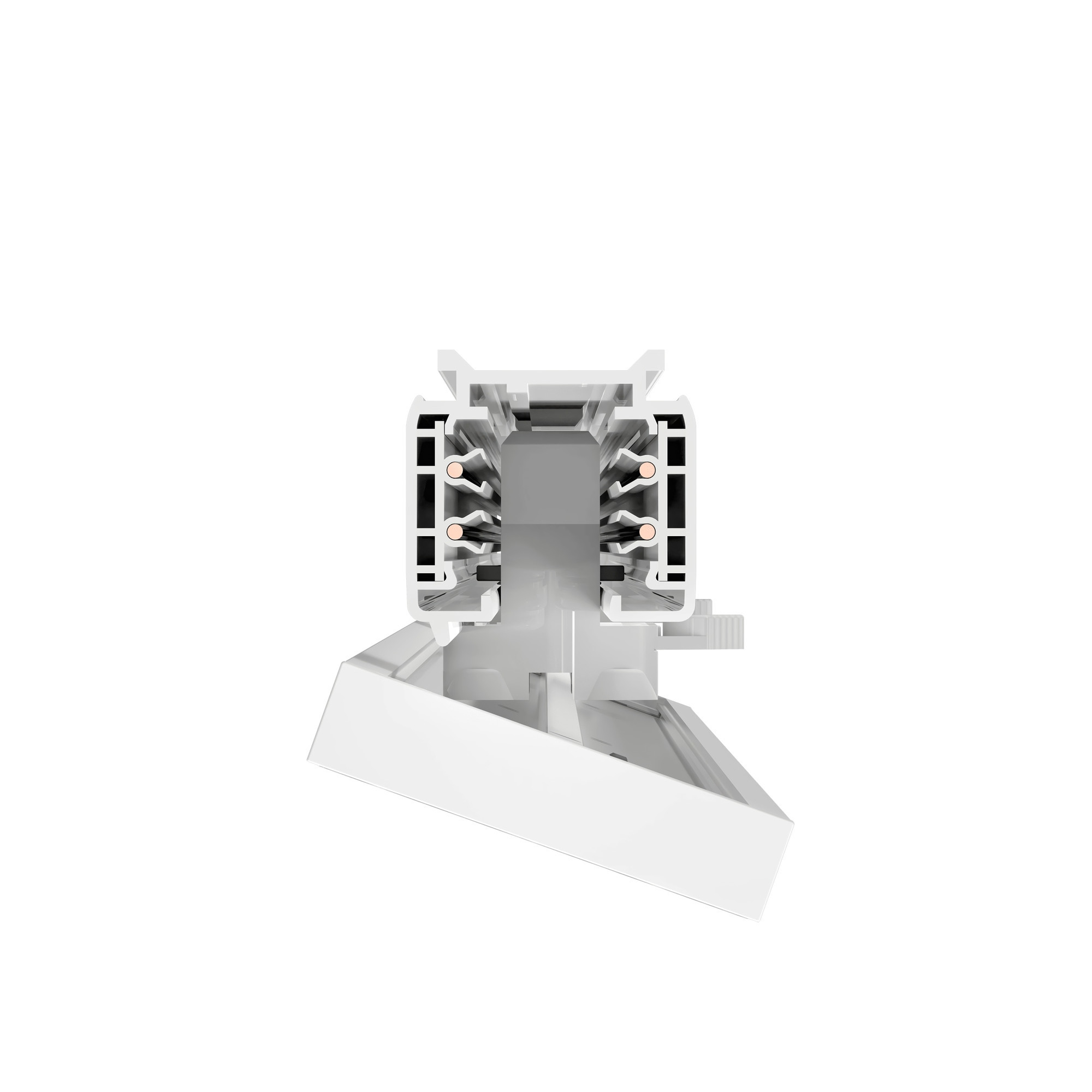

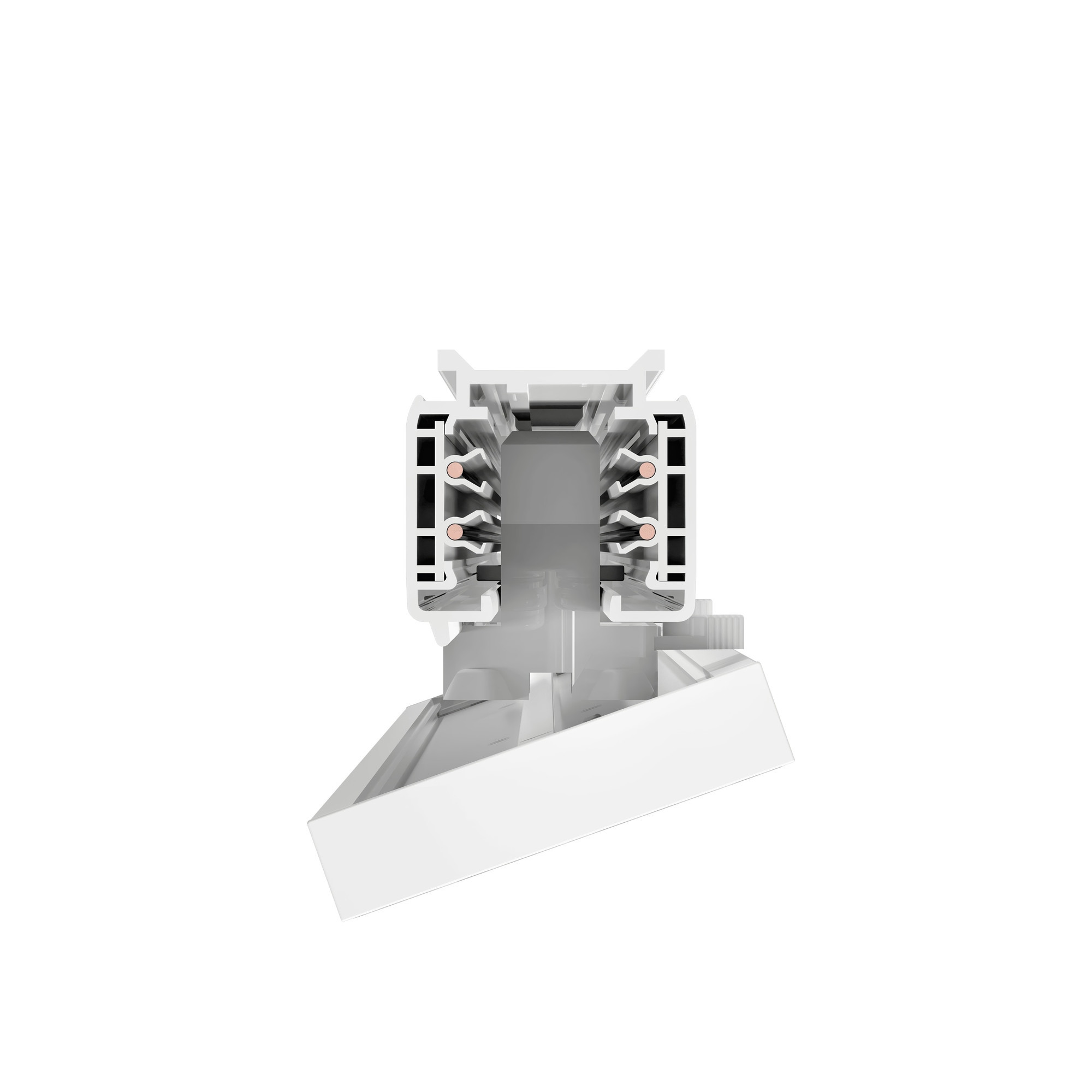

Individually tiltable: light exactly where you need it

Individually tiltable means each luminaire can be folded down out of the track and then turned steplessly between 0° and 30° to the left or right. So you aim the light exactly where it is needed – at a shelf wall, a display or a workstation. This is especially handy when the interior changes: instead of rebuilding, you simply re-aim the luminaires.

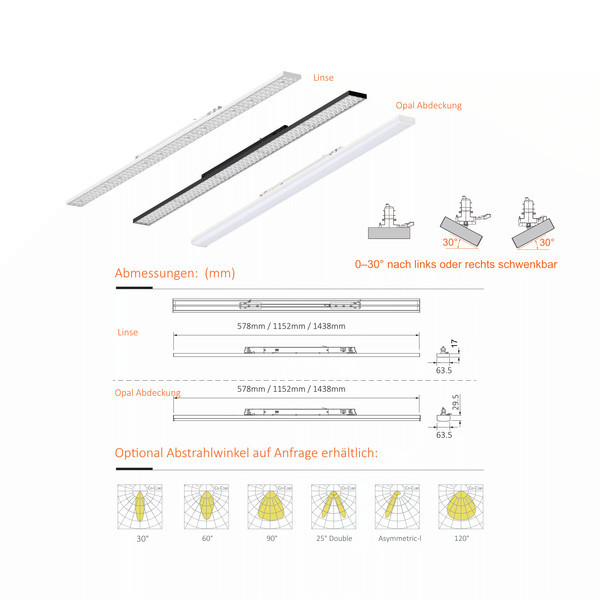

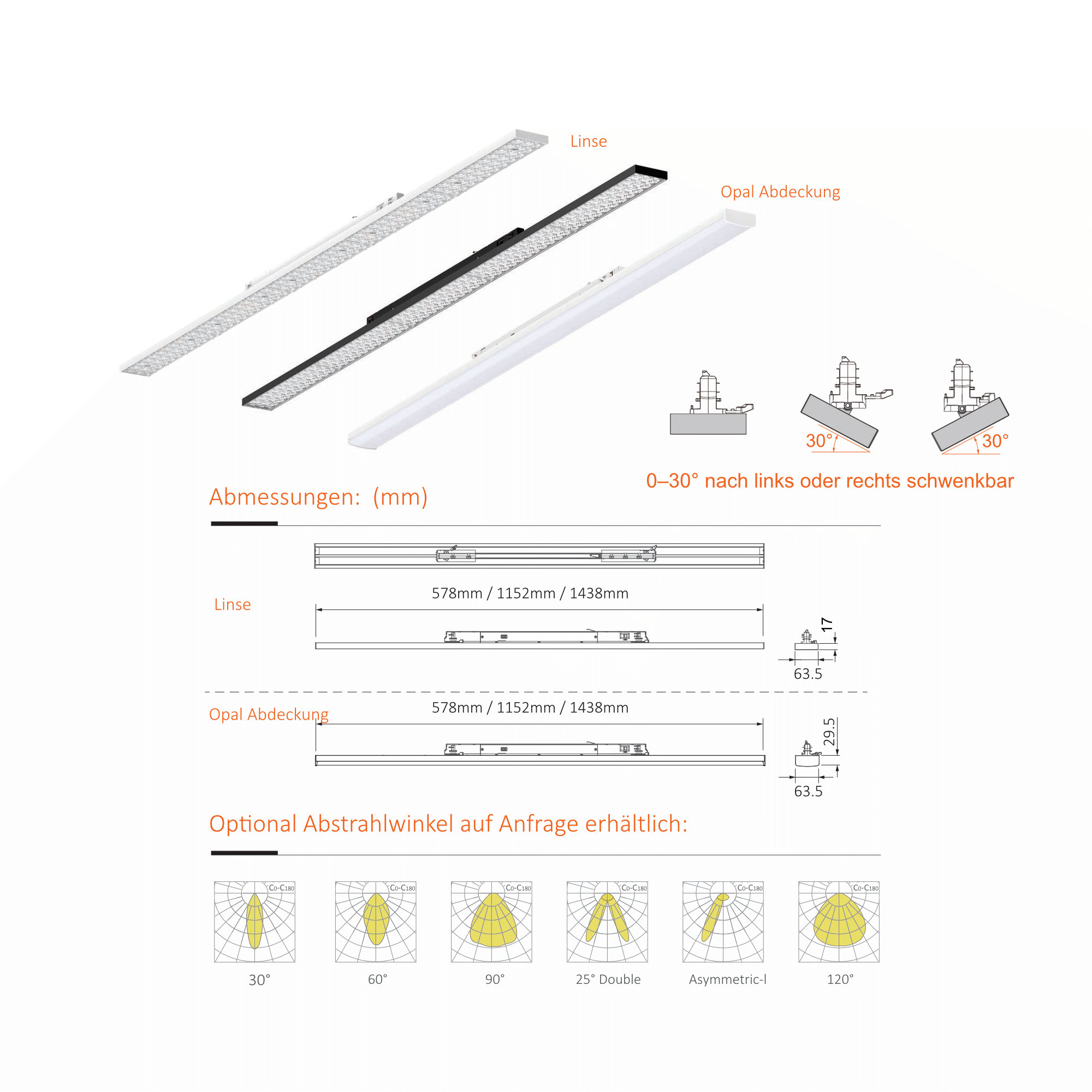

Beam angles: which one suits your application?

Ex works the luminaire comes with a 120° optic – the classic angle for area lighting. For special requirements further beam angles are available on request. Here is what the individual versions do:

120° (standard) – very wide angle for even base light. First choice for normal ceiling heights up to about 4 m, for aisles, offices, sales rooms and workshops.
90° – slightly more focused than 120°. At the same height it puts more light on the floor and reduces stray light on the walls – good for aisles and shelf rows.
60° – medium angle for higher ceilings (approx. 4–6 m) or when a certain zone should be noticeably brighter than the rest of the room.
30° – narrow spot angle. Creates strong accents on individual products, displays or artworks and suits high ceilings because the light arrives concentrated below.
25° double (DS25°) – two narrow beams from one luminaire. Ideal when two opposite shelf sides of an aisle are to be lit at the same time.
25° asymmetric (L/R) – throws the light offset to the left or right. Perfect for wall shelves, wall pictures or window walls when the luminaire cannot hang directly in front.
Opal cover 120° – a milky cover instead of a lens. The light is diffused softly and the luminous surface looks uniform – particularly low-glare for offices and anywhere soft light is desired.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and even brightness the standard 120° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 90: colours like daylight

CRI > 90 means colours appear as they truly are. A full red share in the spectrum makes textiles, food and decoration look vivid and appetising. Wherever colour fidelity counts – fashion, jewellery, cosmetics, delicatessen or exhibitions – this version is the right choice.

Long service life – L80 at 100,000 hours

What does L80 / 100,000 hours mean? Simply this: after 100,000 hours of operation the luminaire still delivers at least 80 % of its day-one brightness. At ten hours of use per day that is more than 27 years. Illumination therefore stays virtually constant for a very long time.

High-quality LED chips by Sanan

Who is behind the LEDs? The light sources in this luminaire come from Sanan Optoelectronics – a listed company founded in 2000 and headquartered in Xiamen, China. Sanan is China's largest LED chip manufacturer and ranks among the world's top suppliers in the industry. The company produces several hundred billion LED chips per year, covering roughly half of China's entire output. Why this matters to you: a manufacturer of this scale does not produce by chance but with strict quality control and very tight production tolerances. The result is chips with high efficacy, precise colour temperature (SDCM < 5) and low degradation – luminaires from one batch shine equally bright and equally coloured, even years later.

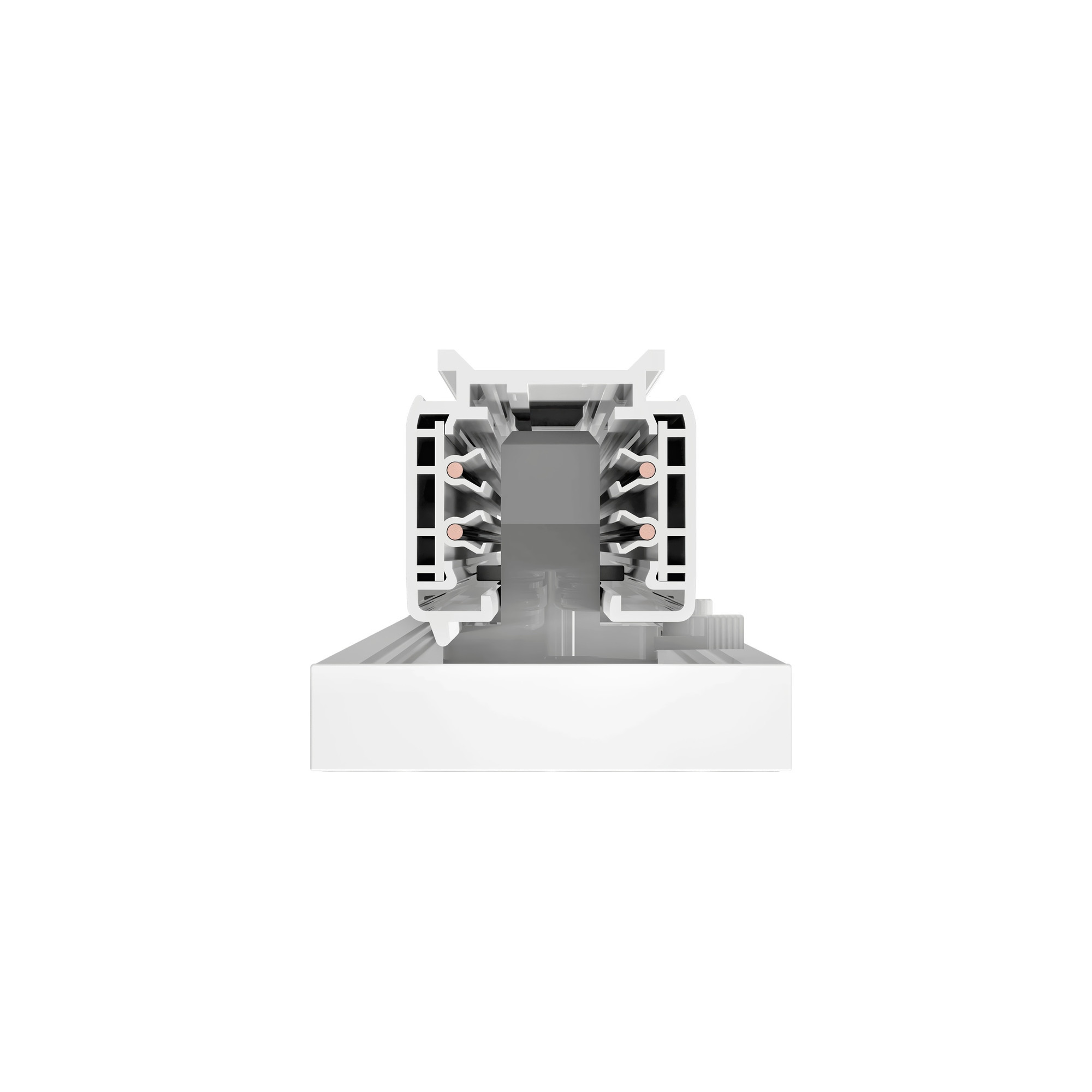

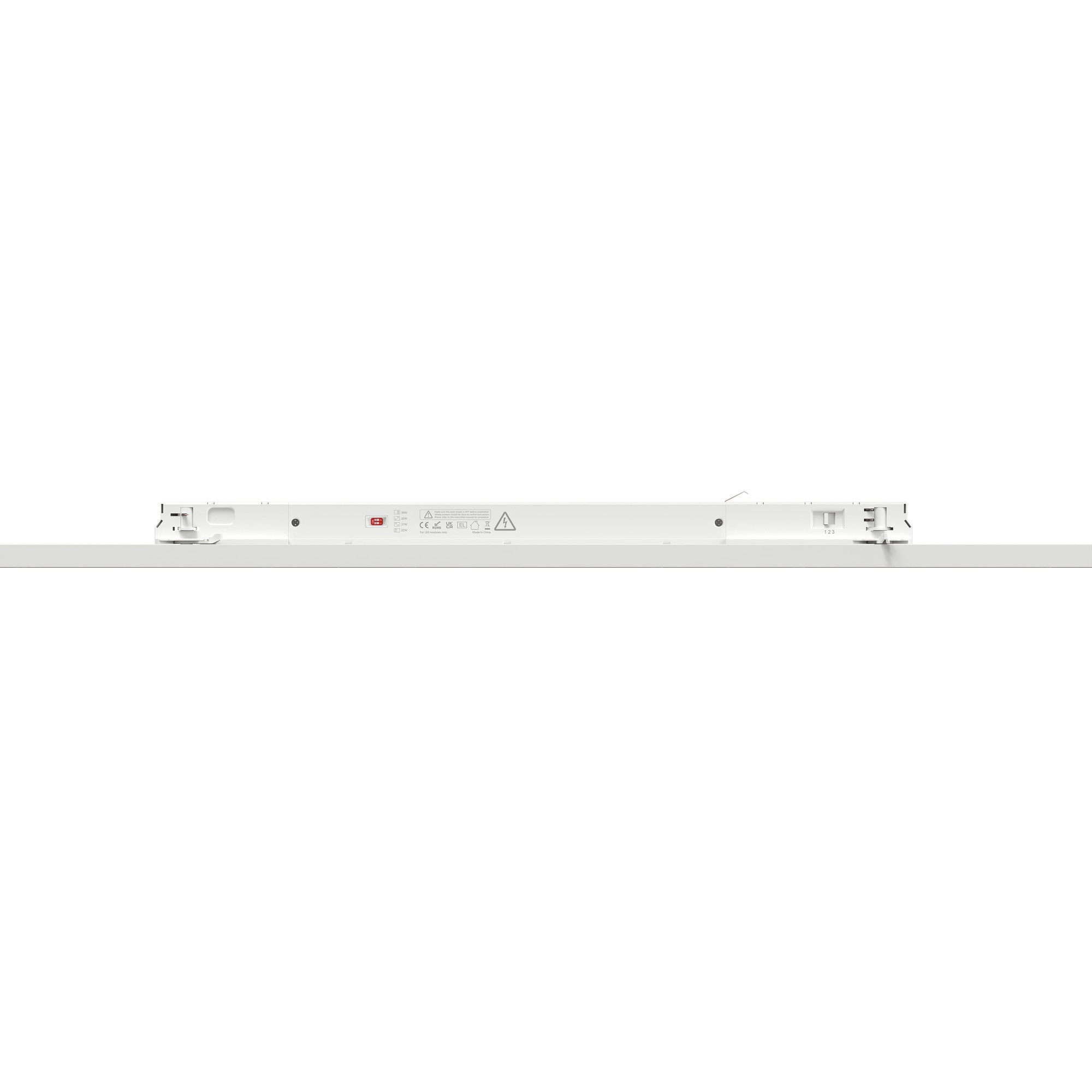

Mounting & track compatibility

All you need for installation is a 3-phase busbar – the VU1 is placed with its adapter and locks in immediately. You can change the position and number of luminaires at any time, without electrical rework at the ceiling. Thanks to L1/L2/L3 phase selection you switch lighting groups separately. The luminaire is compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard (Safety Class I).

Colour temperature 5000 K – daylight white

Daylight white light looks crisp and alert – ideal for assembly, technical work, labs and areas that require close inspection.

Why CRI > 90 delivers slightly fewer lumens

The difference in luminous flux between CRI > 90 and CRI > 80 has a simple background: the better the colour rendering, the more complete the spectrum has to be. The increased red content, however, contributes less to measured brightness because the eye is less responsive there. Together with conversion losses this results in slightly fewer lumens per watt – a trade that pays off wherever colours must look exact.

Power steps & luminous flux

Power step	Power	Luminous flux
Step 1 (maximum)	48 W	7,680 lm
Step 2	40 W	6,400 lm
Step 3	34 W	5,440 lm
Step 4 (minimum)	27 W	4,320 lm

Power is selected directly at the luminaire via switch – so you match brightness to the room without additional devices and save energy permanently.

Technical data

Length	1152 mm
Power (switchable)	48 W / 40 W / 34 W / 27 W (by switch)
Luminous flux	7,680 lm / 6,400 lm / 5,440 lm / 4,320 lm
Efficacy	160 lm/W
Colour temperature	5000 K (daylight white)
Colour rendering	CRI > 90
Beam angle	120° (standard); optionally 90°, 60°, 30°, 25° double, 25° asymmetric L/R or opal cover 120° on request
Tilt range	fold-down, individually 0° to 30° left or right
Mounting	3-phase track (via adapter), phase selection L1/L2/L3
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC/DC 220–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Switching cycles	> 500,000
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens (opal cover: PC)
Housing colour	White (RAL 9016)
Height	17 mm (lens) / 29.5 mm (opal cover), width 63.5 mm
Weight	1.10 kg
Ambient temperature	−20 °C to +40 °C
Storage temperature	−25 °C to +65 °C
Glow wire test	650 °C
Energy efficiency class	C (EU scale A–G, EU 2019/2015)

Applications

Wherever a 3-phase track is in place, the VU1 shows its strengths: in shops and supermarkets for bright, even sales areas; in boutiques and showrooms to stage goods precisely; in offices and meeting rooms as comfortable working light; in galleries and exhibition halls, because the light can be realigned with every rebuild. In corridors, reception areas and workshops it is an uncomplicated solution too.

Scope of delivery

1× LED VU1 linear luminaire with 3-phase adapter
Installation instructions
