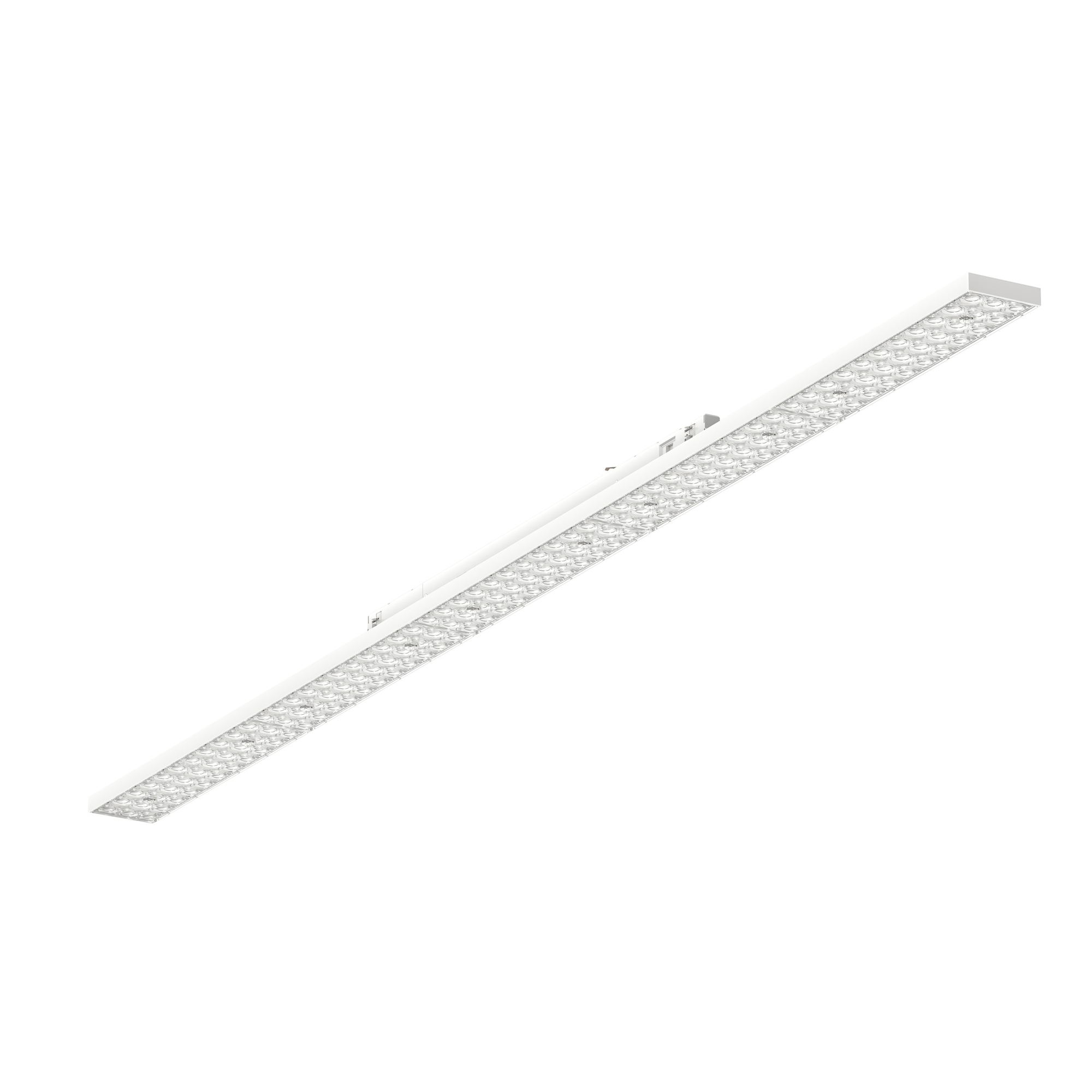

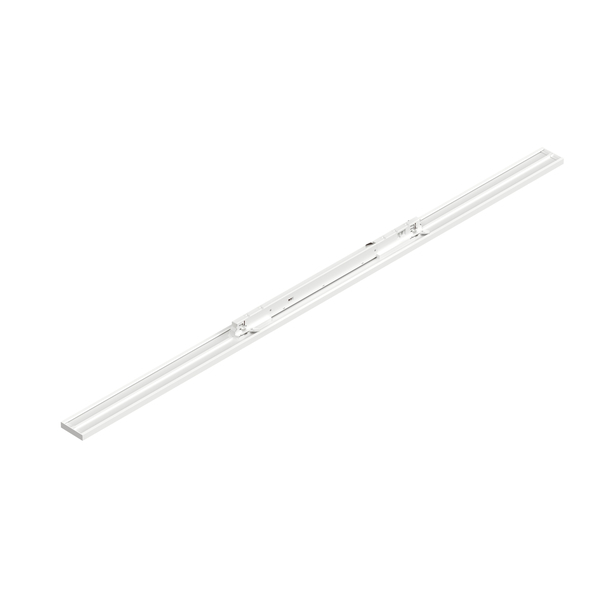

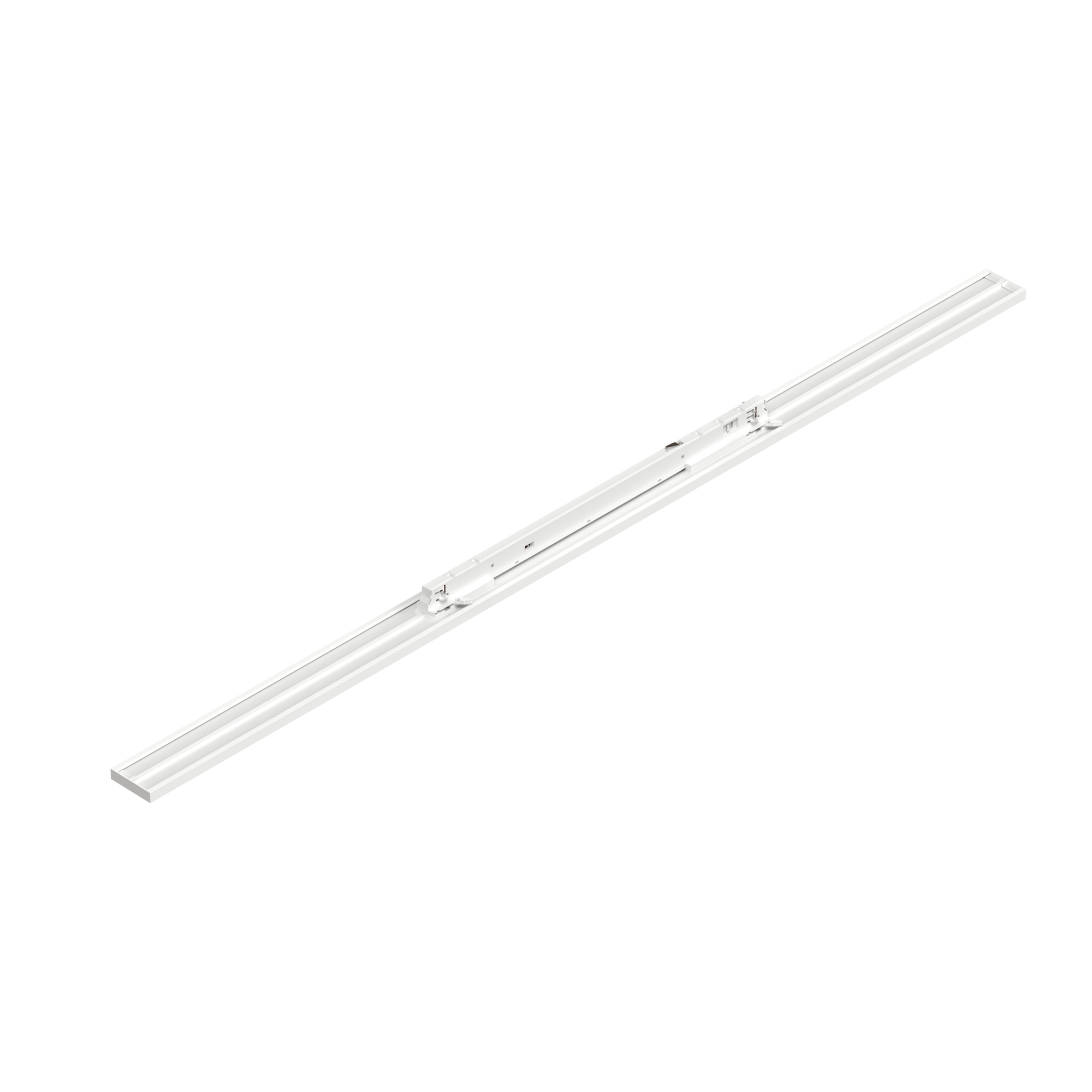

LED VU1 Linear Luminaire – Slim Track Spotlight, Individually Tiltable
1438 mm · white · 5000 K daylight white · CRI > 80 · 120°
The LED VU1 linear luminaire is a slim linear spotlight for the 3-phase track. With a 120° beam it delivers soft, wide-area light, and it can be folded down and tilted individually by up to 30° to the left or right. That way you light surfaces evenly and aim the light at shelves, goods or walls whenever needed. For controllable installations the luminaire is also available in a DALI-2 version on request: it can then be dimmed steplessly and integrated into a central lighting control system.
Key benefits at a glance
120° beam angle Wide, soft light for evenly illuminated surfaces. | Individually tiltable Folds down and turns 0–30° to the left or right. |
Switchable power 60 W / 50 W / 42 W / 33 W – selectable at the switch. | High efficiency 175 lm/W – up to 10,500 lm at 60 W. |
Flicker-free PstLM < 1 and SVM < 0.1 – pleasant for eyes and cameras. | Long service life L80 at 100,000 h thanks to Sanan LED chips. |
Features in detail
- 120° standard optic, further beam angles optionally available on request
- Fold-down design, individually tiltable 0–30°
- Colour rendering CRI > 80 for natural colours
- Switchable power in four steps without tools
- Optionally available with DALI-2 dimming on request
- For 3-phase track – compatible with common track systems
- Slim aluminium housing in white, PMMA lens, IK04

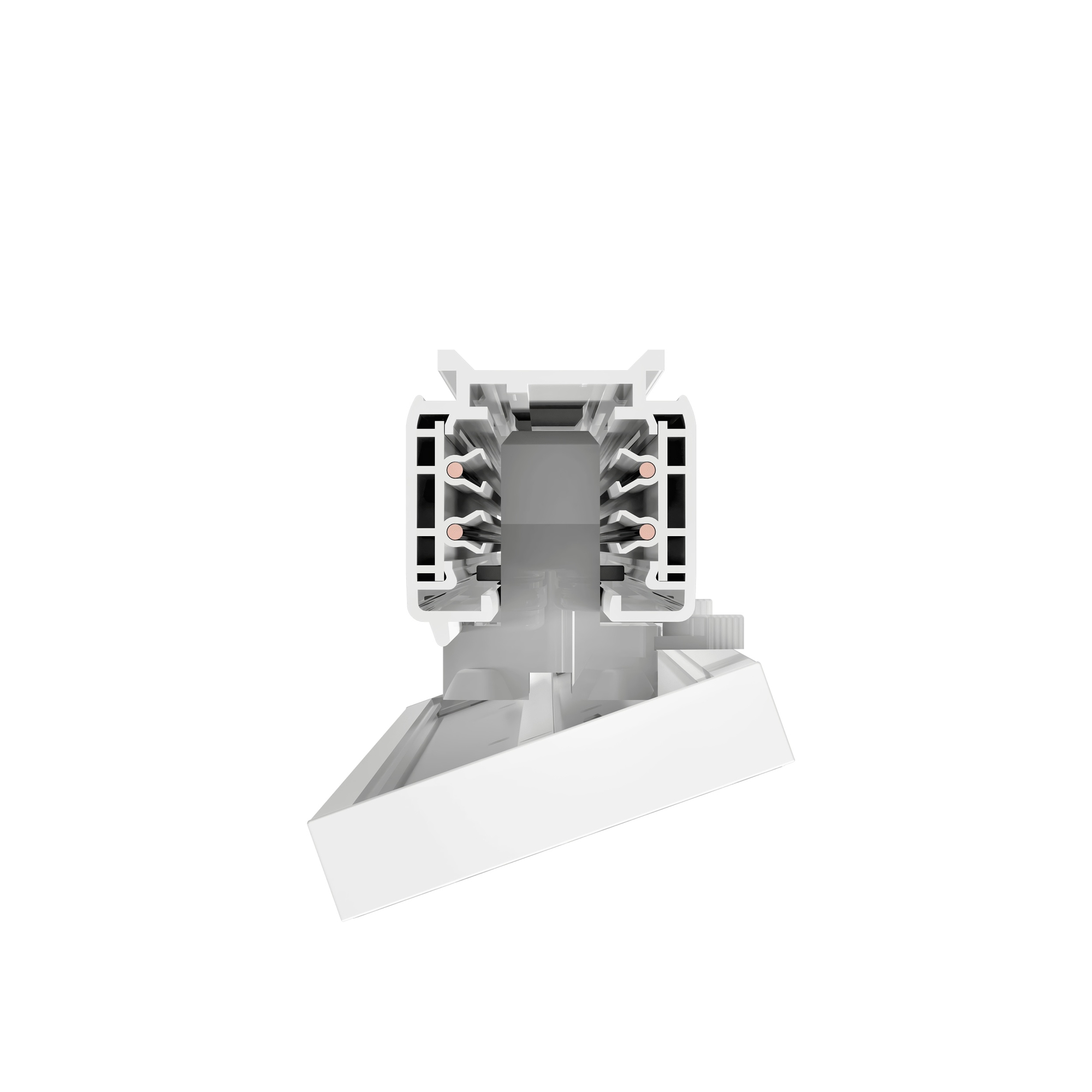

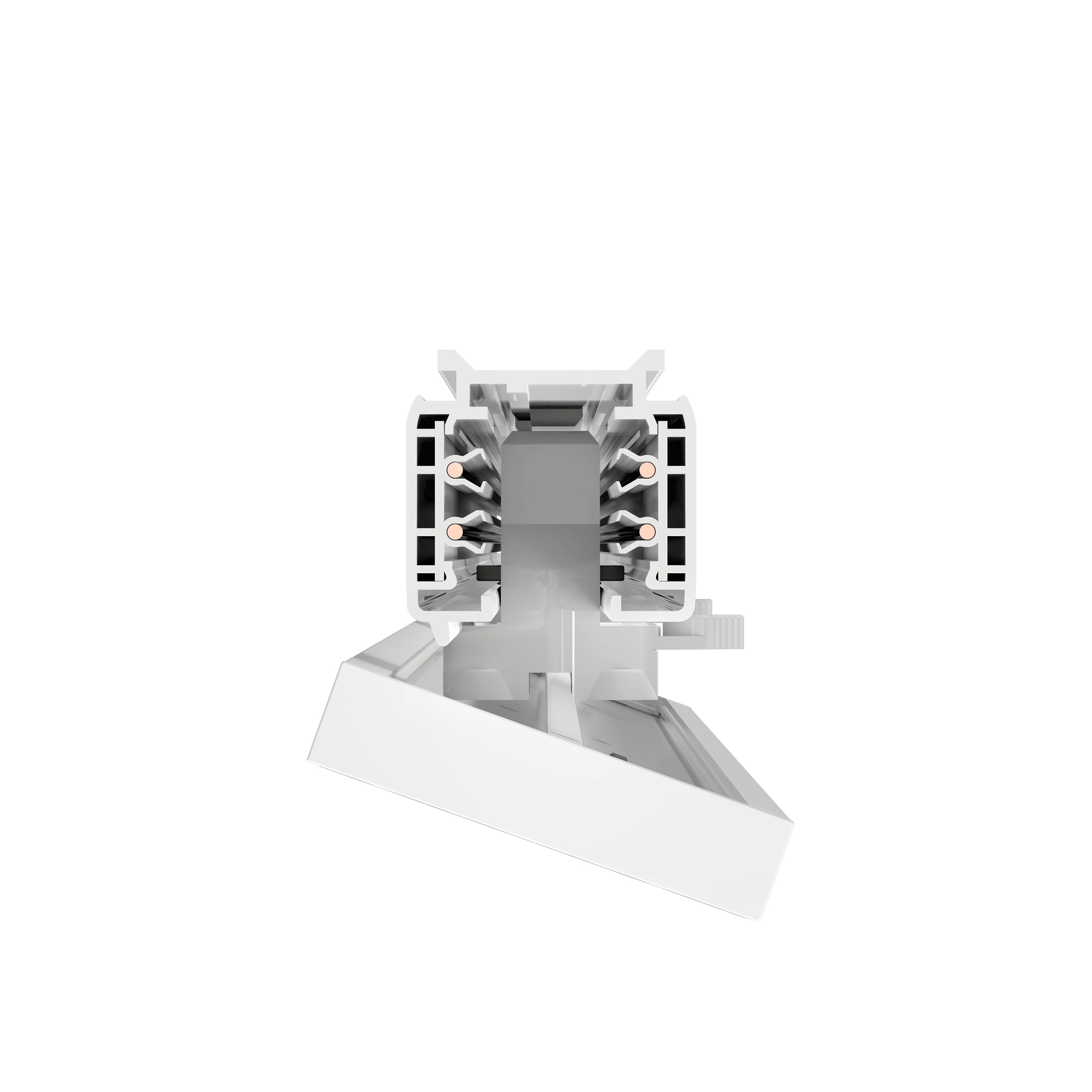

Individually tiltable: light exactly where you need it
The luminaire is not fixed rigidly. It folds down and can then be tilted individually by up to 30° to the side. With one and the same luminaire you can either light a surface evenly or highlight a specific zone. If you rearrange the space later, you realign the light within seconds – no tools, no rebuilding.

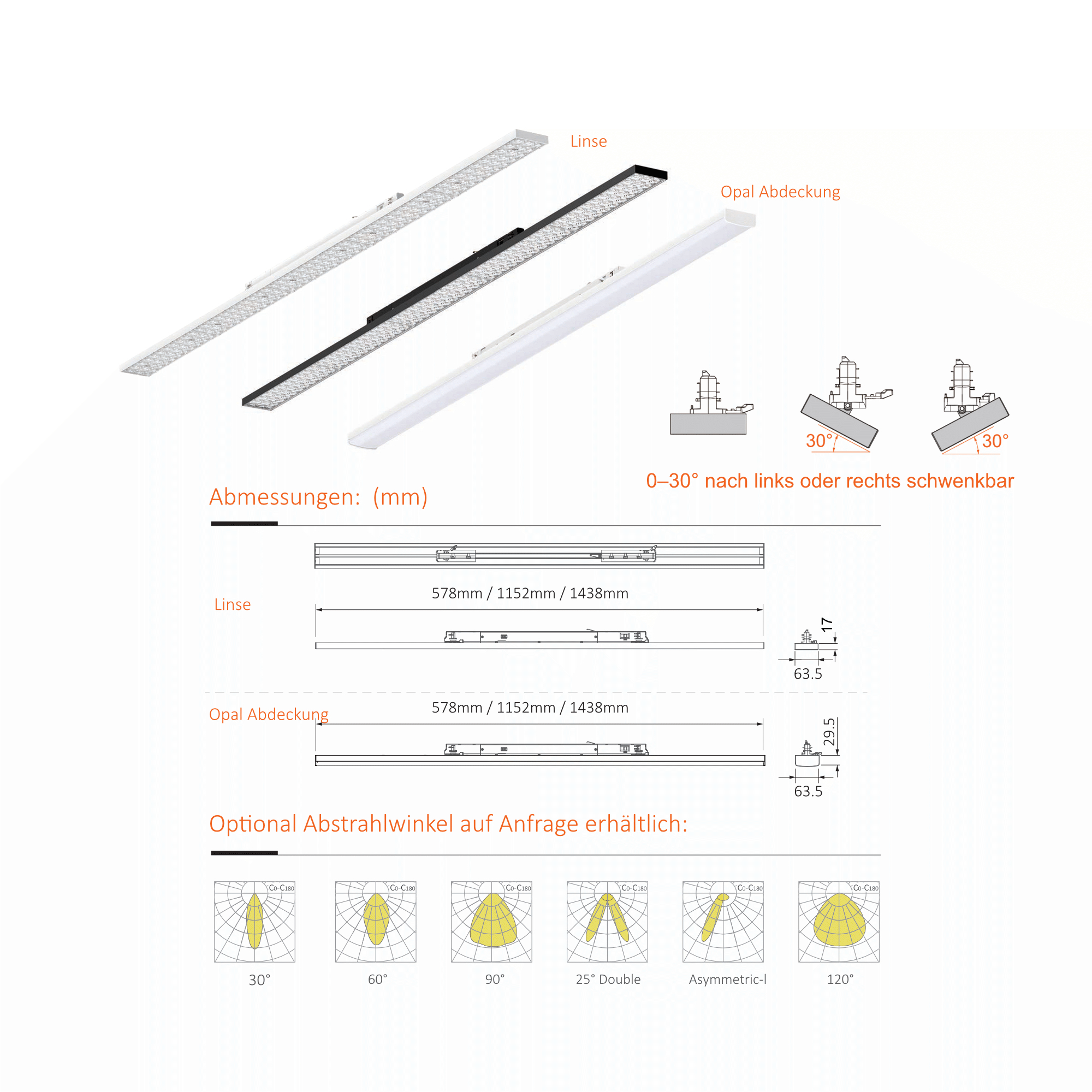

Beam angles: which one suits your application?
Ex works the luminaire comes with a 120° optic – the classic angle for area lighting. For special requirements further beam angles are available on request. Here is what the individual versions do:
- 120° (standard) – very wide angle for even base light. First choice for normal ceiling heights up to about 4 m, for aisles, offices, sales rooms and workshops.
- 90° – slightly more focused than 120°. At the same height it puts more light on the floor and reduces stray light on the walls – good for aisles and shelf rows.
- 60° – medium angle for higher ceilings (approx. 4–6 m) or when a certain zone should be noticeably brighter than the rest of the room.
- 30° – narrow spot angle. Creates strong accents on individual products, displays or artworks and suits high ceilings because the light arrives concentrated below.
- 25° double (DS25°) – two narrow beams from one luminaire. Ideal when two opposite shelf sides of an aisle are to be lit at the same time.
- 25° asymmetric (L/R) – throws the light offset to the left or right. Perfect for wall shelves, wall pictures or window walls when the luminaire cannot hang directly in front.
- Opal cover 120° – a milky cover instead of a lens. The light is diffused softly and the luminous surface looks uniform – particularly low-glare for offices and anywhere soft light is desired.
As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and even brightness the standard 120° optic is the right choice.
Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.
CRI > 80: bright and economical
CRI > 80 is the proven standard for sales and work areas: colours are rendered naturally while the luminaire runs very economically at a high 175 lm/W. This noticeably lowers operating costs when many luminaires run for long hours.
Long service life – L80 at 100,000 hours
What does L80 / 100,000 hours mean? Simply this: after 100,000 hours of operation the luminaire still delivers at least 80 % of its day-one brightness. At ten hours of use per day that is more than 27 years. Illumination therefore stays virtually constant for a very long time.
High-quality LED chips by Sanan
A word on the LED manufacturer: Sanan Optoelectronics from Xiamen is not a no-name supplier but the largest producer of LED chips in China and one of the leading ones worldwide. Since its foundation in 2000 the listed company has grown into a vertically integrated group that makes everything itself, from wafer to finished chip – which secures consistent quality across large volumes. This luminaire benefits directly: high efficiency, very tight colour tolerances (SDCM < 5), stable colour rendering and a long service life of L80 at 100,000 hours. Cheap LED chips save money at purchase – good ones save it over the entire service life.
Mounting & track compatibility

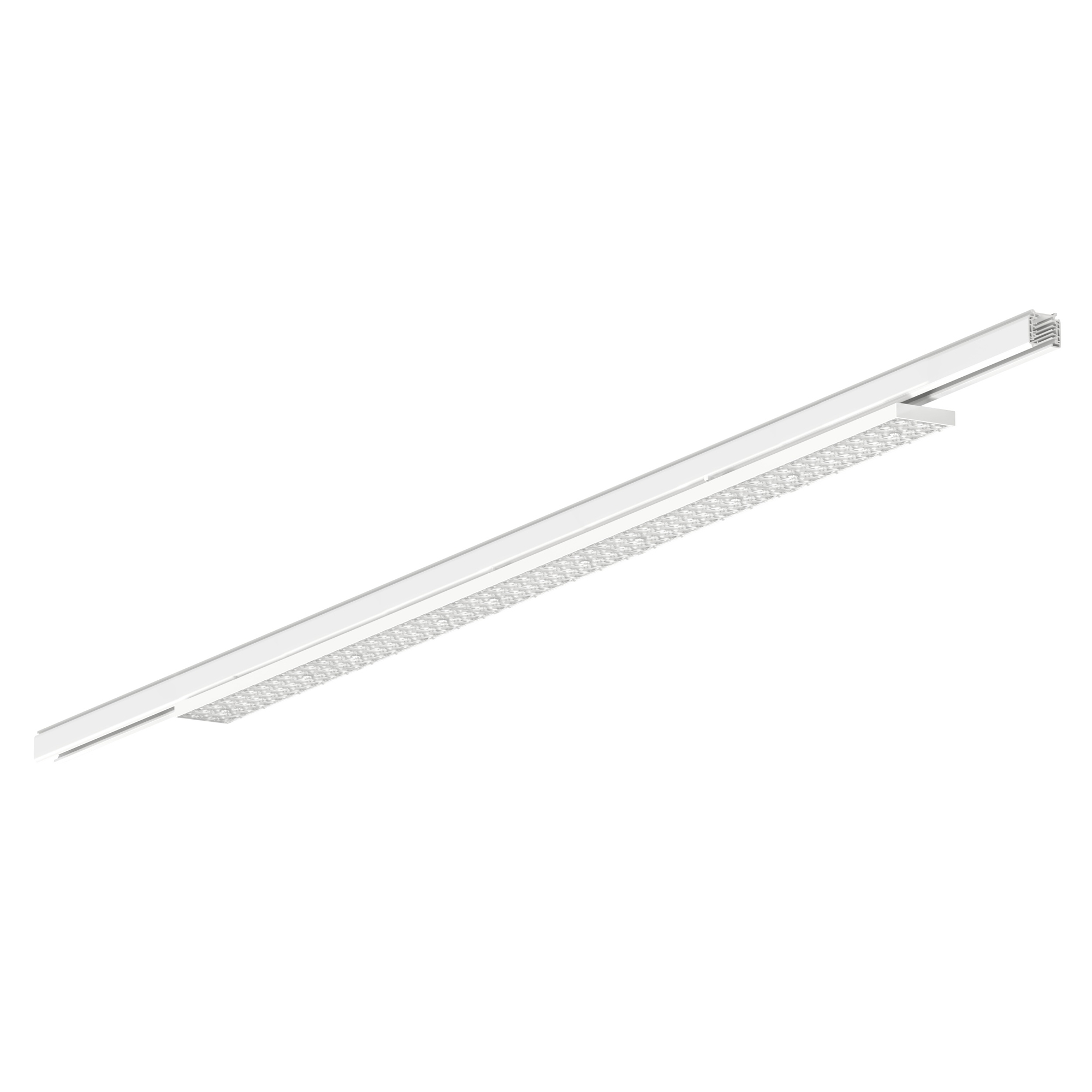

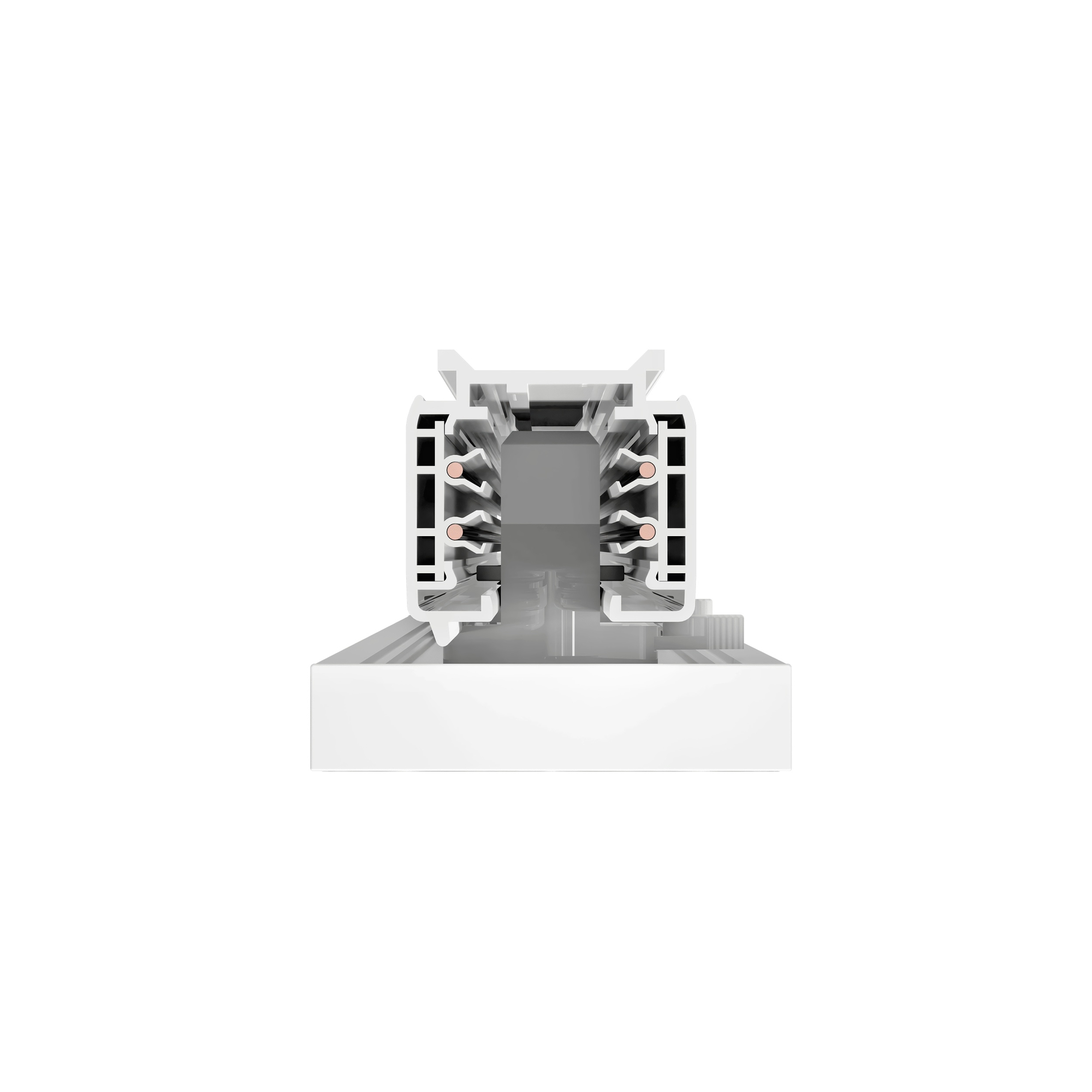

The VU1 is fitted directly into the busbar using a 3-phase adapter – no drilling, no cable routing. The three phases (L1, L2, L3) let you switch several lighting groups on the same track separately, for example general light and window light. The adapter fits the common European track systems: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The luminaire is Safety Class I with protective earth.
Colour temperature 5000 K – daylight white
Daylight white light looks crisp and alert – ideal for assembly, technical work, labs and areas that require close inspection.
Power steps & luminous flux
| Power step | Power | Luminous flux |
|---|---|---|
| Step 1 (maximum) | 60 W | 10,500 lm |
| Step 2 | 50 W | 8,750 lm |
| Step 3 | 42 W | 7,350 lm |
| Step 4 (minimum) | 33 W | 5,775 lm |

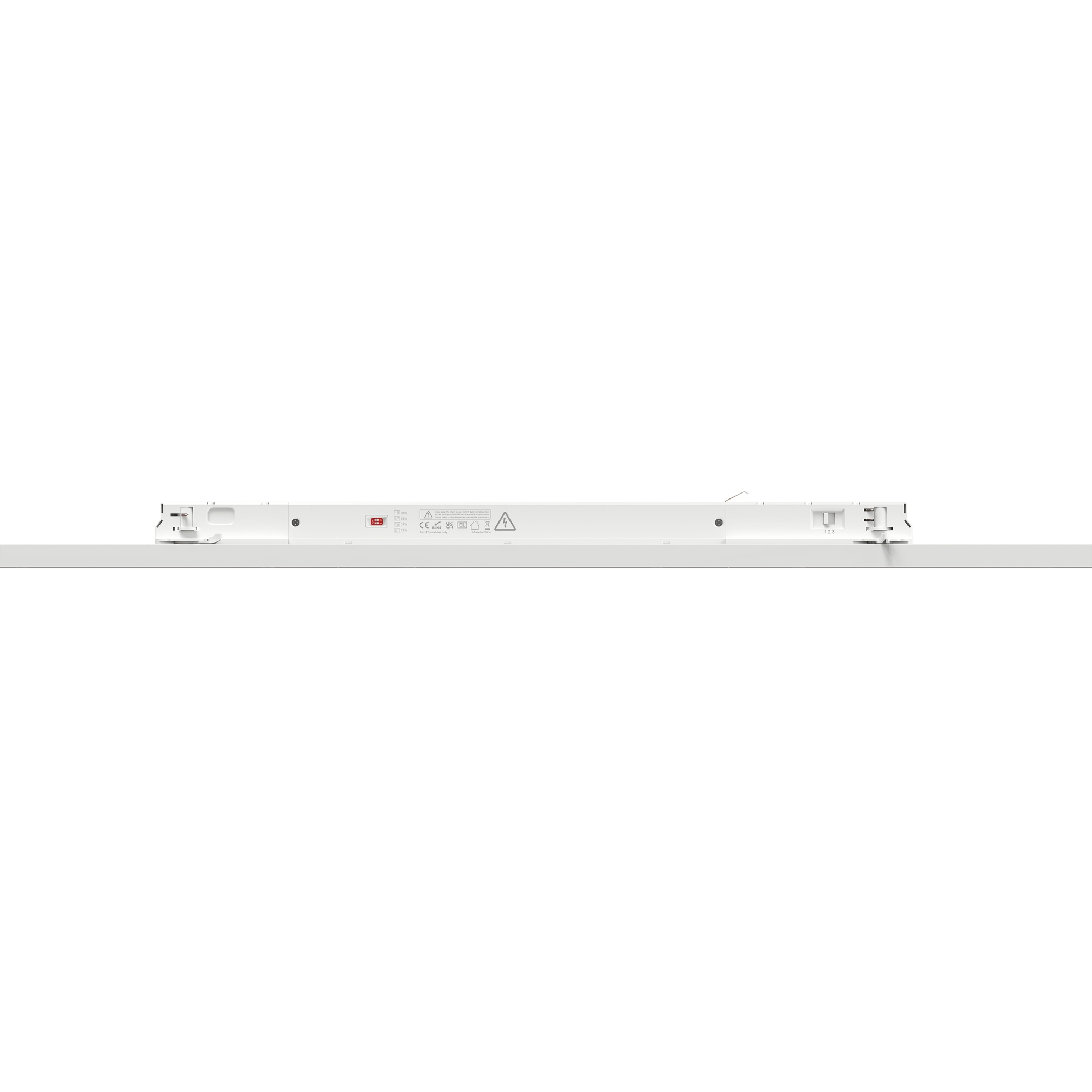

Power is selected directly at the luminaire via switch – so you match brightness to the room without additional devices and save energy permanently.
Technical data
| Length | 1438 mm |
| Power (switchable) | 60 W / 50 W / 42 W / 33 W (by switch) |
| Luminous flux | 10,500 lm / 8,750 lm / 7,350 lm / 5,775 lm |
| Efficacy | 175 lm/W |
| Colour temperature | 5000 K (daylight white) |
| Colour rendering | CRI > 80 |
| Beam angle | 120° (standard); optionally 90°, 60°, 30°, 25° double, 25° asymmetric L/R or opal cover 120° on request |
| Tilt range | fold-down, individually 0° to 30° left or right |
| Mounting | 3-phase track (via adapter), phase selection L1/L2/L3 |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC/DC 220–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Switching cycles | > 500,000 |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens (opal cover: PC) |
| Housing colour | White (RAL 9016) |
| Height | 17 mm (lens) / 29.5 mm (opal cover), width 63.5 mm |
| Weight | 1.31 kg |
| Ambient temperature | −20 °C to +40 °C |
| Storage temperature | −25 °C to +65 °C |
| Glow wire test | 650 °C |
| Energy efficiency class | C (EU scale A–G, EU 2019/2015) |
Applications
Typical locations are shops, boutiques, supermarkets, showrooms, galleries, offices, conference rooms, corridors and reception areas as well as workshops and exhibition halls. Because the luminaire simply clicks onto the track, the lighting can change along with the room – new shelves, new ranges or a new layout mean no electrical rework, just repositioning and re-aiming the luminaires.
Scope of delivery
- 1× LED VU1 linear luminaire with 3-phase adapter
- Installation instructions
