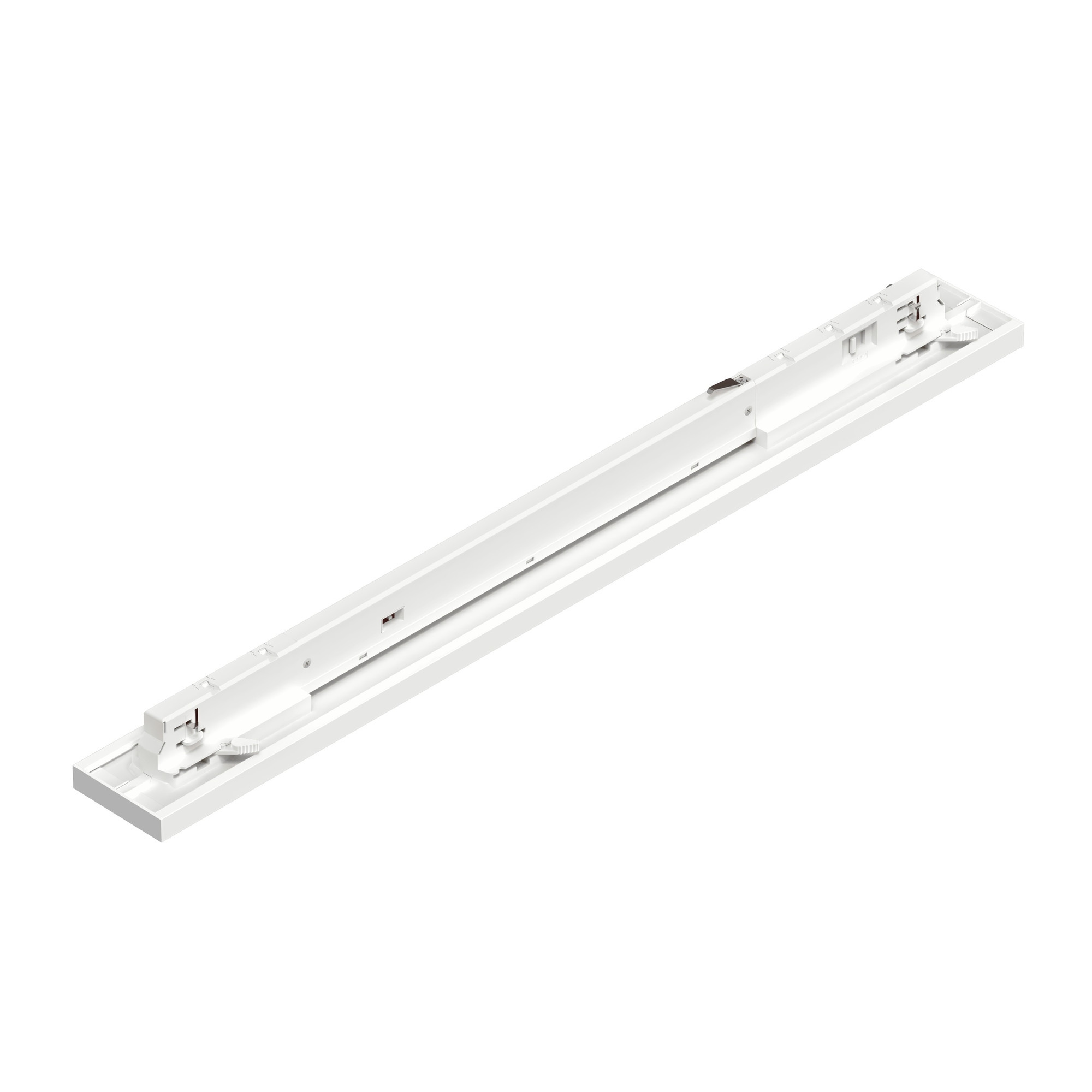

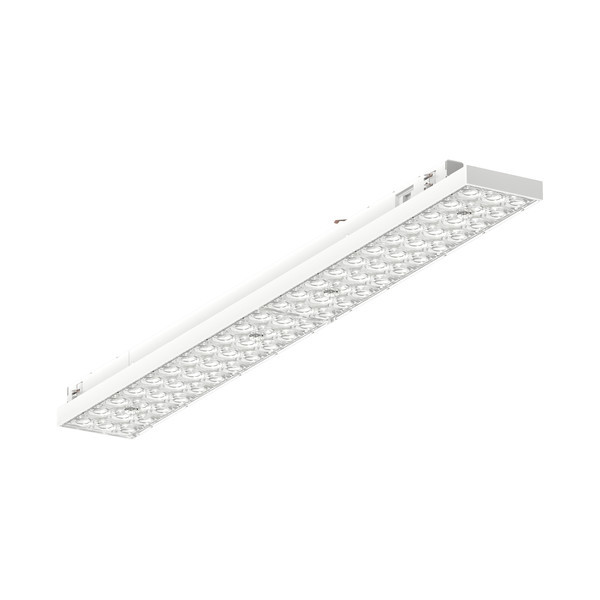

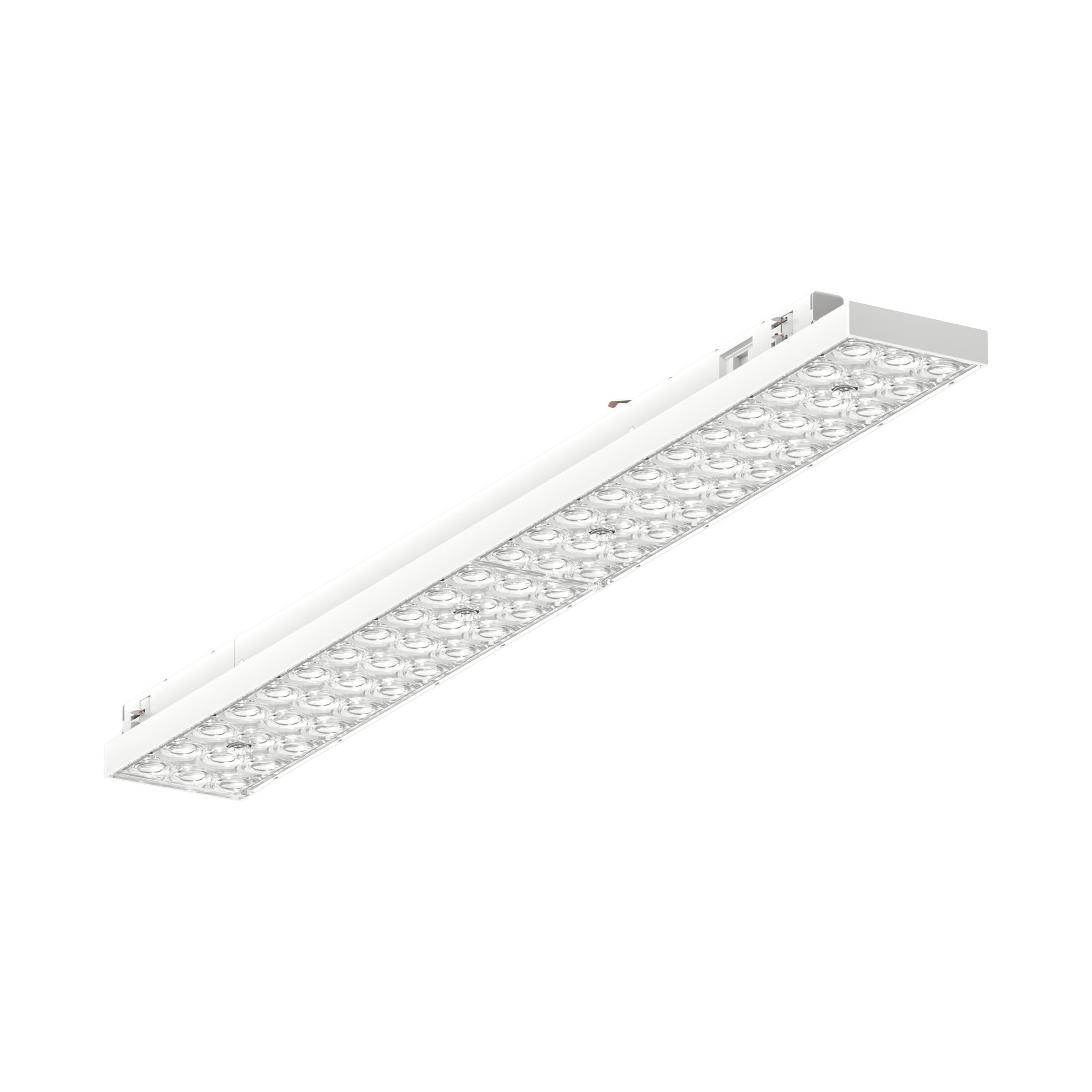

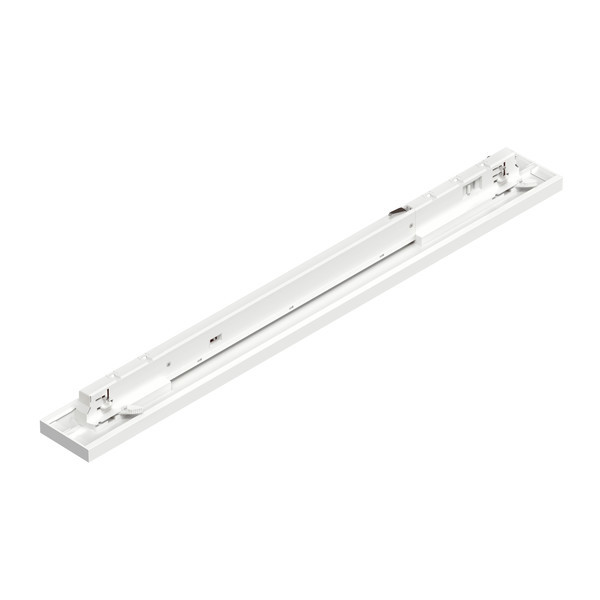

LED VU1 linear light 30° adjustable 578mm white 160lm CRI>90 6000K

Item number: VU1C95WV-4

Category: VU1 LED Linear Luminaire

Lightcolor:: 3000K4000K5000K6000K

94,90 €

including 19% VAT., plus shipping

From	Price per unit
6	89,90 €
12	84,90 €

Available

Shipping time: 15 - 16 workdays

Description

LED VU1 Linear Luminaire – Slim Track Spotlight, Individually Tiltable

578 mm · white · 6000 K cool white · CRI > 90 · 120°

578 mmwhiteCRI > 906000 K120°0–30° tiltable160 lm/WL80 100,000 h

The LED VU1 linear luminaire is a slim linear spotlight for the 3-phase track. With a 120° beam it delivers soft, wide-area light, and it can be folded down and tilted individually by up to 30° to the left or right. That way you light surfaces evenly and aim the light at shelves, goods or walls whenever needed. For controllable installations the luminaire is also available in a DALI-2 version on request: it can then be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

120° beam angle Wide, soft light for evenly illuminated surfaces.	Individually tiltable Folds down and turns 0–30° to the left or right.
Switchable power 24 W / 20 W / 17 W / 14 W – selectable at the switch.	High efficiency 160 lm/W – up to 3,840 lm at 24 W.
Flicker-free PstLM < 1 and SVM < 0.1 – pleasant for eyes and cameras.	Long service life L80 at 100,000 h thanks to Sanan LED chips.

Features in detail

120° standard optic, further beam angles optionally available on request
Fold-down design, individually tiltable 0–30°
Colour rendering CRI > 90 for natural colours
Switchable power in four steps without tools
Optionally available with DALI-2 dimming on request
For 3-phase track – compatible with common track systems
Slim aluminium housing in white, PMMA lens, IK04

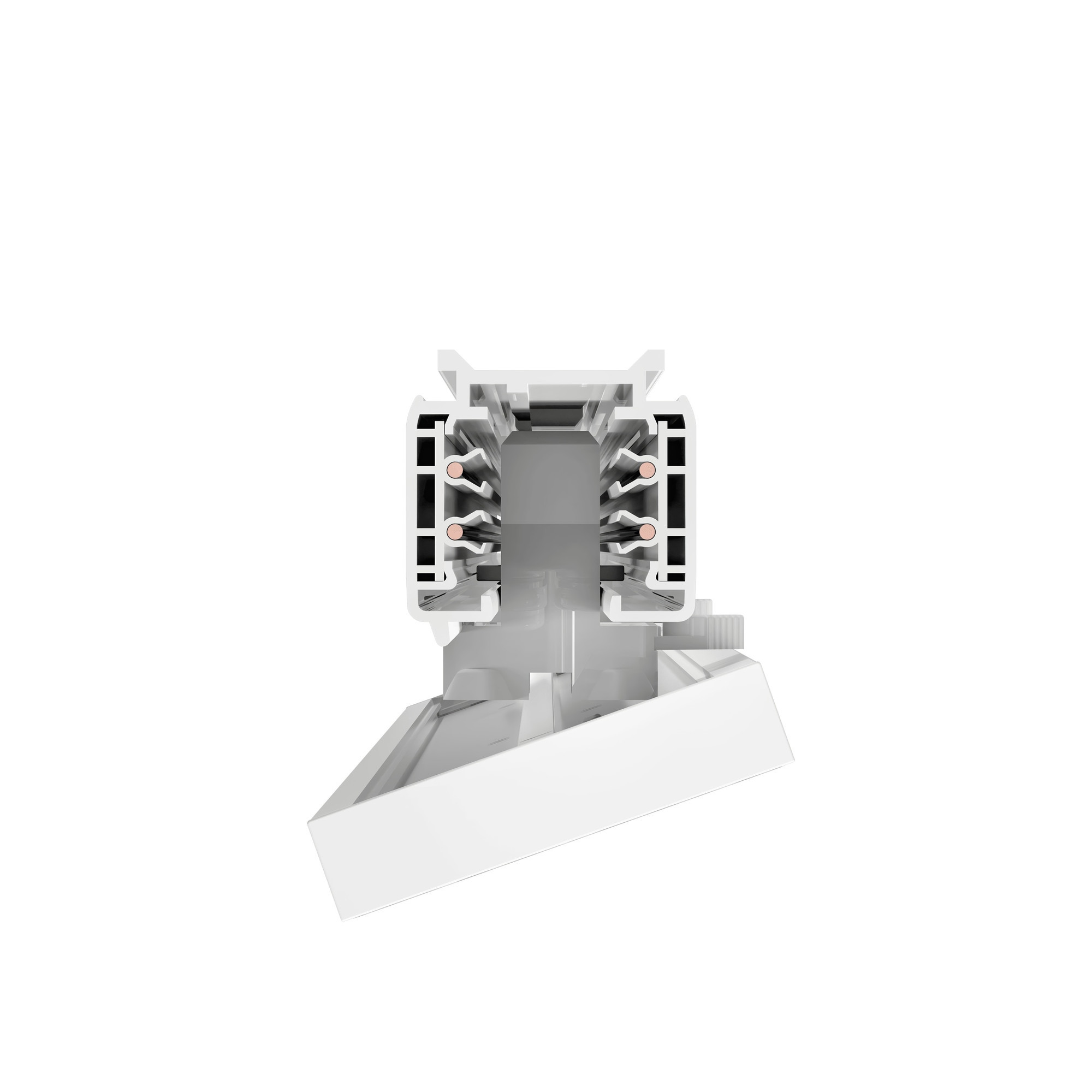

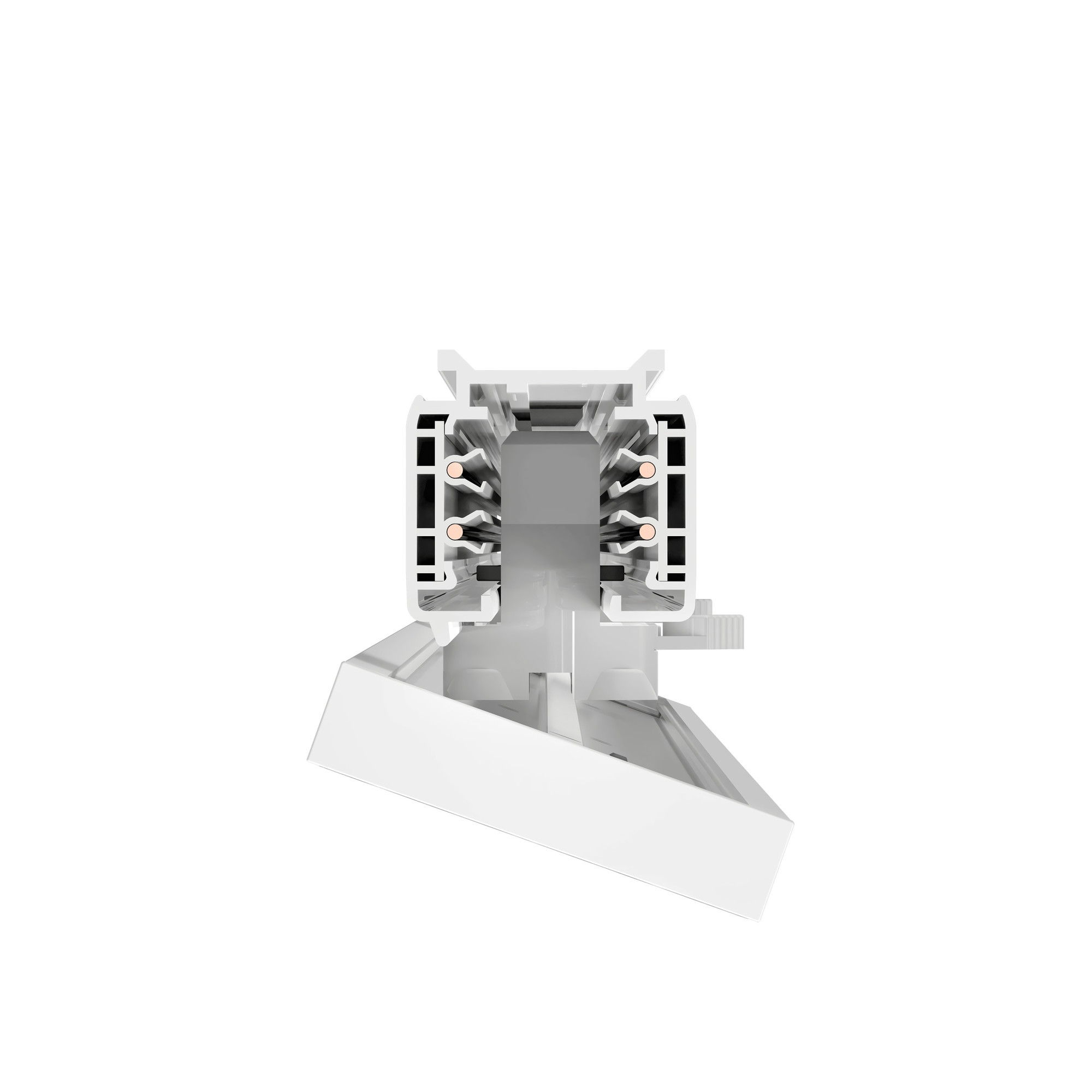

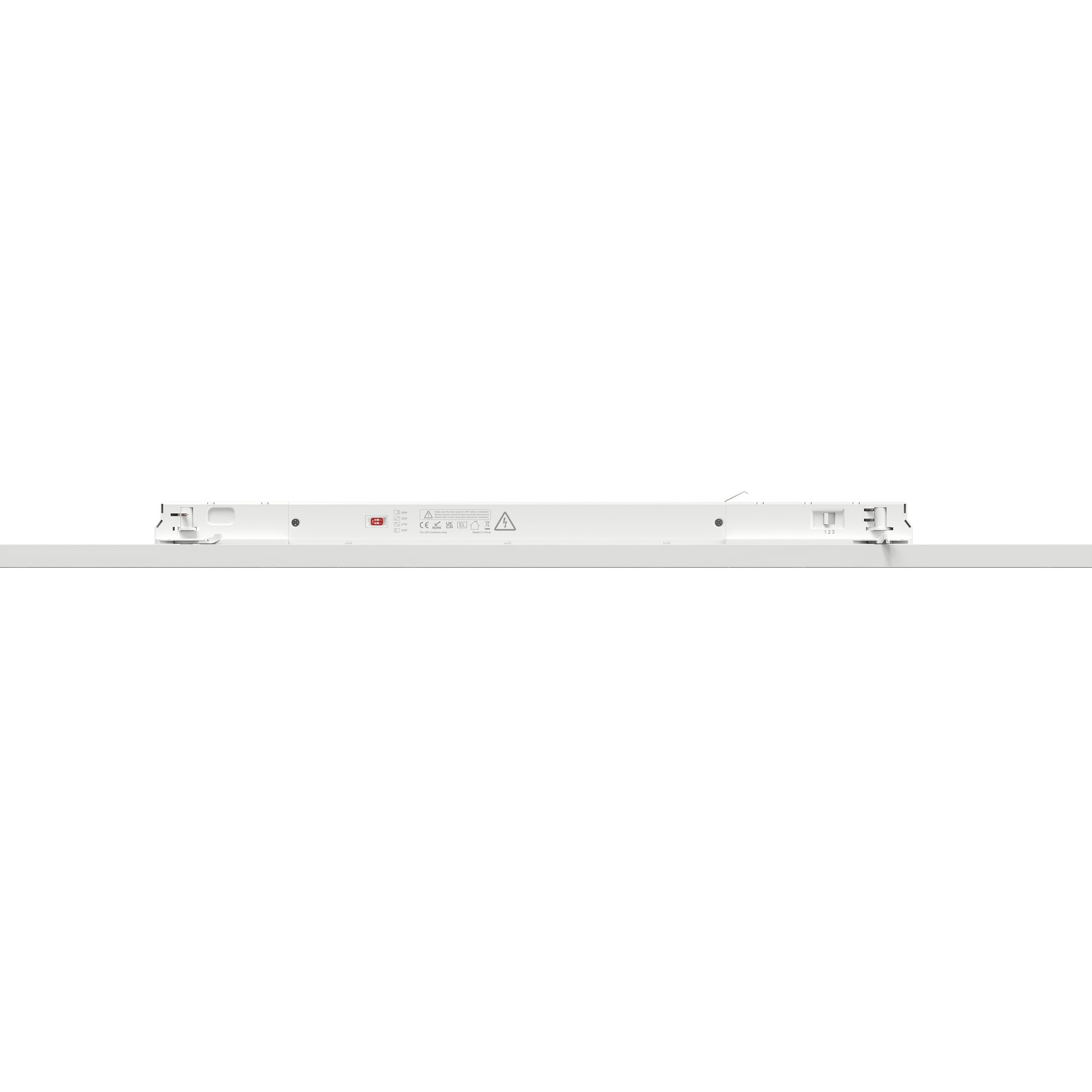

Individually tiltable: light exactly where you need it

Individually tiltable means each luminaire can be folded down out of the track and then turned steplessly between 0° and 30° to the left or right. So you aim the light exactly where it is needed – at a shelf wall, a display or a workstation. This is especially handy when the interior changes: instead of rebuilding, you simply re-aim the luminaires.

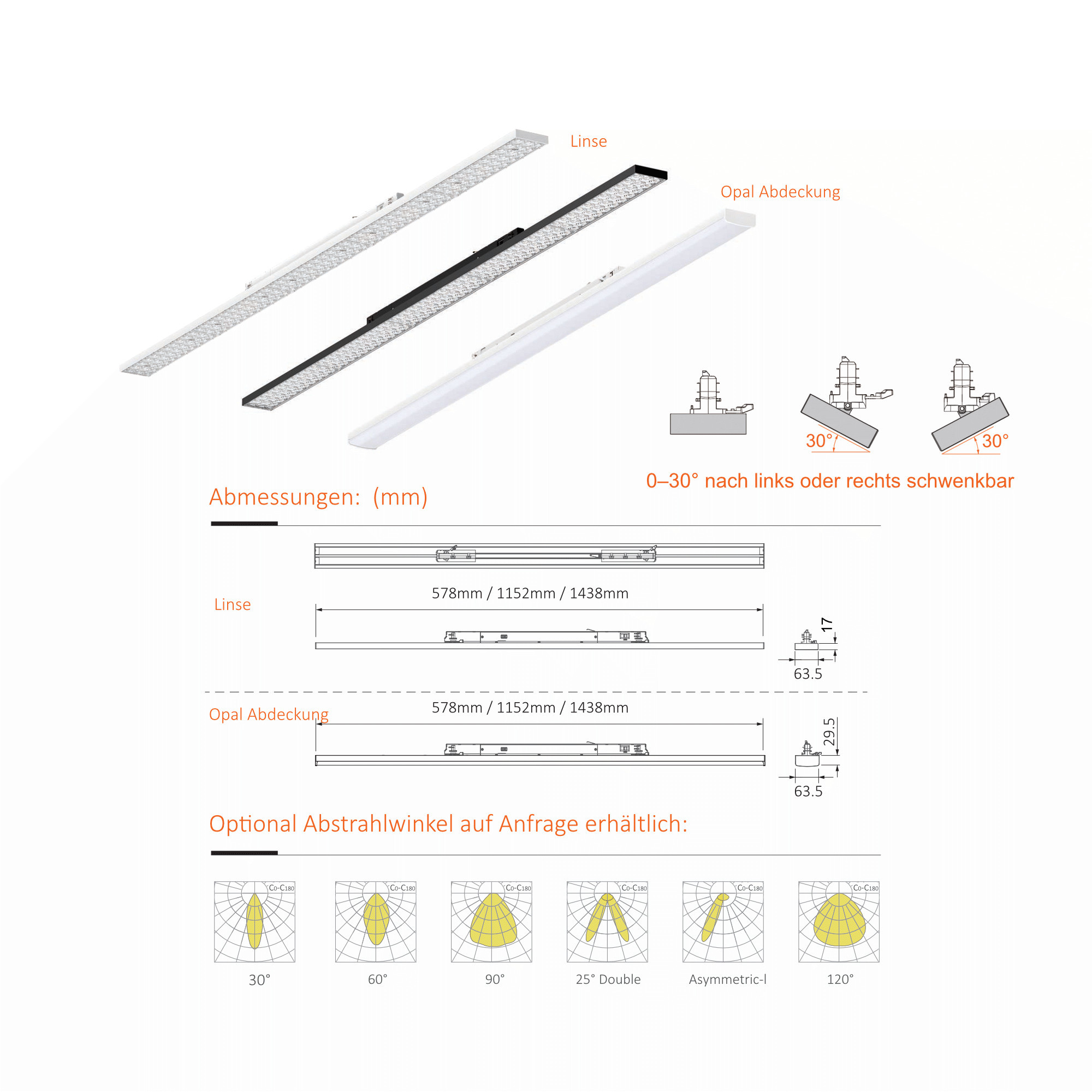

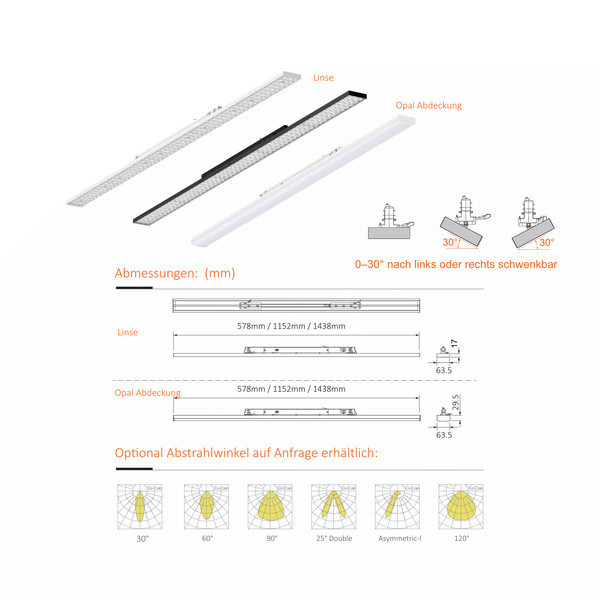

Beam angles: which one suits your application?

The standard beam angle is 120°: wide, soft and ideal for general room lighting. If you want to use light more selectively, other lenses are optionally available. The following overview explains which angle best fits which purpose:

120° (standard) – very wide angle for even base light. First choice for normal ceiling heights up to about 4 m, for aisles, offices, sales rooms and workshops.
90° – slightly more focused than 120°. At the same height it puts more light on the floor and reduces stray light on the walls – good for aisles and shelf rows.
60° – medium angle for higher ceilings (approx. 4–6 m) or when a certain zone should be noticeably brighter than the rest of the room.
30° – narrow spot angle. Creates strong accents on individual products, displays or artworks and suits high ceilings because the light arrives concentrated below.
25° double (DS25°) – two narrow beams from one luminaire. Ideal when two opposite shelf sides of an aisle are to be lit at the same time.
25° asymmetric (L/R) – throws the light offset to the left or right. Perfect for wall shelves, wall pictures or window walls when the luminaire cannot hang directly in front.
Opal cover 120° – a milky cover instead of a lens. The light is diffused softly and the luminous surface looks uniform – particularly low-glare for offices and anywhere soft light is desired.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and even brightness the standard 120° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 90: colours like daylight

For the highest demands on colour fidelity: CRI > 90 also reveals subtle nuances that simpler light sources swallow. Clothing does not look faded, wood and leather keep their warm tone, food looks fresh. That makes this version ideal for shops, showrooms and display areas.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours is a hallmark of durability: only after this very long operating period does brightness fall below 80 % of the initial value. For you that means fewer replacements, less maintenance and a consistent lighting result over many years.

High-quality LED chips by Sanan

Who is behind the LEDs? The light sources in this luminaire come from Sanan Optoelectronics – a listed company founded in 2000 and headquartered in Xiamen, China. Sanan is China's largest LED chip manufacturer and ranks among the world's top suppliers in the industry. The company produces several hundred billion LED chips per year, covering roughly half of China's entire output. Why this matters to you: a manufacturer of this scale does not produce by chance but with strict quality control and very tight production tolerances. The result is chips with high efficacy, precise colour temperature (SDCM < 5) and low degradation – luminaires from one batch shine equally bright and equally coloured, even years later.

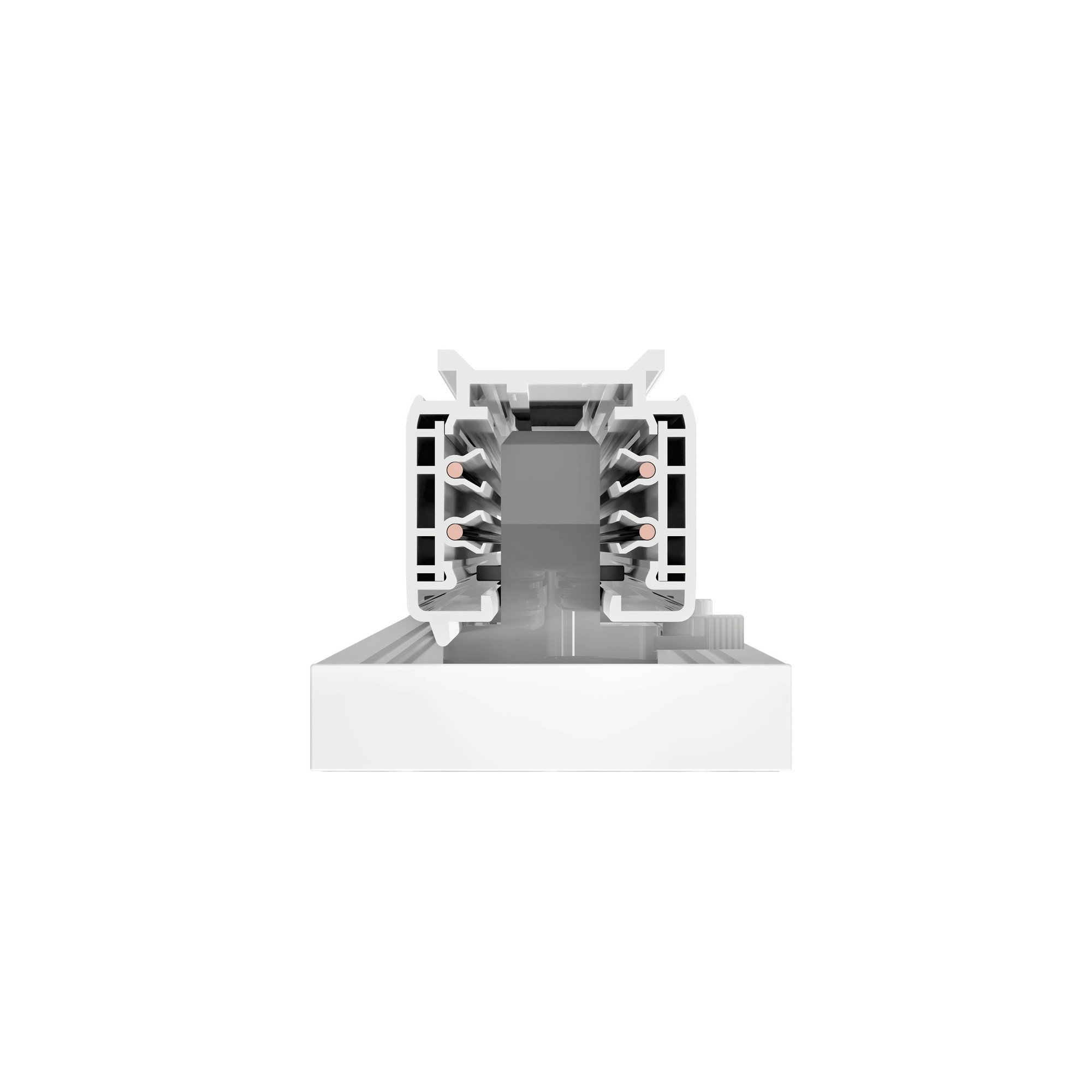

Mounting & track compatibility

The VU1 is fitted directly into the busbar using a 3-phase adapter – no drilling, no cable routing. The three phases (L1, L2, L3) let you switch several lighting groups on the same track separately, for example general light and window light. The adapter fits the common European track systems: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The luminaire is Safety Class I with protective earth.

Colour temperature 6000 K – cool white

Cool white light provides maximum brightness and contrast – proven in storage, production and high halls.

Why CRI > 90 delivers slightly fewer lumens

Fewer lumens at CRI > 90 – why? Higher colour rendering comes from a broader spectrum with a stronger red share. The eye perceives red light more weakly than green or yellow, and the necessary phosphor conversion causes extra losses. Together these slightly reduce measured luminous flux and efficacy (lm/W). The gain: colours, fabrics and materials look exactly as they really are.

Power steps & luminous flux

Power step	Power	Luminous flux
Step 1 (maximum)	24 W	3,840 lm
Step 2	20 W	3,200 lm
Step 3	17 W	2,720 lm
Step 4 (minimum)	14 W	2,240 lm

Power is selected directly at the luminaire via switch – so you match brightness to the room without additional devices and save energy permanently.

Technical data

Length	578 mm
Power (switchable)	24 W / 20 W / 17 W / 14 W (by switch)
Luminous flux	3,840 lm / 3,200 lm / 2,720 lm / 2,240 lm
Efficacy	160 lm/W
Colour temperature	6000 K (cool white)
Colour rendering	CRI > 90
Beam angle	120° (standard); optionally 90°, 60°, 30°, 25° double, 25° asymmetric L/R or opal cover 120° on request
Tilt range	fold-down, individually 0° to 30° left or right
Mounting	3-phase track (via adapter), phase selection L1/L2/L3
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC/DC 220–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Switching cycles	> 500,000
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens (opal cover: PC)
Housing colour	White (RAL 9016)
Height	17 mm (lens) / 29.5 mm (opal cover), width 63.5 mm
Weight	0.72 kg
Ambient temperature	−20 °C to +40 °C
Storage temperature	−25 °C to +65 °C
Glow wire test	650 °C
Energy efficiency class	C (EU scale A–G, EU 2019/2015)

Applications

Typical locations are shops, boutiques, supermarkets, showrooms, galleries, offices, conference rooms, corridors and reception areas as well as workshops and exhibition halls. Because the luminaire simply clicks onto the track, the lighting can change along with the room – new shelves, new ranges or a new layout mean no electrical rework, just repositioning and re-aiming the luminaires.

Scope of delivery

1× LED VU1 linear luminaire with 3-phase adapter
Installation instructions
