LED VU1 linear light 30° adjustable 578mm, white 175lm CRI>80 6000K

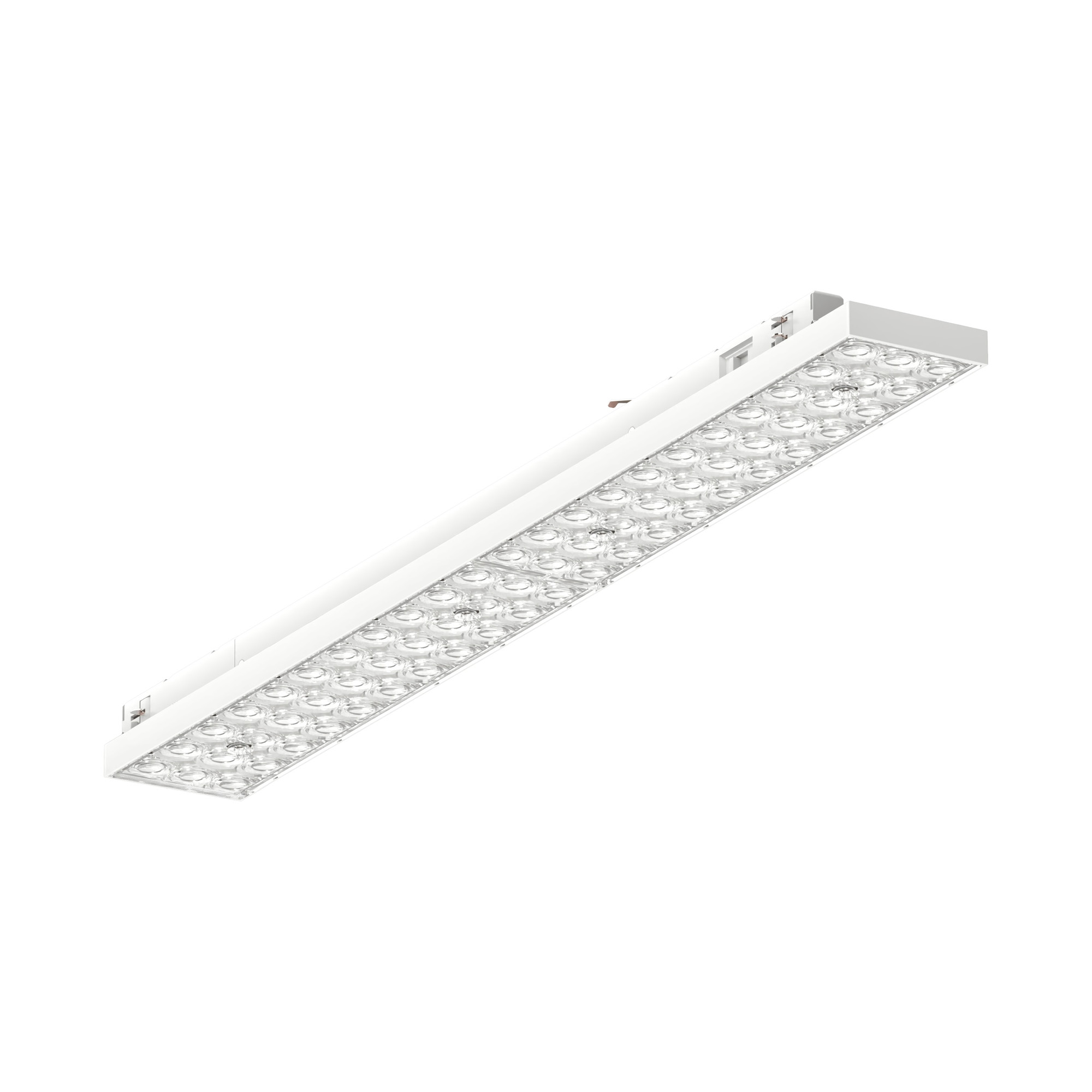

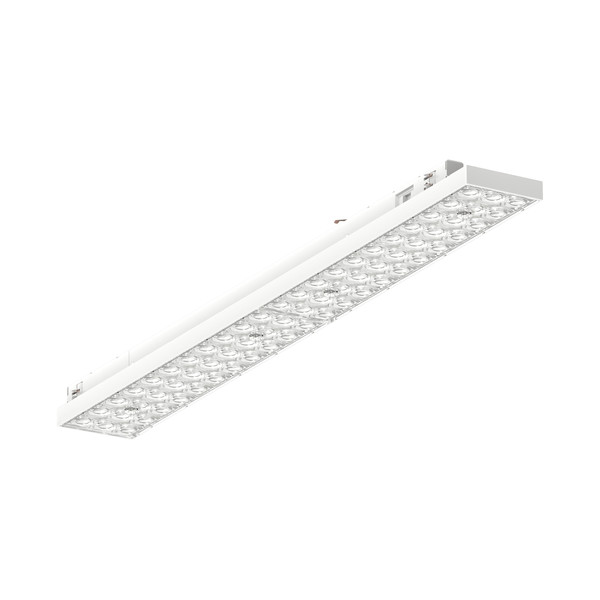

LED VU1 Linear Luminaire – Slim Track Spotlight, Individually Tiltable

578 mm · white · 6000 K cool white · CRI > 80 · 120°

With the LED VU1 linear luminaire you get a versatile track spotlight in a slim design. The standard 120° beam provides broad, even base brightness; in addition, each luminaire folds down and swivels individually from 0 to 30° sideways. You can adjust the light direction at any time without moving the luminaire along the track. For controllable installations the luminaire is also available in a DALI-2 version on request: it can then be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• 120° standard optic, further beam angles optionally available on request
• Fold-down design, individually tiltable 0–30°
• Colour rendering CRI > 80 for natural colours
• Switchable power in four steps without tools
• Optionally available with DALI-2 dimming on request
• For 3-phase track – compatible with common track systems
• Slim aluminium housing in white, PMMA lens, IK04

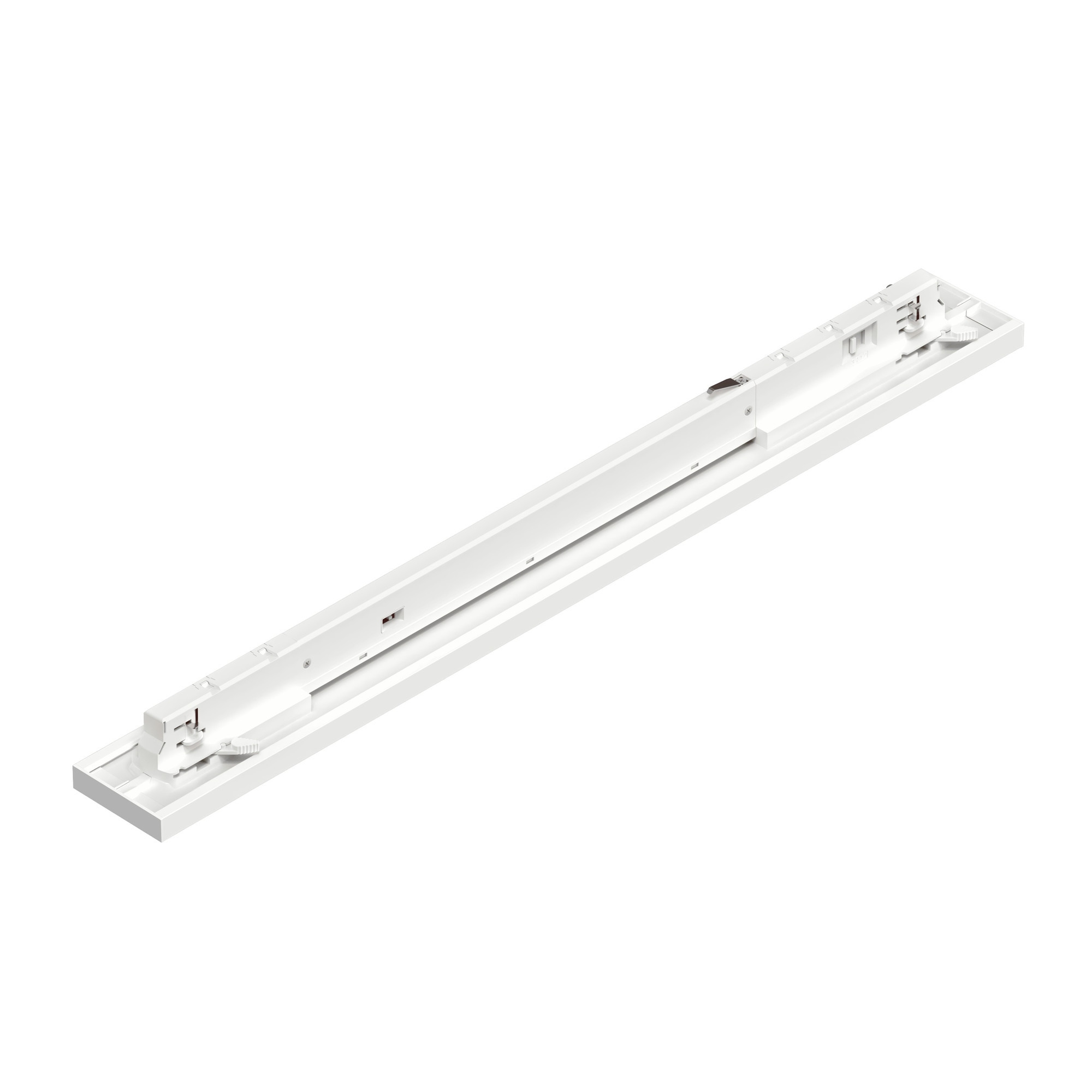

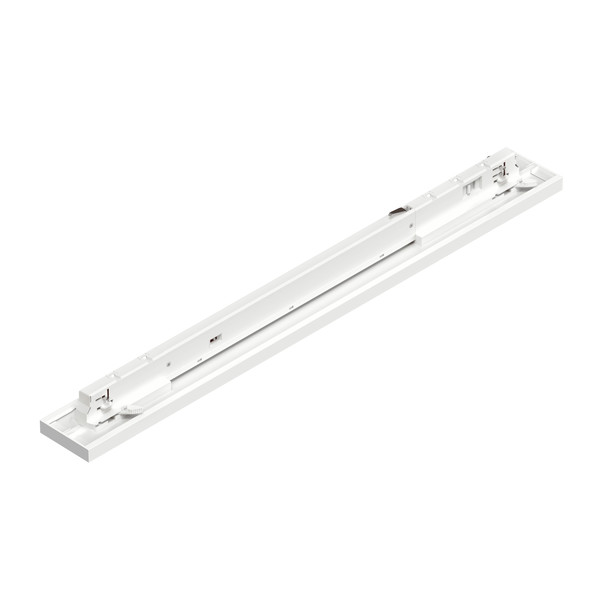

Individually tiltable: light exactly where you need it

The luminaire is not fixed rigidly. It folds down and can then be tilted individually by up to 30° to the side. With one and the same luminaire you can either light a surface evenly or highlight a specific zone. If you rearrange the space later, you realign the light within seconds – no tools, no rebuilding.

Beam angles: which one suits your application?

As standard the VU1 emits at 120°. This is a very wide angle that spreads light over a large area and provides even base brightness. Depending on ceiling height and task, narrower or special optics are available on request – here is an overview of what suits what:

• 120° (standard) – very wide angle for even base light. First choice for normal ceiling heights up to about 4 m, for aisles, offices, sales rooms and workshops.
• 90° – slightly more focused than 120°. At the same height it puts more light on the floor and reduces stray light on the walls – good for aisles and shelf rows.
• 60° – medium angle for higher ceilings (approx. 4–6 m) or when a certain zone should be noticeably brighter than the rest of the room.
• 30° – narrow spot angle. Creates strong accents on individual products, displays or artworks and suits high ceilings because the light arrives concentrated below.
• 25° double (DS25°) – two narrow beams from one luminaire. Ideal when two opposite shelf sides of an aisle are to be lit at the same time.
• 25° asymmetric (L/R) – throws the light offset to the left or right. Perfect for wall shelves, wall pictures or window walls when the luminaire cannot hang directly in front.
• Opal cover 120° – a milky cover instead of a lens. The light is diffused softly and the luminous surface looks uniform – particularly low-glare for offices and anywhere soft light is desired.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and even brightness the standard 120° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 80: bright and economical

CRI > 80 is the proven standard for sales and work areas: colours are rendered naturally while the luminaire runs very economically at a high 175 lm/W. This noticeably lowers operating costs when many luminaires run for long hours.

Long service life – L80 at 100,000 hours

What does L80 / 100,000 hours mean? Simply this: after 100,000 hours of operation the luminaire still delivers at least 80 % of its day-one brightness. At ten hours of use per day that is more than 27 years. Illumination therefore stays virtually constant for a very long time.

High-quality LED chips by Sanan

We deliberately rely on chips by Sanan as the light source. Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is regarded as the LED chip market leader in China as well as one of the three largest manufacturers worldwide. The company runs its own epitaxy and chip production, invests continuously in research and development and holds more than a thousand patents; its customers include well-known international lighting and technology brands. In practical terms this origin means: plenty of light per watt, precisely maintained colour temperatures and a service life that delivers on its promise even in continuous operation.

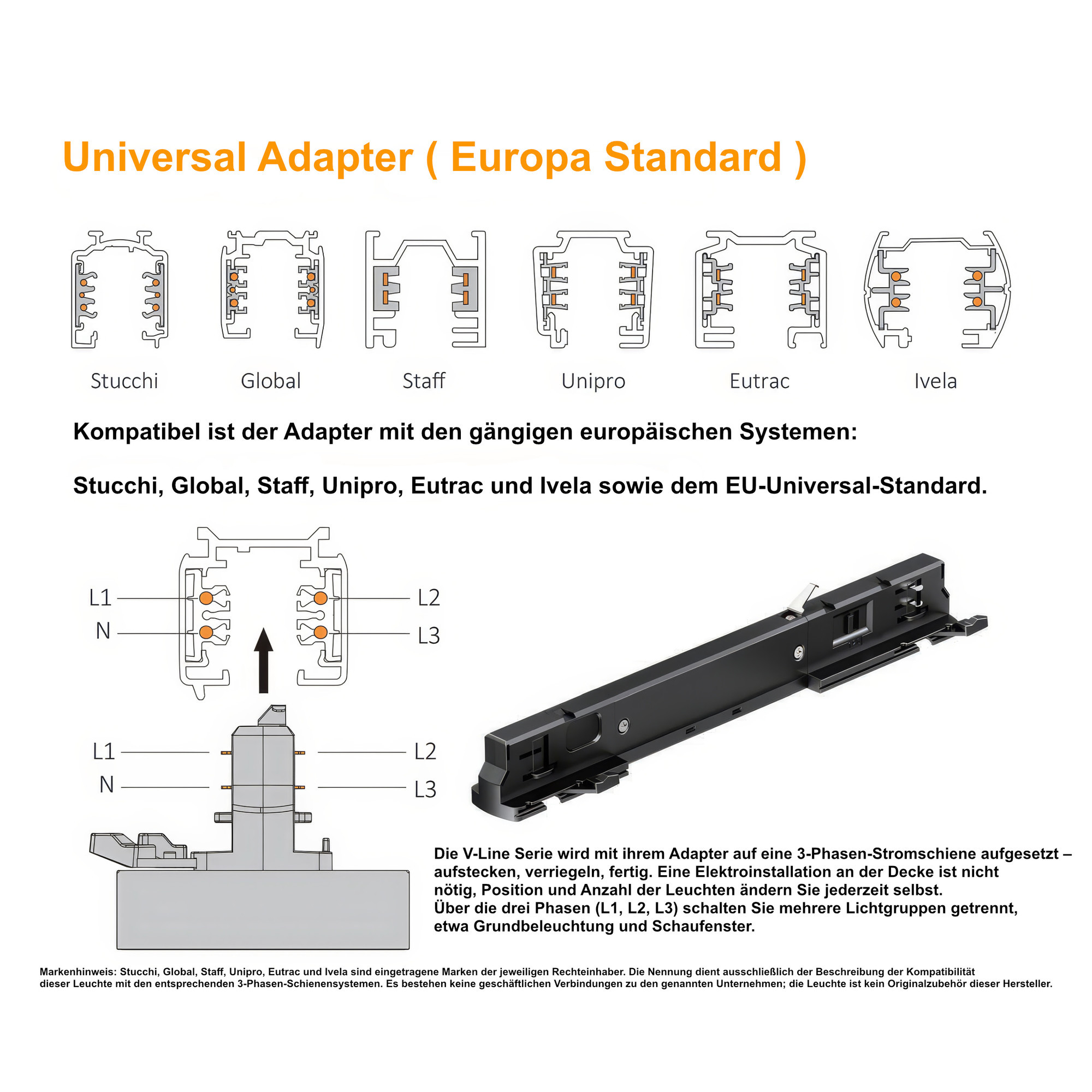

Mounting & track compatibility

The VU1 is fitted directly into the busbar using a 3-phase adapter – no drilling, no cable routing. The three phases (L1, L2, L3) let you switch several lighting groups on the same track separately, for example general light and window light. The adapter fits the common European track systems: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The luminaire is Safety Class I with protective earth.

Colour temperature 6000 K – cool white

Cool white light provides maximum brightness and contrast – proven in storage, production and high halls.

Power steps & luminous flux

Power is selected directly at the luminaire via switch – so you match brightness to the room without additional devices and save energy permanently.

Technical data

Applications

Typical locations are shops, boutiques, supermarkets, showrooms, galleries, offices, conference rooms, corridors and reception areas as well as workshops and exhibition halls. Because the luminaire simply clicks onto the track, the lighting can change along with the room – new shelves, new ranges or a new layout mean no electrical rework, just repositioning and re-aiming the luminaires.

Scope of delivery

• 1× LED VU1 linear luminaire with 3-phase adapter
• Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
