LED VU2 linear light 30°x90°V-tiltable 1200mm white 150lm CRI>90 3000K

Item number: VU2C912WV-1

Category: VU2 LED linear light

Lightcolor:: 3000K4000K5000K6000K

124,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	119,90 €
12	114,90 €

Available

Shipping time: 15 - 16 workdays

Description

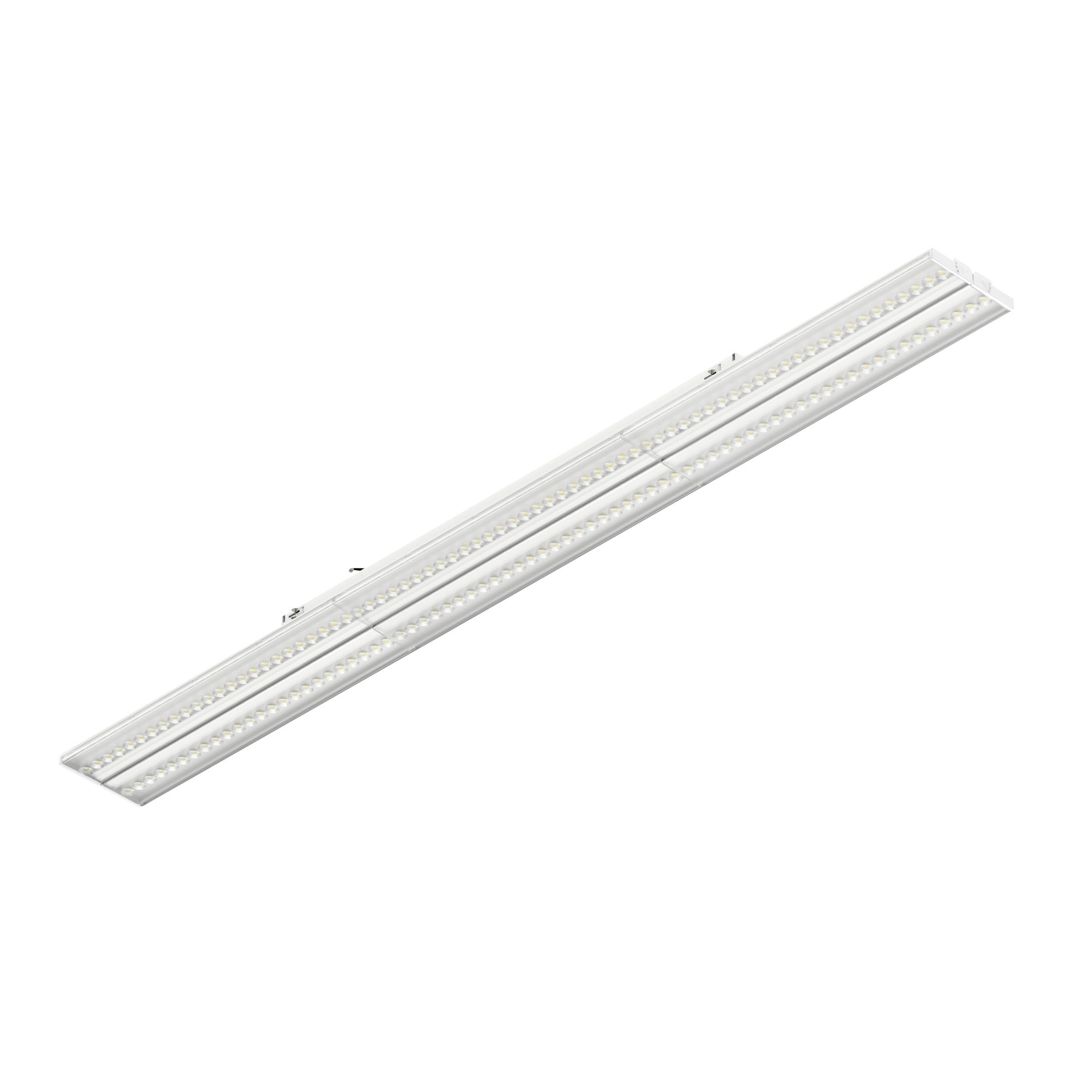

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

1200 mm · white · 3000 K warm white · CRI > 90 · 30° × 90°

1200 mmwhiteCRI > 903000 K30° × 90°2 wings 0–30°150 lm/WL80 100,000 h

The LED VU2 linear luminaire is a track spotlight with two separately movable light wings. Both wings tilt independently by up to 30° – inwards, outwards or both in the same direction. A single luminaire can therefore cover opposite shelf rows or concentrate all of its light on one side. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Two tiltable wings Individually tiltable 0° to 30° – two shelf sides with one luminaire.	30° × 90° optic Wide lengthwise, narrow across: light on the aisle, little spill.
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch.	High efficiency 150 lm/W – up to 7,200 lm at 48 W.
Flicker-free PstLM < 1 and SVM < 0.1 – comfortable for eyes and cameras.	Long service life L80 at 100,000 h thanks to Sanan LED chips.

Features in detail

Two separately tiltable light wings, each adjustable 0° to 30°
Beam angle 30° × 90°, 30° × 30° optionally available on request
Colour rendering CRI > 90 for natural colours
Switchable power in four steps without tools
Optionally available with DALI-2 dimming on request
For 3-phase track – compatible with common track systems
Aluminium housing in white with PMMA lens, IP20, IK04

Two tiltable wings: one luminaire, many lighting effects

Two wings, many options: because both light rows of the VU2 tilt independently up to 30°, you change the light distribution in seconds. Straight down for even base light, spread outwards for two shelf sides at once, or both swivelled together for one strongly accented surface. If your store layout changes, simply re-aim them.

Beam angles: which one suits your application?

How far the light spreads depends on the lens fitted. The VU2 standard is 30° × 90°, with a much narrower version available as an option. The overview below explains which optic suits which purpose:

30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 90: colours that are true

CRI > 90 means particularly true-to-life colour rendering. The light contains all colour components in balanced proportions, so even subtle gradations remain visible. Wherever goods have to convince through their colour – fashion, cosmetics, jewellery, delicatessen or art – this version is the one to choose.

Long service life – L80 at 100,000 hours

L80 / 100,000 hours describes how the LEDs age. Only after this very long operating period does luminous flux drop below 80 % of the initial value – and even then the luminaire keeps working. For you that means no regular lamp changes, hardly any maintenance and a consistent lighting result over years.

High-quality LED chips by Sanan

The light quality of an LED luminaire stands or falls with the chip inside. The VU2 uses chips by Sanan Optoelectronics – a listed company founded in 2000 in Xiamen, China. Sanan is the country's largest LED chip manufacturer and one of the three largest worldwide; several hundred billion chips leave its plants each year, roughly half of China's entire output. What matters to you is the result: high efficacy, very tight colour tolerances (SDCM < 5) and slow degradation – every luminaire in a delivery shines equally bright and in the same colour.

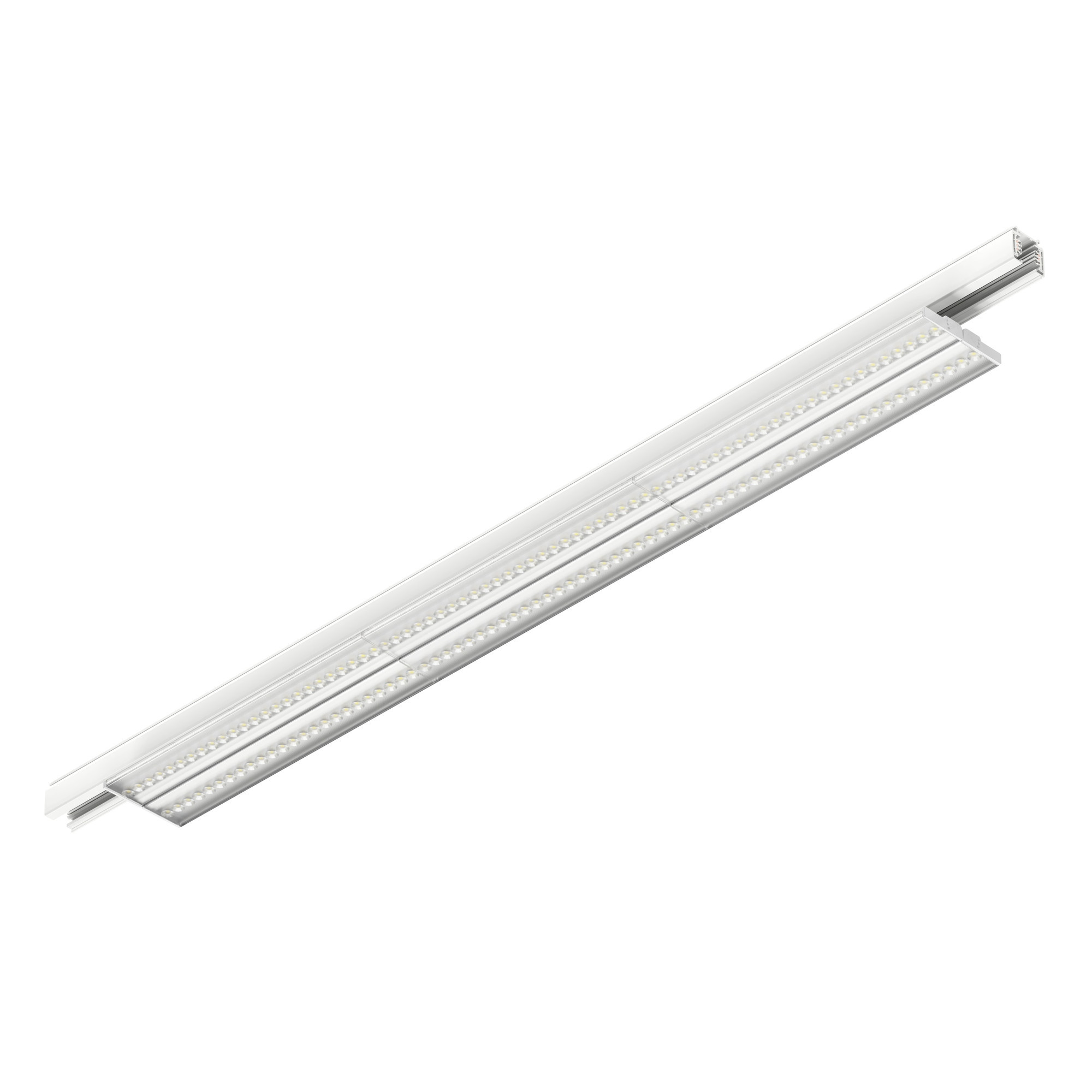

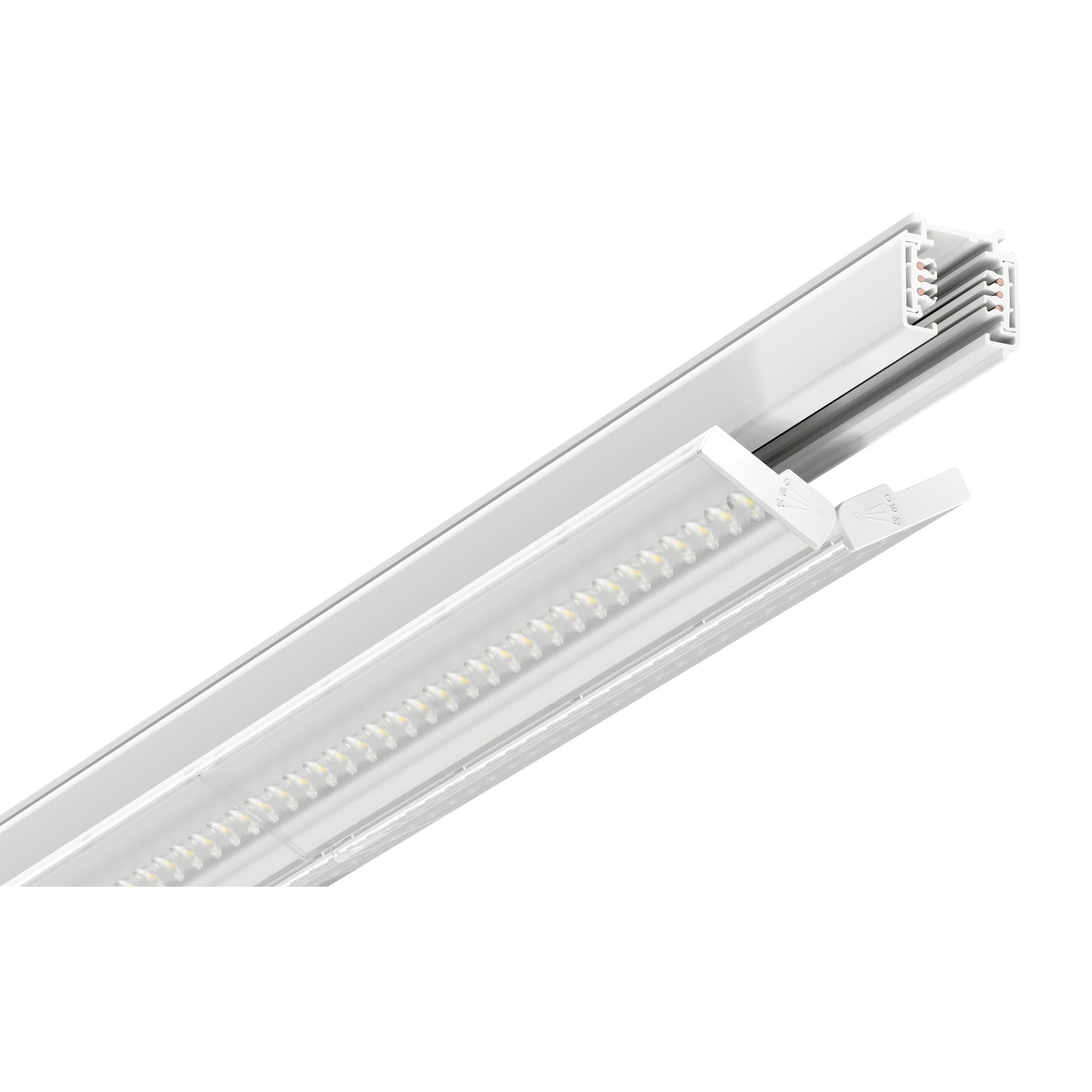

Mounting & track compatibility

All you need for installation is an existing 3-phase busbar: the VU2 is inserted, turned and sits securely. That makes later changes easy – new shelving or a new layout requires no electrical rework, just repositioning the luminaires. Phase selection L1/L2/L3 separates lighting circuits. Compatible with Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard, Safety Class I.

Colour temperature 3000 K – warm white

Warm white light feels cosy and inviting – proven in hospitality, hotels, boutiques and reception areas.

Why CRI > 90 delivers slightly fewer lumens

Why does CRI > 90 deliver fewer lumens than CRI > 80? Better colour rendering calls for a more complete spectrum, especially a stronger red component. The human eye is less sensitive precisely in that range, so this portion of the light contributes little to measured brightness. Together with conversion losses this yields slightly lower efficacy – a trade worth making wherever colours must look exact.

Power steps & luminous flux

Power step	Power	Luminous flux
Step 1 (maximum)	48 W	7,200 lm
Step 2	40 W	6,000 lm
Step 3	34 W	5,100 lm
Step 4 (minimum)	27 W	4,050 lm

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Length	1200 mm
Power (switchable)	48 W / 40 W / 34 W / 27 W (by switch)
Luminous flux	7,200 lm / 6,000 lm / 5,100 lm / 4,050 lm
Efficacy	150 lm/W
Colour temperature	3000 K (warm white)
Colour rendering	CRI > 90
Beam angle	30° × 90° (standard); 30° × 30° optionally available on request
Tilt range	two wings, individually tiltable 0° to 30°
Mounting	3-phase track (via adapter), phase selection L1/L2/L3
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC/DC 220–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Switching cycles	> 500,000
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	White (RAL 9016)
Dimensions	1200 × 84.6 × 55 mm (L × W × H)
Weight	2.20 kg
Ambient temperature	−20 °C to +40 °C
Storage temperature	−25 °C to +65 °C
Glow wire test	650 °C
Energy efficiency class	D (EU scale A–G, EU 2019/2015)

Applications

Whether sales floor, warehouse, office or exhibition – the VU2 suits all interiors with a 3-phase track. Its strength shows especially in shelf aisles, because one row of luminaires can cover both sides thanks to the movable wings. That reduces the number of fixtures needed and with it purchase, installation and energy costs. In boutiques, galleries and showrooms the light can be re-aimed at every rebuild without tools.

Scope of delivery

1× LED VU2 linear luminaire with 3-phase adapter
Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
