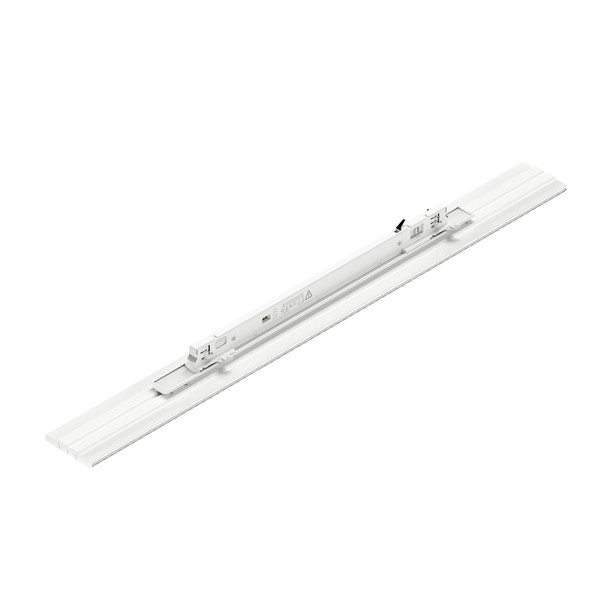

LED VU2 linear light 30°x90°V-tiltable 900mm white 150lm CRI>90 3000K

Item number: VU2C99WV-1

Category: VU2 LED linear light

Lightcolor:: 3000K4000K5000K6000K

114,90 €

including 19% VAT., no shipping costs

From	Price per unit
6	109,90 €
12	104,90 €

Available

Shipping time: 15 - 16 workdays

Description

LED VU2 Linear Luminaire – Track Spotlight with Two Tiltable Wings

900 mm · white · 3000 K warm white · CRI > 90 · 30° × 90°

900 mmwhiteCRI > 903000 K30° × 90°2 wings 0–30°150 lm/WL80 100,000 h

With the LED VU2 linear luminaire you get a track spotlight that adapts to the room instead of the other way round. The two light wings move individually and can be aimed together or in opposite directions. One row of luminaires can light a wide aisle, two shelf fronts or a single wall. For controllable installations the luminaire is also available as a DALI-2 version on request. In this version it can be dimmed steplessly and integrated into a central lighting control system.

Key benefits at a glance

Two tiltable wings Individually tiltable 0° to 30° – two shelf sides with one luminaire.	30° × 90° optic Wide lengthwise, narrow across: light on the aisle, little spill.
Switchable power 55 W / 47 W / 39 W / 30 W selectable at the switch.	High efficiency 150 lm/W – up to 8,250 lm at 55 W.
Flicker-free PstLM < 1 and SVM < 0.1 – comfortable for eyes and cameras.	Long service life L80 at 100,000 h thanks to Sanan LED chips.

Features in detail

Two separately tiltable light wings, each adjustable 0° to 30°
Beam angle 30° × 90°, 30° × 30° optionally available on request
Colour rendering CRI > 90 for natural colours
Switchable power in four steps without tools
Optionally available with DALI-2 dimming on request
For 3-phase track – compatible with common track systems
Aluminium housing in white with PMMA lens, IP20, IK04

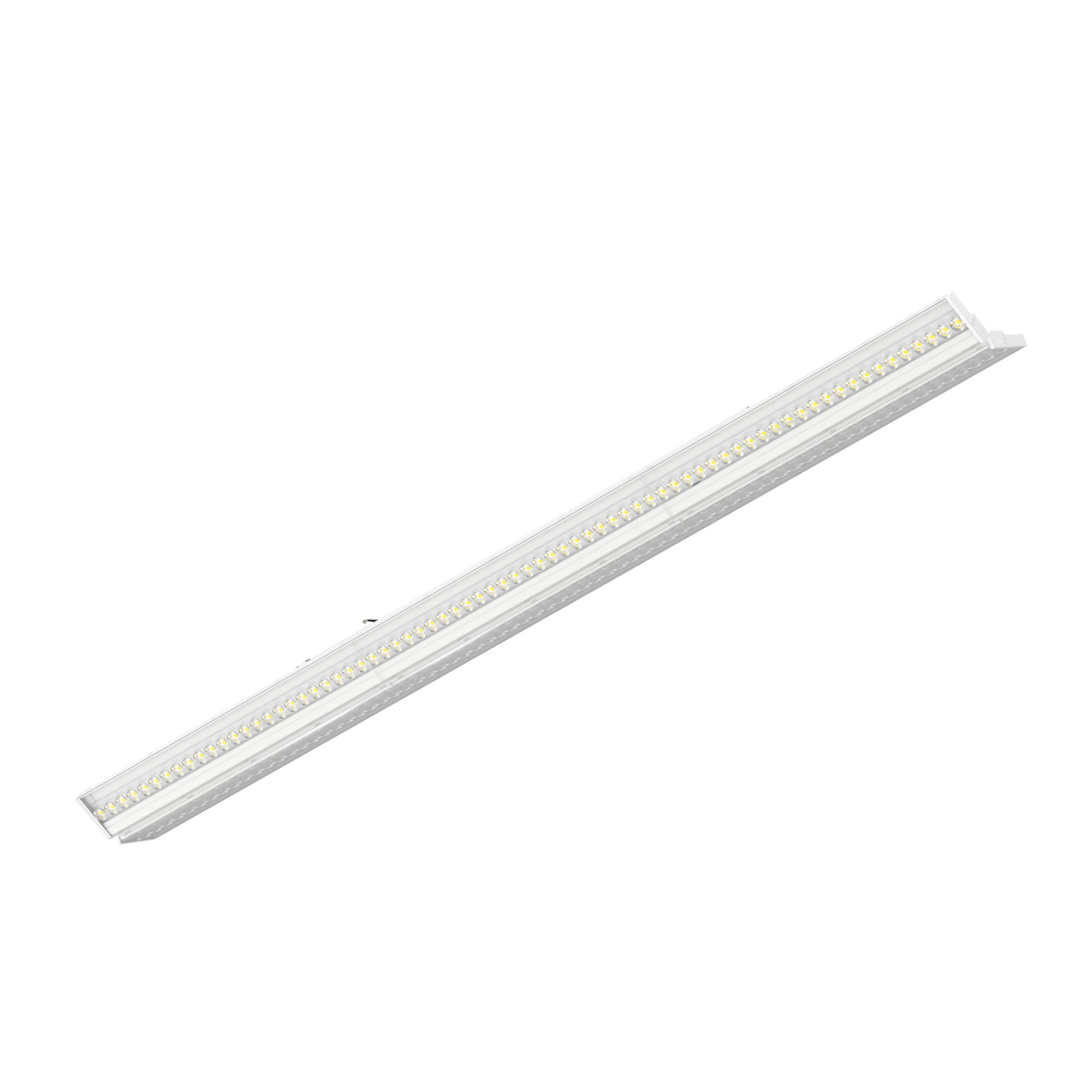

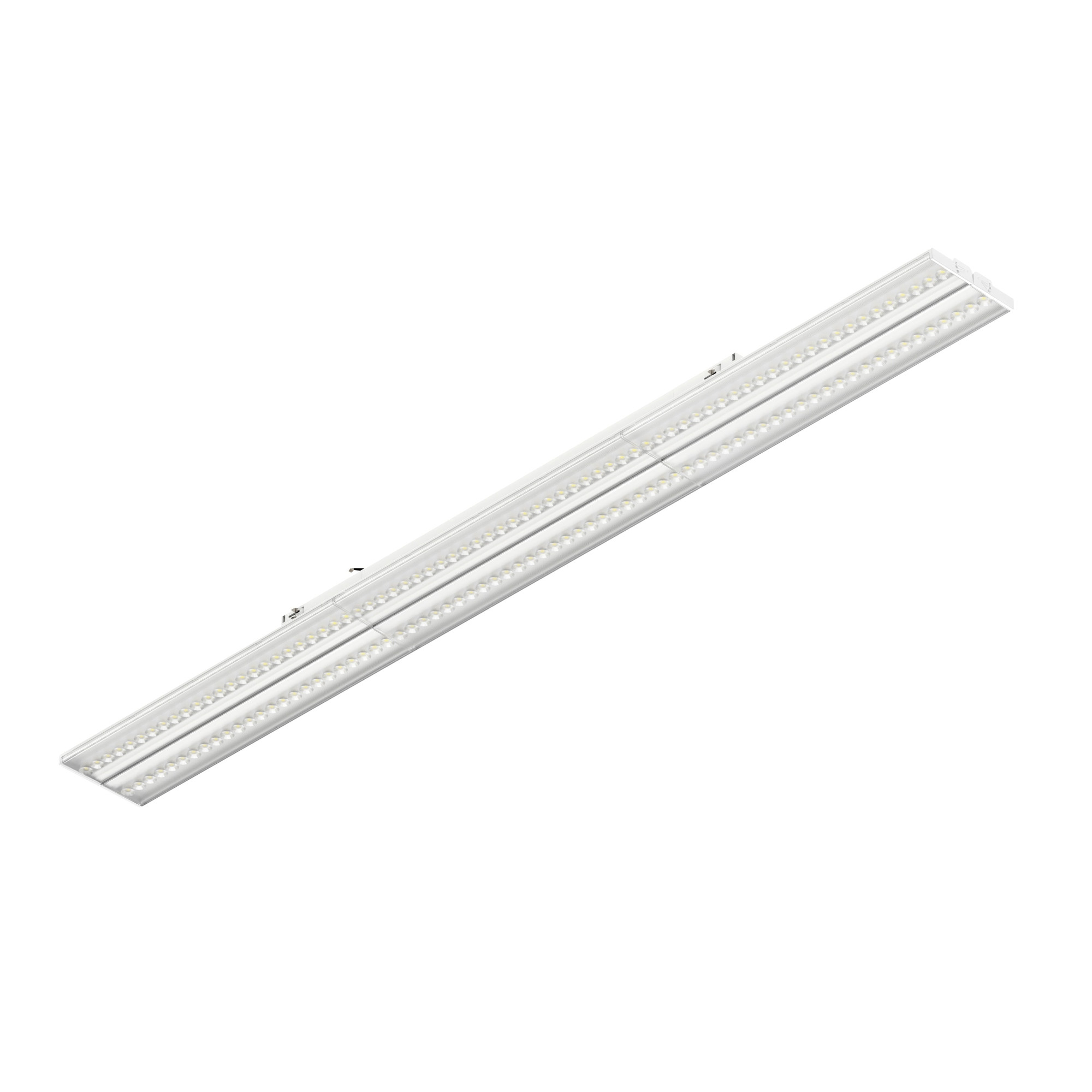

Two tiltable wings: one luminaire, many lighting effects

What do two tiltable wings mean in practice? The luminaire has two separate light rows that you can tilt independently by up to 30°. Set both straight down and you get an even band of light. Tilt them outwards and one luminaire lights two opposite shelf fronts. Tilt both to the same side and you concentrate the full light output on one wall or product display.

Beam angles: which one suits your application?

Two optics are available for the VU2. Fitted as standard is 30° × 90°; on request we supply the narrow 30° × 30° version. The difference in practice:

30° × 90° (standard) – a beam that is wide lengthwise and narrow across. Light spreads far along the luminaire while staying focused across it. Ideal for aisles, shelf rows and long sales areas: plenty of light on the goods, little spill into neighbouring zones.
30° × 30° (optional) – a narrow beam focused in both directions – comparable to a spotlight. It brings light down in a concentrated cone and suits high ceilings from about 4–5 m as well as targeted accents on individual products, displays or exhibits.
Tilt 0° to 30° – regardless of the beam angle, each of the two wings can be tilted. This shifts the beam sideways without moving the luminaire itself – onto a shelf front instead of the aisle floor, for example.

As a rule of thumb: the higher the ceiling and the more targeted the light should be, the narrower the angle. For normal room heights and continuous aisles the standard 30° × 90° optic is the right choice.

Not sure which beam angle suits your room? Simply get in touch – we are happy to advise you and will find the right optic for your ceiling height and application together with you. The lenses for the different beam angles can be selected at no extra charge after consultation with us.

CRI > 90: colours that are true

The colour rendering index describes how true colours look under a light source. At CRI > 90 the VU2 comes very close to daylight: fabrics show their real shade, wood and leather look warm rather than grey, food looks fresh. In boutiques, jewellers, bakeries and galleries this is often the difference between browsing and buying.

Long service life – L80 at 100,000 hours

What lies behind L80 at 100,000 hours? It is the assurance that after 100,000 hours the LEDs still emit at least 80 % of their original light output. Because brightness decreases so slowly, the decline goes unnoticed in daily use – an important advantage when many luminaires in one room should age evenly.

High-quality LED chips by Sanan

It is worth looking at the LED manufacturer: Sanan Optoelectronics was founded in Xiamen in 2000, is stock-listed and is today the largest producer of LED chips in China as well as one of the top suppliers worldwide. Manufacturing at that scale means strict quality control and very low variation. The VU2 benefits directly: plenty of light per watt, precisely maintained colour temperature and a light output that stays stable over the years.

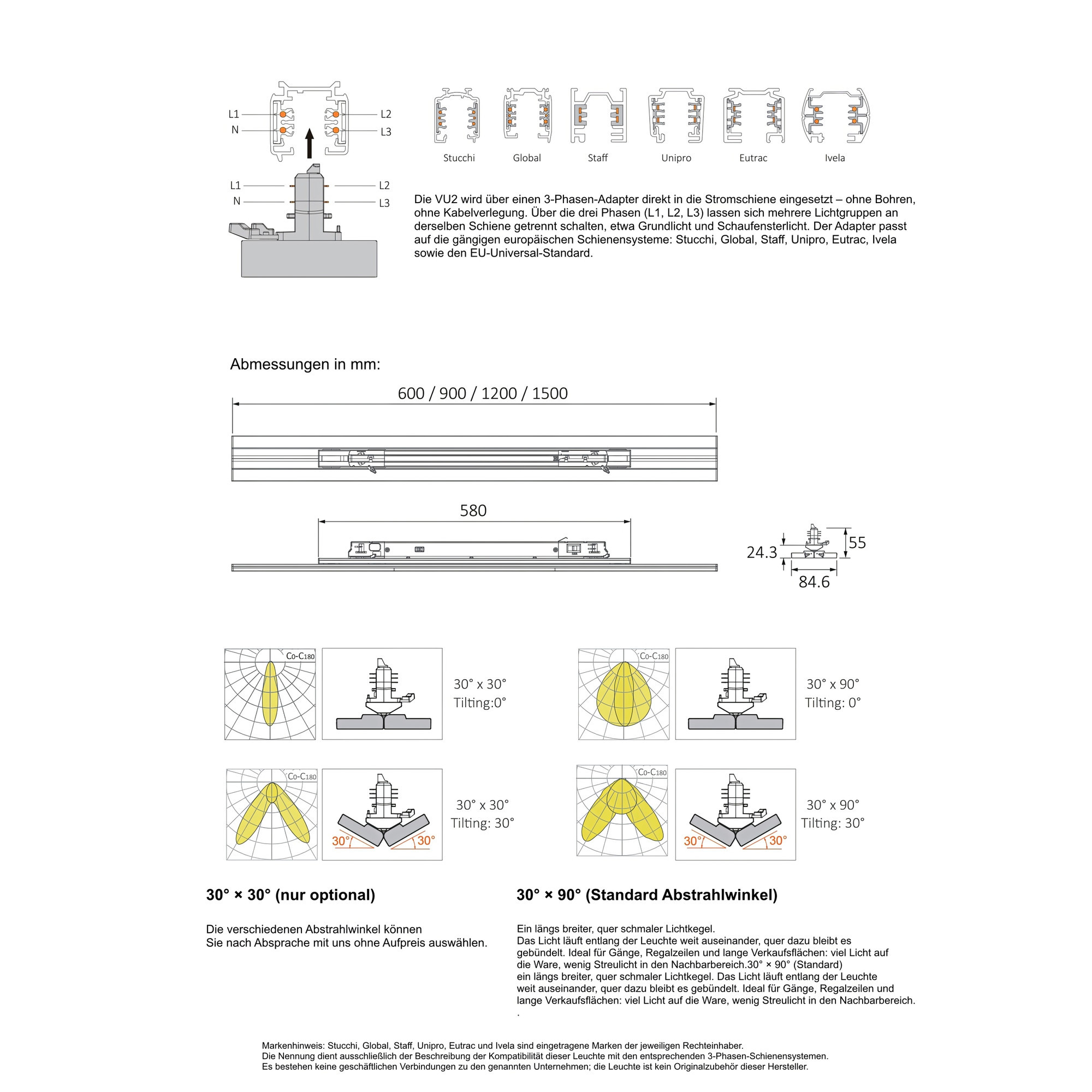

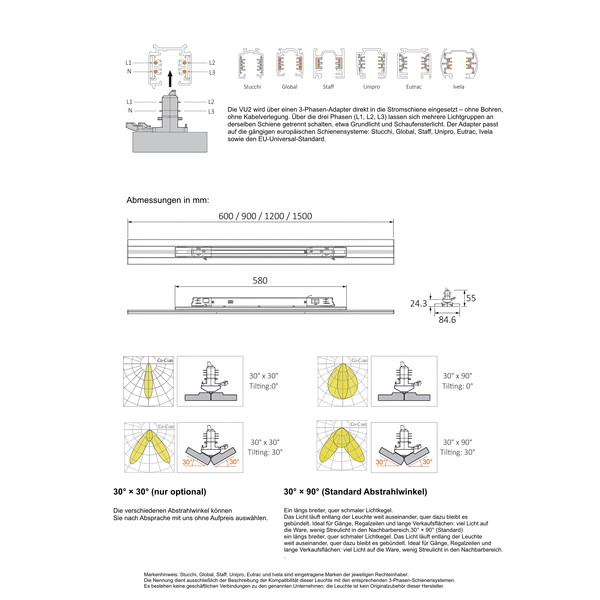

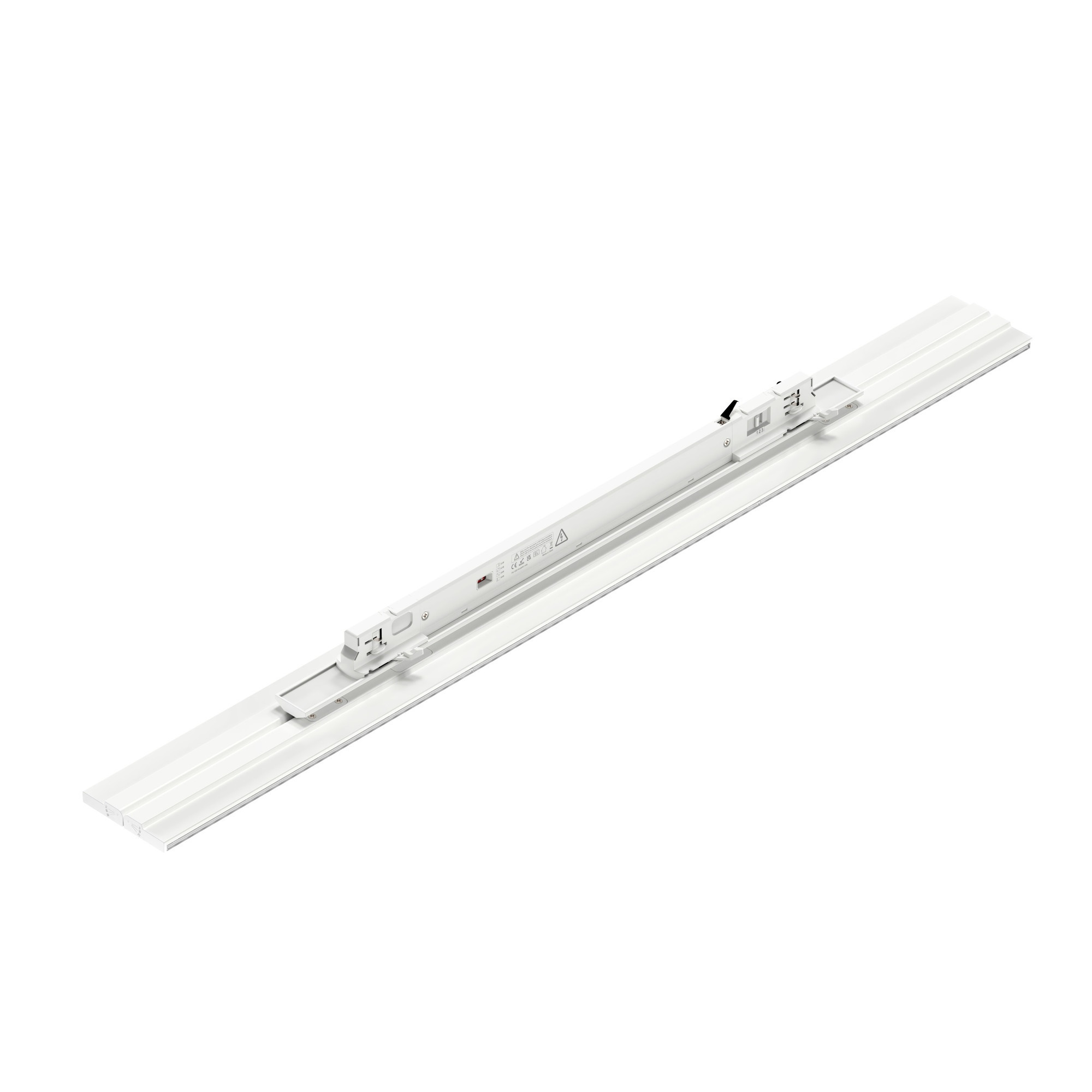

Mounting & track compatibility

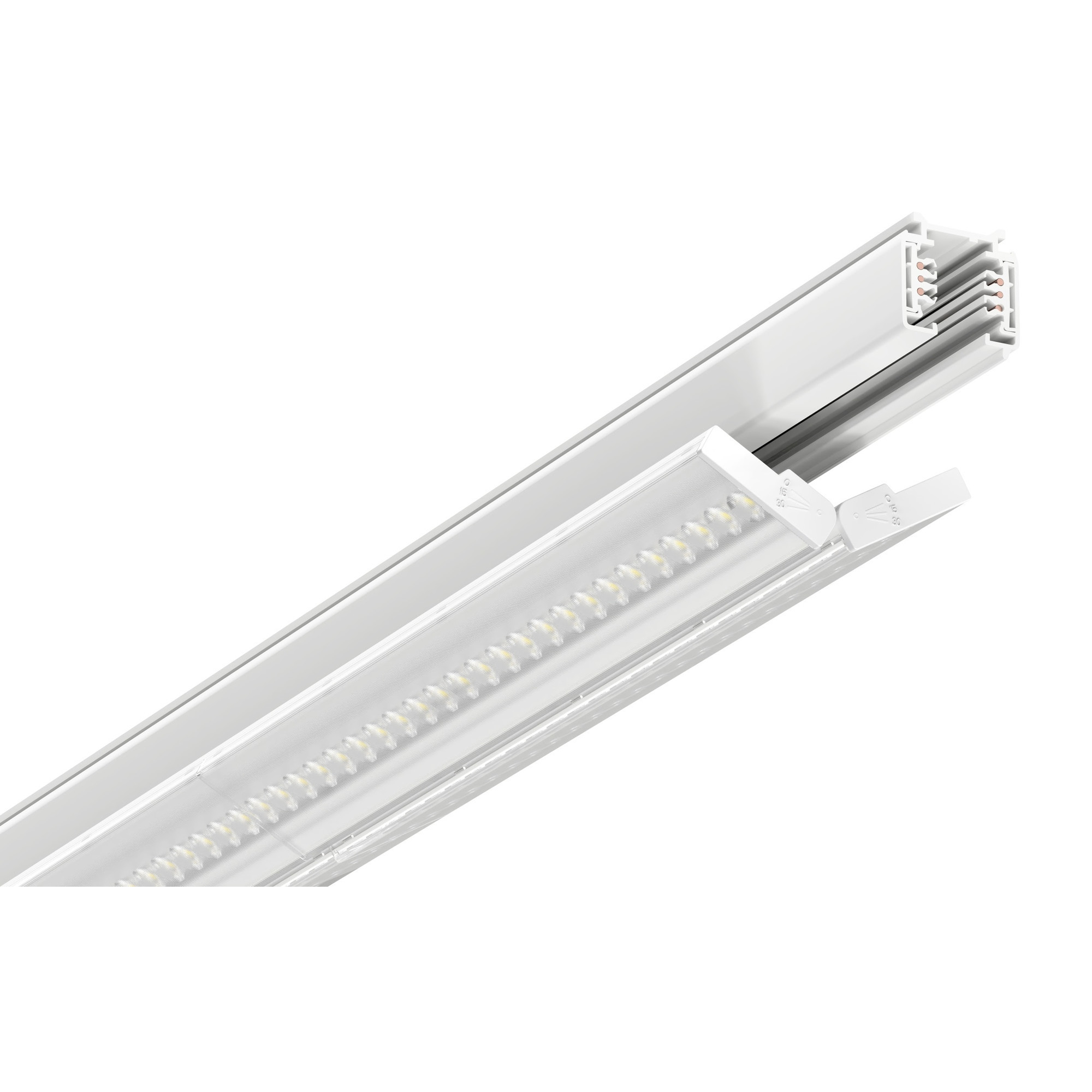

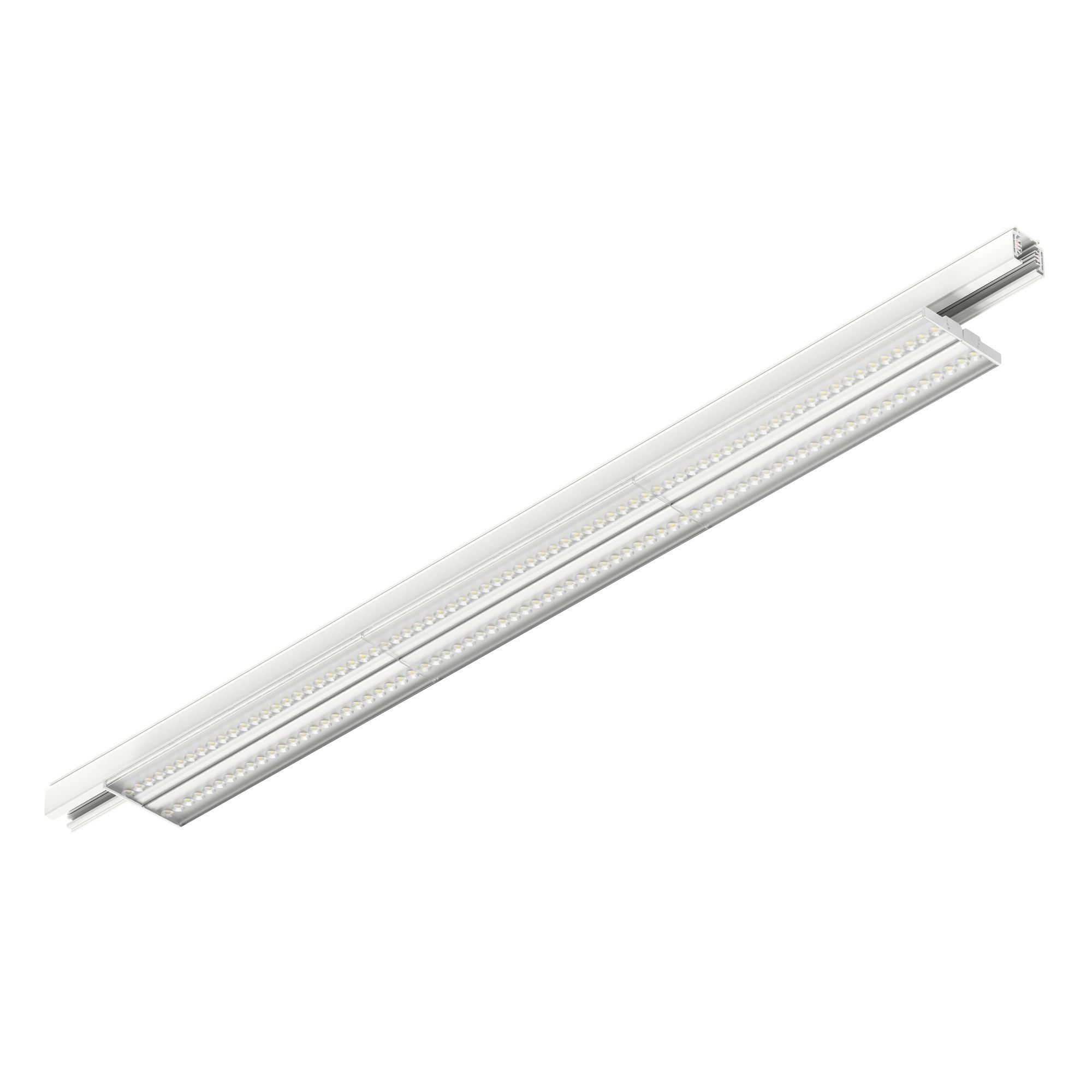

The VU2 is placed onto a 3-phase busbar using its adapter – insert, lock, done. No electrical work at the ceiling is required, and you can change the position and number of luminaires yourself at any time. The three phases (L1, L2, L3) let you switch several lighting groups separately, for example general lighting and shop window. The adapter is compatible with the common European systems Stucchi, Global, Staff, Unipro, Eutrac and Ivela as well as the EU universal standard. The luminaire is Safety Class I with protective earth.

Colour temperature 3000 K – warm white

Warm white light feels cosy and inviting – proven in hospitality, hotels, boutiques and reception areas.

Why CRI > 90 delivers slightly fewer lumens

Why does CRI > 90 deliver fewer lumens than CRI > 80? Better colour rendering calls for a more complete spectrum, especially a stronger red component. The human eye is less sensitive precisely in that range, so this portion of the light contributes little to measured brightness. Together with conversion losses this yields slightly lower efficacy – a trade worth making wherever colours must look exact.

Power steps & luminous flux

Power step	Power	Luminous flux
Step 1 (maximum)	55 W	8,250 lm
Step 2	47 W	7,050 lm
Step 3	39 W	5,850 lm
Step 4 (minimum)	30 W	4,500 lm

Power is selected directly at the luminaire via switch. This way you match brightness to the room without additional devices and save energy permanently.

Technical data

Length	900 mm
Power (switchable)	55 W / 47 W / 39 W / 30 W (by switch)
Luminous flux	8,250 lm / 7,050 lm / 5,850 lm / 4,500 lm
Efficacy	150 lm/W
Colour temperature	3000 K (warm white)
Colour rendering	CRI > 90
Beam angle	30° × 90° (standard); 30° × 30° optionally available on request
Tilt range	two wings, individually tiltable 0° to 30°
Mounting	3-phase track (via adapter), phase selection L1/L2/L3
Track compatibility	Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard
Voltage	AC/DC 220–240 V, 50/60 Hz
Dimmable	No, optionally DALI-2 dimmable on request
Power factor	> 0.98
Flicker	PstLM < 1, SVM < 0.1 (flicker-free)
Colour consistency	SDCM < 5
LED chip	high-quality brand LEDs by Sanan
Service life	L80 at 100,000 h
Switching cycles	> 500,000
Protection rating	IP20
Impact resistance	IK04
Protection class	I (with protective earth)
Material	aluminium + PMMA lens
Housing colour	White (RAL 9016)
Dimensions	900 × 84.6 × 55 mm (L × W × H)
Weight	2.08 kg
Ambient temperature	−20 °C to +40 °C
Storage temperature	−25 °C to +65 °C
Glow wire test	650 °C
Energy efficiency class	D (EU scale A–G, EU 2019/2015)

Applications

Whether sales floor, warehouse, office or exhibition – the VU2 suits all interiors with a 3-phase track. Its strength shows especially in shelf aisles, because one row of luminaires can cover both sides thanks to the movable wings. That reduces the number of fixtures needed and with it purchase, installation and energy costs. In boutiques, galleries and showrooms the light can be re-aimed at every rebuild without tools.

Scope of delivery

1× LED VU2 linear luminaire with 3-phase adapter
Installation instructions

Trademark notice: Stucchi, Global, Staff, Unipro, Eutrac and Ivela are registered trademarks of their respective owners. They are named solely to describe the compatibility of this luminaire with the corresponding 3-phase track systems. There is no business relationship with the companies mentioned; this luminaire is not original accessory equipment of these manufacturers.
