LED VU3 linear light adjustable 150cm white 160lm CRI >80 3K/4K/5K/6K

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

1500 mm · white housing · CRI > 80 · switchable power

A smart optical concept makes this track luminaire remarkably flexible. The central module delivers flat, low-glare base brightness, while the two tiltable side spots highlight shelves, goods or work zones with precision – all from one seamless light line. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

Features in detail

• Combined optic: 100° central light + two tiltable 30° × 90° spots
• Colour rendering CRI > 80 for natural, rich colours
• Switchable power 60 W / 50 W / 42 W / 34 W without tools
• Optionally DALI-2 dimmable on request
• For 3-phase track – compatible with common track systems
• Rugged aluminium housing in white, PMMA lens, IK04

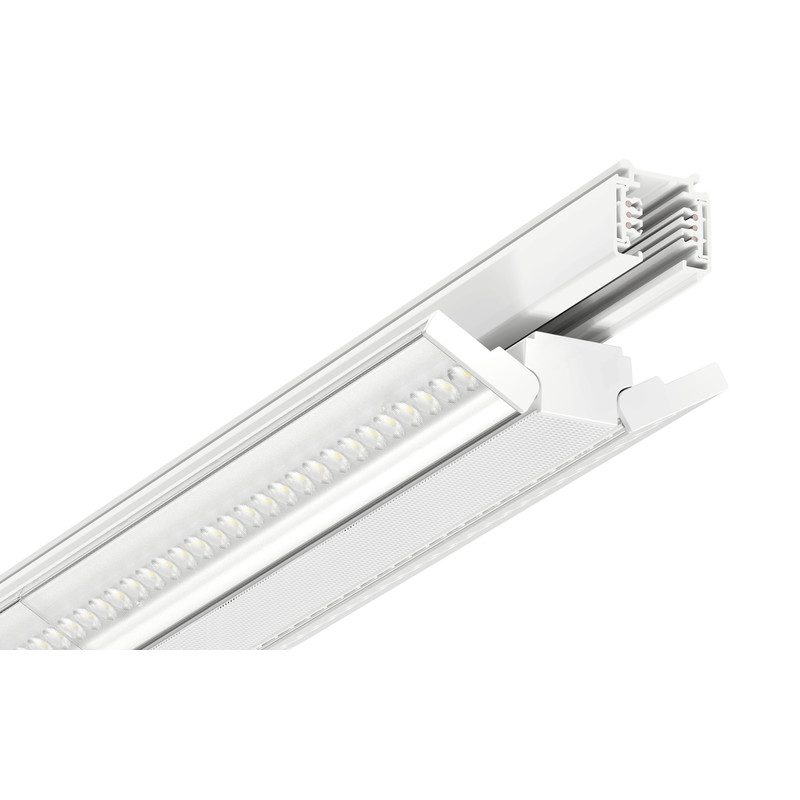

Central light + two tiltable spots

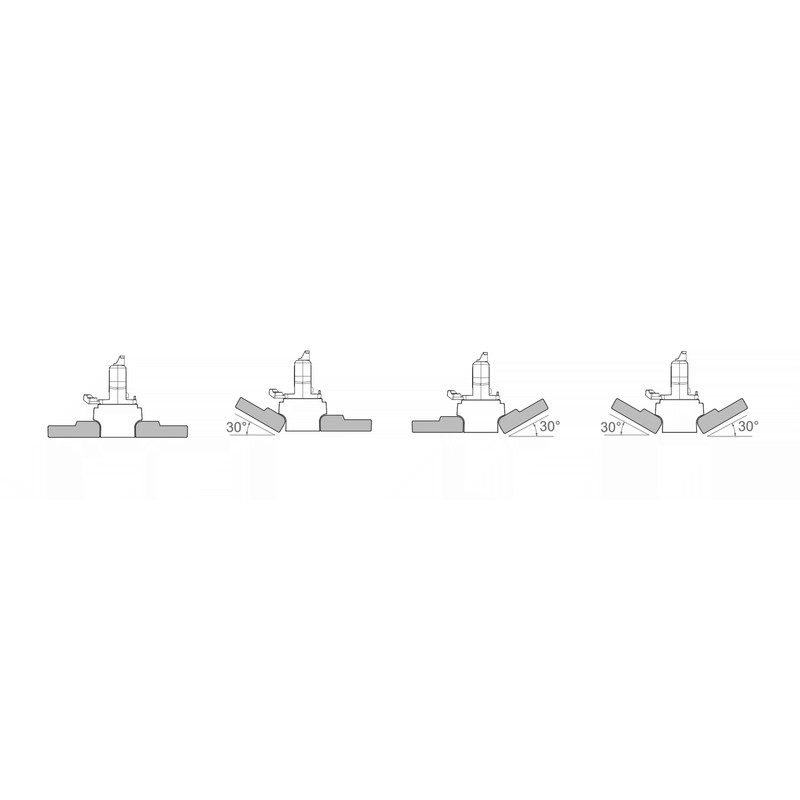

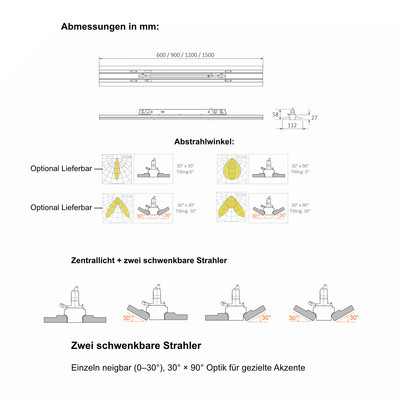

The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.

The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.

Efficient & bright

With CRI > 80 this version offers good, natural colour rendering at maximum efficiency. The high efficacy of 160 lm/W noticeably lowers energy costs – ideal for large-area lighting in retail, office, storage and workshop settings where brightness and efficiency come first.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours means: after 100,000 operating hours the LEDs still emit at least 80 % of their initial luminous flux. Light output declines only slowly and evenly over the entire service life, so the luminaire stays bright even after years of continuous use.

High-quality LED chips by Sanan

At the heart of the luminaire are LED chips by Sanan – one of the largest and most respected LED chip manufacturers in the world. The listed company from Xiamen produces several hundred billion LED chips per year and supplies international technology corporations, among others. Sanan chips stand for excellent efficiency, tight colour tolerances and high operational reliability – reflected in even light, stable colour rendering and long service life.

Mounting & track compatibility

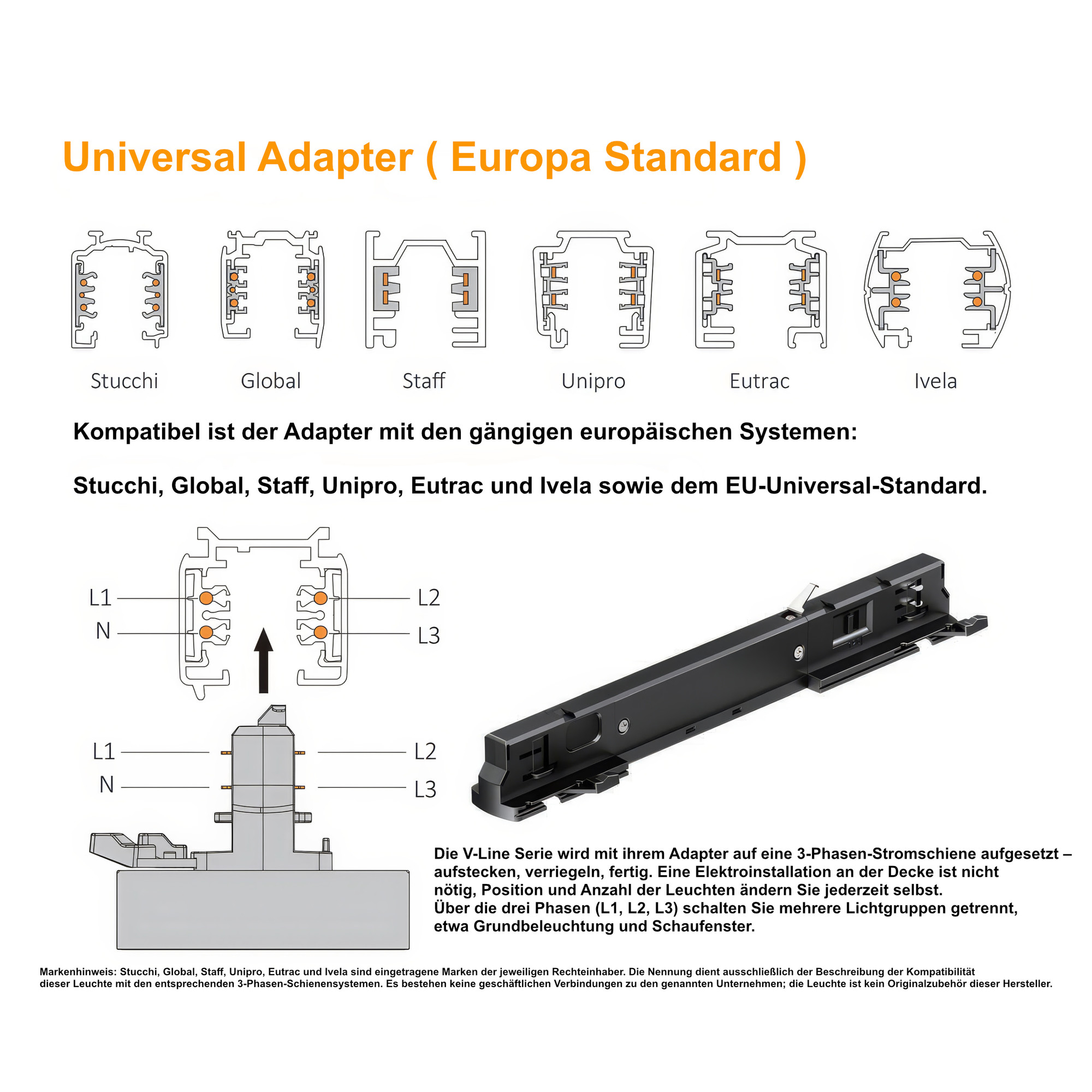

Mounted via a track adapter on a 3-phase busbar, the luminaire can be positioned freely along the track and switched separately across the three phases. It fits the widespread track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 13 luminaires may run per circuit (< 800 W). Connection is Safety Class I with protective earth.

Choose your colour temperature

• 3000 K warm white – suited to hospitality, boutiques, hotels and reception areas.
• 4000 K neutral white – the right choice for office, retail, boutiques, showrooms and workshops.
• 5000 K daylight white – ideal for technical work, assembly, labs and visually demanding areas.
• 6000 K cool white – proven in storage, production, work halls and high spaces.

This luminaire is available in four colour temperatures. Pick the variant that suits your application.

Technical data

Applications

At 1500 mm this luminaire is ideal for spacious halls, long retail aisles and continuous production lines. Select the colour temperature to match each application.

Scope of delivery

• 1× LED VU3 linear luminaire
• Mounting and connection accessories
• Installation instructions
