LED VU3 linear light adjustable 150cm white 160lm CRI >80 3K/4K/5K/6K 6000K

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots

1500 mm · white · 6000 K cool white · CRI > 80

This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.

Key benefits at a glance

Features in detail

• Combined optic: 100° central light + two tiltable 30° × 90° spots
• Colour rendering CRI > 80 for natural, rich colours
• Switchable power 60 W / 50 W / 42 W / 34 W without tools
• Optionally DALI-2 dimmable on request
• For 3-phase track – compatible with common track systems
• Rugged aluminium housing in white, PMMA lens, IK04

Central light + two tiltable spots

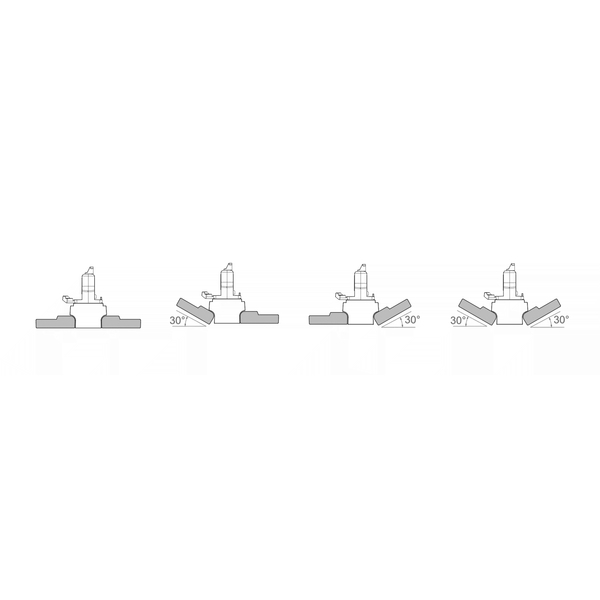

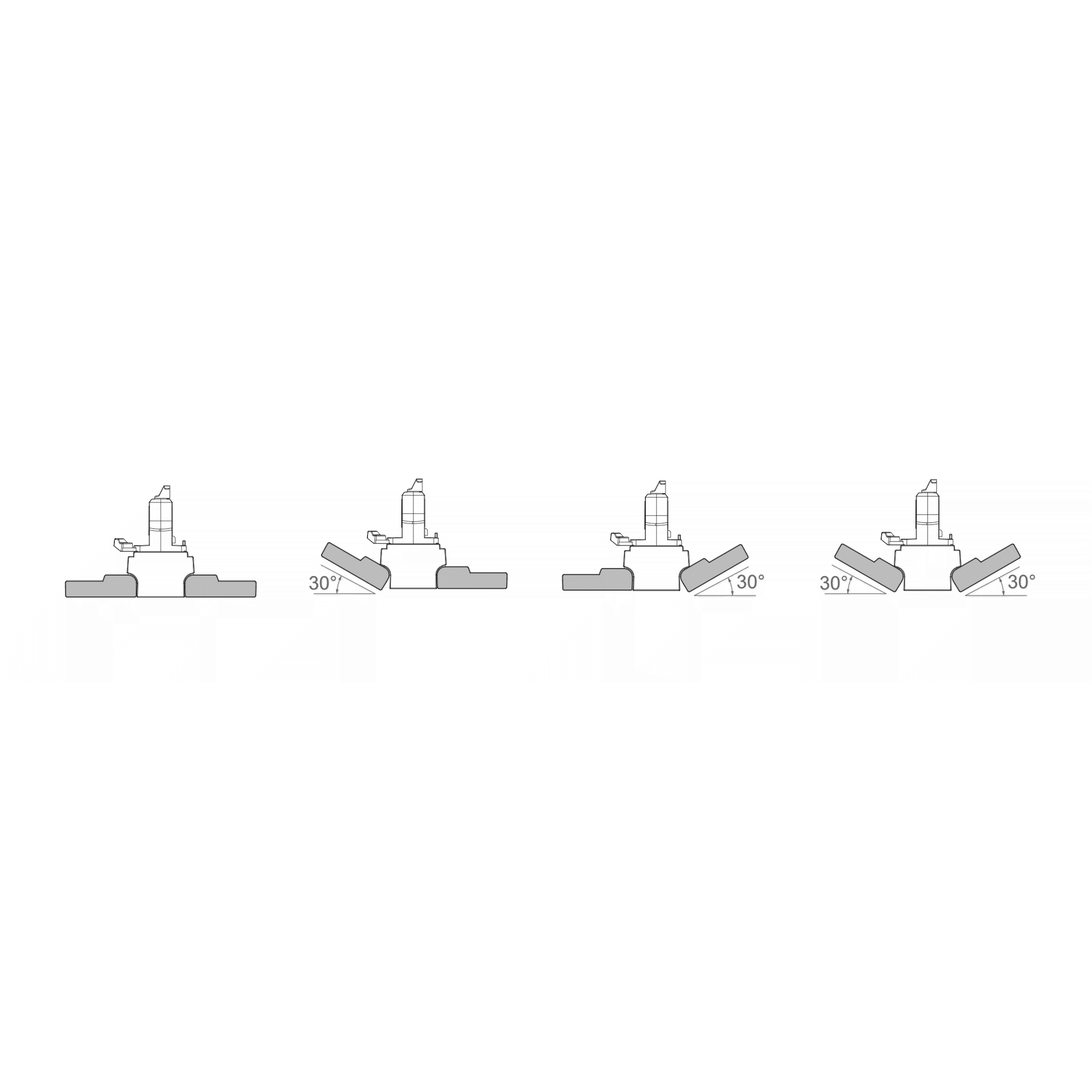

At its core is the mix of a 100° central module for flat illumination and two tiltable 30° × 90° spots. The 0° to 30° tilt directs light onto walls, displays or work surfaces – variable and adjustable at any time.

The tiltable spots are particularly strong for shelf and shelf-aisle lighting: they direct light precisely onto shelf fronts and displays, so products along the aisles are evenly lit and clearly visible.

Efficient & bright

With CRI > 80 this version offers good, natural colour rendering at maximum efficiency. The high efficacy of 160 lm/W noticeably lowers energy costs – ideal for large-area lighting in retail, office, storage and workshop settings where brightness and efficiency come first.

Long service life – L80 at 100,000 hours

L80 at 100,000 hours means: after 100,000 operating hours the LEDs still emit at least 80 % of their initial luminous flux. Light output declines only slowly and evenly over the entire service life, so the luminaire stays bright even after years of continuous use.

High-quality LED chips by Sanan

For light generation we rely on high-quality Sanan LEDs. Sanan Optoelectronics is one of the world's largest LED chip makers and the market leader in China; the company invests continuously in R&D and holds over a thousand patents. Its chips deliver high efficacy, precise colour rendering and a long, low-maintenance service life – ideal conditions for professional continuous operation.

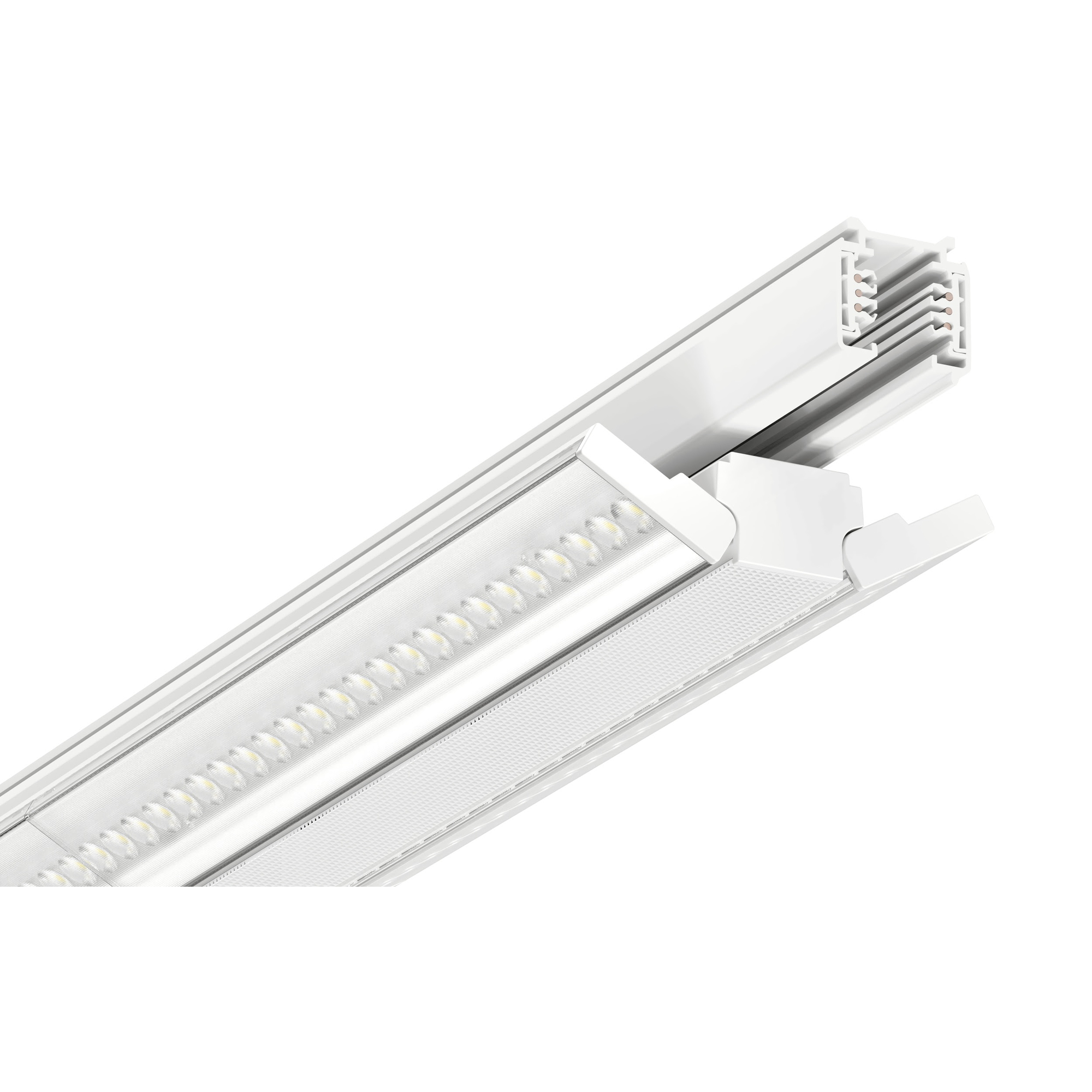

Mounting & track compatibility

As a track spotlight for the 3-phase busbar, the luminaire is flexible to place, aim and extend. Via its adapter it is compatible with the common standards: Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. The three phases allow separately switchable lighting groups on one track. Up to 13 luminaires per circuit (< 800 W), Safety Class I with protective earth.

Colour temperature 6000 K – cool white

Cool white light provides maximum brightness and contrast – proven in storage, production, work halls and high spaces.

Technical data

Applications

At 1500 mm this luminaire is ideal for spacious halls, long retail aisles and continuous production lines. Cool white light provides maximum brightness and contrast – proven in storage, production, work halls and high spaces.

Scope of delivery

• 1× LED VU3 linear luminaire
• Mounting and connection accessories
• Installation instructions
