Description

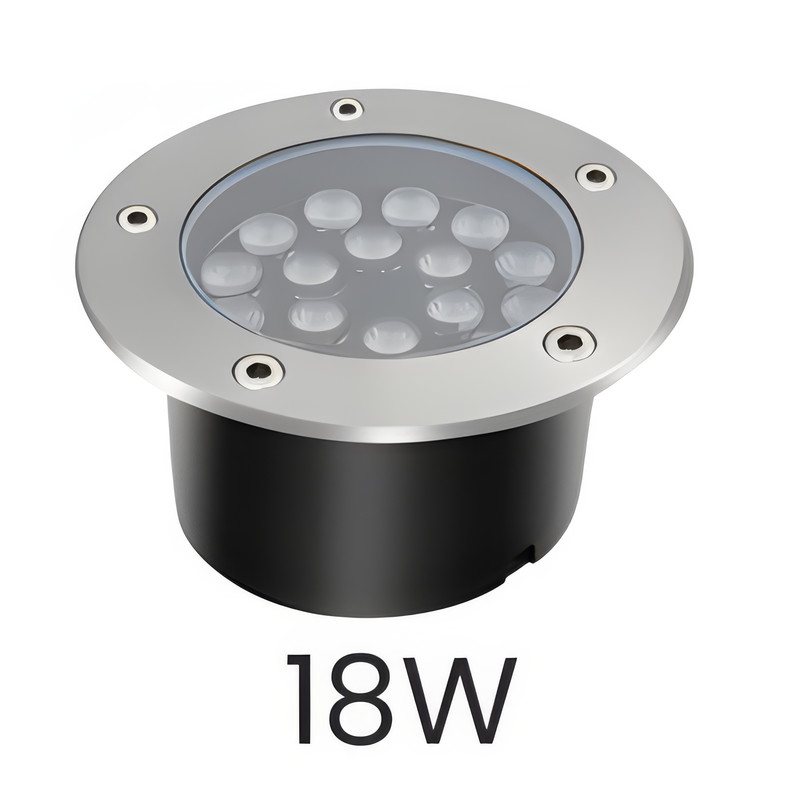

Stainless-steel in-ground light for outdoors
The powerful light is built from stainless 304 steel with a generous aluminium heat sink and reliably dissipates the higher heat load. Potted electronics and IP67 ensure lasting dust- and waterproofing, and the walk-over flange bears even high loads. The 24 V operation is safe and delivers a focused 45° beam.
Your Benefits at a Glance
Powerful accents 1,440 lm from 18 W in a focused 45° beam. |
Walk-over & load-bearing Sturdy 304 stainless-steel body with a large heat sink, bears high loads. |
IP67 weatherproof Permanently dust- and waterproof – made for demanding outdoor use. |
Safe 24 V technology Extra-low voltage (Class III) – safe even on large installations. |
2 light colours Warm white (3000 K) and neutral white (4000 K) available. |
Durable & economical Efficient cooling and 30,000 h for continuous operation. |
Choose Your Light Colour
Selectable when ordering – one light colour per light.
| 3000 K Warm white – gardens, paths & warm facade accents | |
| 4000 K Neutral white – driveways, plazas & crisp architectural accents |
Specifications
| Property | Value |
| Power | 18 W |
| Input voltage | AC/DC 24 V |
| Luminous flux | 1,440 lm |
| Luminous efficacy | 80 lm/W |
| Energy efficiency class | G (EU 2019/2015) |
| Light colour | 3000 / 4000 K (depending on variant) |
| Colour rendering (CRI) | ≥ 80 (Ra) |
| Beam angle | 45° |
| LED type | SMD 2835 (18 pcs) |
| Power factor | ≥ 0.5 |
| Protection rating | IP67 |
| Protection class | III (SELV) |
| Housing | 304 stainless steel, aluminium heat sink, PC cover |
| Outer diameter (flange) | Ø 200 mm |
| Light aperture (Ø) | Ø 146 mm |
| Cut-out (hole) | Ø 185 mm |
| Recessed depth (height) | 90 mm |
| Weight | 1.53 kg |
| Operating temperature | −20 °C to +50 °C |
| Lifespan | 30,000 h |
| Certification | CE, RoHS |
Installation & Wiring
The in-ground light is set into a Ø 185 mm hole in the ground; the stainless-steel flange (Ø 200 mm) sits flush with the surface. Important: the light runs on 24 V safety extra-low voltage (AC/DC) and requires a suitable 24 V power supply or transformer (not included). Never connect it directly to 230 V – this will destroy it. Wiring: V+ = brown, V− = blue; make all connections watertight. Installation and wiring only by a qualified electrician.
Applications

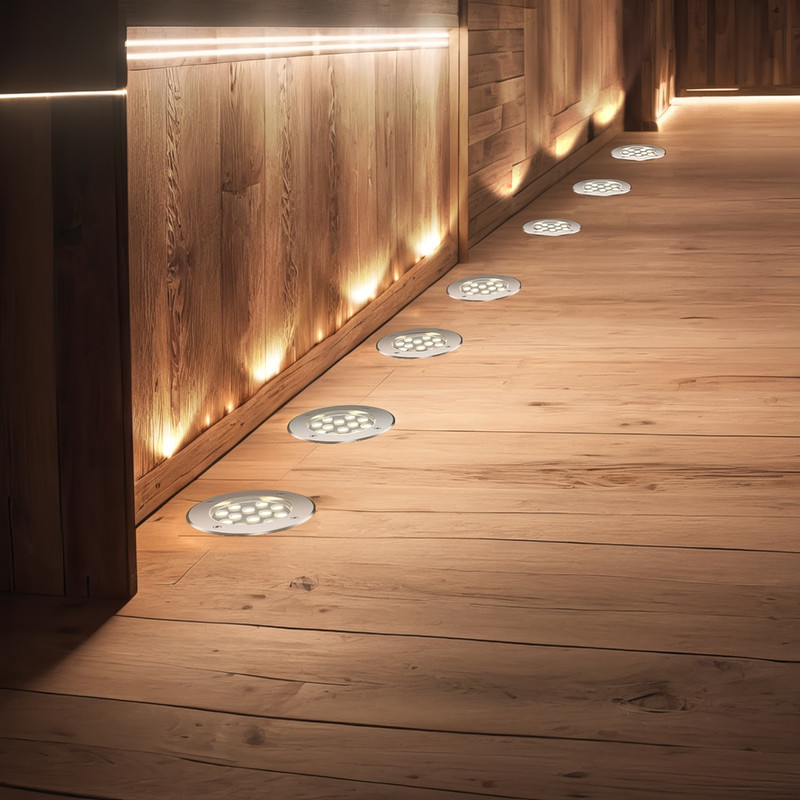

The 18 W in-ground light delivers 1,440 lm and is ideal for powerfully uplighting larger facades, trees, pillars and entrance areas. Mounted flush in the ground, it creates a striking column of light without being visible itself. The rugged 304 stainless-steel flange is walk-over capable and withstands weather and load for years; IP67 guarantees dust- and waterproofing. Thanks to 24 V technology, the installation stays safe even outdoors. With efficient LED technology and a 30,000-hour lifespan, it suits permanent lighting of home, yard and commercial sites.
