Description

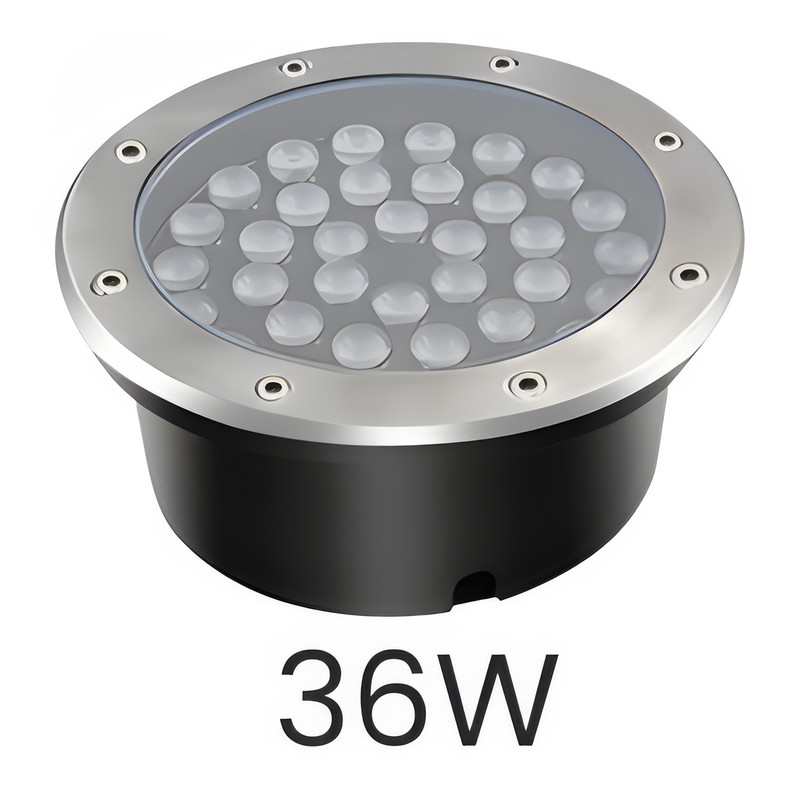

Stainless-steel in-ground light for outdoors
The powerful light is built from stainless 304 steel with a generous aluminium heat sink and reliably dissipates the higher heat load. Potted electronics and IP67 ensure lasting dust- and waterproofing, and the walk-over flange bears even high loads. The 24 V operation is safe and delivers a focused 45° beam.
Your Benefits at a Glance
Powerful accents 2,880 lm from 36 W in a focused 45° beam. |
Walk-over & load-bearing Sturdy 304 stainless-steel body with a large heat sink, bears high loads. |
IP67 weatherproof Permanently dust- and waterproof – made for demanding outdoor use. |
Safe 24 V technology Extra-low voltage (Class III) – safe even on large installations. |
2 light colours Warm white (3000 K) and neutral white (4000 K) available. |
Durable & economical Efficient cooling and 30,000 h for continuous operation. |
Choose Your Light Colour
Selectable when ordering – one light colour per light.
| 3000 K Warm white – gardens, paths & warm facade accents | |
| 4000 K Neutral white – driveways, plazas & crisp architectural accents |
Specifications
| Property | Value |
| Power | 36 W |
| Input voltage | AC/DC 24 V |
| Luminous flux | 2,880 lm |
| Luminous efficacy | 80 lm/W |
| Energy efficiency class | G (EU 2019/2015) |
| Light colour | 3000 / 4000 K (depending on variant) |
| Colour rendering (CRI) | ≥ 80 (Ra) |
| Beam angle | 45° |
| LED type | SMD 2835 (36 pcs) |
| Power factor | ≥ 0.5 |
| Protection rating | IP67 |
| Protection class | III (SELV) |
| Housing | 304 stainless steel, aluminium heat sink, PC cover |
| Outer diameter (flange) | Ø 250 mm |
| Light aperture (Ø) | Ø 190 mm |
| Cut-out (hole) | Ø 240 mm |
| Recessed depth (height) | 90 mm |
| Weight | 2.42 kg |
| Operating temperature | −20 °C to +50 °C |
| Lifespan | 30,000 h |
| Certification | CE, RoHS |
Installation & Wiring
The in-ground light is set into a Ø 240 mm hole in the ground; the stainless-steel flange (Ø 250 mm) sits flush with the surface. Important: the light runs on 24 V safety extra-low voltage (AC/DC) and requires a suitable 24 V power supply or transformer (not included). Never connect it directly to 230 V – this will destroy it. Wiring: V+ = brown, V− = blue; make all connections watertight. Installation and wiring only by a qualified electrician.
Applications

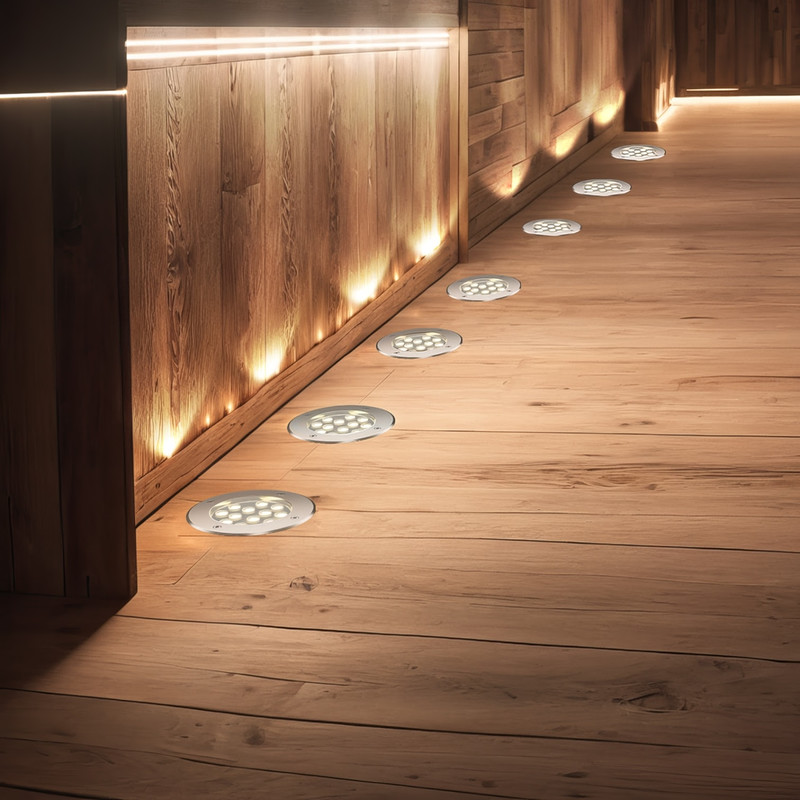

The 36 W in-ground light is designed for large-area uplighting with 2,880 lm – tall facades, large trees, monuments and prestigious plazas appear evenly and effectively lit. Despite its high output, the fixture disappears flush into the ground and stays invisible by day. The walk-over 304 stainless-steel flange withstands even heavy use and any weather, and IP67 ensures dust- and waterproofing. The 24 V operation provides safety even on large installations. With efficient LED technology and a 30,000-hour lifespan, it is the durable solution for architectural, landmark and plaza lighting.
