Mounting Bracket for 120W/200W Mildbeam LED High Bay Light
Description
Mounting Bracket for Mildbeam High Bay Light | Swivelling | For 120W & 200W

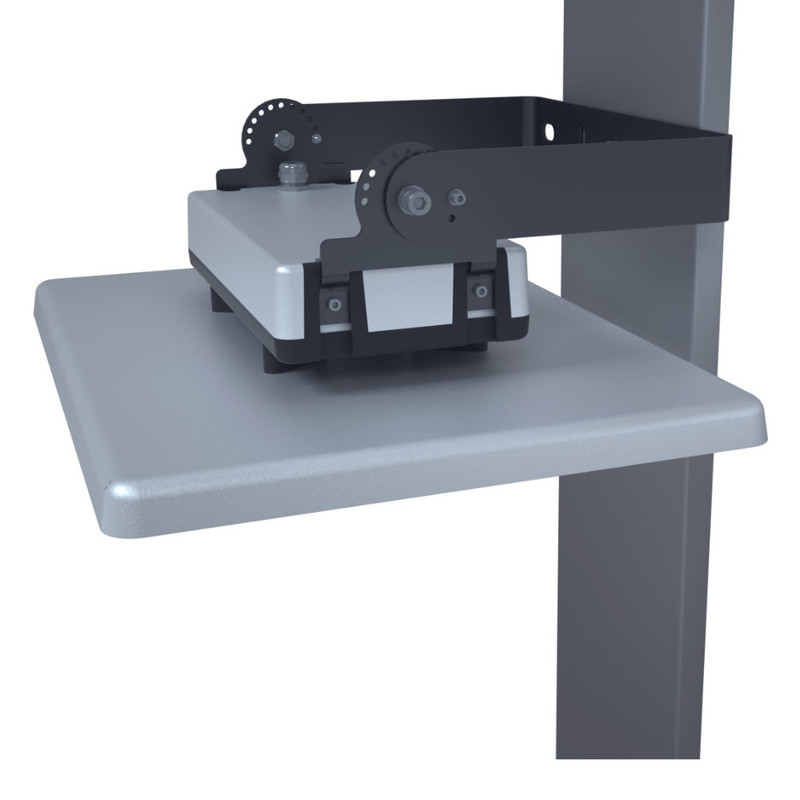

Maximum flexibility for your Mildbeam high bay light: Our swivelling mounting bracket for the Mildbeam series transforms your suspended high bay light in no time into a wall- or ceiling-mounted floodlight with an adjustable beam angle. Manufactured from robust steel with a black powder coating, precision-fit for both power classes – 120 watts and 200 watts.
Why this mounting bracket is the right choice: While the Mildbeam is suspended from the ceiling with steel cables by default, this swivelling bracket enables side mounting to walls, beams, or ceilings – with a continuously adjustable tilt angle. Ideal when suspension is not possible or you want to use the luminaire as a floodlight with precise directional control. The black powder coating perfectly complements the aluminium housing of the Mildbeam. Compatible with all Mildbeam models – 120W and 200W, 4000K.
Your Advantages with the Mounting Bracket
- Swivelling for Precise Alignment: The bracket allows continuous tilting of the luminaire. Direct the light beam exactly onto court edges, loading ramps, machine workstations, or facades.
- Flexible Installation: Now mount your Mildbeam high bay light to walls, steel beams, concrete, or wooden surfaces – no suspension required.
- Compatible with Both Mildbeam Models: Precision-fit for the 120W variant (415 x 310 x 120 mm, 4.2 kg) and the 200W variant (487 x 362 x 120 mm, 6.2 kg).
- Robust Steel Construction: Manufactured from solid steel with a high-quality black powder coating – corrosion-protected, scratch-resistant, and visually matched to the Mildbeam housing.
- Quick Mounting: All screws required for attaching the bracket to the luminaire are included. Ready for use in just a few minutes.
- Extended Applications: Combine the swivelling bracket with the IP65 protection rating and IK10 impact resistance of the Mildbeam – turning your high bay light into a versatile, weatherproof LED floodlight with a precisely adjustable light cone.
Technical Specifications at a Glance
| Specification | Technical Details |
|---|---|
| Material | Solid steel, black powder-coated (corrosion-protected, scratch-resistant) |
| Compatibility | Mildbeam 120W & Mildbeam 200W |
| Mounting Type | Side mounting to wall, beam, or ceiling |
| Swivel Range | Continuously swivelling for precise beam alignment |
| Max. Load Capacity | Up to 10 kg (designed for Mildbeam 200W at 6.2 kg) |
| Colour | Black powder-coated (matching the Mildbeam aluminium housing) |
| Scope of Delivery | 1x mounting bracket black powder-coated, fixing screws for Mildbeam housing, screws for wall/beam mounting (wall anchors not included) |
| Weight | Approx. 900 g |
Applications
- Sports Facilities: Side-mounted, swivelling installation on hall walls or beams – ideal for targeted edge lighting of tennis, football, or golf halls.
- Industry & Logistics: Precisely alignable illumination of loading ramps, shelving rows, or machine workstations.
- Workshops: Wall mounting with adjustable tilt angle for glare-free task lighting at assembly stations, test benches, or paint booths.
- Facades & Outdoor Areas: In combination with the IP65 Mildbeam as a swivelling, weatherproof floodlight for covered exterior walls and canopies.

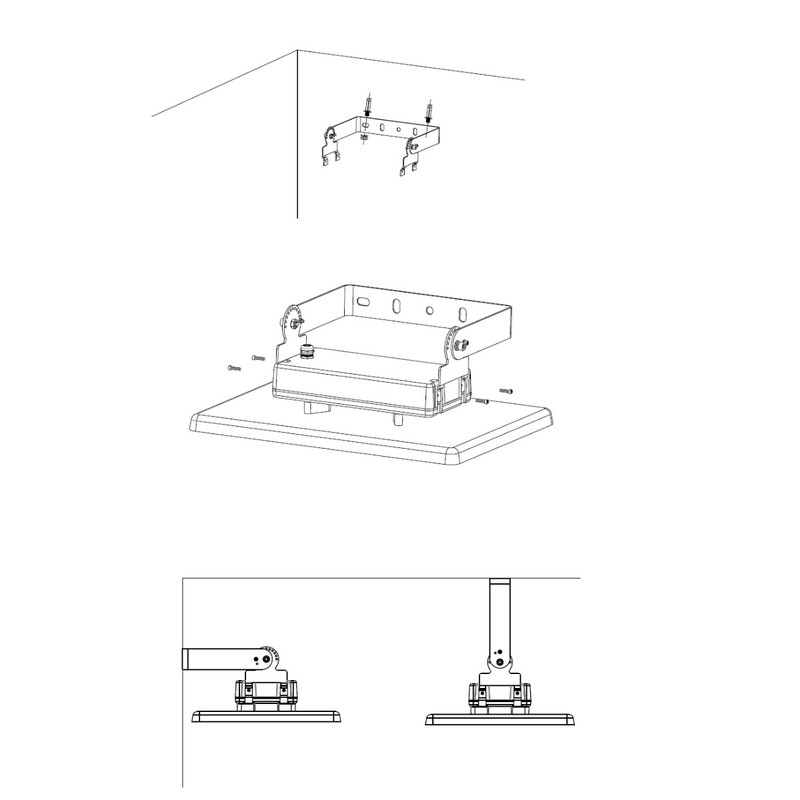

Mounting Instructions
- Precision Fit: The bracket was developed exclusively for the Mildbeam housing. The drill holes precisely match the existing threads on the luminaire.
- Wall Anchors: Different anchors are required depending on the wall type (concrete, steel, wood, plasterboard). For this reason, no wall anchors are included in the delivery. Select the appropriate fixing material for your specific substrate.
- Swivel Function: Loosen the side screws, set the desired angle, and retighten the screws. The locking mechanism holds the luminaire securely in any position.
- Electrical Connection: Not affected by side mounting – the 1-10V dimming cable and mains lead remain freely accessible.
Frequently Asked Questions About the Mounting Bracket
- Does the bracket fit both Mildbeam models? Yes, the mounting bracket is compatible with the Mildbeam 120W (19,200 lumens) and the Mildbeam 200W (32,000 lumens). The housings of both variants feature the same side mounting points.
- How far can the luminaire be swivelled? The bracket allows continuous swivelling. You can freely direct the light beam – from vertically downwards to almost horizontally sideways.
- Why are no wall anchors included? Each wall requires specific fixing materials. Concrete walls need different anchors than wooden beams or steel girders. Choose the material suitable for your substrate – this ensures maximum safety.
- Can I use the luminaire with the bracket outdoors? Yes, in combination with the IP65-rated Mildbeam, side mounting is also possible in outdoor areas. The black powder coating provides additional corrosion protection.
- Can I mount multiple luminaires with brackets side by side? Yes, multiple Mildbeam luminaires with mounting brackets can easily be attached in a row to the same wall or beam.
