Mounting Bracket for UFO LED High Bay Extreme X1 – 100 W / 150 W / 200 W
Sturdy steel bracket for wall or ceiling mounting of the Extreme X1 high bay luminaire – available precision-fit for all three power classes. Please select the matching wattage when ordering.
100/150/200 W
Selectable Version
The mounting bracket for the Extreme X1 enables professional wall or ceiling installation of the high bay luminaire – as a sturdy alternative to the standard suspension hook. Powder-coated in matt black, vibration-proof and with slotted guides for precise beam angle adjustment. The bracket is precision-made for each power class of the Extreme X1: 100 W (Φ255 mm), 150 W (Φ300 mm) and 200 W (Φ340 mm) – please select the matching wattage when ordering.
Versions
The Right Version for Your Luminaire
| Compatible Luminaire | Housing Diameter | Bracket Version |
|---|
| Extreme X1 100 W | Φ255 mm | 100 W Version |
| Extreme X1 150 W | Φ300 mm | 150 W Version |
| Extreme X1 200 W | Φ340 mm | 200 W Version |
⚠ Each version is exclusively compatible with the specified power class – housing diameters differ between models.
Your Benefits
Why a Mounting Bracket?
360° Freely AdjustableThe slotted guides in the bracket allow precise alignment of the luminaire after installation – the beam angle can be exactly directed towards the work area. | ■■ Wall & Ceiling MountingThe bracket is suitable for both ceiling and wall mounting – wherever a suspension hook is not possible or desired. |
PRO Vibration-Proof Steel ConstructionRobust steel bracket, powder-coated in matt black – corrosion-resistant, load-bearing and visually matched to the Extreme X1 luminaire. | FIT Three Versions – One SystemA matching bracket version exists for every Extreme X1 wattage – enabling a clean, professional installation without any custom modifications. |
FAQ
Frequently Asked Questions
Which version do I need to order?
Please select the version matching your Extreme X1 luminaire: 100 W for the Extreme X1 100 W (Φ255 mm), 150 W for the Extreme X1 150 W (Φ300 mm) and 200 W for the Extreme X1 200 W (Φ340 mm). The versions are not interchangeable.
Can the bracket be installed without a professional?
The mechanical installation of the bracket is straightforward and can be done with basic tools. However, the electrical connection of the luminaire must be carried out by a qualified electrician.
When is a bracket preferable to the suspension hook?
A bracket is recommended when no suitable hanging points are available, a flush wall mount is preferred, or when the luminaire needs to be precisely angled – for example to illuminate shelf aisles or work areas from the side.
Can the bracket be used outdoors?
The bracket is powder-coated and corrosion-resistant for indoor use and covered outdoor areas.

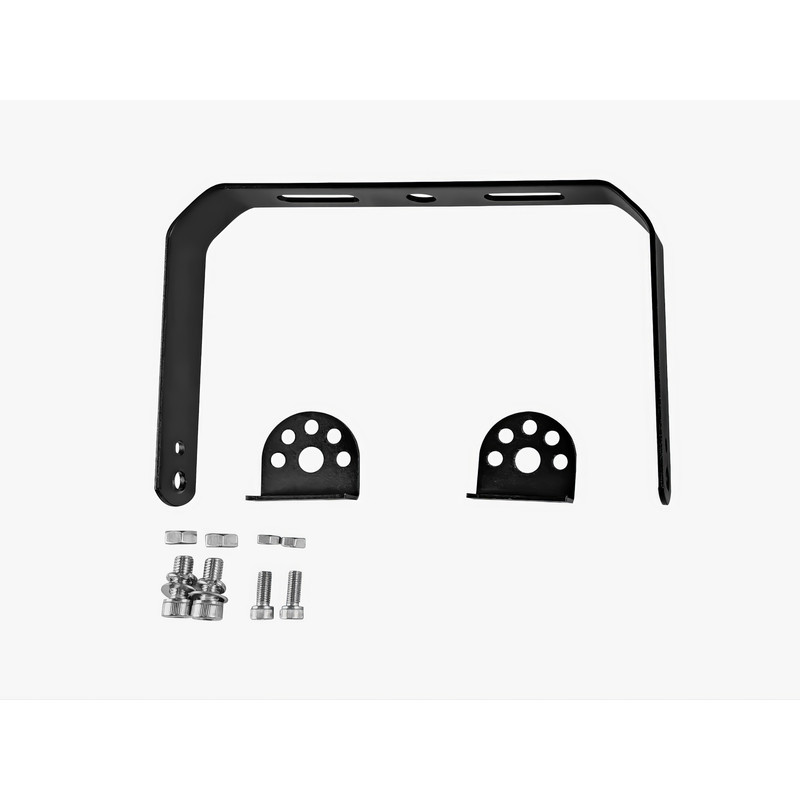

Package Contents
1× Steel bracket (U-shape, black powder-coated) ·
2× Angle plates for wall fixing ·
Screws & nuts (stainless steel) ·
Installation guide
Note: Please select the version matching the wattage of your Extreme X1 when ordering (100 W / 150 W / 200 W).
