Description
The high-output 60 W version for large areas

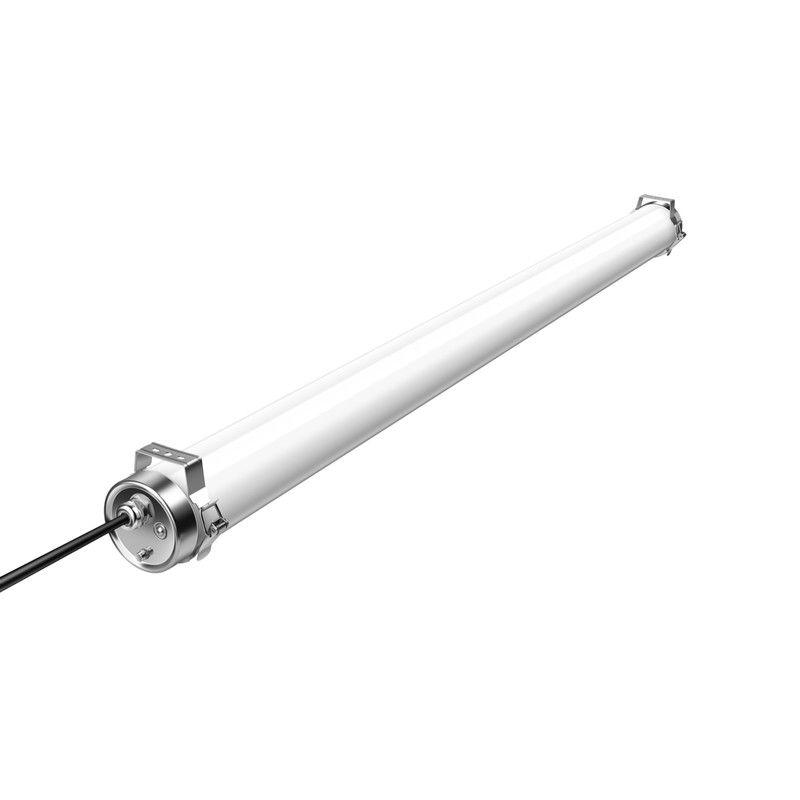

At 1.5 m long and 9000 lm, the 60 W version is the most powerful in the Quattro series. It delivers significantly more luminous flux and greater reach – ideal for large halls, higher ceilings and areas with increased brightness requirements. The Tridonic driver ensures stable, flicker-free operation.
Your benefits at a glance
IP69K – high-pressure waterproof Resistant to high-pressure and steam-jet cleaning – the highest protection rating for wash-down areas. |

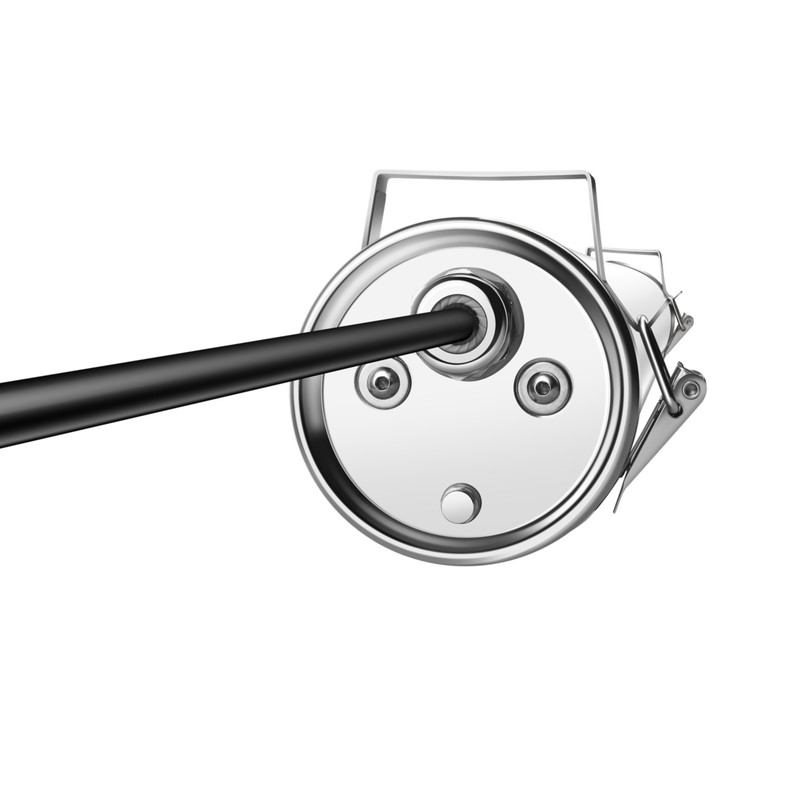

Corrosion-proof housing PMMA cover and stainless steel (304) end caps – resistant in damp, alkaline and aggressive environments. |
Highly efficient at 150 lm/W Bridgelux LEDs and a Tridonic driver for maximum efficacy and low running costs. |
IK10 – impact resistant Rugged housing with high impact resistance for industrial use. |
Even, low-glare light Milky white PMMA cover and 120° symmetric distribution for pleasant, uniform illumination. |
Tridonic driver & 5-year warranty Brand driver for flicker-free operation, long life (L70B10 > 102,000 h) and a 5-year warranty. |
IP69K & corrosion protection – built for extreme conditions
IP69K is the highest protection rating and is designed for applications cleaned with high pressure and high temperature (wash-down). To prevent corrosion in damp, alkaline environments, a PMMA housing and stainless steel end caps are used – providing reliable water and corrosion protection and a long service life, for example in the food and beverage industry or in vehicle wash bays.
Ammonia-resistant – ideal for animal housing and horse boxes
In animal housing, droppings and urine produce aggressive ammonia vapours that quickly attack and corrode conventional luminaires and their metal parts. Thanks to its PMMA housing and stainless steel 304 end caps, the Quattro luminaire is resistant to ammonia and other corrosive stable vapours. Combined with its IP69K rating, it also withstands the regular high-pressure and steam-jet cleaning common in livestock farming. This makes it ideal for poultry and pig houses, cattle barns, horse boxes, riding arenas and feed rooms. There it delivers bright, even and long-lasting lighting – even under damp and chemically demanding conditions.
Technical Data
| Property | Value |
| Power | 60 W |
| Luminous flux | 9000 lm |
| Luminous efficacy | 150 lm/W |
| Energy efficiency class | D (EU 2019/2015, 150 lm/W) |
| Light colour | 4000 K (neutral white) |
| Colour rendering (CRI) | > 80 (Ra) |

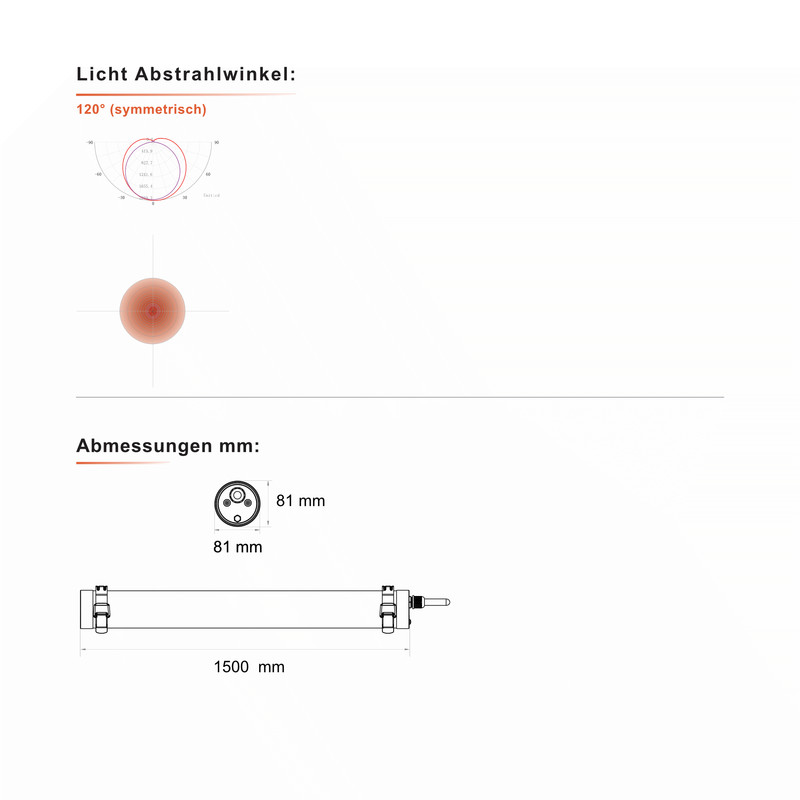

| Beam angle | 120° (symmetric) |
| Protection rating | IP69K |
| Impact resistance | IK10 |
| Length | 1.5 m |
| Dimensions (Ø) | approx. 81 mm |
| Housing | AL6063 + PMMA + stainless steel 304 |
| Cover | PMMA, milky white |
| Driver | Tridonic (incl.) |
| Input voltage | 220–240 V, 50–60 Hz |
| Electrical class | I |
| Power factor | > 0.95 |
| Surge protection | 1 kV (DM) / 2 kV (CM) |
| Dimmable | no (DALI optional) |
| Connection cable | 1 m (3 × 1.0 mm²) |
| Operating temperature | -20 °C to +45 °C |
| Lifespan | L70B10 > 102,000 h |
| Warranty | 5 years |
| Certification | CB, UKCA, CE, RoHS |
Mounting & connection

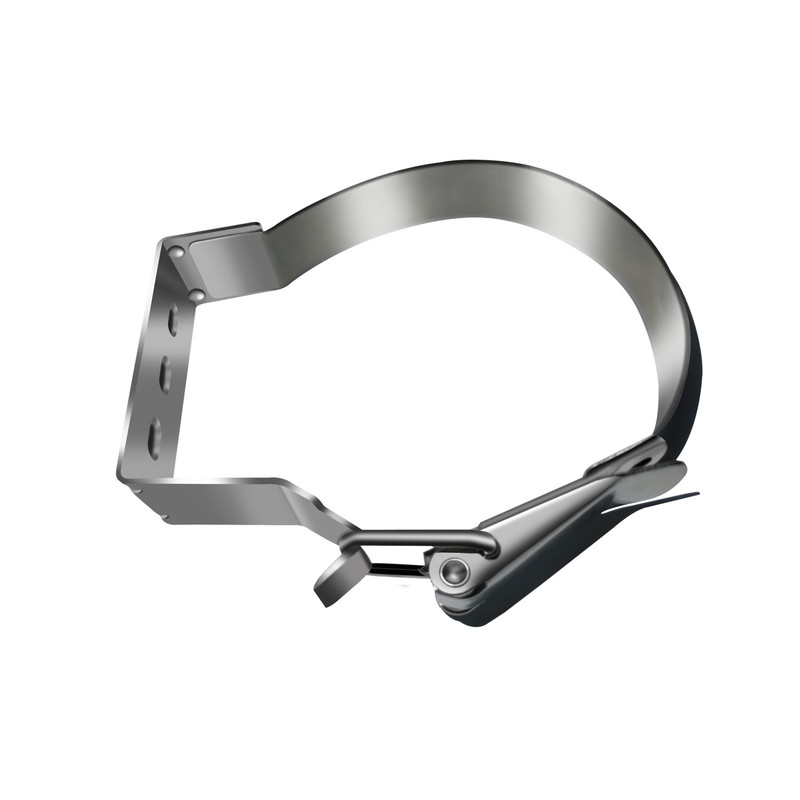

Mounting is done with the supplied stainless steel buckles – as suspension or direct surface mounting. Connection is to 220–240 V (Class I, protective earth required); installation and connection must be carried out by a qualified electrician.
Applications
The 60 W version is used wherever large areas and higher ceilings need bright illumination: industrial and production halls, large barns, storage and logistics centres, car washes and vehicle wash bays, as well as food and beverage facilities.
