Sosen Driver USB Programmer
Description

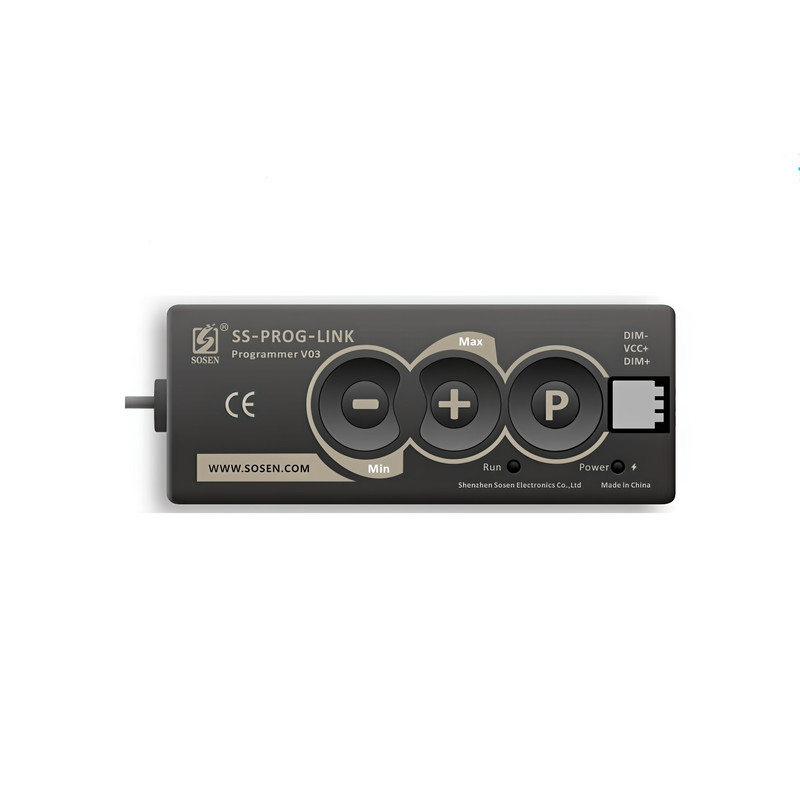

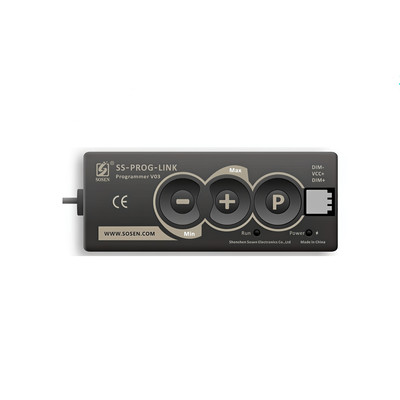

Sosen Programmer SS-PROG-LINK – The Ultimate Configuration Interface
The Sosen Programmer SS-PROG-LINK is much more than a simple connection cable. It is the brain behind your modern lighting infrastructure. For those prioritizing efficiency, longevity, and low maintenance costs, this tool is an absolute necessity.
Why the SS-PROG-LINK is the Professional Choice
Time is money – especially during large-scale installations of street lamps or industrial lighting. The Sosen Programmer was designed to simplify complex configurations:
- Massive Time Savings: Thanks to the offline batch mode, you can program hundreds of drivers in record time – without a PC on-site.
- Future-Proof Investment: Adapt your luminaires to new requirements years later without changing the hardware.
- Highest Precision: Set the wattage exactly to minimize energy costs and maximize LED lifespan.
- Safety First: Integration of NTC sensors and surge protection parameters protects your expensive hardware from failure.
Flexible Data Transfer: Choose between direct wiring at the power supply via dimming leads (DIM-, VCC+, DIM+) or high-efficiency, contactless NFC programming for wireless configuration.
Intelligent Features for Maximum Performance
- Precise Power Setting (10W – 80W): Program output current and voltage exactly to the required light level.
- Soft Start Adjustable: Ramp-up time (1-255s) programmable – protects the grid and prevents glare.
- Constant Lumen Output (CLO): Actively compensates for natural LED lumen depreciation over the years.
- Self-Adapt-Midnight Timer: Smart dimming based on learned operating hours.
- End Life Alarm (ELA): Automatic maintenance alert once the lifespan limit is reached.
Two Modes for Unmatched Productivity
Use Online Programming for precise individual adjustments or Batch Programming to transfer a saved configuration to multiple drivers on-site at the push of a button ("P" key).
Quick Guide: Commissioning
- Preparation: Install SosenProgrammer software and connect the programmer to your PC via USB.

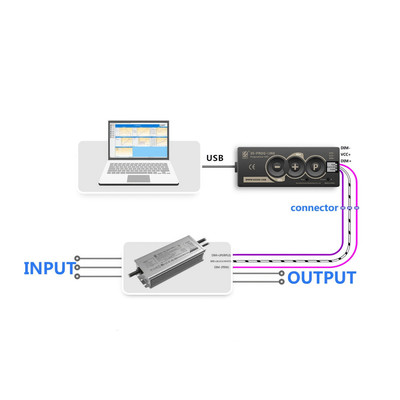

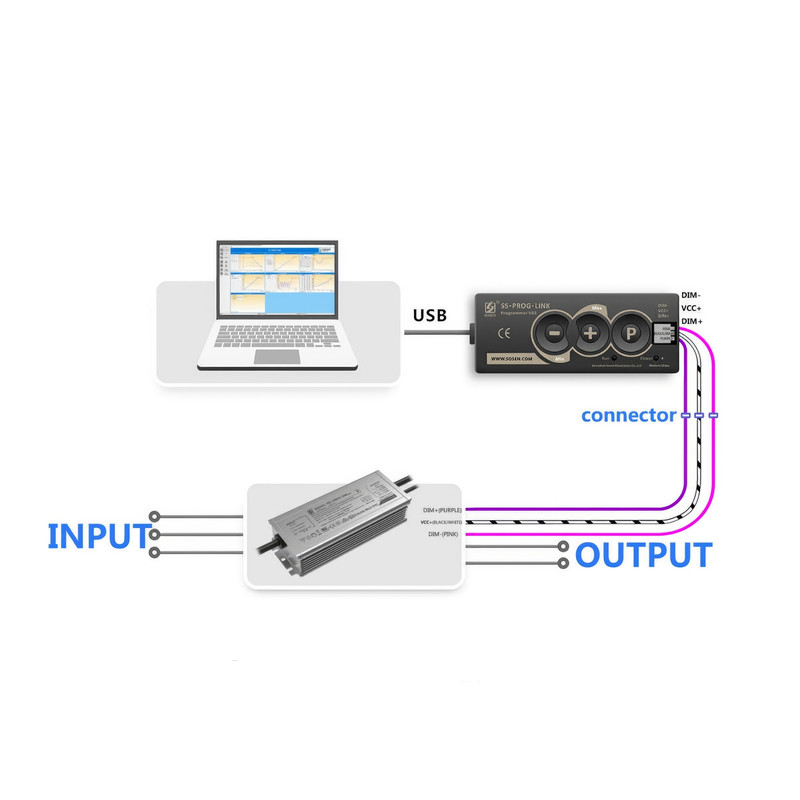

- Connection: Connect the driver either via wiring (DIM-, VCC+, DIM+) or using NFC mode.

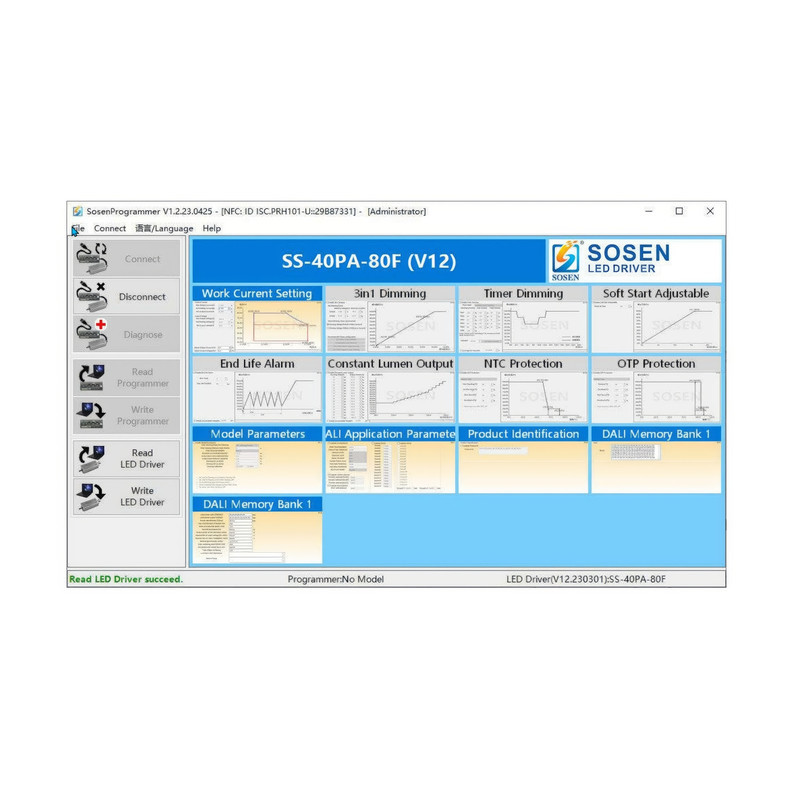

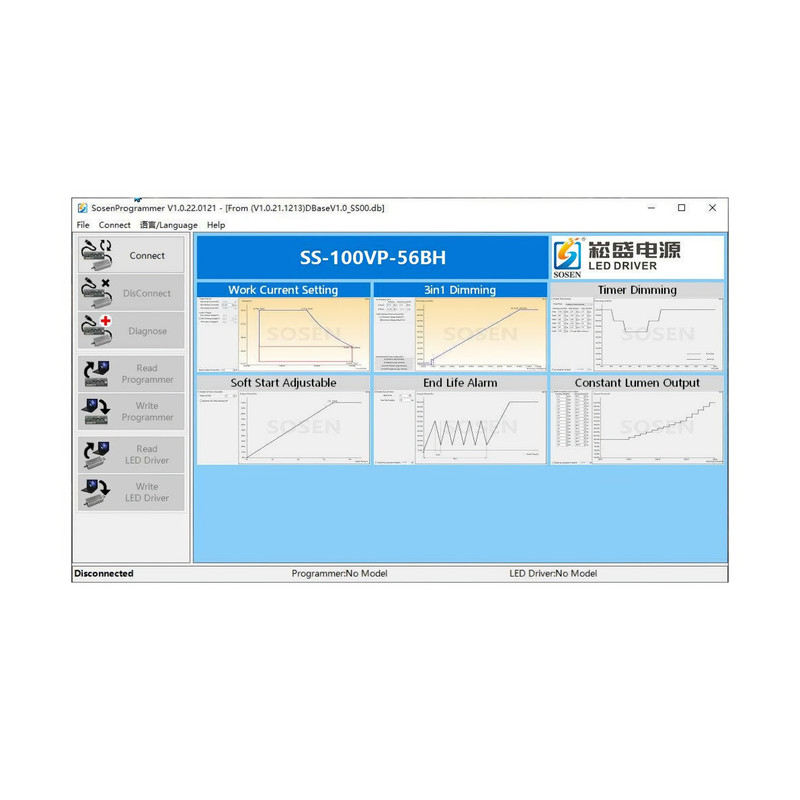

- Configuration: Click "Connect", select "Read LED Driver," and set the desired parameters (wattage, soft start, dimming).
- Protection: Set thresholds for NTC over-temperature protection and internal OTP protection.
- Writing: Select "Write LED Driver" (Online) or "Write Programmer" (for Offline batch mode) – Done!
Technical Specifications
| Model | SS-PROG-LINK |
|---|---|
| PC Connection | USB (Type B) |
| Driver Interface | Terminals (DIM-, VCC+, DIM+) / NFC (optional) |
| Power Supply | 5V via USB |
| Feedback | Acoustic signal (Buzzer) |
| Compatibility | Sosen VP, M, VB, PA series |
Scope of Delivery:
- 1x Sosen Programmer SS-PROG-LINK
- 1x Manual (PDF download in English)
