Description

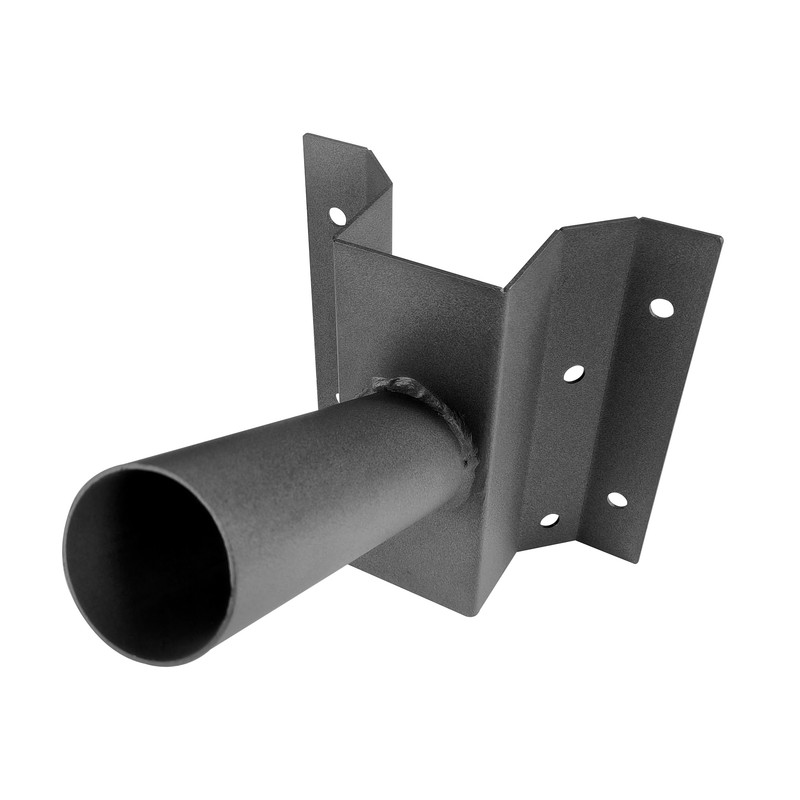

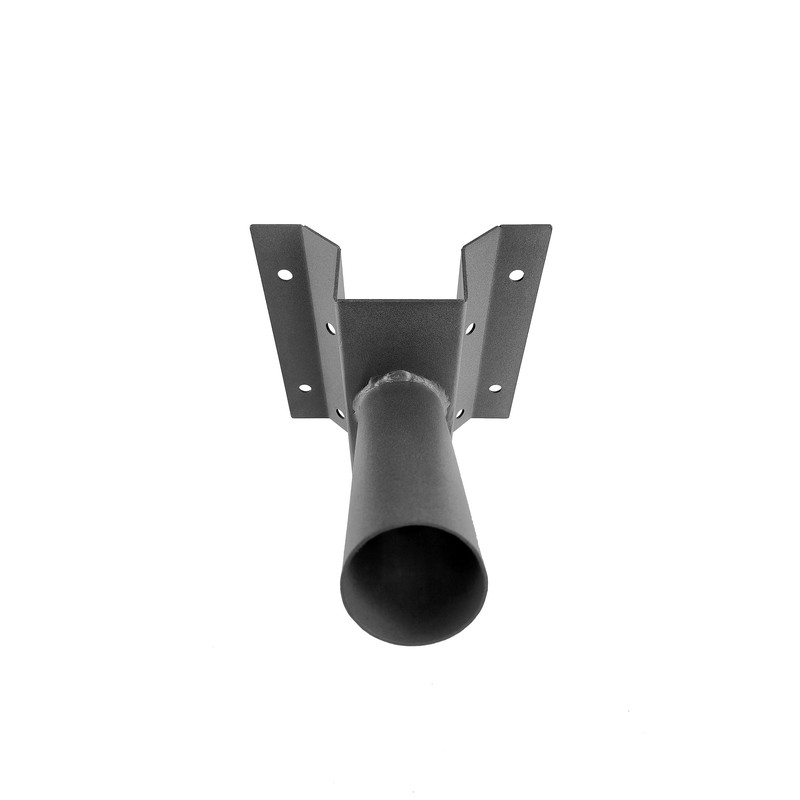

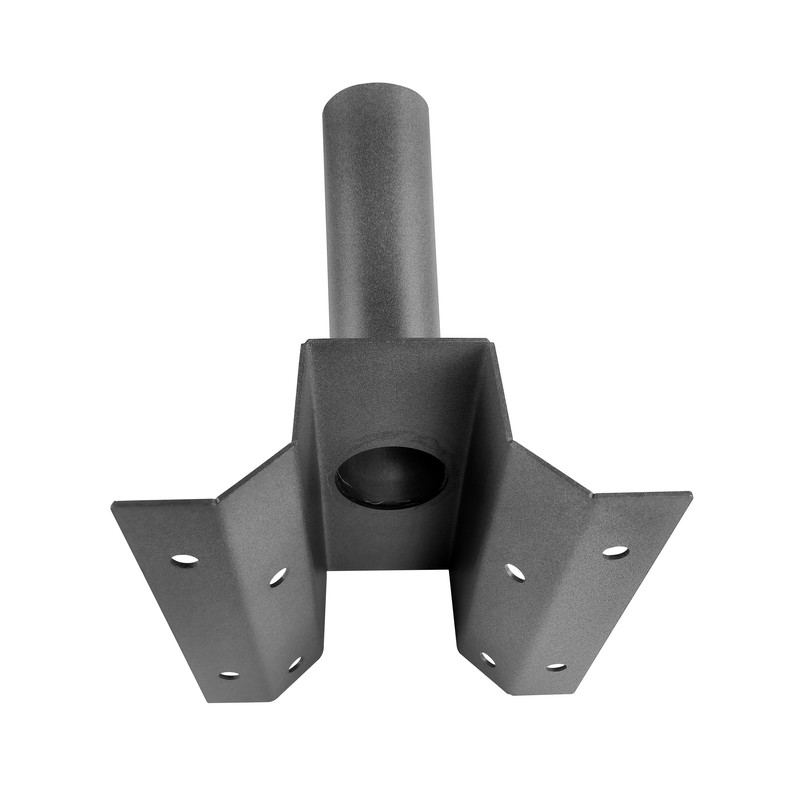

Wall Bracket Ø 60 mm, 105° – wall arm for outdoor luminaires
Rugged wall-mount arm in anthracite for luminaires with a Ø 60 mm spigot entry – 200 mm reach, 105° angle, for wall and corner mounting indoors & outdoors.
Wall arm for flexible luminaire mounting
With this wall bracket you mount street lights, yard lights and other outdoor luminaires with a Ø 60 mm spigot directly on the wall – no pole required. The arm accepts the luminaire like a pole top and positions it at 200 mm from the facade. The fixed 105° angle tilts the luminaire slightly forward so the light is directed onto the target area instead of the wall.
Benefits & installation
- Wall and corner mounting – Suitable for straight walls and building corners – aim the luminaire exactly where light is needed.
- Sturdy metal construction – Rugged build with high load capacity – secure hold even for heavier luminaires and in wind.
- Quick installation – Screw the base plate to the wall, slide the luminaire onto the arm and clamp it – done.
- Timeless design – The anthracite finish looks neutral and high-quality – from warehouse and workshop to driveway.
Technical data
| Luminaire entry | Ø 60 mm (spigot) |
| Arm angle | 105° |
| Reach | 200 mm |
| Colour | anthracite |
| Material | metal, rugged construction |
| Mounting | wall and corner mounting |
| Application | indoor and outdoor |
| Dimensions (L × W × H) | 200 × 170 × 285 mm |
Applications
The wall arm is the practical alternative to a pole: on hall walls, warehouses, workshops, garages, driveways and building corners. Combined with an LED street light it creates powerful area and path lighting without foundation and pole costs.
Scope of delivery
- 1 × wall bracket Ø 60 mm, 105°, anthracite
- Note: choose fixing material to suit the substrate separately
