Description
X-connector – 3000 K Warm white in White
Illuminated four-arm cross for joining LED linear lights – warm white, 10 W, 1,200 lm.
This version of the X-connector shines in warm white 3000 K and matches the same-colour linear light exactly. As a four-arm cross it joins LED linear lights into corners, junctions and formations – in a white housing with a continuous appearance and no dark transitions.
- Colour temperature 3000 K warm white
- Four-arm cross for LED linear lights
- 10 W, 1,200 lm, CRI ≥ 80, 120°
- Illuminated – seamless transition at corners and junctions
- Building block for lines, rectangles, hexagons and honeycombs
- White aluminium housing, IP20, up to 50,000 h
Impressive light formations

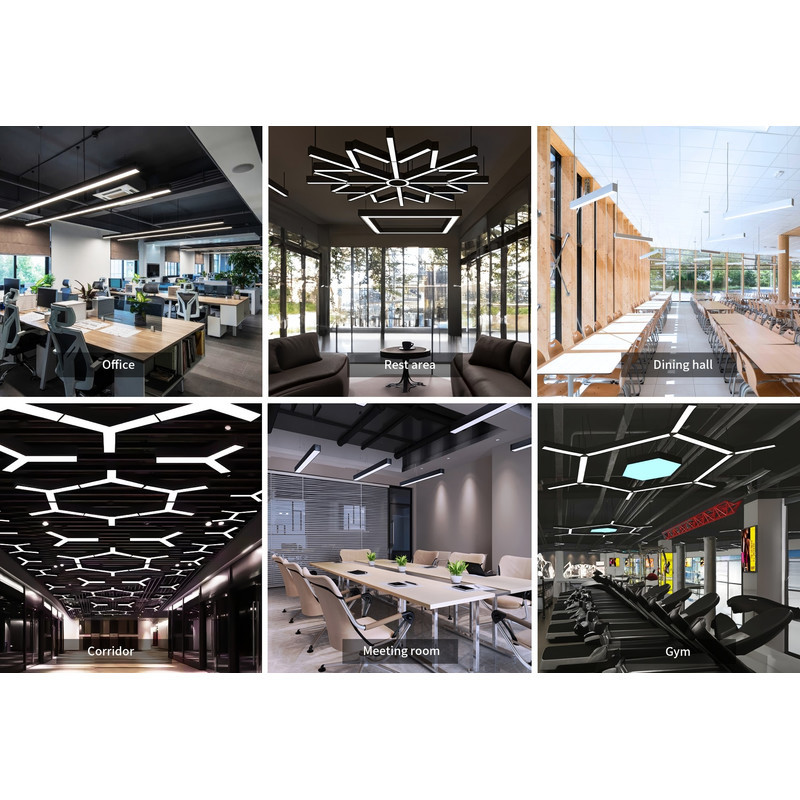

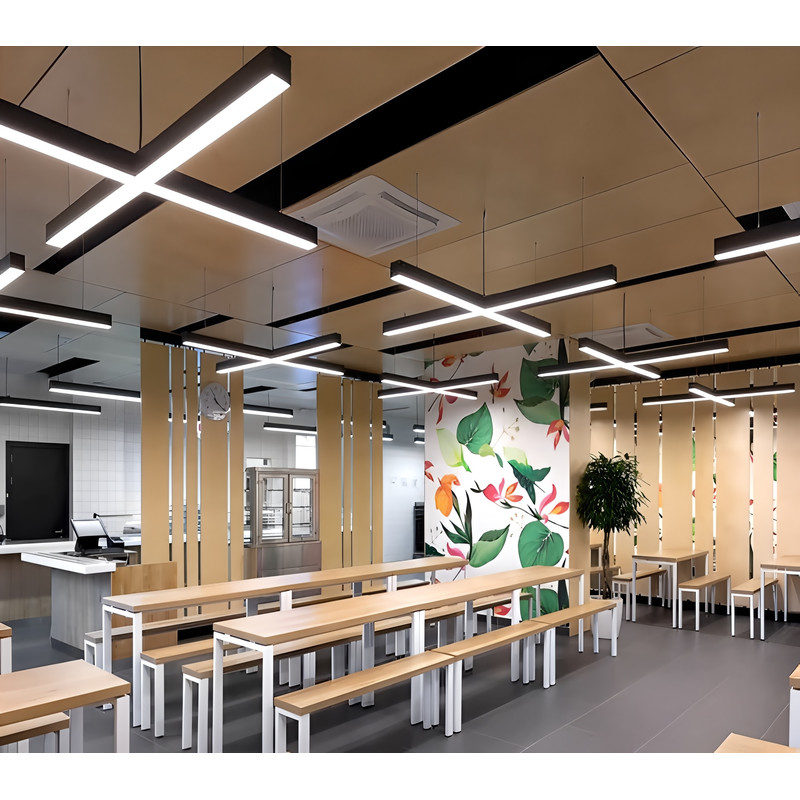

Individual luminaires can be linked in series into continuous lines and combined with the matching L-, T-, Y- and X-connectors to form rectangles, squares, hexagons or honeycomb patterns. This lets you create striking, custom light formations that transform large rooms, conference rooms, offices, workshops, car dealerships and gyms – from a clean line to an eye-catching ceiling sculpture.
Technical data
| Product | X-connector for LED linear lights |
| Colour temperature | 3000 K (warm white) |
| Junction type | four-arm cross |
| Power | 10 W |
| Luminous flux | 1,200 lm |
| Colour rendering (CRI) | ≥ 80 |
| Beam angle | 120° |
| Input voltage | AC 200–240 V |
| Housing / colour | Aluminium, white |
| Protection | IP20 / class I |

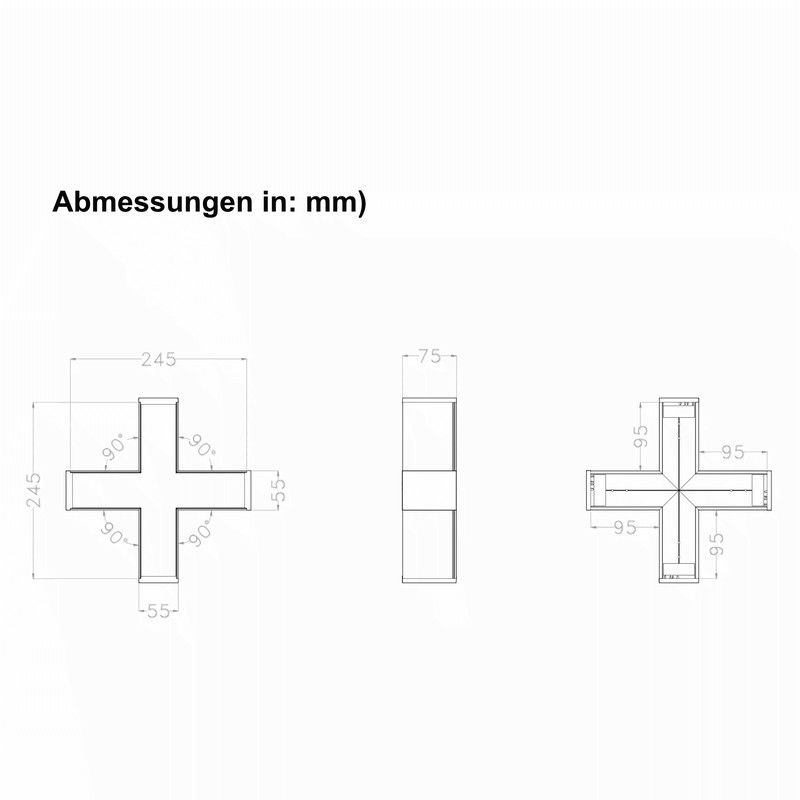

| Dimensions (L × W × H) | 245 × 245 × 75 mm |
| Net weight | 0.98 kg |
| Rated life | up to 50,000 h |
| Certification | CE, RoHS |
| Energy efficiency class | E (EU scale A–G, EU 2019/2015) |
Scope of delivery
- 1 × X-connector (3000 K warm white, white)
- Mounting accessories / insulating cap
- Installation guide
Note: LED linear lights available separately. Installation by a qualified electrician (L / N / PE).
