Y-connector 120° for LED linear light 10W white 4000K

Item number: SLSY120W-2

Category: LED Linear Lights System

Lightcolor:: 3000K4000K6000K

58,90 €

including 19% VAT., plus shipping

From	Price per unit
3	54,90 €
6	51,90 €

Available

Shipping time: 2 - 3 workdays

Description

Y-connector – 4000 K Neutral white in White

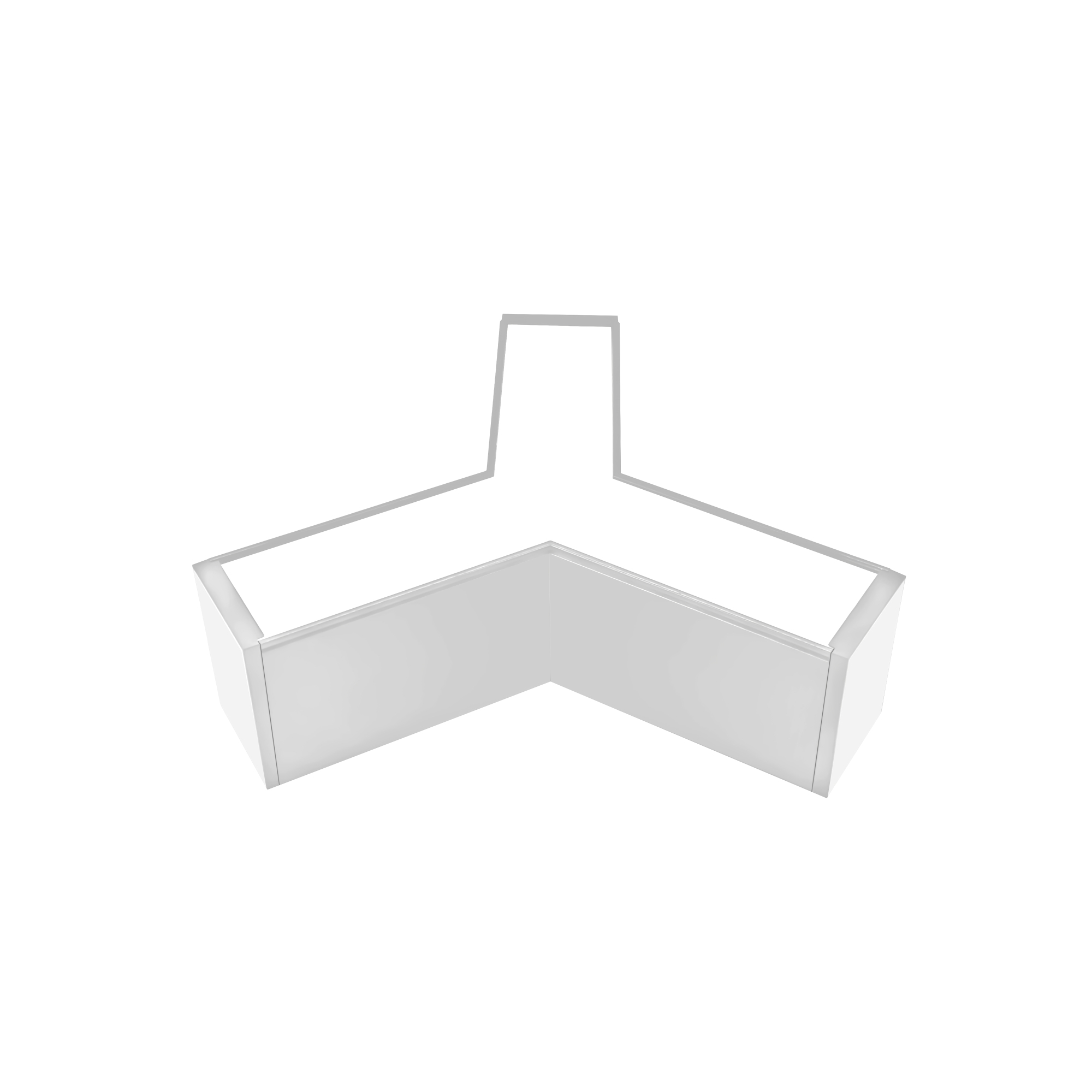

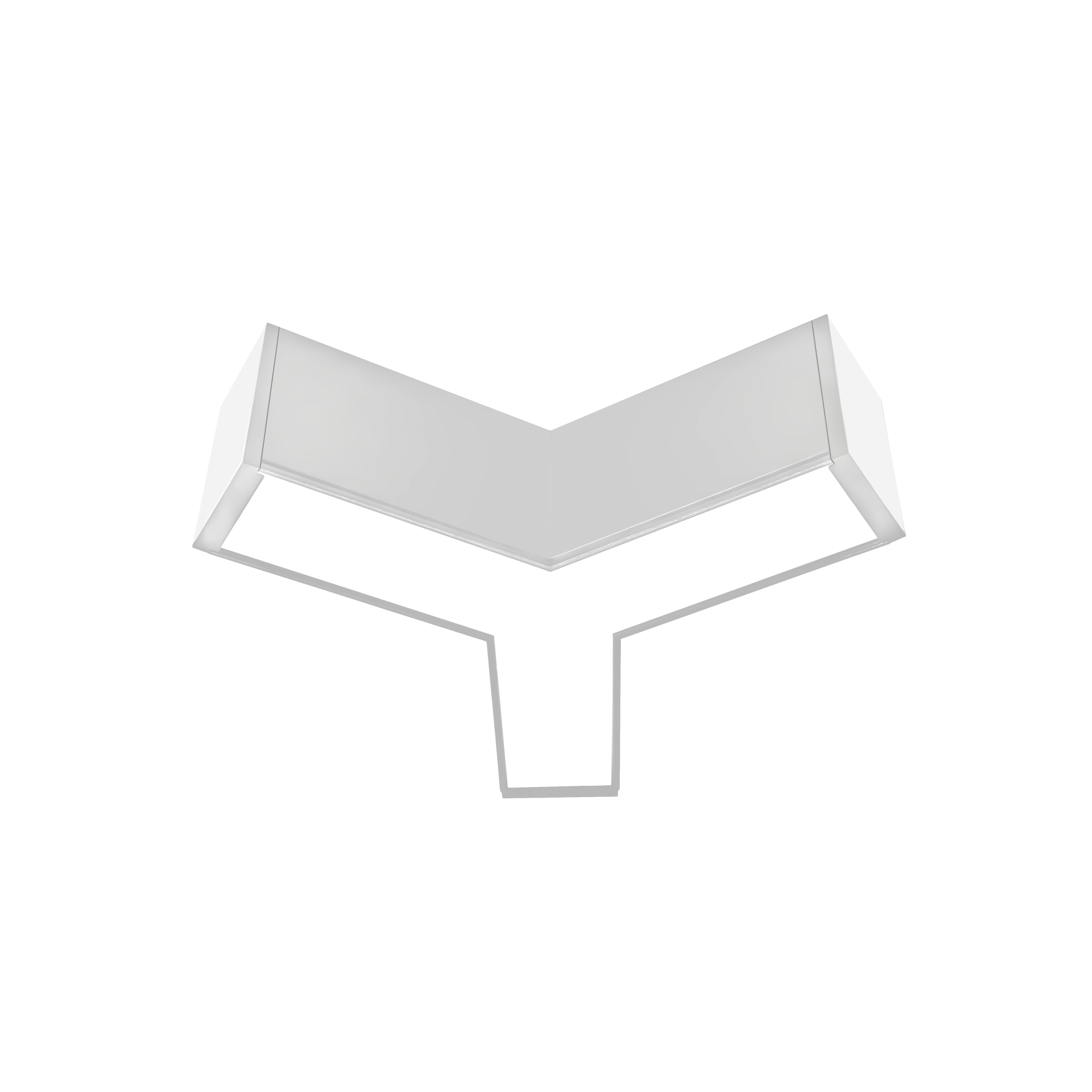

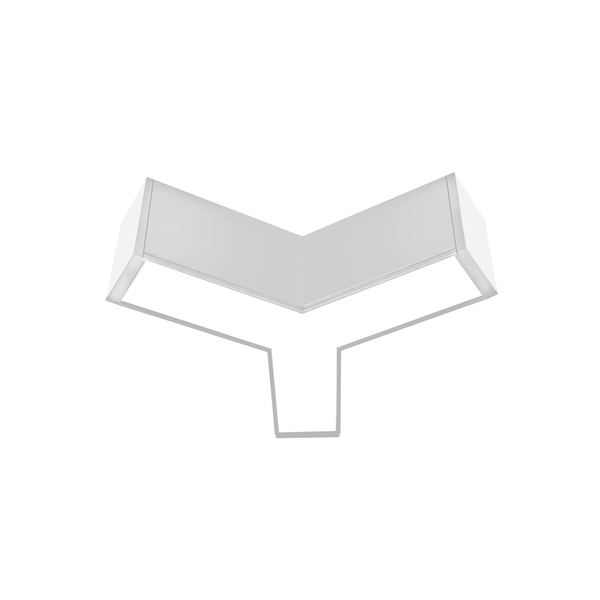

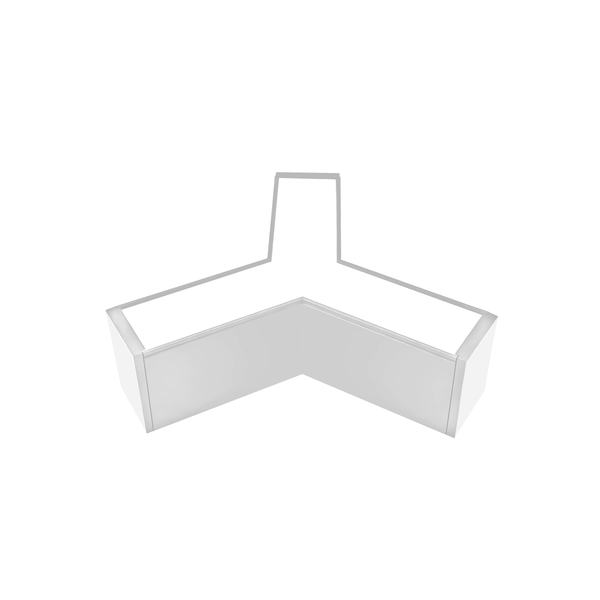

Illuminated three-arm 120° Y junction for joining LED linear lights – neutral white, 10 W, 1,200 lm.

Y-connector4000 K neutral white10 W1,200 lmwhite120°

This version of the Y-connector shines in neutral white 4000 K and matches the same-colour linear light exactly. As a three-arm 120° Y junction it joins LED linear lights into corners, junctions and formations – in a white housing with a continuous appearance and no dark transitions.

4000 K neutral whiteColour-matched to the linear light – ideal for offices and conference rooms.

Seamless joinForms a three-arm 120° Y junction without dark corners.

IlluminatedLights up with 1,200 lm itself.

Build formationsBuilding block for lines, rectangles, hexagons and honeycombs.

Colour temperature 4000 K neutral white
Three-arm 120° Y junction for LED linear lights
10 W, 1,200 lm, CRI ≥ 80, 120°
Illuminated – seamless transition at corners and junctions
Building block for lines, rectangles, hexagons and honeycombs
White aluminium housing, IP20, up to 50,000 h

Impressive light formations

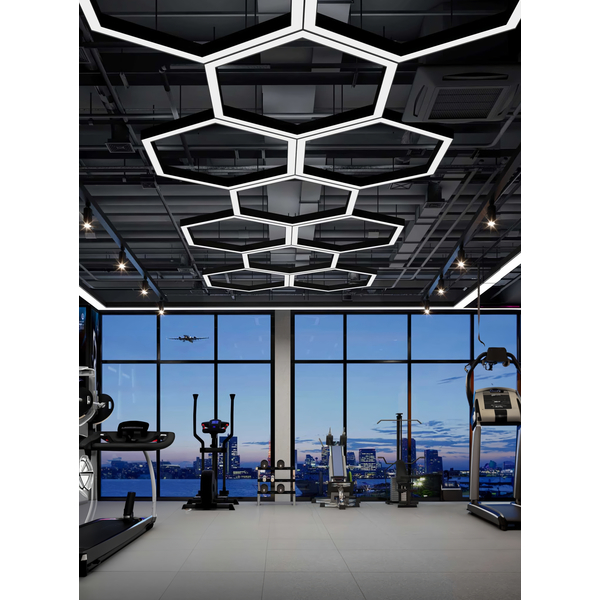

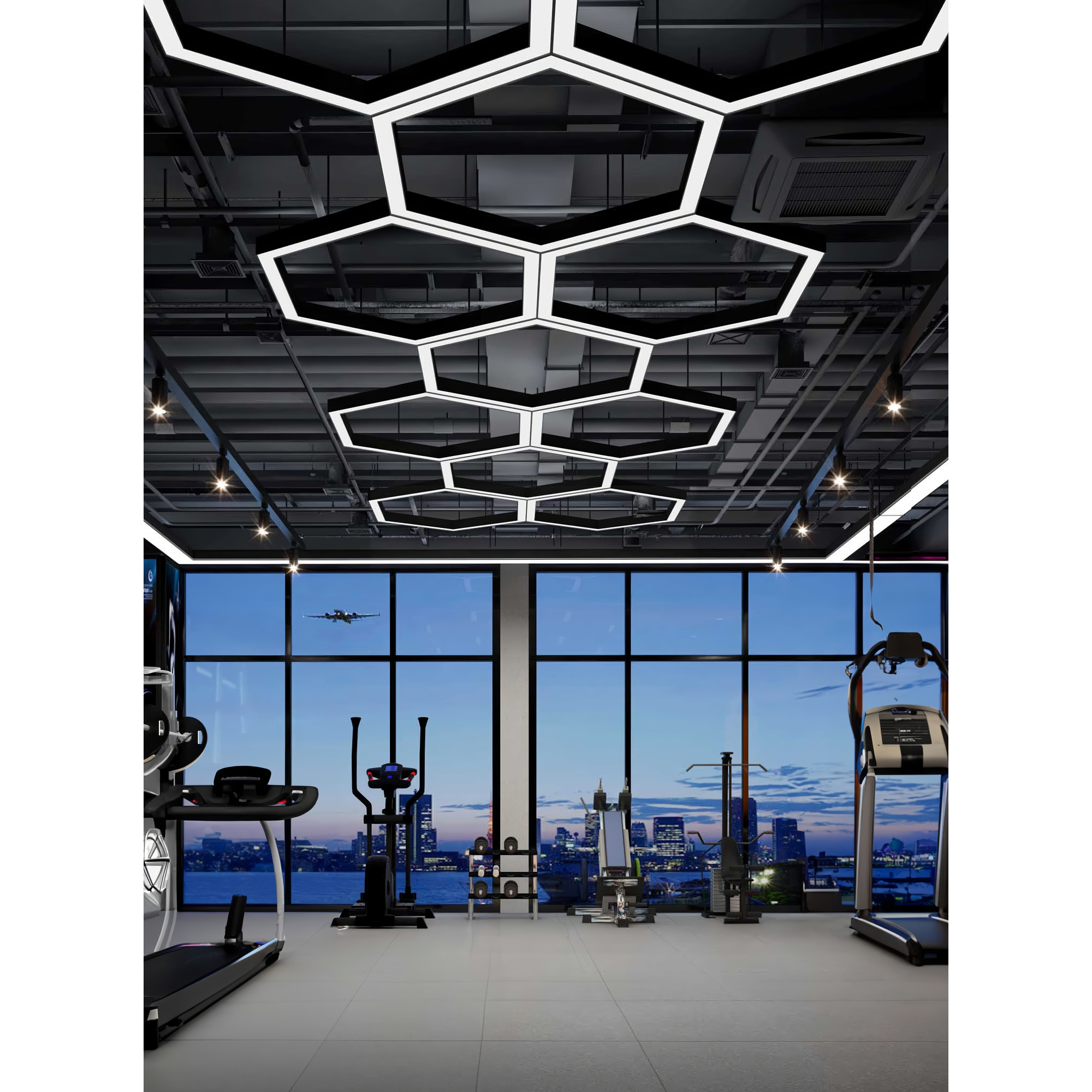

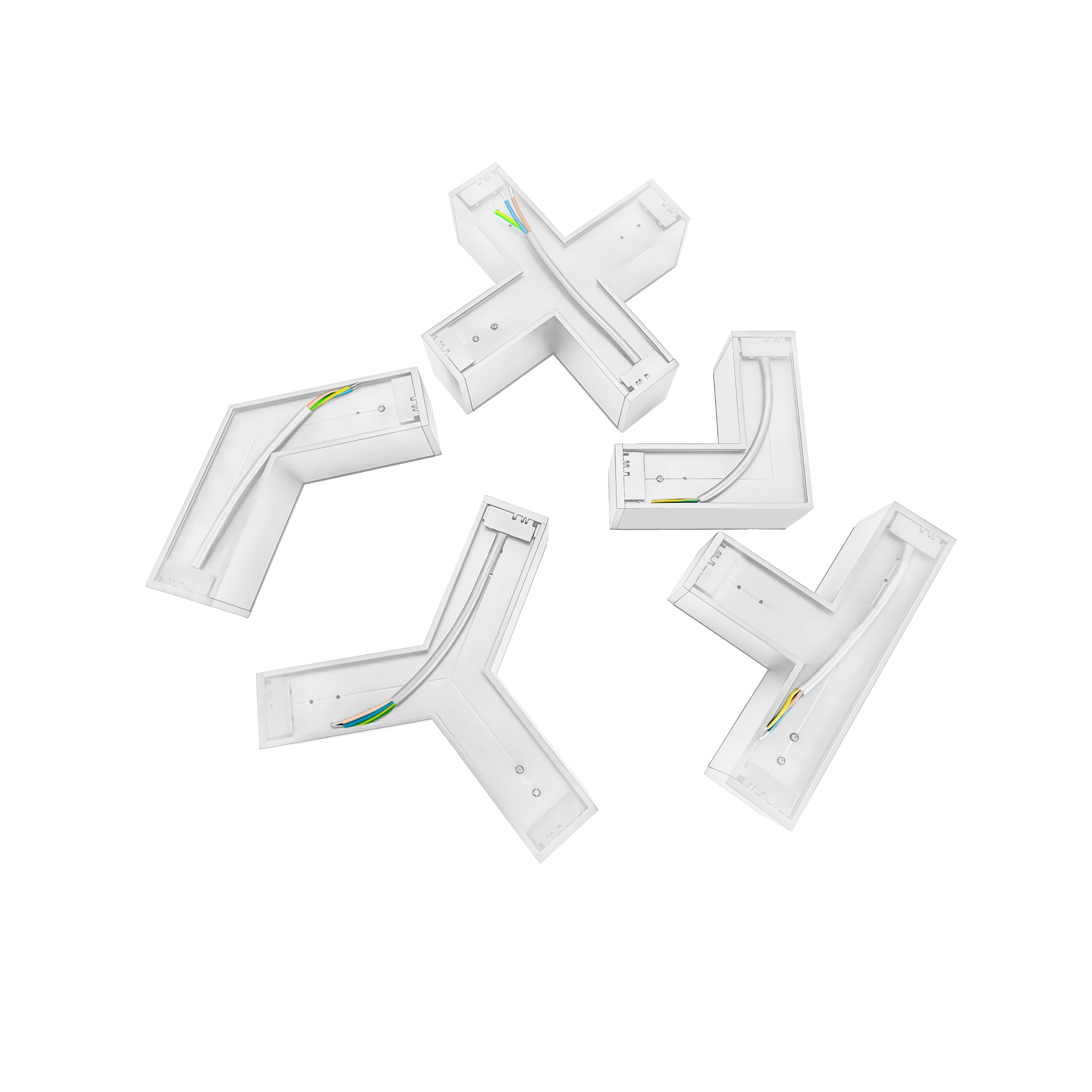

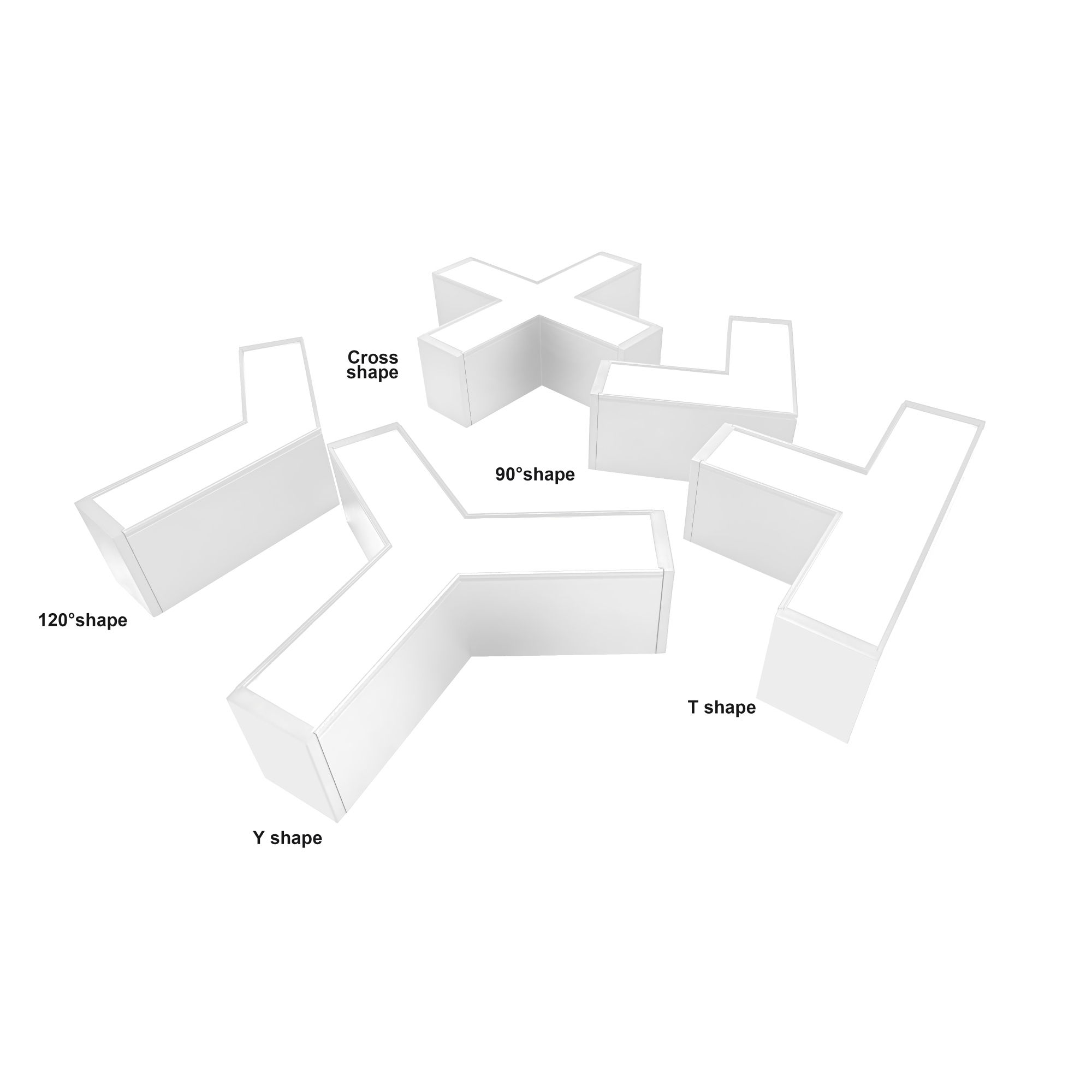

Individual luminaires can be linked in series into continuous lines and combined with the matching L-, T-, Y- and X-connectors to form rectangles, squares, hexagons or honeycomb patterns. This lets you create striking, custom light formations that transform large rooms, conference rooms, offices, workshops, car dealerships and gyms – from a clean line to an eye-catching ceiling sculpture.

Technical data

Product	Y-connector for LED linear lights
Colour temperature	4000 K (neutral white)
Junction type	three-arm 120° Y junction
Power	10 W
Luminous flux	1,200 lm
Colour rendering (CRI)	≥ 80
Beam angle	120°
Input voltage	AC 200–240 V
Housing / colour	Aluminium, white
Protection	IP20 / class I

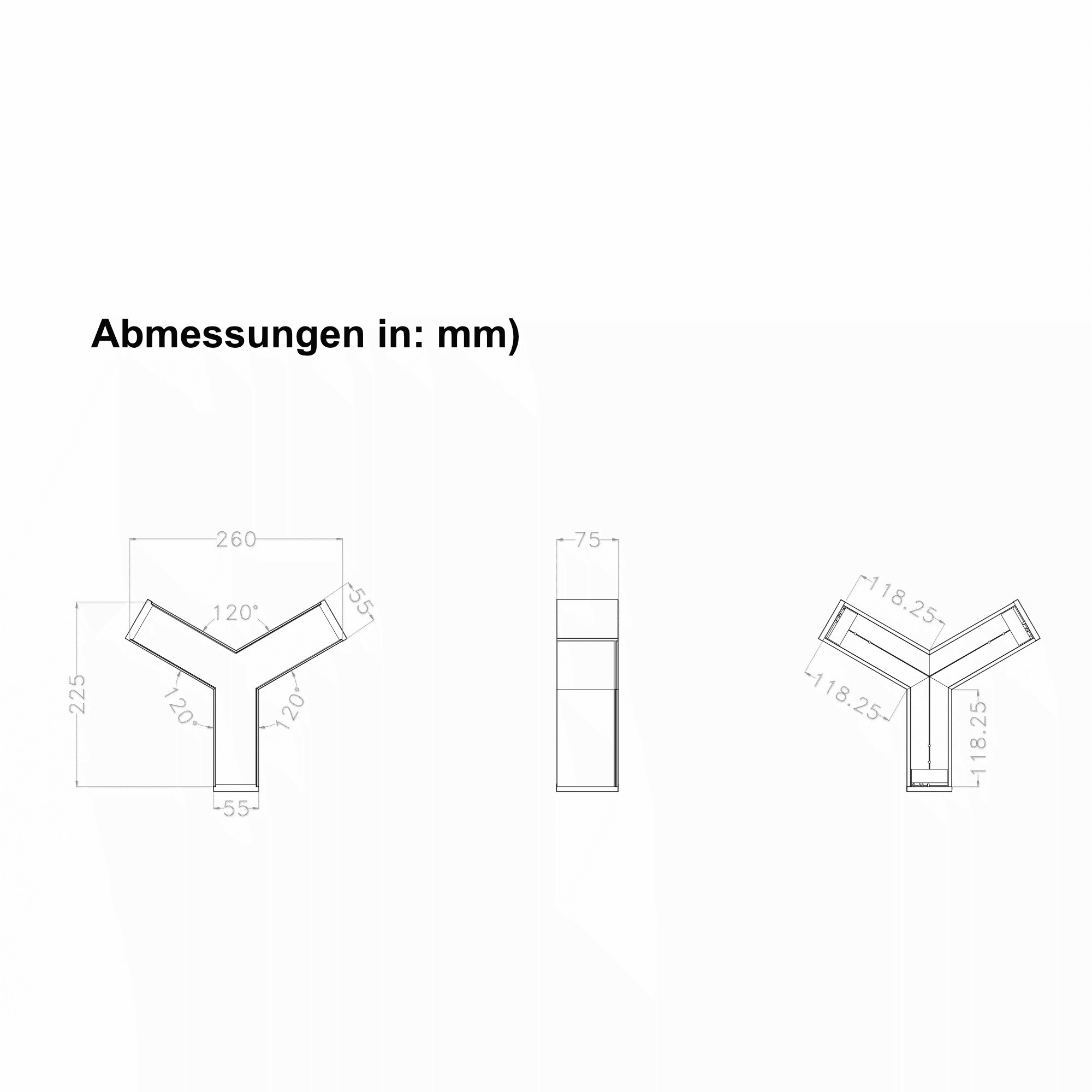

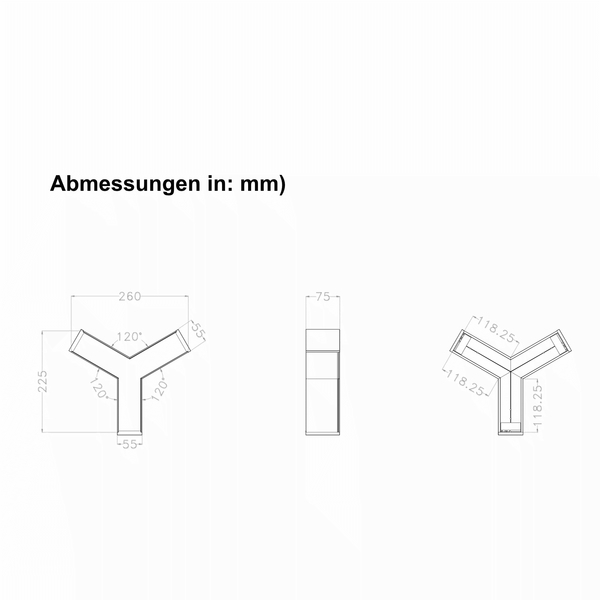

Dimensions (L × W × H)	260 × 225 × 75 mm
Net weight	0.74 kg
Rated life	up to 50,000 h
Certification	CE, RoHS
Energy efficiency class	E (EU scale A–G, EU 2019/2015)

Scope of delivery

1 × Y-connector (4000 K neutral white, white)
Mounting accessories / insulating cap
Installation guide

Note: LED linear lights available separately. Installation by a qualified electrician (L / N / PE).
