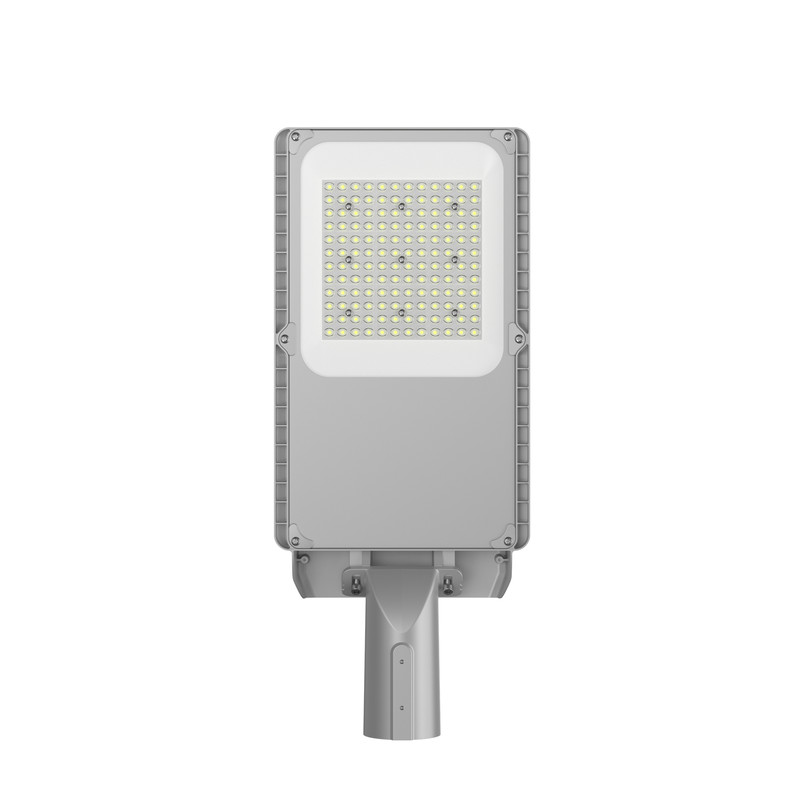

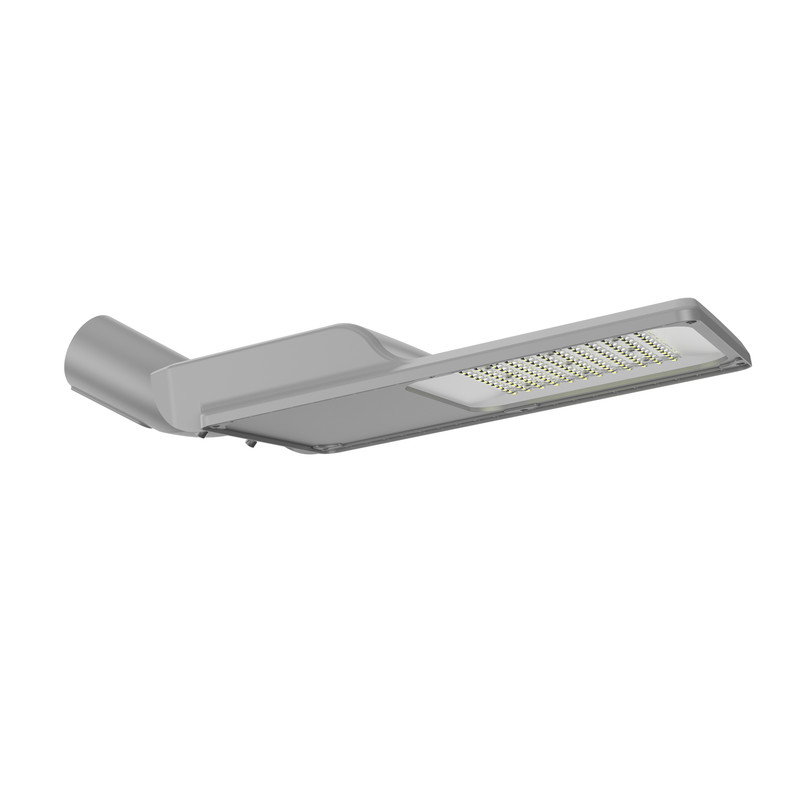

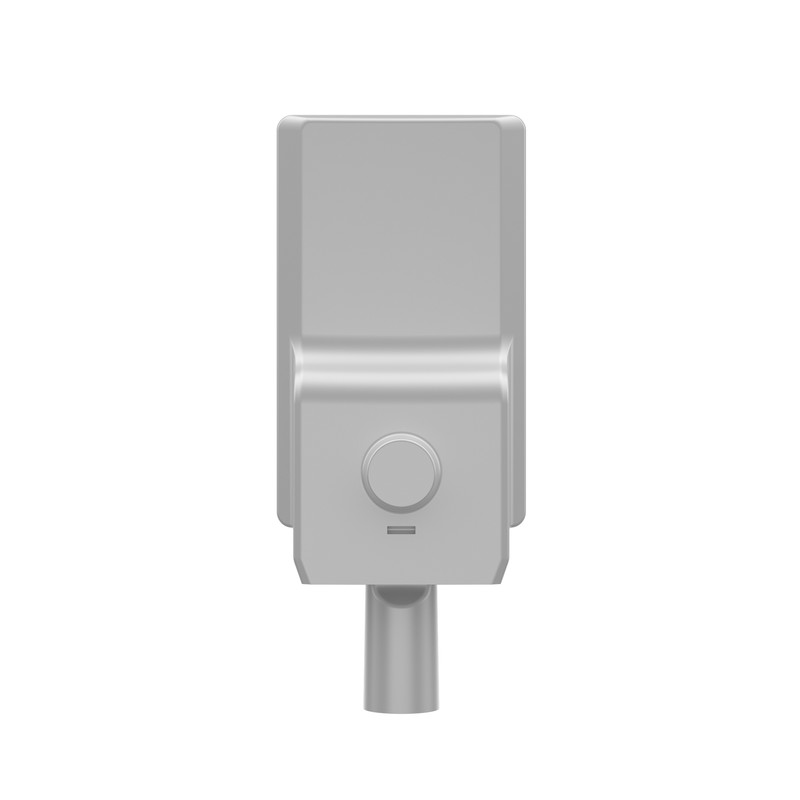

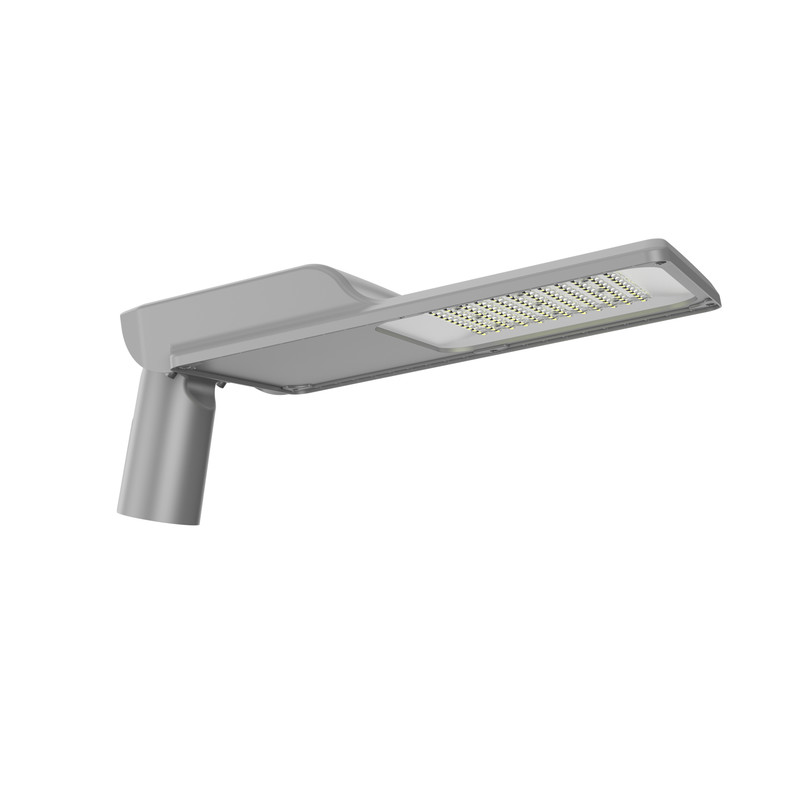

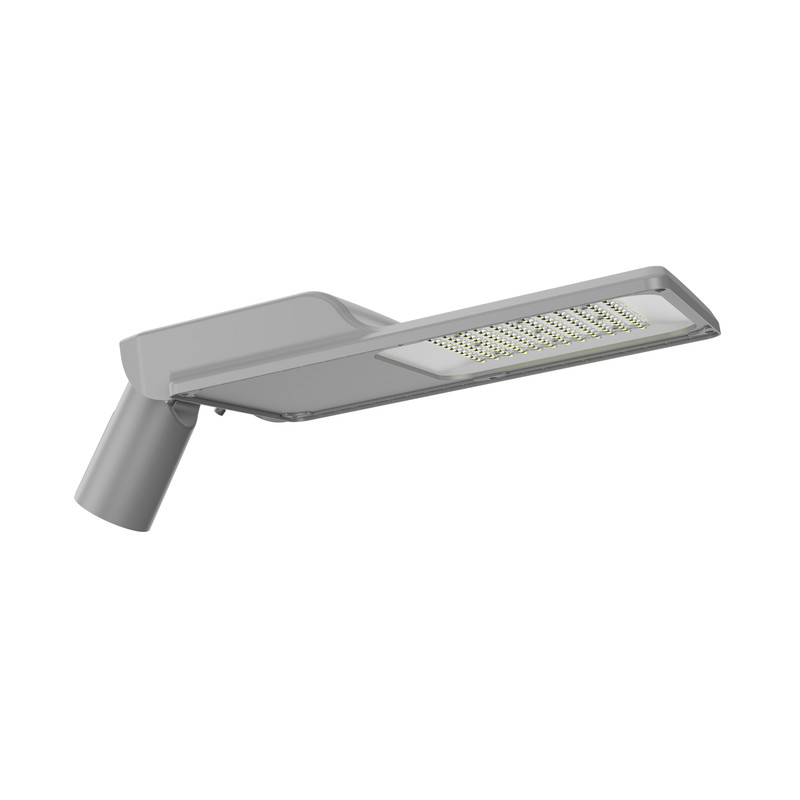

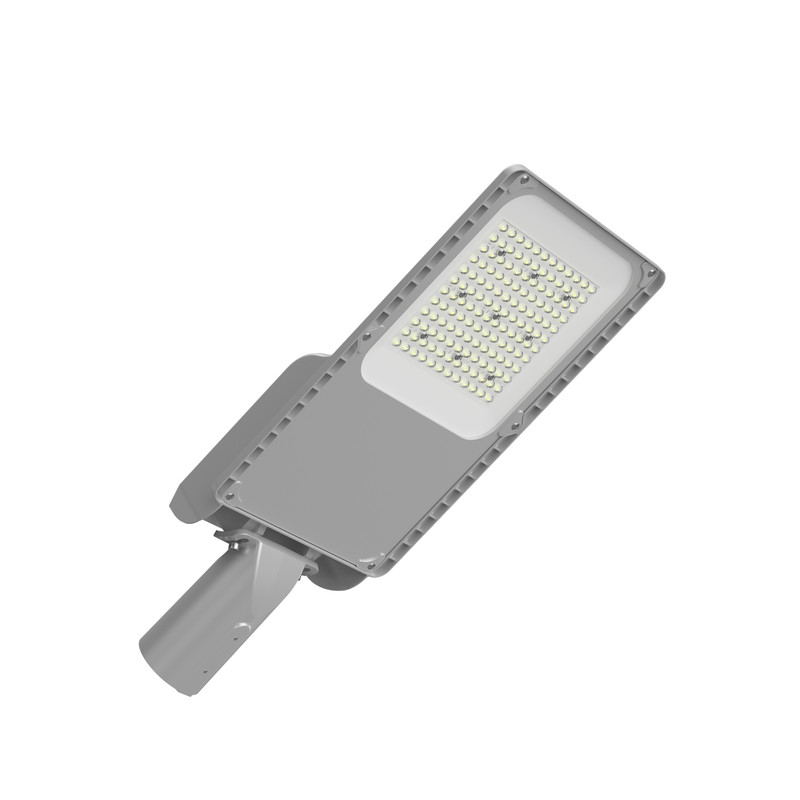

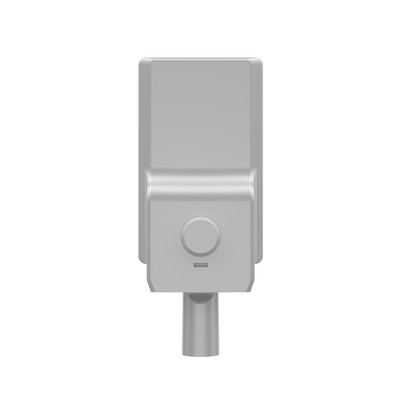

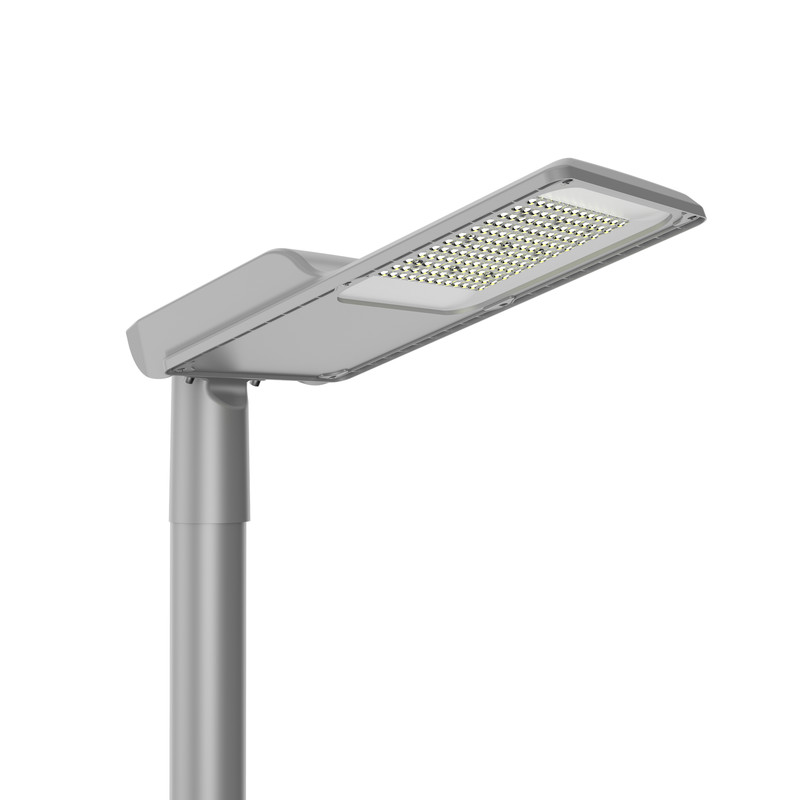

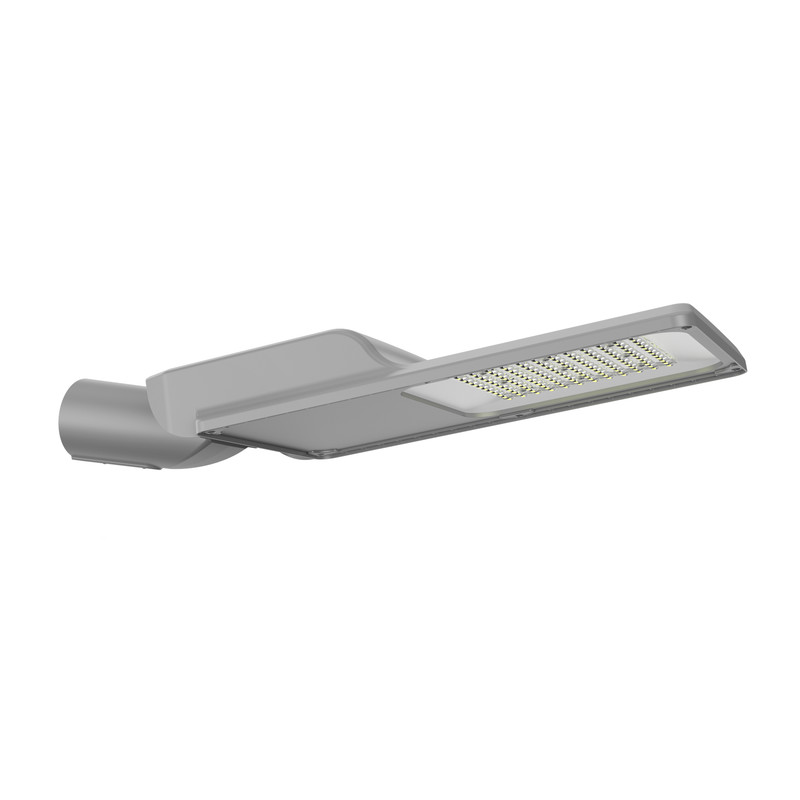

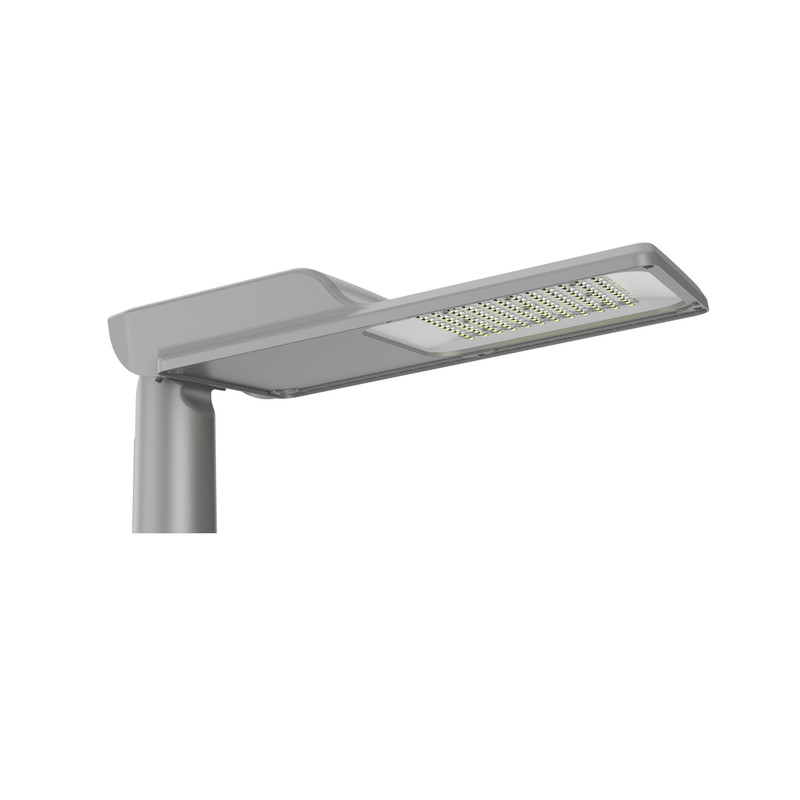

LED Street Light K5 – 100W to 40W 4-Step Flexibility
The LED Street Light K5 is the professional solution for high-standard outdoor lighting. Featuring state-of-the-art CREE 3030 LEDs and an impressive luminous efficacy of 150 lumens per watt, this luminaire sets new benchmarks in brightness and energy efficiency.
This high-performance street luminaire is the ideal choice for the reliable illumination of public roads, expansive parking lots, and industrial sites. Thanks to its adjustable power levels, it is perfectly suited for both the precise lighting of sports facilities and the high-contrast illumination of walkways and high-security areas.
Sosen High-End Power Supply
An LED system is only as reliable as its driver. The K5 utilizes an industrial branded power supply from Sosen, engineered for maximum operational safety:
- Sosen with 6KV surge protection: Effectively protects the LEDs from voltage spikes in the grid and indirect lightning strikes.
- Constant Current Technology: Ensures flicker-free lighting and stable performance throughout the entire lifespan.
- Maximum Efficiency: The Sosen driver maintains a consistent efficacy of 150 lm/W at every power stage.
Energy Consumption & Luminous Performance
Tailor the lighting exactly to your requirements. The wattage is switchable directly at the luminaire, allowing for immediate optimization of energy costs:
| Power Level | Consumption (per 1,000h) | Luminous Flux (Lumens) | Application Recommendation |
|---|---|---|---|
| 40 Watts | 40 kWh | 6,000 lm | Parks & Sidewalks |
| 60 Watts | 60 kWh | 9,000 lm | Residential Roads |
| 80 Watts | 80 kWh | 12,000 lm | Parking Lots & Industry |
| 100 Watts | 100 kWh | 15,000 lm | Main Roads & Sports Fields |
Technical Specifications at a Glance
| Power (Switchable) | 100W / 80W / 60W / 40W |
|---|---|
| Energy Consumption | 40-100 kWh/1000h (depending on stage) |
| Energy Efficiency Class | Class D |
| Luminous Flux / Efficacy | Up to 15,000 Lumens (150 Lm/W) |
| Color Temperature | 4000K (Neutral White) |
| Driver / Power Supply | Sosen with 6KV surge protection |
| Light Source | CREE 3030 High-Performance LEDs |
| Protection / Impact Rating | IP66 / IK08 |

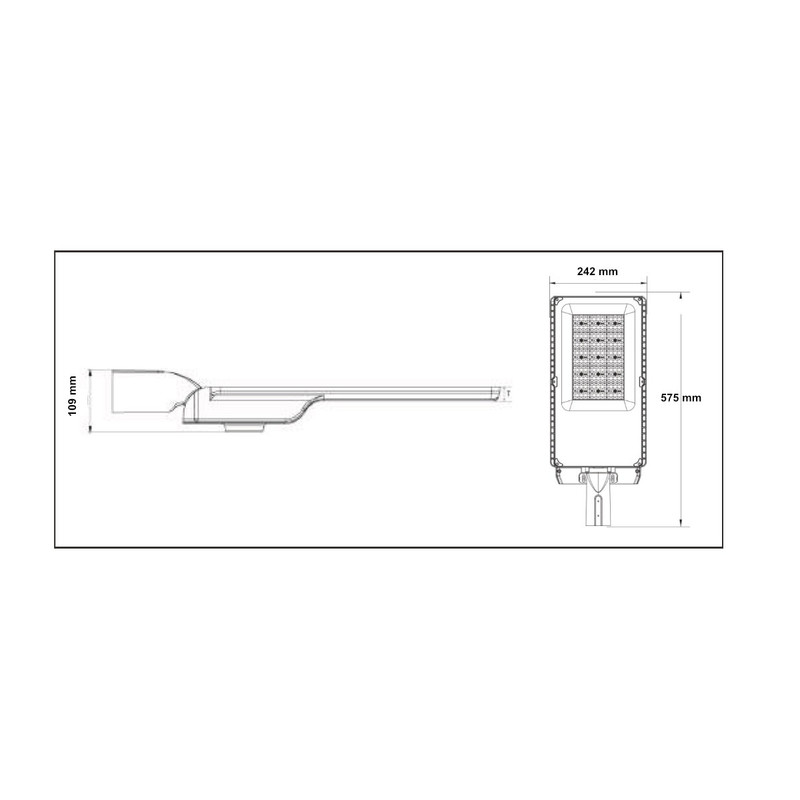

| Pole Mount Diameter | 60mm ø |
| Lifespan (L90B10) | > 50,000 hours |
