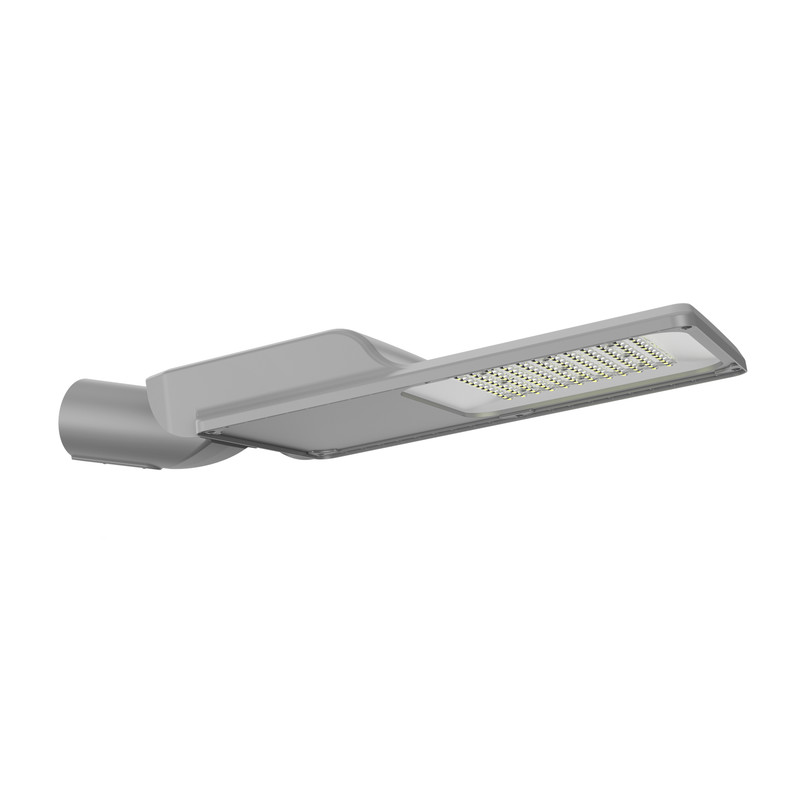

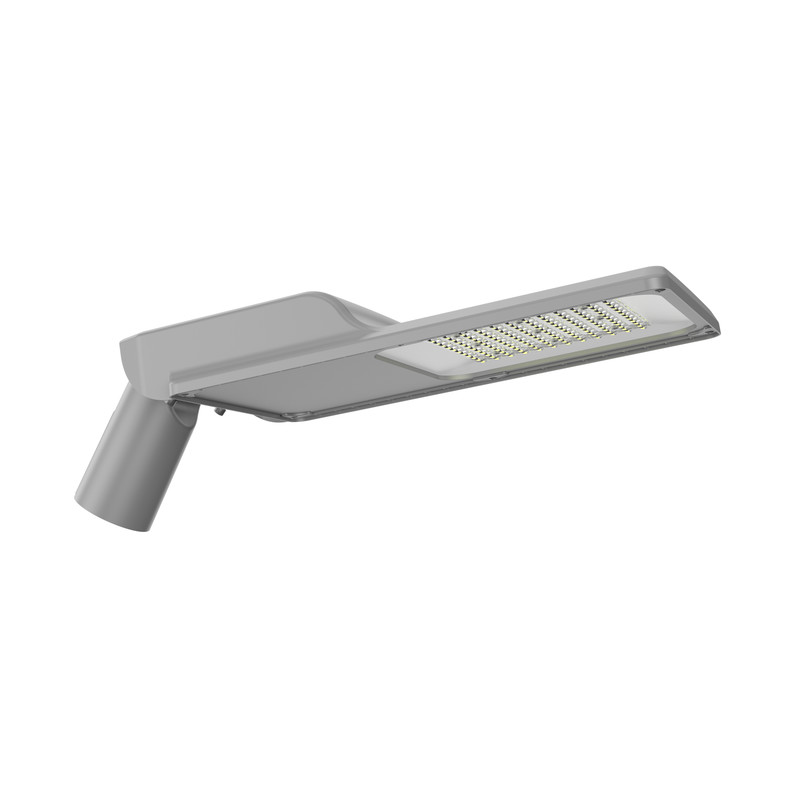

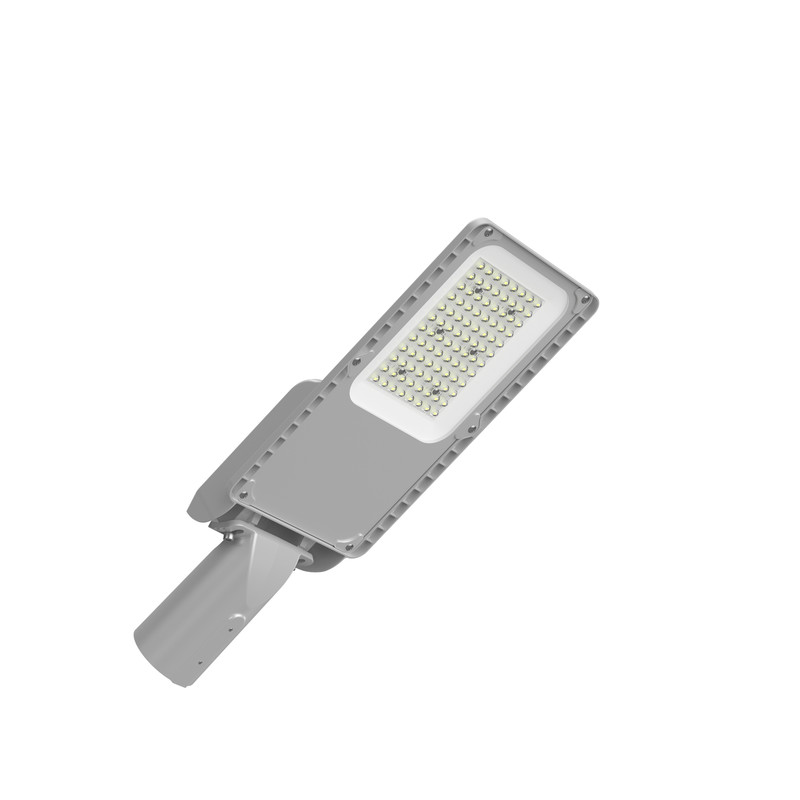

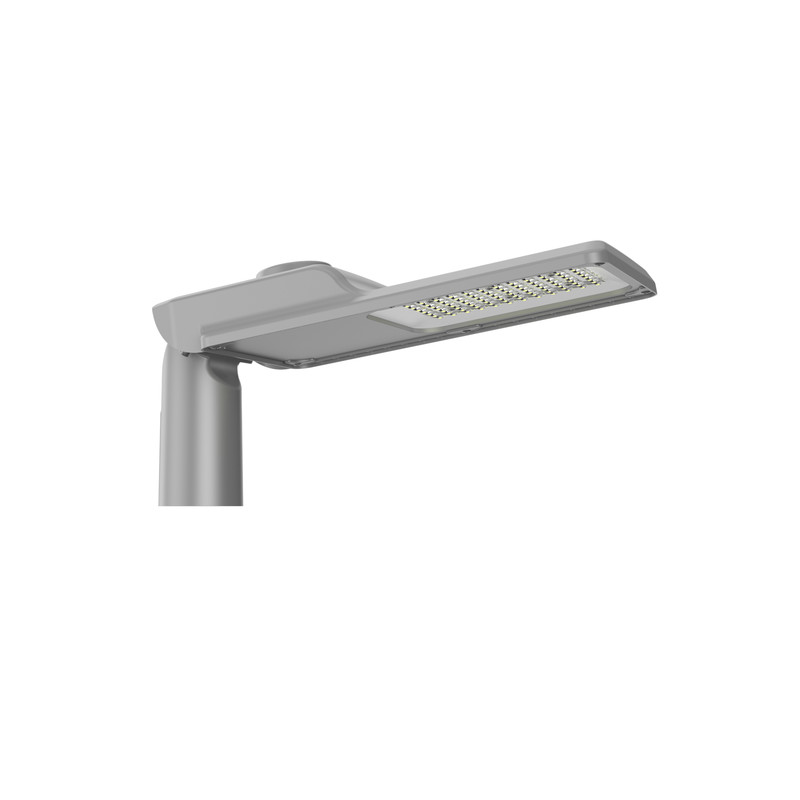

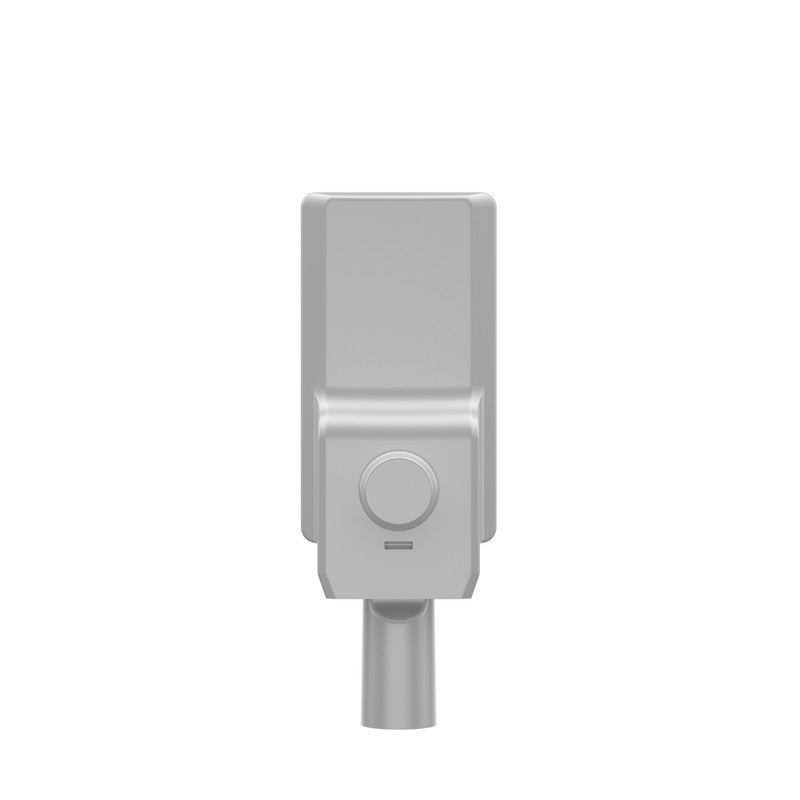

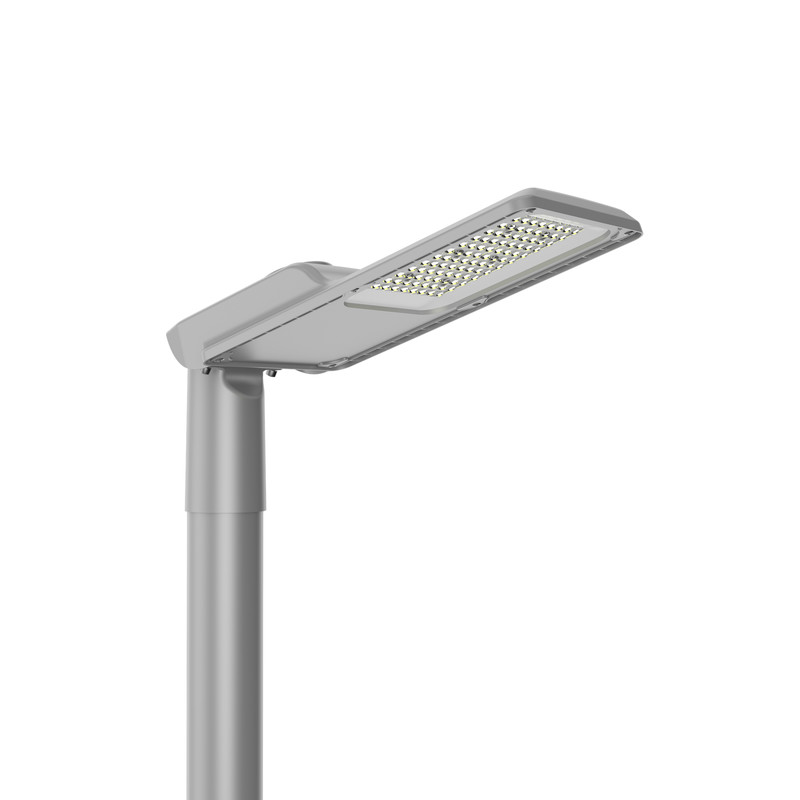

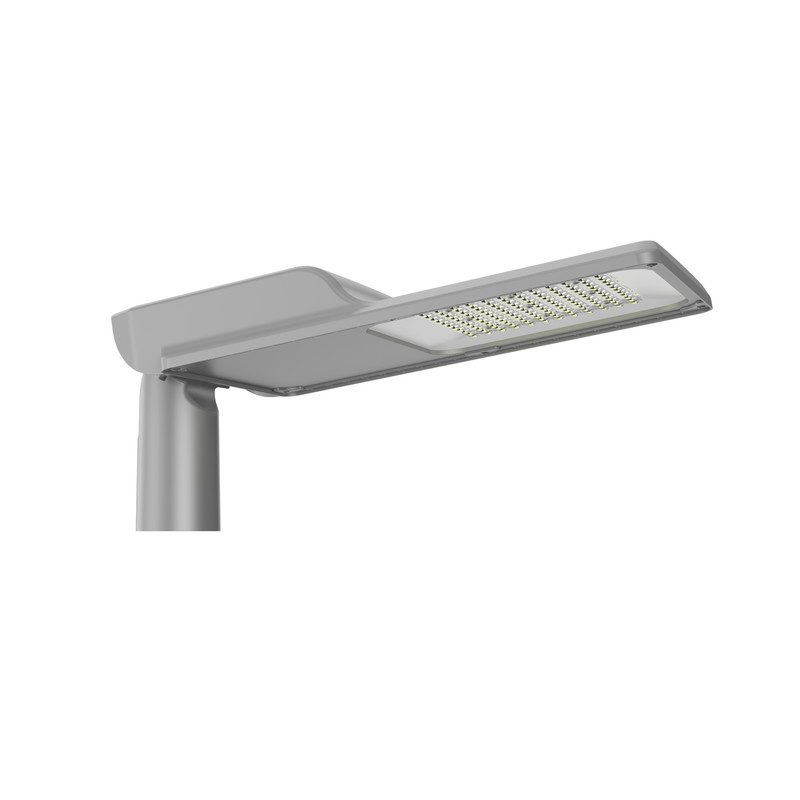

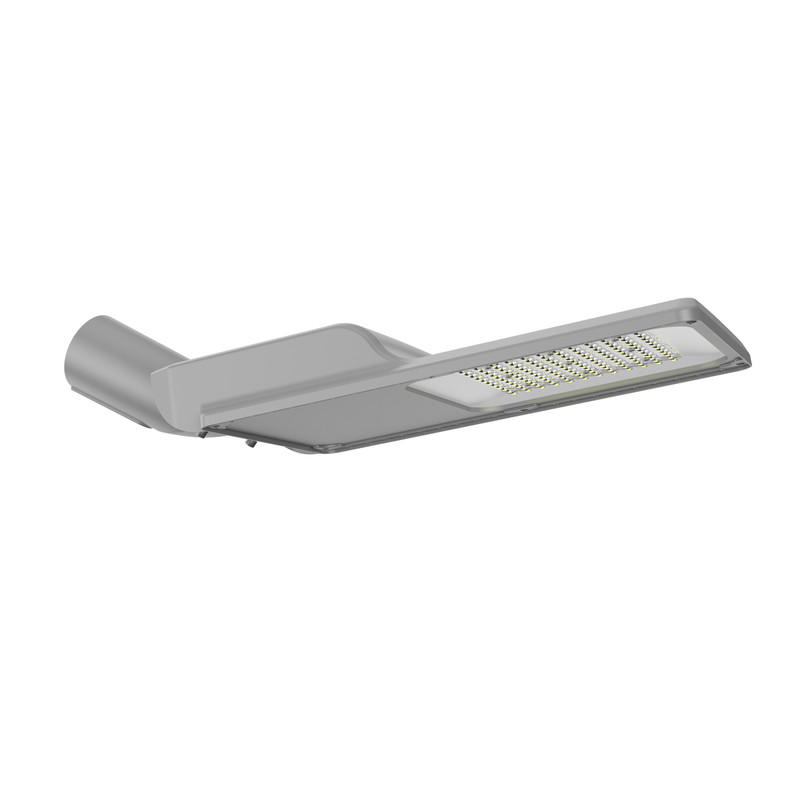

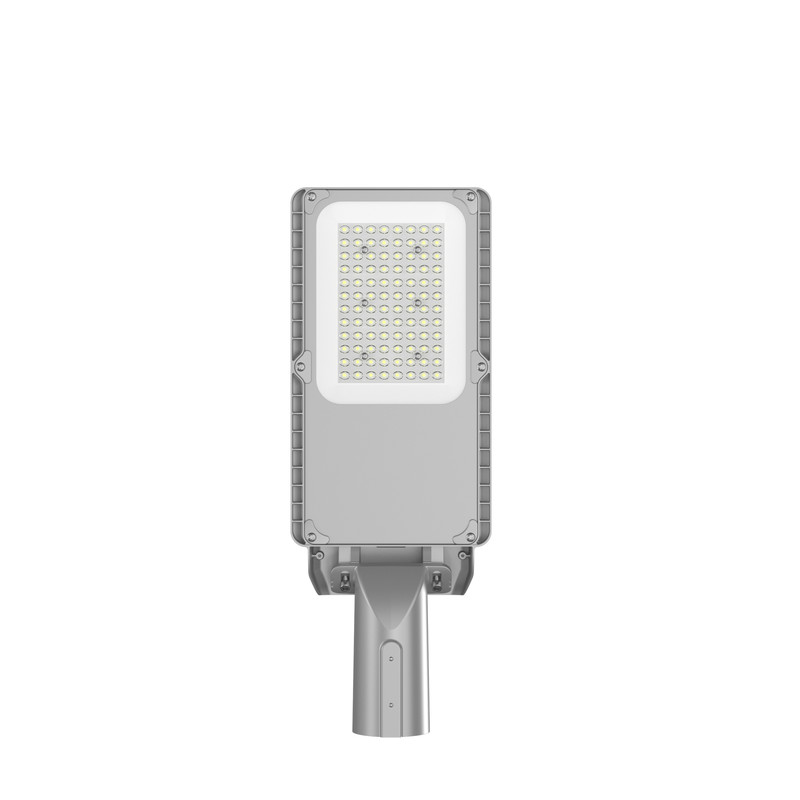

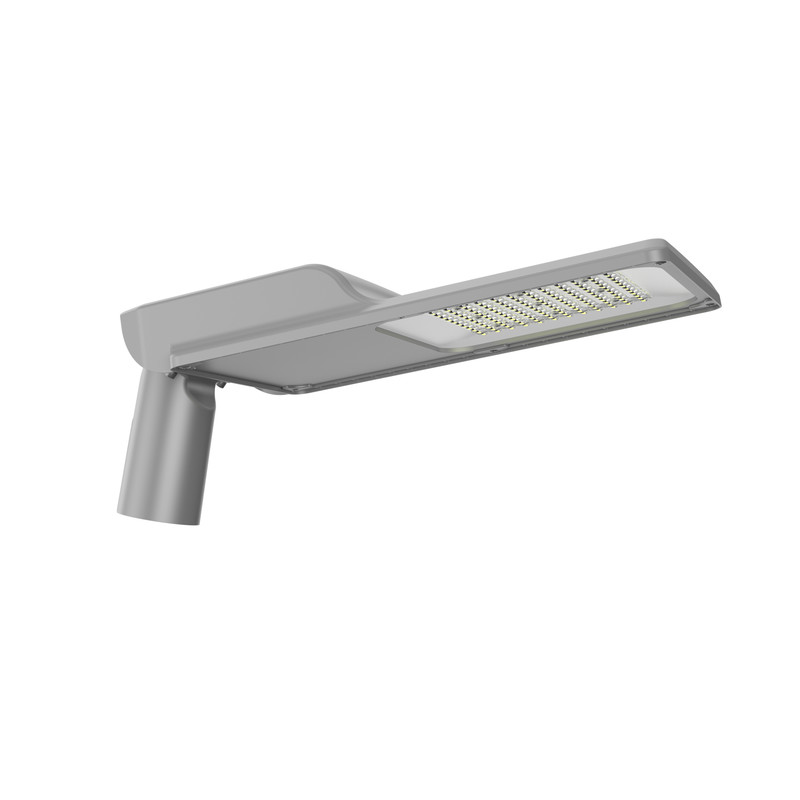

LED Street Lamp K5 – 50W to 20W 4-Step Switching
The LED Street Lamp K5 is the professional solution for demanding outdoor lighting. Thanks to state-of-the-art CREE 3030 LEDs and an impressive efficiency of 150 lumens per watt, this luminaire sets new standards in brightness and energy savings.
This high-performance pole-mounted light is the ideal choice for the safe illumination of public roads, large parking lots, and industrial areas. Thanks to its flexible power levels, it is equally perfect for precise lighting of sports facilities and commercial sites as well as for the insect-friendly light design of parks and walkways.
The Sosen High-End Power Supply
An LED system is only as reliable as its driver. The K5 features an industrial branded power supply from Sosen, ensuring maximum reliability:
- Sosen with 6KV surge protection: Effectively shields the LEDs from voltage peaks in the grid and indirect lightning strikes.
- Constant Current Technology: Guarantees flicker-free light and stable performance throughout the entire lifespan.
- Optimal Efficiency: The Sosen driver maintains the 150 lm/W efficacy at every power level.
Energy Consumption & Luminous Performance in Detail
Adapt the luminaire exactly to your needs. The wattage can be switched directly on the light, allowing for an immediate reduction in energy costs:
| Power Level | Consumption (per 1,000h) | Luminous Flux (Lumens) | Recommended Application |
|---|---|---|---|
| 20 Watts | 20 kWh | 3,000 lm | Parks & private paths |
| 30 Watts | 30 kWh | 4,500 lm | Residential streets |
| 40 Watts | 40 kWh | 6,000 lm | Parking lots & industry |
| 50 Watts | 50 kWh | 7,500 lm | Main roads & sports fields |
Technical Specifications at a Glance
| Power (adjustable) | 50W / 40W / 30W / 20W |
|---|---|
| Energy consumption | 20-50 kWh/1000h (depending on level) |
| Energy efficiency class | Class D |
| Luminous flux / Efficiency | Up to 7,500 lumens (150 Lm/W) |
| Color temperature | 2700K (Warm white / Insect-friendly) |
| Power supply / Driver | Sosen with 6KV surge protection |
| Light source | CREE 3030 High-Performance LEDs |
| Protection / Impact rating | IP66 / IK08 |
| Pole mount | 60mm ø |
| Lifespan (L90B10) | > 50,000 hours |
