Description
Straight to 230 V – no power supply, no transformer

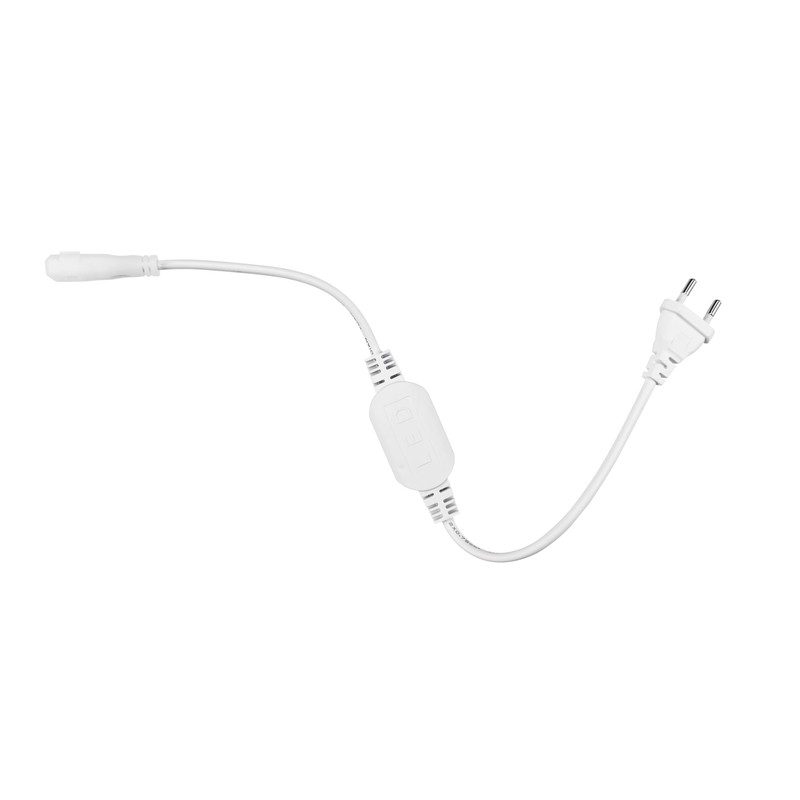

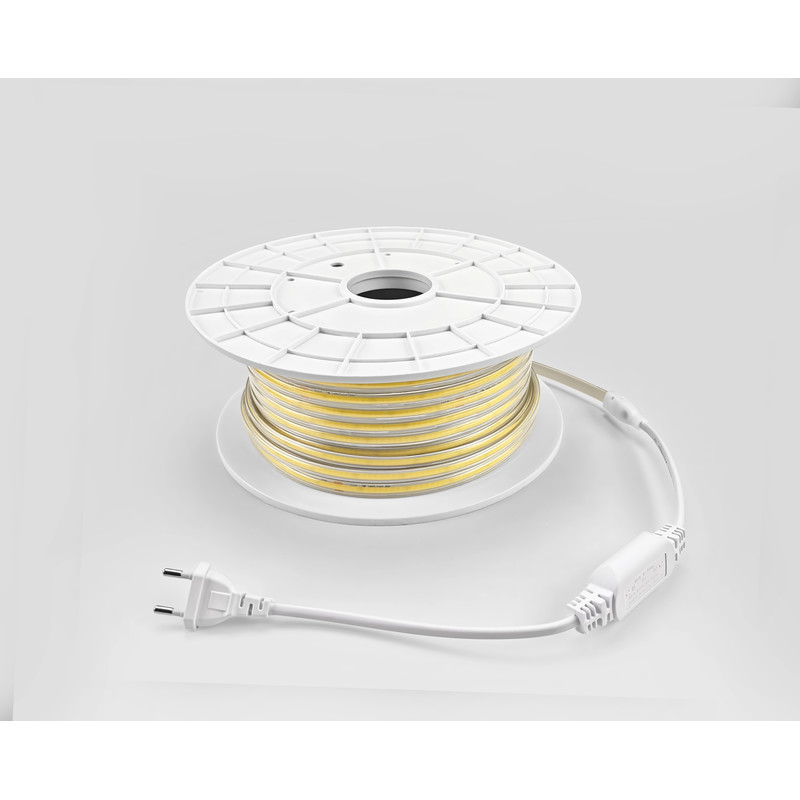

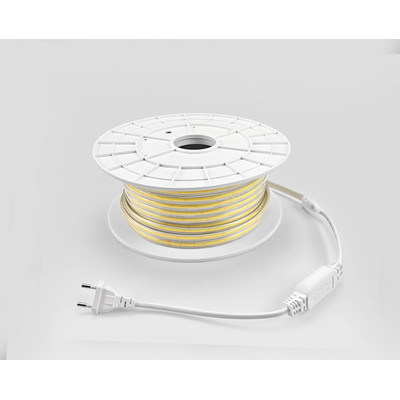

This LED strip connects directly to a 230 V socket via the supplied mains plug with integrated rectifier – no separate power supply is needed. This saves space, simplifies installation and makes the strip ideal for long runs of light where conventional low-voltage strips reach their voltage and length limits. With up to 50 m of continuous length per reel, it is especially suited to perimeter lighting, facades, stairwells, warehouses and commercial spaces. Tip: The 230 V direct-connection plug with integrated rectifier is also available separately as an option. This lets you divide the 50 m reel into several sections at the marked cut points and run each piece independently on 230 V with its own plug – ideal if you want to create several runs of light from a single reel.
Your benefits at a glance
No external power supply Direct 230 V connection via the supplied plug – no transformer or power supply required. |

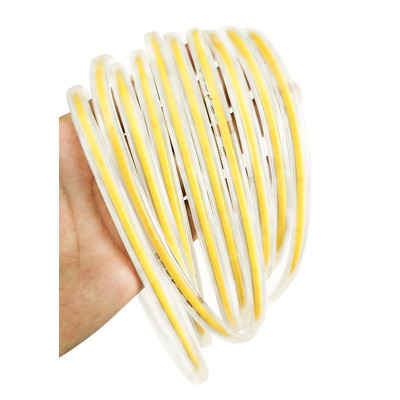

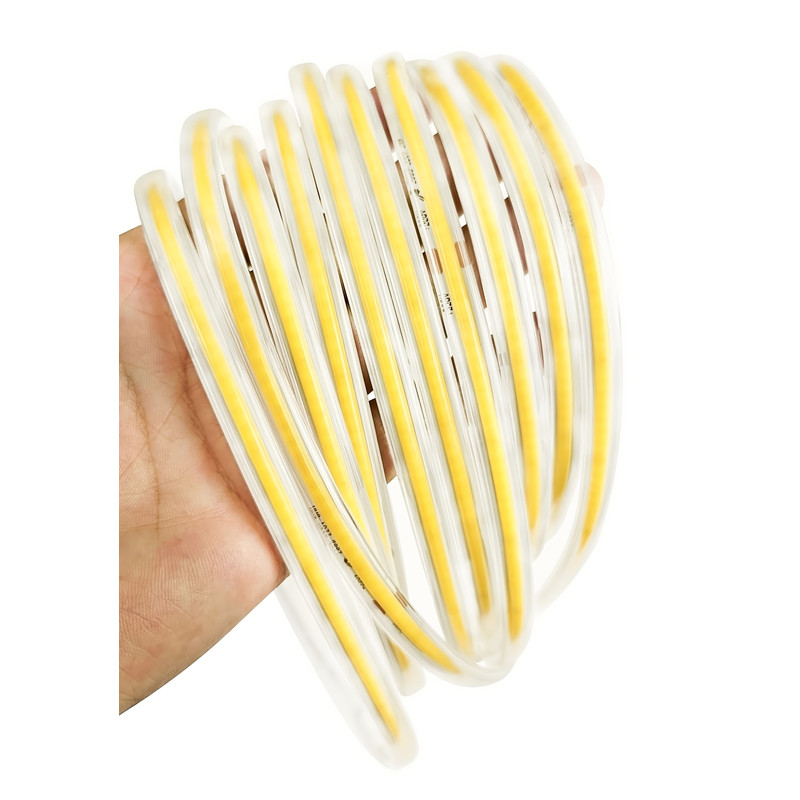

Dot-free COB light Continuous, even line of light with no visible individual LEDs and no shadow spots. |
IP65 – splash-proof Suitable for damp rooms, kitchens, bathrooms and protected outdoor areas. |
Light colour Daylight White 6000 K – Bright, clear light for garages, warehouses, stairwells and work areas. |
Cuttable & self-adhesive Cut to length every 50 cm at the marked points; back with 3M adhesive tape. |
CE & RoHS compliant Tested quality, free of hazardous substances, incl. mounting clips and screws. |
Light colour 6000 K Daylight White
This strip is also available in 3000 K Warm White and 4000 K Neutral White – selectable when ordering.
Technical Data
| Property | Value |
| Operating voltage | AC 230 V (direct connection) |
| Power | 10 W/m (approx. 500 W at 50 m) |
| Energy efficiency class | F (EU 2019/2015, 100 lm/W) |
| Light technology | COB (dot-free line of light) |
| Luminous flux | 1000 lm/m |
| Luminous efficacy | 100 lm/W |
| Light colour | 6000 K (Daylight White) |
| Colour rendering (CRI) | > 80 (Ra) |
| Protection rating | IP65 |

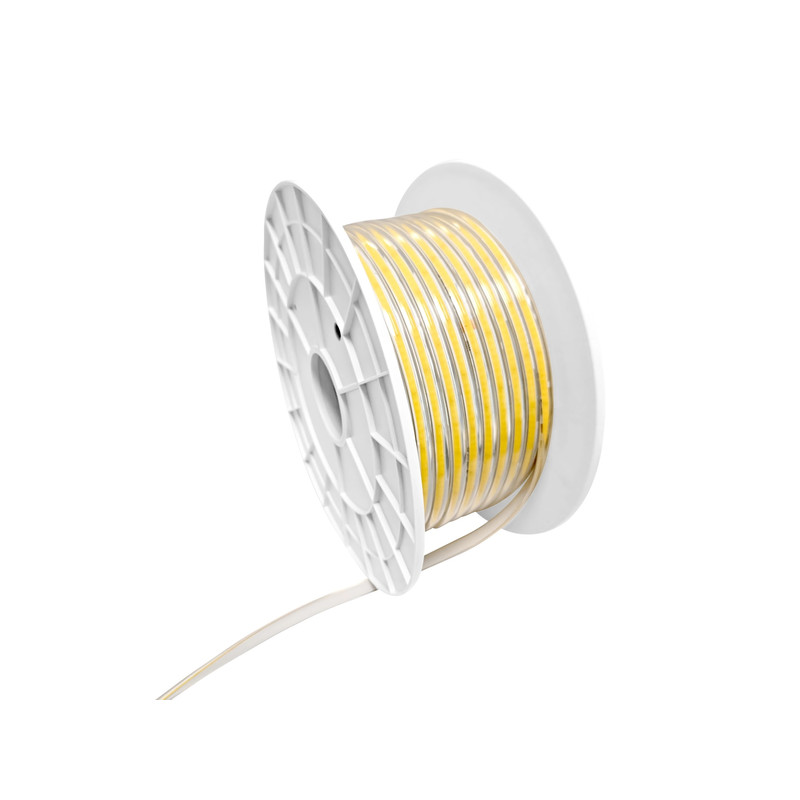

| Length / reel | 50 m |
| Width | 9.2 mm |
| Height | 4.2 mm |
| Beam angle | 180° |
| Cuttable every | 50 cm (at marked points) |
| Min. bending diameter | ≥ 2 cm |
| Operating temperature | -25 °C to +50 °C |
| Mounting | 3M adhesive tape + mounting clips (incl.) |
| Certification | CE, RoHS |
Applications
With daylight white light at 6000 K, this strip provides maximum brightness and contrast. Ideal for garages, warehouses, stairwells, utility rooms and work areas, as well as protected outdoor areas such as carports and facades.
Mounting & accessories
Mounting is simple: the back of the strip is fitted with 3M adhesive tape, and 50 mounting clips with screws are included. For a secure hold, position the clips roughly every metre. Matching accessories – from additional mounting clips and connector cables to plugs and end caps – are also available in our shop, so you can tailor your installation exactly to your needs.
Extending or cutting to length?
The 50 m strip can be shortened to the length you need every 50 cm at the marked cut points. Seal the open end with an end cap afterwards. The benefit: each section you cut off can be put back into operation with a separate 230 V connection plug – so a single reel gives you several independent runs of light. For cutting and connecting the strip properly, we recommend consulting an electrician or qualified specialist.
