230V Power Connection Cable with Rectifier for COB LED Strips

Item number: NTCOBEX1

Category: 230V LED Stripes

12,90 €

including 19% VAT., plus shipping

From	Price per unit
10	9,90 €

Available

Shipping time: 2 - 3 workdays

Description

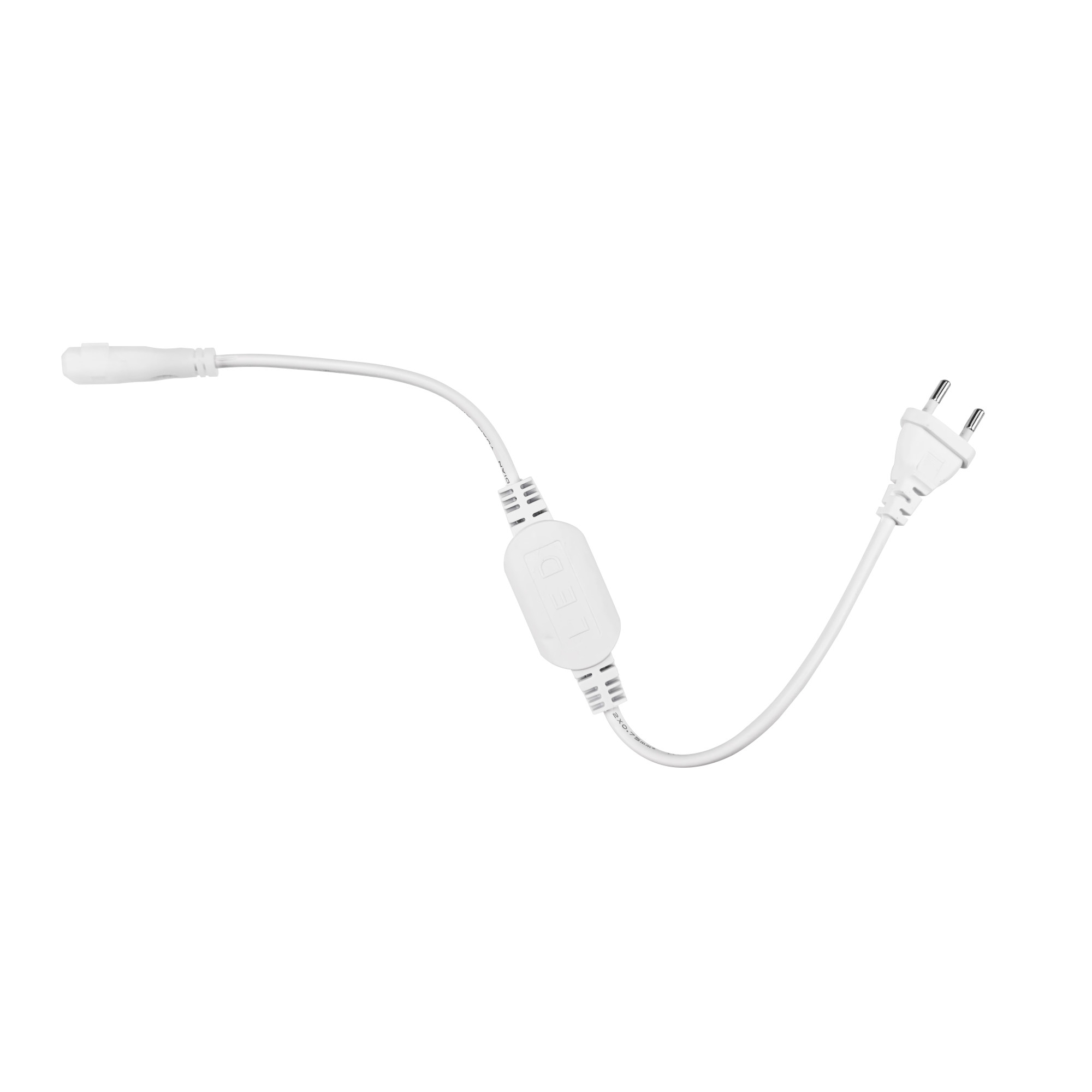

230V Power Cable with Rectifier for COB LED Strips

Euro plug · integrated rectifier · 2-pin connector · for cut sections of the 230V COB strip

230 V ACEuro plugIntegrated rectifierup to 50 m

This power cable turns one 50 m reel into several independent lines of light. Cut the high-voltage COB strip into sections at the marked points (every 50 cm) – each additional section you want to run gets its own power cable and plugs straight into a 230 V socket. No separate driver is needed, as the rectifier is already built into the cable.

Features

Flat 2-pin Euro plug for 230 V sockets
For strip lengths up to 50 m (max. 500 W at 10 W/m)
Integrated rectifier – no external driver required
2-pin connector for attaching to the strip end
Matches the 230V COB LED strip 50 m IP65 (9.2 mm wide)
Identical to the power cable supplied with the 50 m reel
End cap for the open strip end included

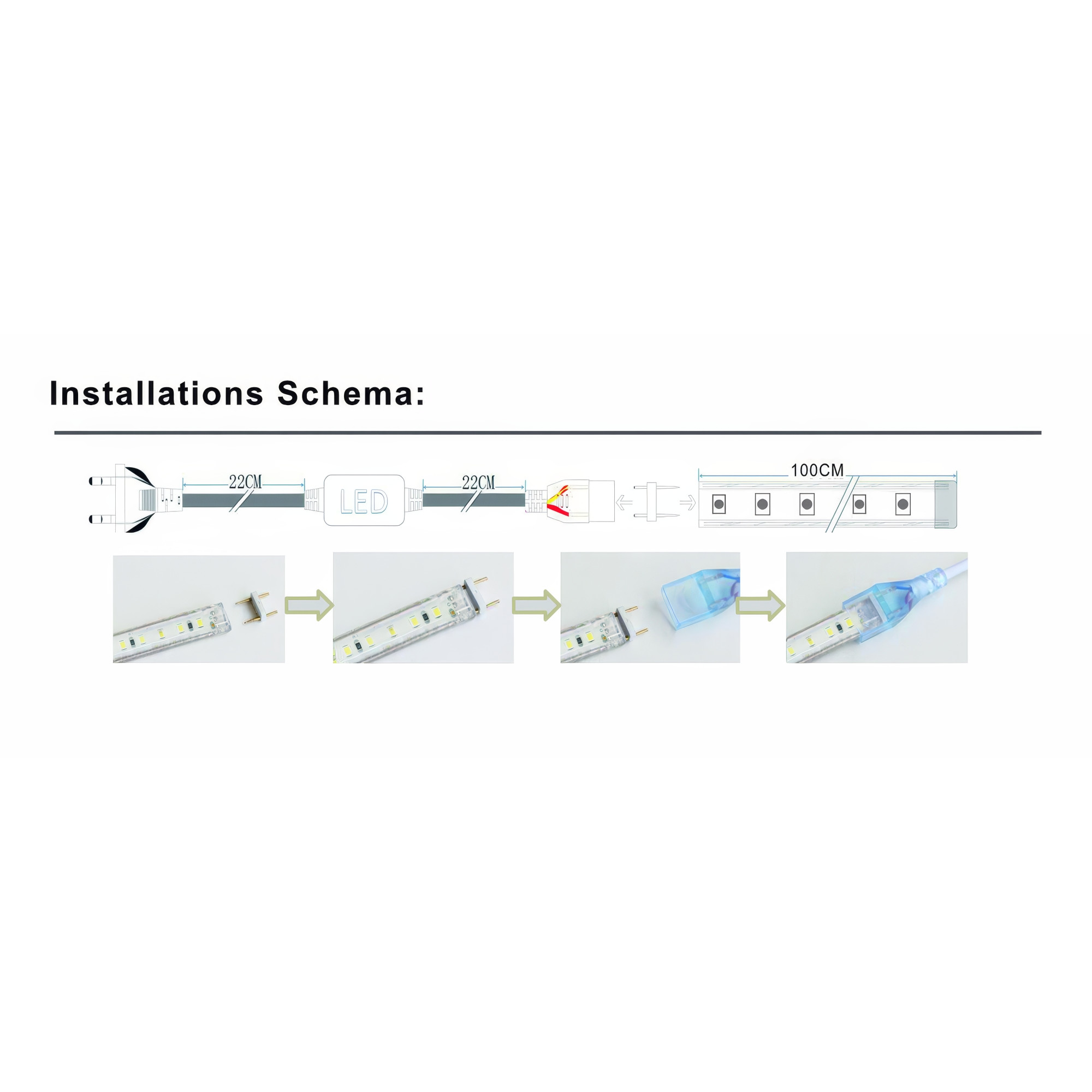

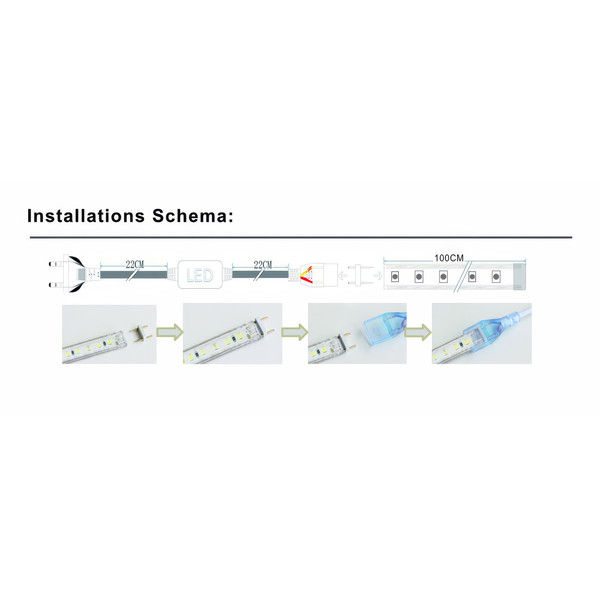

Connecting a section

Only cut the strip at the marked points, push the connector onto the open end and seal the other end with the included end cap. Plug the cable into the socket only once all connections are fully assembled. As the strip runs on mains voltage, we recommend having cutting and connecting carried out by a qualified electrician.

Technical data

Input voltage	AC 230 V
Mains plug	Euro plug, flat, 2-pin
Cable length	40 cm
Max. connectable length	50 m of strip (500 W at 10 W/m)
Rectifier	integrated
Strip-side connection	2-pin connector
Suitable for	230V COB LED strip, 9.2 mm wide

Scope of delivery

1× 230V power cable (40 cm) with Euro plug and integrated rectifier
1× end cap
