Description
Straight to 230 V – colour change without a power supply

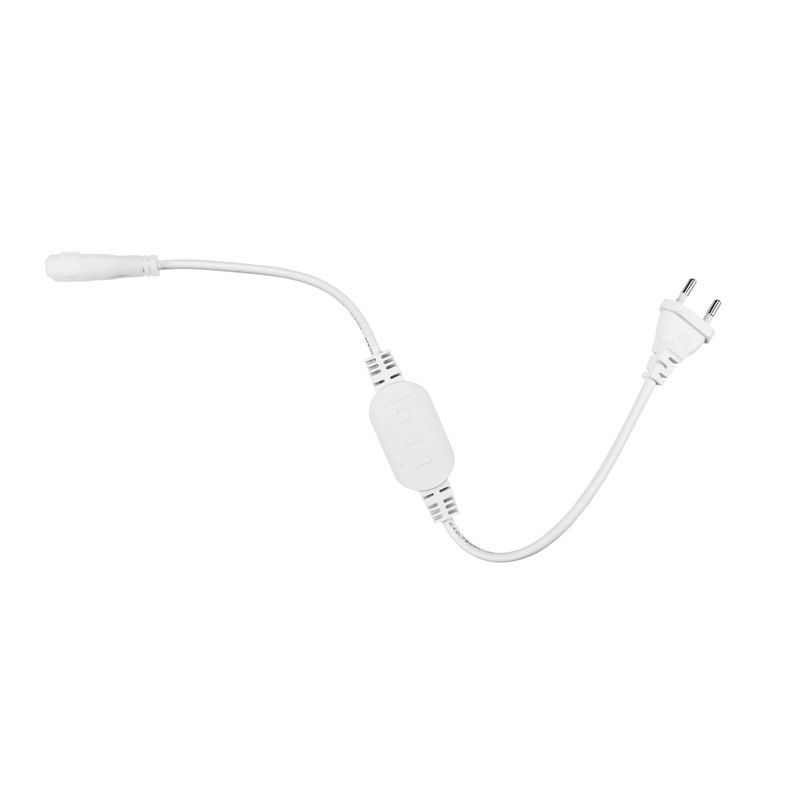

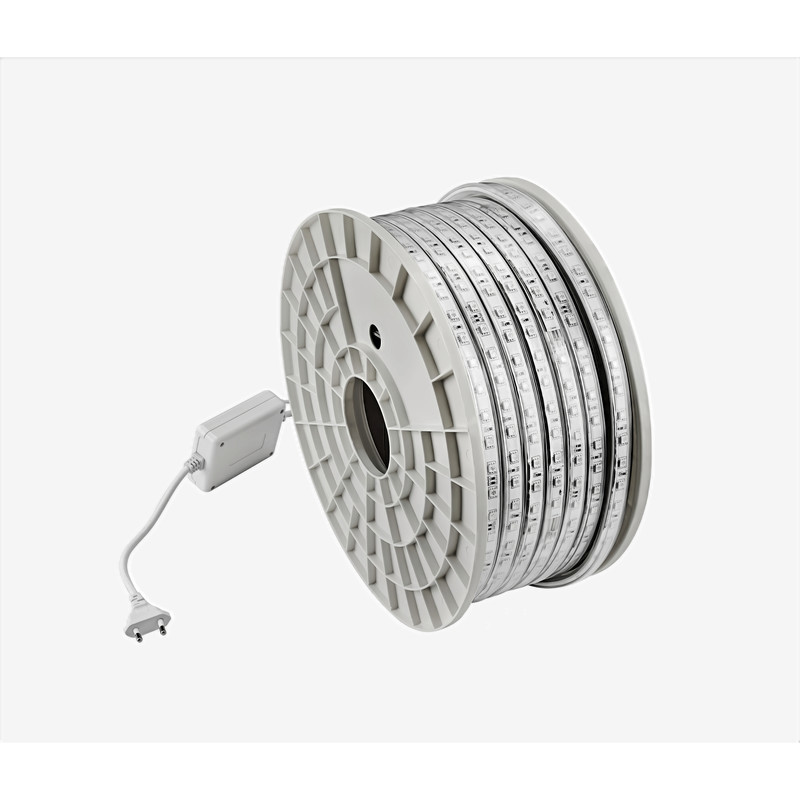

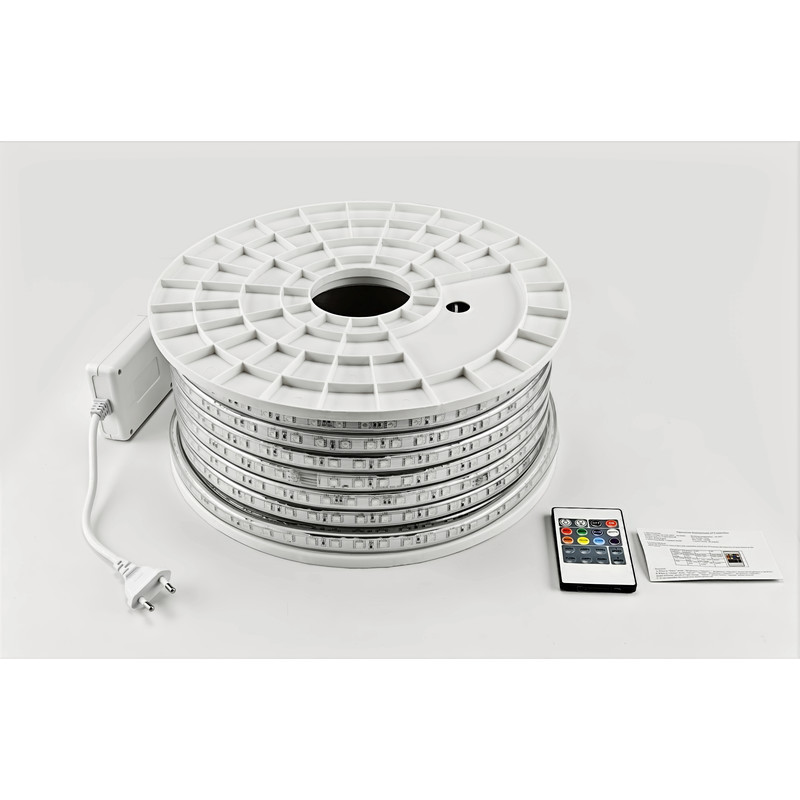

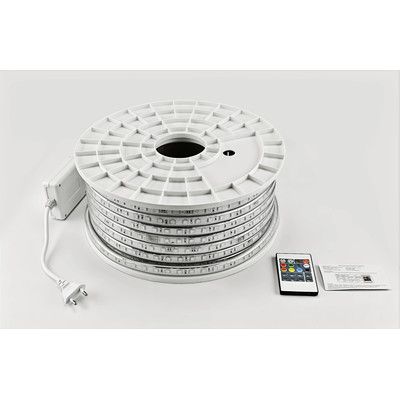

This RGB strip connects directly to a 230 V socket via the supplied mains plug – no separate power supply required. Using the included controller with infrared remote, you can adjust colours, brightness and dynamic lighting programmes conveniently from a distance. With up to 50 m of continuous length, it is ideal for long, colourful runs of light along ceilings, facades, counters and in event areas. Tip: The 230 V connection plug is also available separately, so the reel can be divided at the marked points and used in several sections.
Your benefits at a glance
No external power supply Direct 230 V connection via the supplied plug – no transformer or power supply required. |

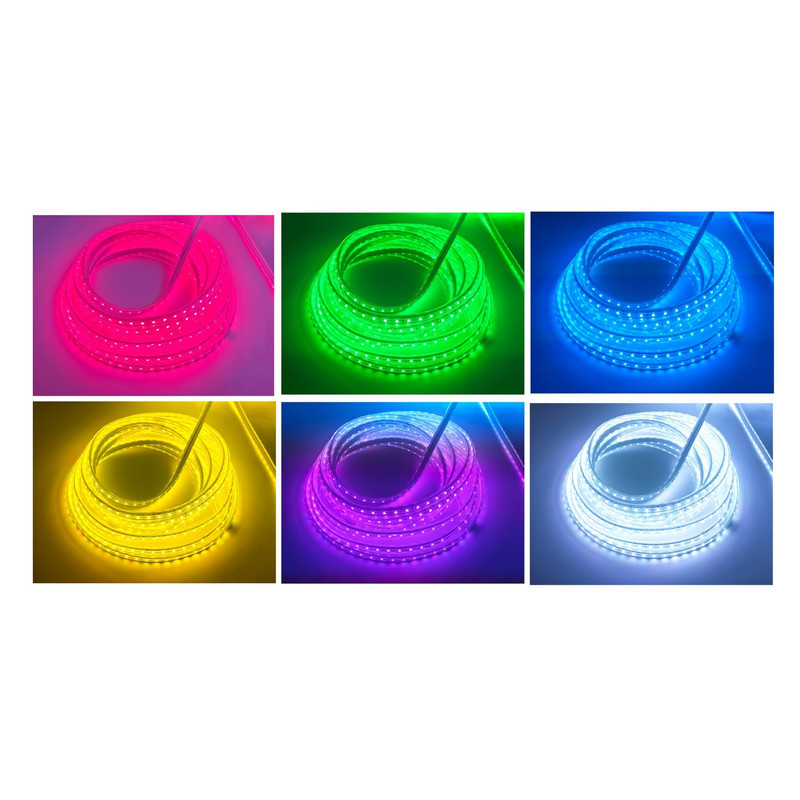

RGB colour change by remote Millions of colours, brightness control and dynamic programmes conveniently via the IR remote. |
IP65 – splash-proof Fully encapsulated PVC housing – suitable for damp rooms and protected outdoor areas. |
Powerful 5050 LEDs High-output SMD 5050 chips for rich, brilliant and clearly visible colours. |
Cuttable every 1 m Cut to length at the marked points; each section can be connected separately. |
CE & RoHS compliant Complete set incl. controller, remote, mounting clips, screws and end cap. |
Full colour control by remote

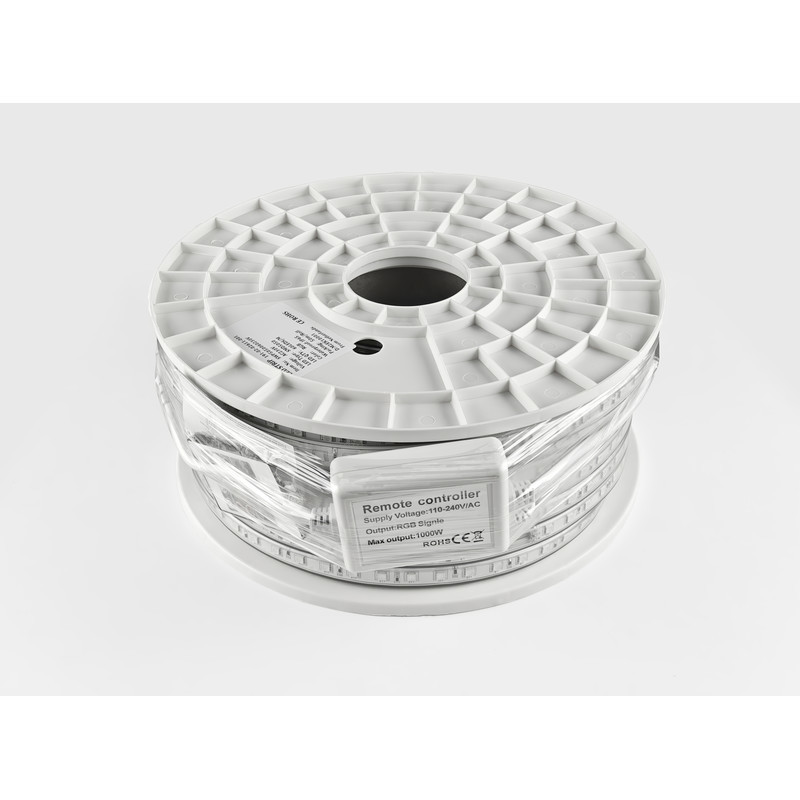

The included RGB controller with infrared remote offers a wide colour selection plus brightness control and dynamic effect modes such as colour change, fading and flashing. A single controller drives LED strips up to a total of 1000 W – roughly 80 m of strip – so several sections can be switched together and in sync.
Technical Data
| Property | Value |
| Operating voltage | AC 230 V (direct connection) |
| Power | ≤ 12 W/m (up to approx. 600 W at 50 m) |
| Energy efficiency class | F (EU 2019/2015, 100 lm/W) |
| Luminous efficacy | 100 lm/W |
| Luminous flux | up to 1200 lm/m |
| LED type | SMD 5050 |
| LED density | 60 LEDs/m |
| LED chip power | 0.2 W/pc |
| Light colour | RGB (multicolour, colour change) |
| Wavelengths | Red 620–625 nm · Green 520–525 nm · Blue 465–467.5 nm |
| Control | RGB controller with IR remote (incl.) |
| Protection rating | IP65 |
| Length / reel | 50 m |
| Dimensions (W × H) | 16 × 7.5 mm |
| Cuttable every | 1 m (at marked points) |
| Min. bending diameter | ≥ 6 cm |
| Operating temperature | -25 °C to +50 °C |
| Housing material | PVC (transparent) |
| Mounting | mounting clips + screws (incl.) |
| Certification | CE, RoHS |
Mounting & accessories
Mounting is straightforward using the supplied mounting clips and screws. Matching accessories – from additional clips and staples to mid-connectors, plugs, end caps and controllers – are also available in our shop.
Extending or cutting to length?
The 50 m strip can be shortened every 1 m at the marked cut points. Seal the open end with an end cap; sections you cut off can be put back into operation using the matching RGB connectors or a separate connection plug. For cutting and connecting the strip properly, we recommend consulting an electrician or qualified specialist.
Applications
RGB strips are the first choice for colourful effect and mood lighting: indirect ceiling and wall lighting with colour change, bars, restaurants, clubs and event spaces, shop windows and exhibition stands, gaming and party rooms, plus protected outdoor areas such as facades, terraces and garden paths.
