LED Back-Lit Panel 30x120 cm 5CCT UGR22 28W 140lm/W

5 CCT backlit LED panel 1200x300 mm 28W CRI >80 140 lm/W UGR <22

Description

LED Back-Lit Panel 30x120 cm UGR<22 – 5 Colour Temperatures Selectable, 140 lm/W

The LED Back-Lit Panel 30x120 cm with 5CCT Colour Switch lets you choose between 3000 K · 3500 K · 4000 K · 5000 K · 6000 K directly via a switch on the driver. With 28 W power, 3,920 lm luminous flux and an efficacy of 140 lm/W, this panel sets new standards in energy efficiency and flexibility.

5 CCT

via switch

28 W

Power

3,920 lm

Luminous Flux

140 lm/W

Efficacy

UGR<22

120° wide

Class D

Energy Efficiency

One Panel – 5 Colour Temperatures – Maximum Flexibility

With the 5CCT Colour Switch, you select the right light colour directly on site: 3000 K warm white for residential ambience, 3500 K soft white, 4000 K neutral white for working areas, 5000 K daylight white or 6000 K cool white for concentration-intensive tasks. No exchange required – one panel replaces 5 stock variants. Long-format panel for corridors, hallways and narrow areas.

Colour Switch

Select 5 Colour Temperatures via Switch on the Driver

The LED driver features a switch for selecting between 5 colour temperatures – no tools, no disassembly required. The selected colour becomes active immediately after switching and powering on.

Colour Temperature	Luminous Flux	Efficacy	Character
3000 K Warm White	3,920 lm	140 lm/W	Cosy, hotel/residential
3500 K Soft White	3,920 lm	140 lm/W	Comfortable, hospitality
4000 K Neutral White	3,920 lm	140 lm/W	Universal, office/practice
5000 K Daylight White	3,920 lm	140 lm/W	Activating, school/lab
6000 K Cool White	3,920 lm	140 lm/W	Focused, industry

Adjustable Power

Optional with Higher-Power Driver – Up to 36 W Possible

The panel can be supplied with different constant-current drivers on request – allowing the power output to be adapted to individual brightness requirements without changing the panel itself.

Driver Current	Power	Recommendation
700 mA	28 W (Standard)	General lighting, offices, residential
800 mA	32 W	More brightness for larger rooms
900 mA	36 W	Maximum light output for industry and workshops

Different driver variants are available on request – please contact us.

⚠ Important: The package always includes the 700 mA / 28 W driver as standard – it cannot be swapped for a different driver. If you wish to operate the panel at 32 W or 36 W, please order the matching higher-power driver additionally.

Your Benefits

Why This 5CCT LED Panel Is the Right Choice

5 Colour Temperatures in One Panel

One model replaces 5 different stock variants – saves storage space, simplifies logistics and allows late colour temperature decisions directly on site.

140 lm/W Top Efficacy

With 3,920 lm from just 28 W, this panel ranks among the most efficient on the market – significantly better than typical 100–120 lm/W LED panels.

UGR<22 120° wide

Standard PS diffuser with uniform 120° distribution – ideal for general lighting.

High-Quality SMD 2835 LEDs

Brand-quality LED chips with uniform light distribution across the entire diffuser surface – up to 50,000 hours lifespan at full light output.

Flicker-Free & Instant Start

Constant-current driver with Power Factor ≥ 0.95 delivers instant light without warm-up, without flicker and without humming – even during video recording.

Optional Dimmable

Optionally available with 1–10 V, Triac (phase-cut) or DALI dimming driver – compatible with most modern lighting control systems.

Applications

Universal Use Thanks to Selectable Colour Temperature

The 5 colour temperatures allow the same panel to be deployed across the most varied environments – from hotel hallways to industrial halls. The UGR<22 variant is the universal choice for general lighting tasks.

Office spaces, conference rooms and open-plan offices
Hotels, reception areas and restaurants
Schools, universities and educational institutions
Hospitals, medical practices and care facilities
Retail spaces, showrooms and exhibition areas
Residential buildings, public facilities and government offices

Specifications

Specifications of the 5CCT LED Panel

Property	Value
Product type	LED Back-Lit Panel with 5CCT Colour Switch

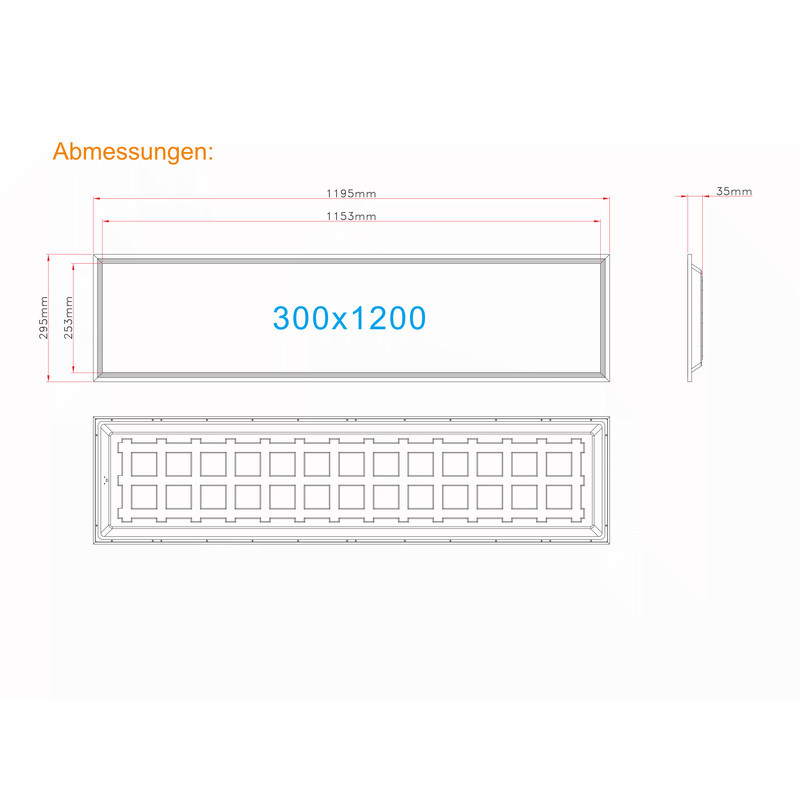

Dimensions	1195 × 295 × 35 mm
Cut-out size	1175 × 275 mm
Weight	2.1 kg
Power	28 W
Luminous flux	3,920 lm (all colour temperatures)
Luminous efficacy	140 lm/W (all colour temperatures)
Colour temperature	3000 K · 3500 K · 4000 K · 5000 K · 6000 K (selectable via switch)
UGR rating	UGR<22
Beam angle	120°
Colour rendering	CRI / Ra ≥ 80
Protection rating	IP41 · Protection Class III
LED type	SMD 2835 · 54×2 = 108 pcs
Driver	Constant-current driver 700 mA, PF ≥ 0.95
Dimming (optional)	1–10 V · Triac · DALI (on request)
Operating voltage	AC 200–240 V, 50/60 Hz
Operating temperature	-20 °C to +50 °C
Lifespan	up to 50,000 hours
Energy Efficiency Class	D (EU 2019/2020)
Certificates	CE · RoHS

Installation

Four Flexible Installation Methods

The panel can be installed flexibly depending on the ceiling situation – from inserting into grid ceilings to pendant mounting as a designer luminaire.

Recessed: insertion into common grid ceilings (Odenwald system)
Surface-mount frame: with optional surface frame for solid ceilings
Suspension cable: suspended as a pendant lamp
Spring clips: tool-free recessed mounting in plasterboard ceilings

Surface frame, suspension cable and spring clips are available as optional accessories.

FAQ

Frequently Asked Questions About the 5CCT LED Panel

How does the 5CCT colour switch function work?

The LED driver features a small switch with 5 positions for the colour temperatures 3000 K, 3500 K, 4000 K, 5000 K and 6000 K. Switch between colour temperatures directly before installation or later as needed – the panel itself remains identical.

What does UGR<22 mean and when is each variant appropriate?

UGR<22 is the universal choice for general lighting in storage areas, corridors, retail spaces, hotels and similar applications. For VDU workstations per DIN EN 12464-1 (office, school, conference), the UGR<19 variant with micro-prism diffuser is the right choice.

Is the panel dimmable?

By default, the panel is not dimmable. We optionally offer dimming drivers in three variants: 1–10 V, Triac (phase-cut) and DALI – please order separately.

How is the high efficacy of 140 lm/W achieved?

The combination of premium SMD 2835 LEDs, a special optical diffuser with over 90% light transmission and an efficient constant-current driver produces this top efficacy. All 5 colour temperatures reach the full 140 lm/W with an identical luminous flux of 3,920 lm.

Package Contents

1× LED Back-Lit Panel 30x120 cm UGR<22 with 5CCT Colour Switch · 1× 700mA/28W LED driver with switch for 5 colour temperatures · Installation guide
Note: Surface frame, suspension cable, spring clips and dimming drivers (1–10 V / Triac / DALI) are available as optional accessories.
