Description

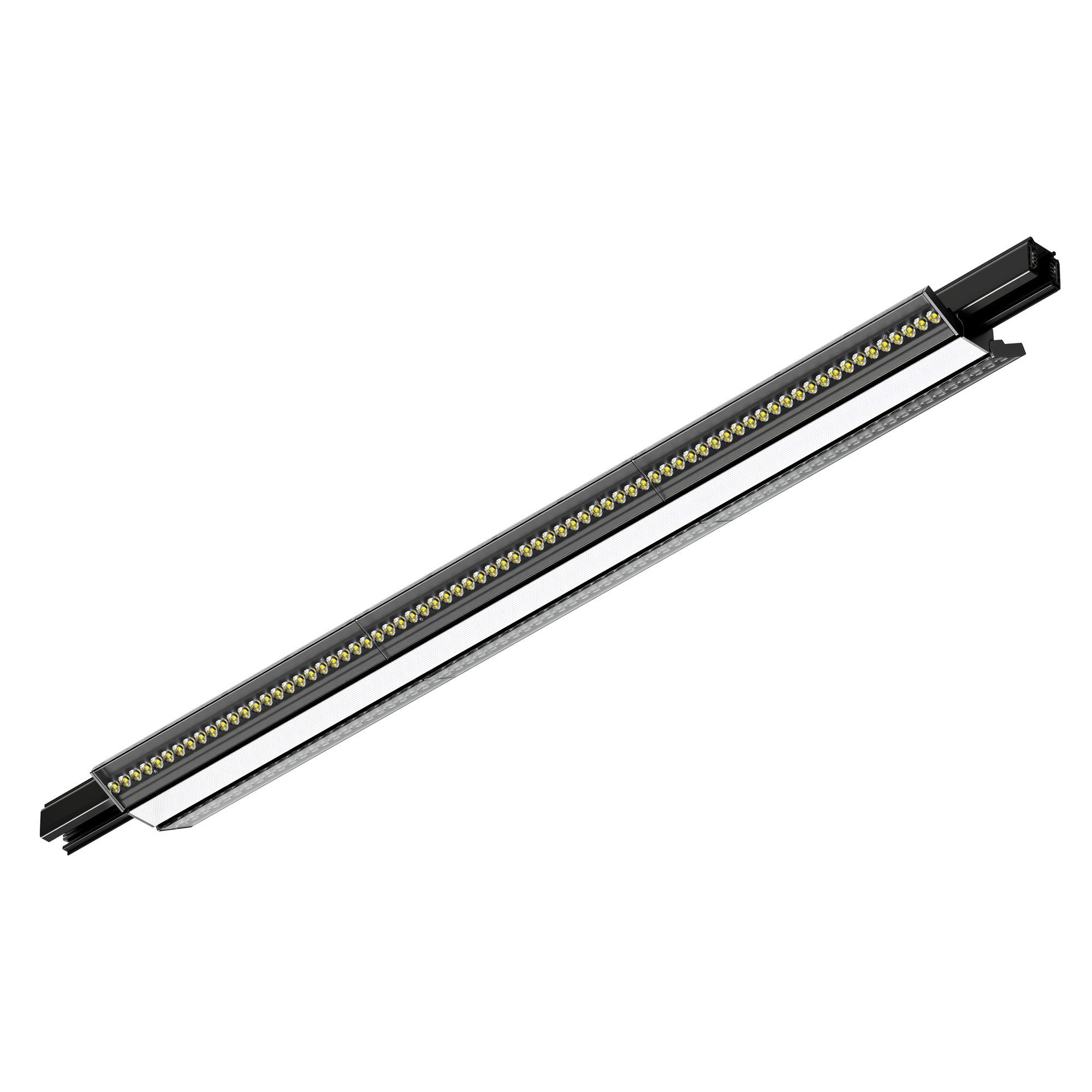

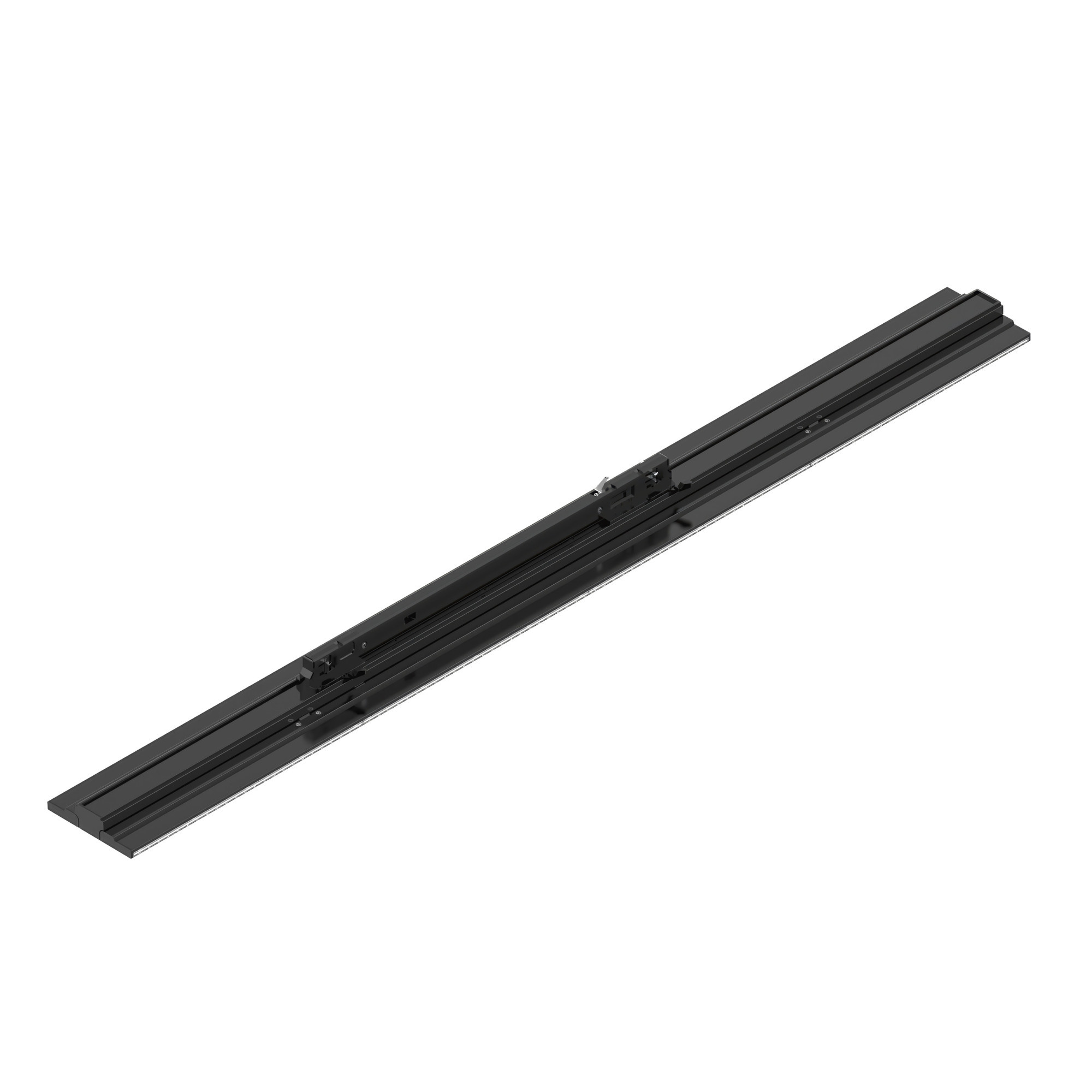

LED VU3 Linear Luminaire – Central Light + Two Tiltable Spots
600 mm · black · 5000 K daylight white · CRI > 80
This LED VU3 linear luminaire combines three lighting tools in one housing: a wide central light for uniform ambient illumination and two individually tiltable spots for targeted accents. General and accent lighting are covered by a single luminaire. For controllable lighting this linear luminaire is optionally available as a DALI-2 version. It can then be dimmed steplessly and integrated conveniently into modern light-management and building-control systems.
Key benefits at a glance
100° central light Wide beam for even, low-glare base brightness. | Two tiltable spots Individually tiltable (0–30°), 30° × 90° optic for accents. |
Switchable power 48 W / 40 W / 34 W / 27 W selectable at the switch. | High efficiency 145 lm/W – up to 6,960 lm at 48 W. |
Flicker-free PstLM < 1 and SVM < 0.1 for comfortable vision. | Long service life L80 at 100,000 h for long maintenance intervals. |
Features in detail
- Combined optic: 100° central light + two tiltable 30° × 90° spots
- Colour rendering CRI > 80 for natural, rich colours
- Switchable power 48 W / 40 W / 34 W / 27 W without tools
- Optionally DALI-2 dimmable on request
- For 3-phase track – compatible with common track systems
- Rugged aluminium housing in black, PMMA lens, IK04
Central light + two tiltable spots
The central light emits at a wide 100° beam and lays down an even base brightness across the room. The two outer spots use a 30° × 90° optic and tilt steplessly between 0° and 30°, so you can place accents exactly where needed without moving the luminaire.
The tiltable spots are excellent for shelf lighting: they aim the light straight at shelves and aisles, provide evenly lit displays and keep products clearly visible even deep inside the aisles.
Efficient & bright
With CRI > 80 this version offers good, natural colour rendering at maximum efficiency. The high efficacy of 145 lm/W noticeably lowers energy costs – ideal for large-area lighting in retail, office, storage and workshop settings where brightness and efficiency come first.
Long service life – L80 at 100,000 hours
The L80 / 100,000 h value describes flux stability: even after 100,000 operating hours the LEDs deliver at least 80 % of their initial brightness. Instead of a sudden failure, brightness drops only gradually – making maintenance easy to plan.
High-quality LED chips by Sanan
This luminaire uses high-quality LED chips from Sanan. Founded in 2000 and headquartered in Xiamen, China, Sanan Optoelectronics is China's largest LED chip producer and ranks among the world's leading LED chip manufacturers. Its chips are known for high efficacy, excellent colour consistency and reliable long-term stability – qualities relied upon by many renowned lighting brands worldwide. This forms the basis for the high efficiency and long service life of the VU3 luminaire.
Mounting & track compatibility

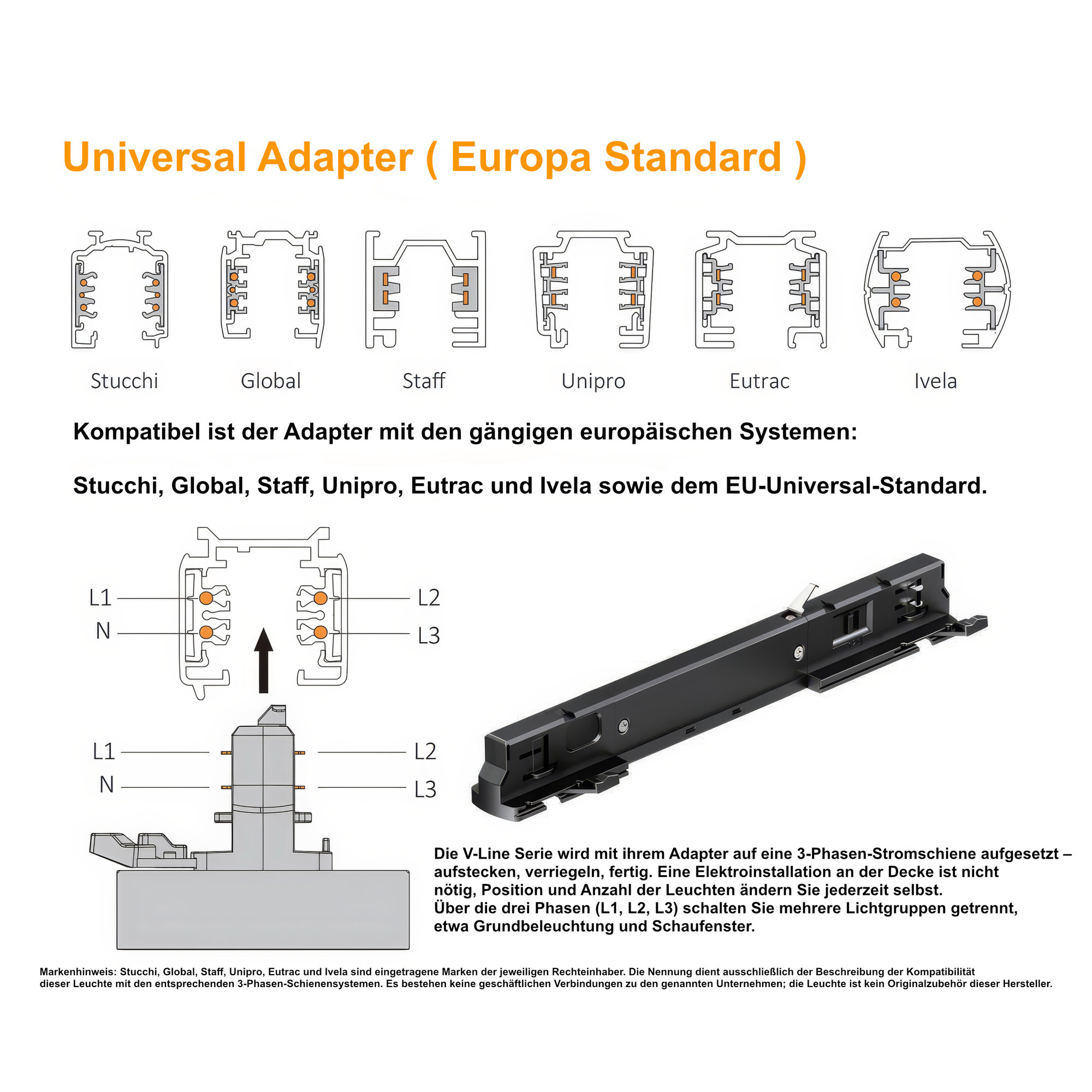

The LED VU3 linear luminaire is designed for the 3-phase track system and clicks onto the busbar via an adapter. Thanks to the three phases, luminaires can run on separate circuits and be switched independently. It is compatible with the common track systems Stucchi, Global, Staff, Unipro, Eutrac, Ivela and the EU universal standard. Up to 16 luminaires can be connected per circuit (< 800 W). Safety Class I ensures a secure protective-earth connection.
Colour temperature 5000 K – daylight white
Daylight white light is crisp and activating – ideal for technical work, assembly, labs and visually demanding areas.
Black housing: luminous flux & look
Why does the black-housing version deliver slightly fewer lumens? The reason lies in the reflection inside the luminaire: bright, white surfaces reflect the generated light very efficiently and direct almost all of it outward. Dark or black surfaces, by contrast, absorb part of the light that hits the internal surfaces – this portion does not leave the luminaire and is lost as heat. That is why the luminous flux, and therefore the efficacy in lm/W, is somewhat lower with a black housing than with a white one. In return, the black version appears less glaring and more discreet – a deliberately chosen advantage in boutiques, shops and premium settings where an understated, elegant look is desired.
Technical data
| Power (switchable) | 48 W / 40 W / 34 W / 27 W (by switch) |
| Luminous flux | 48 W = 6,960 lm / 40 W = 5,800 lm / 34 W = 4,930 lm / 27 W = 3,915 lm |
| Efficacy | 145 lm/W |
| Colour temperature | 5000 K (daylight white) |
| Colour rendering | CRI > 80 |
| Beam angle | 30° × 90° (tiltable spots) · 100° (central light); optionally 30° × 30° tiltable (0–30°) · 100° central light on request |
| Side spot tilt | 0° to 30° |
| Mounting | 3-phase track (via adapter) |
| Track compatibility | Stucchi, Global, Staff, Unipro, Eutrac, Ivela, EU universal standard |
| Voltage | AC 200–240 V, 50/60 Hz |
| Dimmable | No, optionally DALI-2 dimmable on request |
| Power factor | > 0.98 |
| Flicker | PstLM < 1, SVM < 0.1 (flicker-free) |
| Colour consistency | SDCM < 5 |
| LED chip | high-quality brand LEDs by Sanan |
| Service life | L80 at 100,000 h |
| Protection rating | IP20 |
| Impact resistance | IK04 |
| Protection class | I (with protective earth) |
| Material | aluminium + PMMA lens |
| Housing colour | Black (matt) |
| Dimensions (L×W×H) | 588 × 112 × 58 mm |
| Ambient temperature | −20 °C to +40 °C |
| Energy efficiency class | D (EU scale A–G, EU 2019/2015) |
Applications
At 600 mm this luminaire is ideal for compact areas such as checkout zones, back rooms and short aisle sections. Daylight white light is crisp and activating – ideal for technical work, assembly, labs and visually demanding areas.
Scope of delivery
- 1× LED VU3 linear luminaire
- Mounting and connection accessories
- Installation instructions
