Description
3CCT and multi-power – maximum planning flexibility

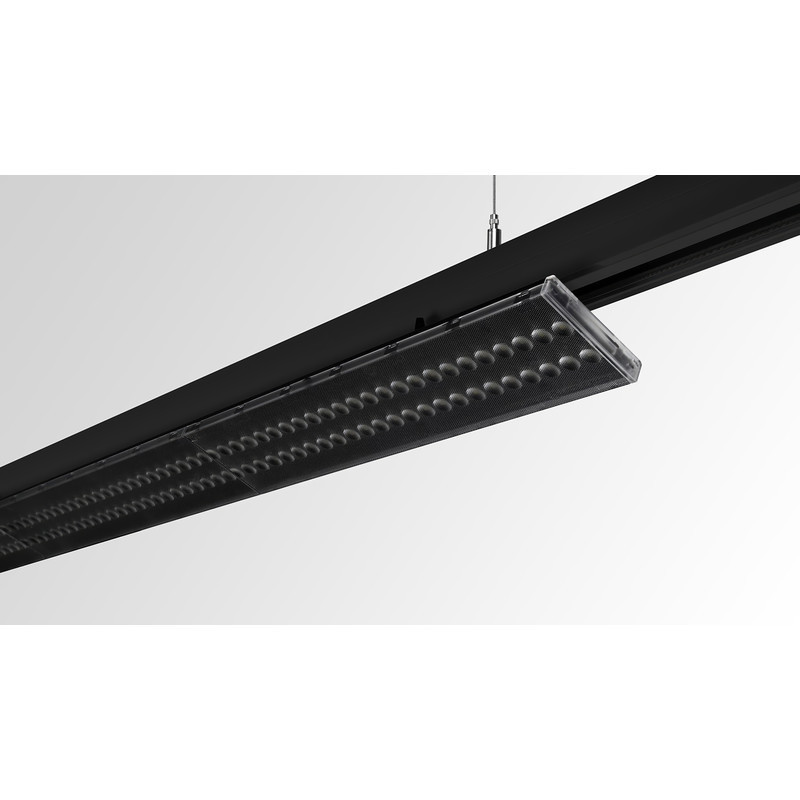

The AXIS linear luminaire was developed for architects and lighting designers and ensures a consistent, high-quality appearance. A switch lets you select the light colour between 3000 K (warm white), 4000 K (neutral white) and 5000 K (daylight white); a DIP switch sets the power in fine steps. In the 1.5 m length, the AXIS is available as 55 W or 66 W. The long 1.5 m version delivers maximum luminous flux for large areas and continuous lines. The black aluminium housing sets elegant accents on dark ceilings.
Your benefits at a glance
3CCT switchable Light colour selectable via switch: 3000 K, 4000 K or 5000 K – one model for many applications. |
Multi-power via DIP switch Power finely adjustable via DIP switch – flexible lighting design and simple stock-keeping. |
High efficacy of 160 lm/W High luminous efficacy for low running costs and sustainable operation. |

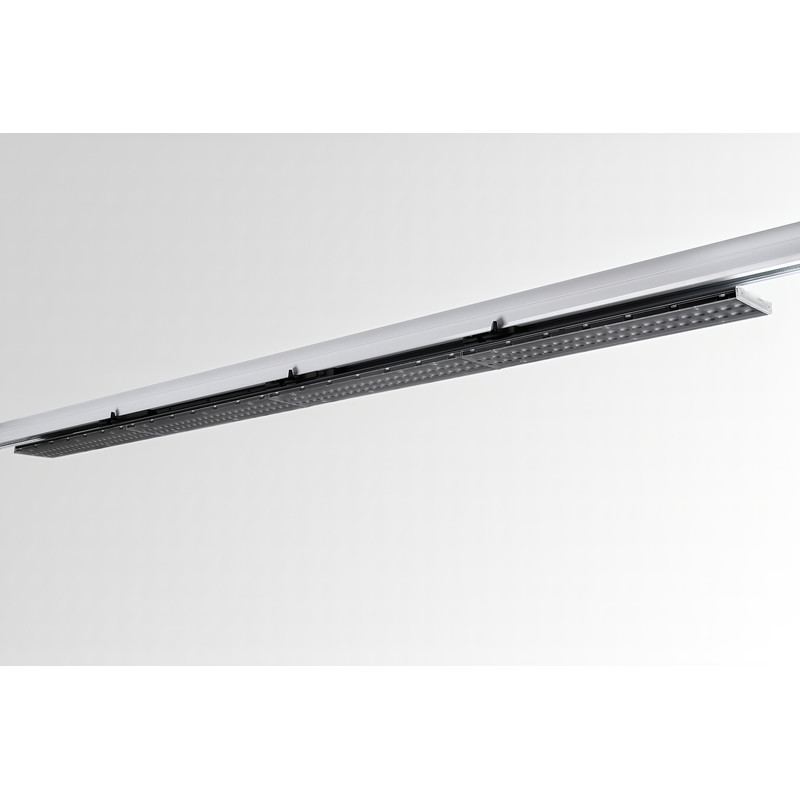

Slides along the track 3-phase adapter (L1/L2/L3) – the luminaire can be positioned freely on the track. |
90° wide + 30° tiltable Wide, even 90° light distribution; each luminaire also tilts individually by ±15° left/right (30° range). |
Aluminium housing in black Elegant black housing that sets refined accents on dark ceilings. |
Optics & tilt

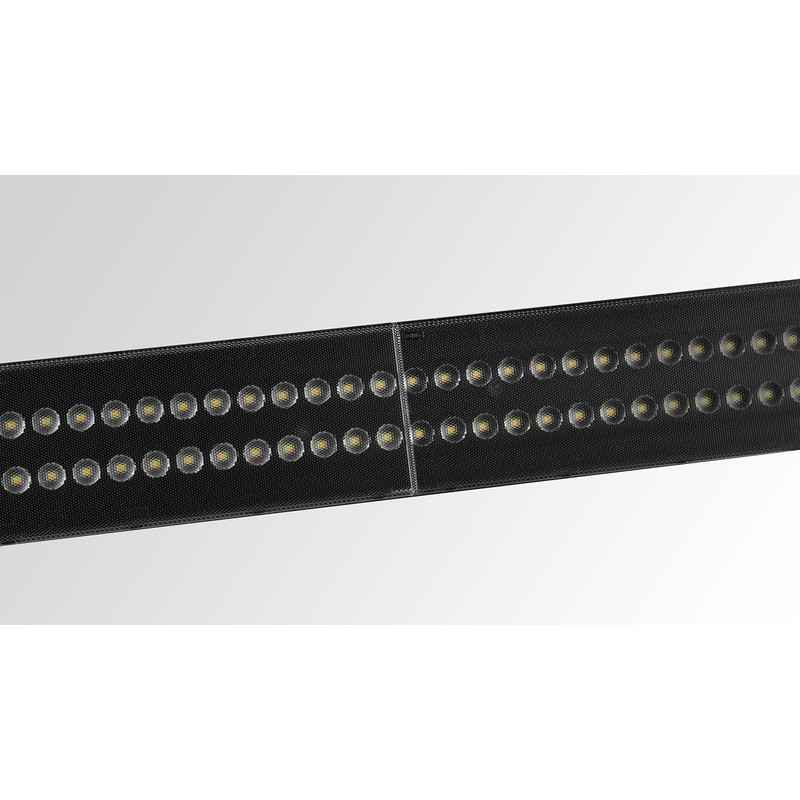

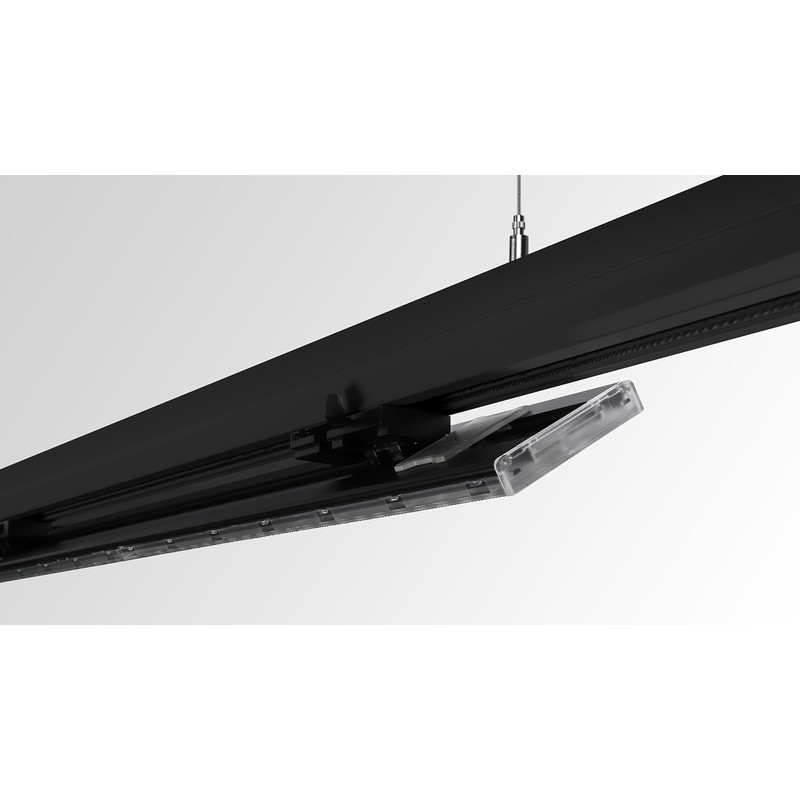

Each AXIS luminaire combines a wide 90° optic with an individually tiltable lens: the optical head tilts ±15° to the left or right (30° range). This lets you aim the light precisely at merchandise, walls or circulation areas – with a consistently even, wide light pattern.
Technical Data
| Property | Value |
| Type | LED linear luminaire for 3-phase track |
| Power | 55 W or 66 W (finely adjustable via DIP) |
| Luminous flux | 8800–10560 lm (depending on power) |
| Luminous efficacy | 160 lm/W |
| Energy efficiency class | D (EU 2019/2015) |
| Light colour | 3000 / 4000 / 5000 K (switchable, 3CCT) |
| Colour rendering (CRI) | > 80 (Ra) |
| Beam angle | 90° (wide) |
| Tilt | ±15° left/right (30° range) |
| Power factor | 0.9 |
| Dimmable | no |
| Protection rating | IP20 |
| Dimensions (L × W × H) | 1498 × 66 × 45 mm |
| Housing | Aluminium, black |
| Track | 3-phase (European standard, 4-wire / 3-phase) |
| Mounting | slides along the track; suspension possible |
| Driver | output-selectable (multi-power) |
| Lifespan | L70B10 > 100,000 h |
| Certification | CE, RoHS |
Mounting & connection

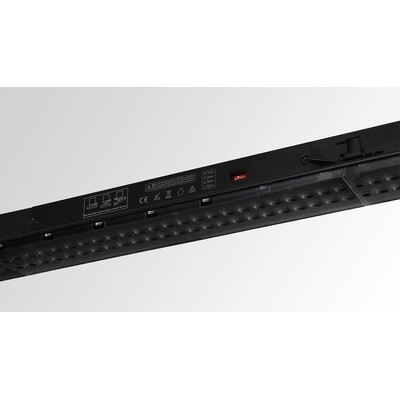

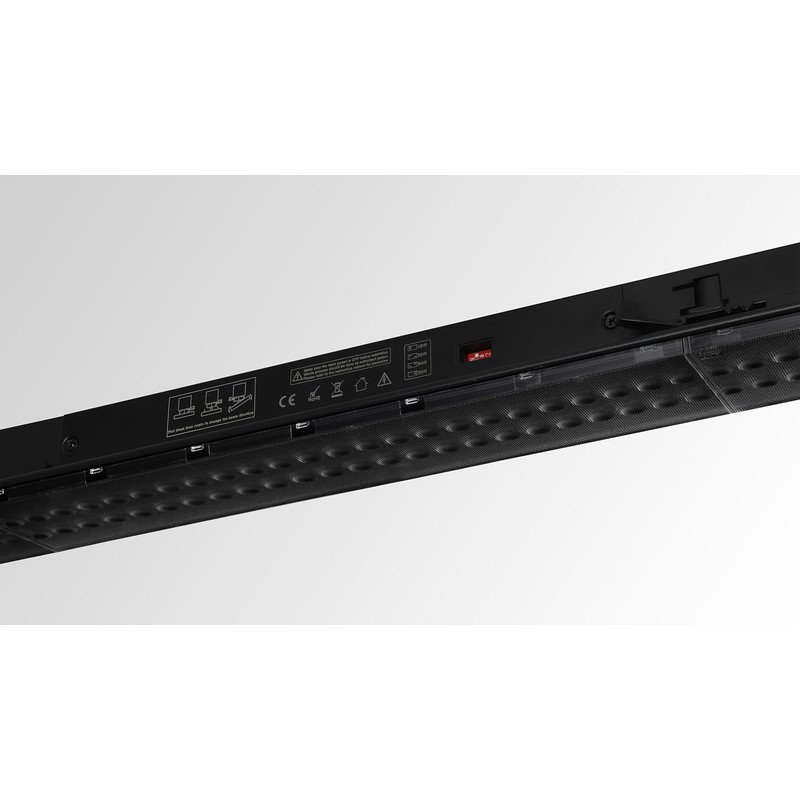

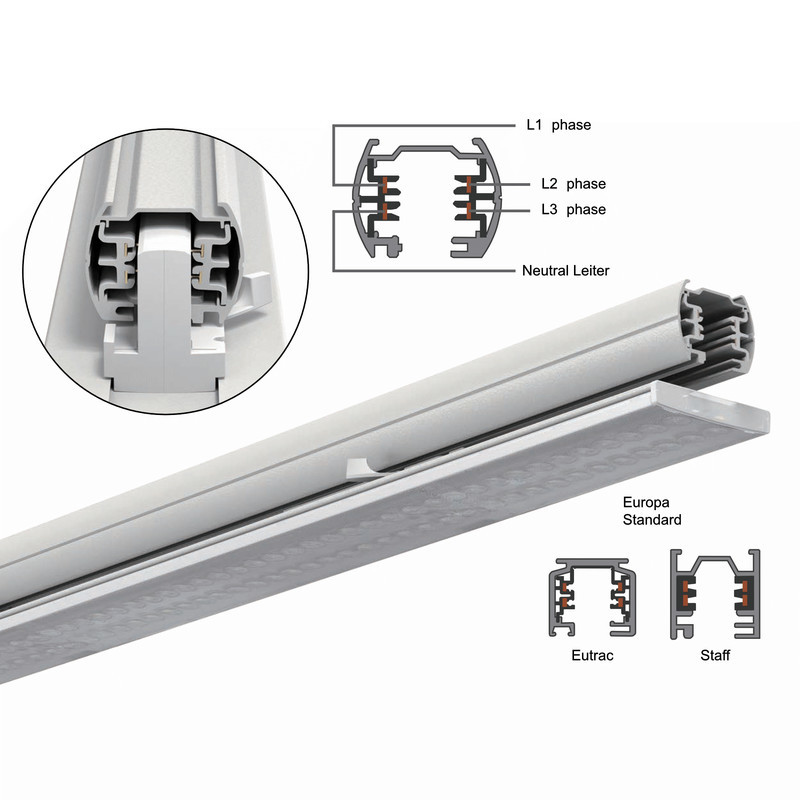

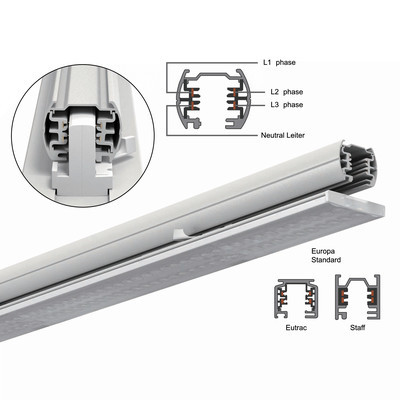

The AXIS is inserted into a 3-phase track to European standard (4-wire / 3-phase; also 3-wire / 1-phase) and slides freely along it. Use the DIP switches to select power and phase (L1/L2/L3) and the switch to set the light colour. The luminaire is then locked onto the track with the adapter knob; suspension is optionally possible. Installation and connection must be carried out only by a qualified electrician with the supply disconnected. The matching track is available separately.
Applications
Ideal for large sales areas, supermarkets, showrooms and halls that call for long, continuous and especially bright lines of light.
