IP65 LED Panel 30x120 cm 3000K 36W

IP65 LED edge-lit panel 120x30 cm 36W 3000K

Description

IP65 LED Panel 30x120 cm 3000 K Warm White – Long Format with IP65 Protection

The IP65 LED Edge-Lit Panel 30x120 cm delivers uniform, continuous illumination thanks to its elongated 1195 × 295 mm format – ideal for corridors, hallways, changing rooms, narrow sanitary spaces and kitchen counters. With 36 W, 4,320 lm and 120 lm/W at full IP65 protection, the panel combines high efficacy with reliable splash protection.

IP65

Dust & Water Jet Protection

36 W

Power

4,320 lm

Luminous Flux

120 lm/W

Efficacy

1195×295

Grid Size

3000 K

Warm White

The Slim Long-Format Panel for Corridors and Narrow Rooms with IP65 Protection

The elongated 1195 × 295 mm format makes this LED panel the ideal choice wherever a narrow, continuous line of light is needed. In corridors, hallways, changing rooms or shower areas, it creates uniform, glare-reduced illumination without visible brightness gaps. Thanks to its IP65 protection rating, the panel is dust-tight and protected against water jets – wet cleaning with splashing water is no problem. This version is supplied in 3000 K (Warm White) – Warm white light (3000 K) creates a pleasant, welcoming ambience – ideal for hotels, wellness areas, reception zones and sanitary spaces.

Your Benefits

Advantages of the 30x120 cm Long-Format Panel

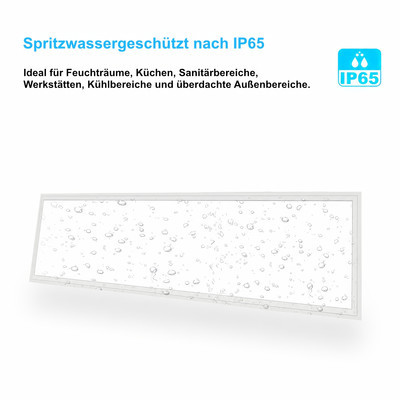

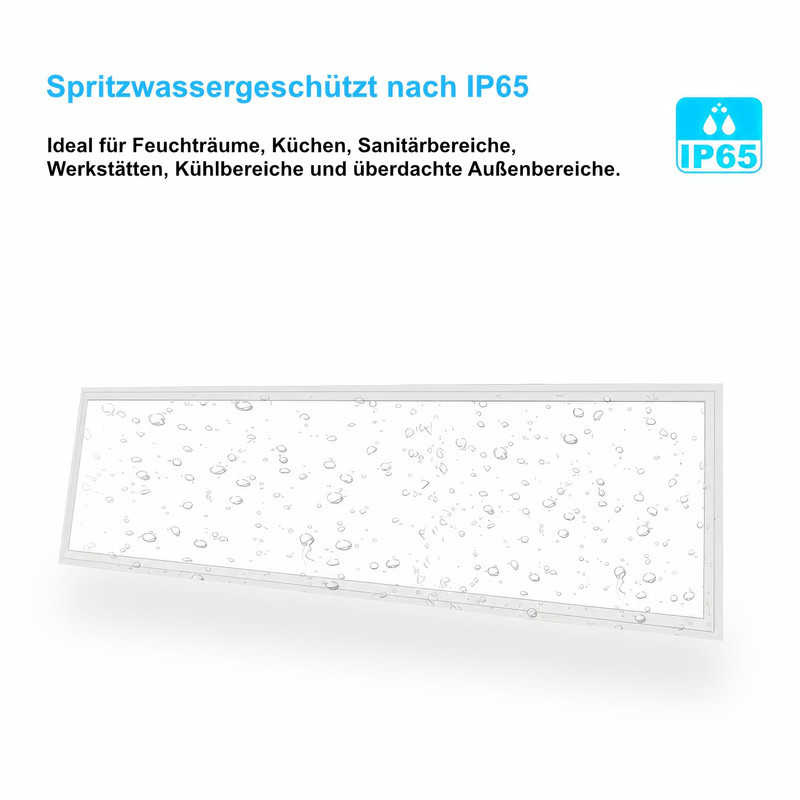

IP65 for Damp and Splash Areas

The long-format panel remains reliable and cleaning-resistant even in shower rooms, changing areas, kitchen counters and sanitary zones.

Efficient Linear Lighting

With 4,320 lm at 36 W, the panel produces an even band of light – perfect for continuous illumination of corridors and hallways without dark gaps.

Slim Long-Format Design

Just 12 mm in depth and 295 mm wide – the panel blends elegantly into narrow ceiling surfaces and can be combined in series for extended light bands.

Eye-Friendly Light Without Flicker

The constant-current driver operates vibration- and hum-free – particularly pleasant in long-stay areas such as corridors and waiting zones.

3000 K Warm White

Warm white light (3000 K) creates a pleasant, welcoming ambience – ideal for hotels, wellness areas, reception zones and sanitary spaces.

Low Maintenance with 50,000 h

Particularly in hard-to-reach hallway ceilings, the long lifespan pays off – up to 17 years of continuous operation (at 8 h/day) without lamp replacement.

Applications

Ideal Applications for the 30x120 cm Long-Format Panel

Compared to square 60x60 or 62x62 panels, the elongated panel format delivers a distinctive lighting effect – a continuous, directional line of light that illuminates narrow rooms and longitudinal areas particularly harmoniously.

Corridors, hallways and circulation routes in hotels, hospitals and offices
Narrow shower areas, changing rooms and sanitary zones
Kitchen counters and longitudinal areas in commercial kitchens
Workbench lighting in workshops and laboratories
Stairwells, entrance areas and storage light bands
Covered garage entrances and outdoor areas

Colour Temperature

Colour Temperature for Every Atmosphere – 3000 K, 4000 K or 6000 K

3000 K Warm White	Inviting warm light for hotel hallways, wellness corridors, residential zones and prestige corridors.
4000 K Neutral White	Versatile choice for circulation routes, corridors, kitchens, office hallways and general dwell areas.
6000 K Cool White	Functional cool light for workshop aisles, storage bands, food areas and refrigerated zones.

Specifications

Technical Specifications of the 30x120 cm Long-Format Panel

Property	Value
Product type	IP65 LED Edge-Lit Panel

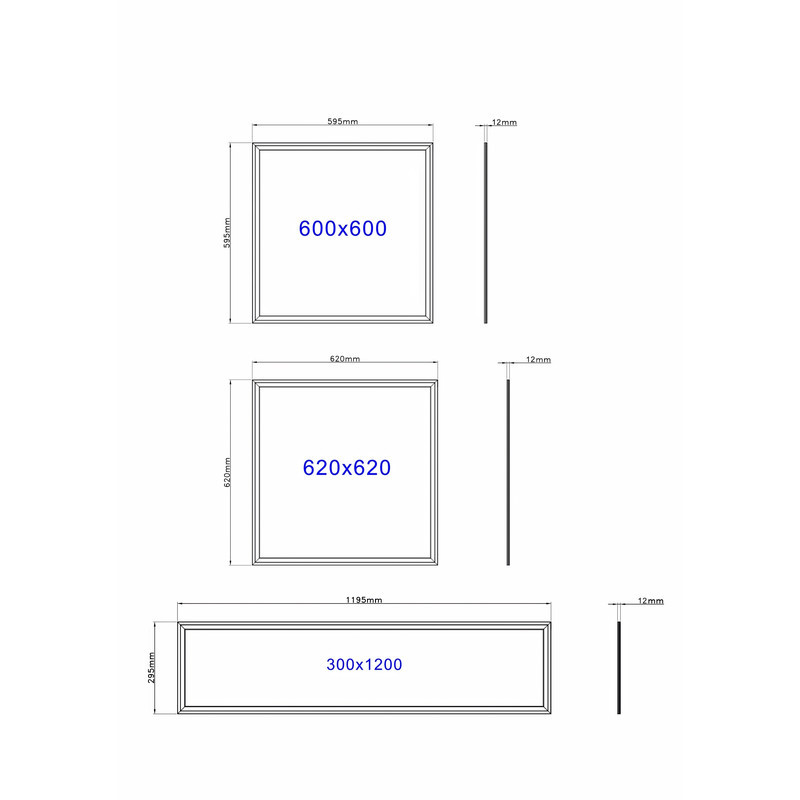

Dimensions	1195 × 295 × 12 mm
Cut-out size	1175 × 275 mm
Power	36 W
Luminous flux	4,320 lm
Luminous efficacy	120 lm/W
Colour temperature	3000 K (Warm White)
Protection rating	IP65
Colour rendering	CRI / Ra ≥ 80
Beam angle	120°
LED type	SMD 4014, 210 pcs
Driver	IP65 constant-current driver, PF ≥ 0.95
Operating voltage	AC 200–240 V, 50/60 Hz
Operating temperature	-20 °C to +50 °C
Lifespan	up to 50,000 hours
Certificates	CE, RoHS

Installation

Three Installation Methods for the Long-Format Panel

The 30x120 cm panel can be inserted into matching long-format ceiling grids or attached to solid ceilings using optional accessories. Free pendant mounting works especially well as a light band over long tables, counters or corridors.

Grid ceiling: insert into 300 × 1200 mm long-format grids
Surface-mount: wall-mount on solid ceilings with frame
Pendant: suspension cable as light band over tables or counters

FAQ

Questions & Answers About the 30x120 cm Long-Format Panel

Which rooms is the long-format panel particularly suitable for?

The 30x120 cm long format is particularly suitable for all narrow, elongated rooms: corridors, hallways, circulation routes, changing rooms, narrow shower areas, kitchen counters and workbench lighting. It also excels as a continuous light band over tables, counters or in open-plan offices.

Can multiple panels be combined into a light band?

Yes – thanks to the narrow 1195 mm format, several panels can be combined in a row to form a continuous light band. Maintain a minimum gap between panels (typically 5–10 mm) for heat dissipation and installation tolerance. Each panel requires its own splash-proof IP65 driver – included in the package.

How does it compare to fluorescent tubes in terms of light output?

With 4,320 lm at 36 W, this panel typically replaces an old dual 36 W fluorescent fixture (72 W combined) – at comparable brightness, but only half the energy consumption and without mercury, flicker or warm-up time. Plus, the IP65 rating offers a level of protection that traditional tube fixtures often cannot match.

Is the long-format panel dimmable?

By default, the panel is supplied with a non-dimmable IP65 driver. For dimmable applications – for example, to switch corridors to a lower brightness at night – a matching splash-proof dimming driver is available on request.

Package Contents

1× IP65 LED Edge-Lit Panel 30x120 cm in 3000 K (Warm White) · 1× IP65 LED driver · Installation guide
Note: Surface frame for the long format, suspension cable for pendant mounting and a splash-proof dimming driver are available separately as accessories.
