IP65 LED Panel 60x60 cm 36W | 4,320 lm | Splash-Proof

IP65 LED edge-lit panel 60x60 cm 36W

Description

IP65 LED Panel 60x60 cm – Splash-Proof, Slim & Efficient

The IP65 LED Edge-Lit Panel 60x60 cm is the ideal lighting solution for damp rooms, sanitary areas, kitchens, food processing, laboratories, workshops and covered outdoor areas. With 36 W power, 4,320 lm luminous flux and an efficacy of 120 lm/W, the panel delivers bright, uniform and energy-saving light.

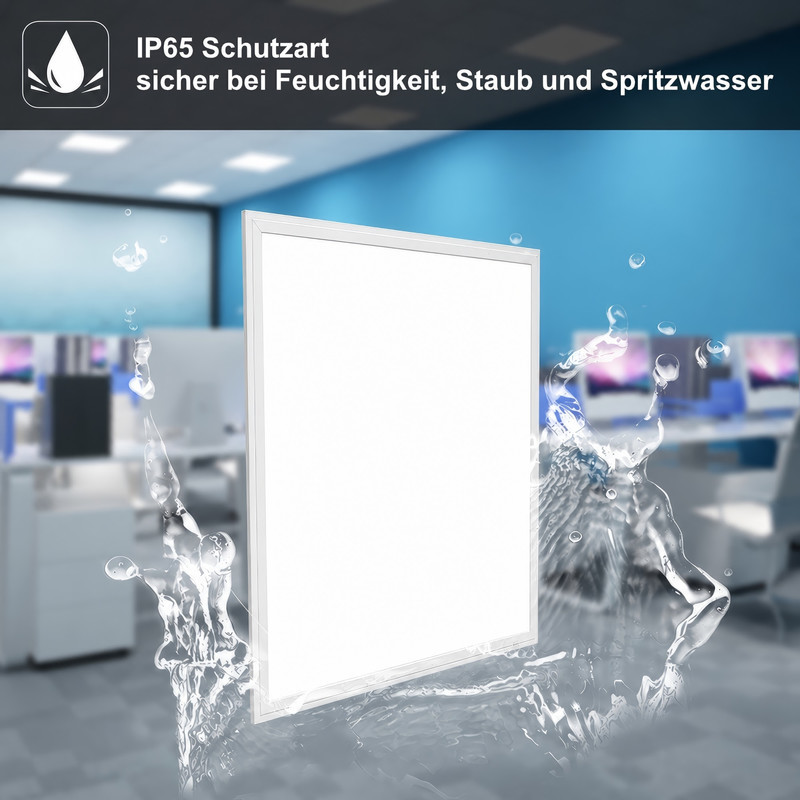

IP65

Dust & Water Jet Protection

36 W

Power

4,320 lm

Luminous Flux

120 lm/W

Efficacy

595×595

Grid Size

3000–6000 K

Selectable CCT

Splash-Proof LED Panel for Demanding Environments

This splash-proof LED panel 60x60 cm combines an exceptionally slim edge-lit design with reliable IP65 protection. It is dust-tight and protected against water jets – ideal for areas where moisture, water splashes, dust or regular cleaning demand robust lighting. With its standard size of 595 × 595 mm, the panel fits perfectly into Odenwald ceilings and common ceiling grids.

Your Benefits

Why This IP65 LED Panel Is the Right Choice

Splash-Proof per IP65

Ideal for damp rooms, kitchens, sanitary areas, workshops, cold storage and covered outdoor areas.

High Light Output at Low Consumption

With 4,320 lm at just 36 W, the panel provides powerful illumination while reducing energy costs.

Only 12 mm Slim

Edge-lit technology enables an exceptionally slim form factor – perfect for flat ceiling structures.

Flicker-Free Light

The constant-current driver delivers pleasant, calm light without visible flicker or humming.

Selectable Colour Temperature

Available in 3000 K warm white, 4000 K neutral white or 6000 K cool white – matching every application.

Long Lifespan

With up to 50,000 hours of lifespan, the panel is a low-maintenance solution for commercial and industrial applications.

Applications

Suitable for Damp Rooms, Hygiene Zones and Commercial Areas

The IP65 LED panel is particularly suitable for areas where conventional LED panels quickly reach their limits due to moisture, dust or cleaning water.

Sanitary areas, showers, changing rooms and washrooms
Commercial kitchens, food production and cold rooms
Laboratories, clean rooms, medical practices and healthcare areas
Workshops, industrial halls and technical rooms
Laundry rooms, basements, garages and covered outdoor areas
Hotels, wellness areas and public facilities

Colour Temperature

Selectable Colour Temperature: 3000 K, 4000 K or 6000 K

3000 K Warm White	Pleasantly warm light for hotels, wellness areas, reception zones and sanitary spaces.
4000 K Neutral White	Universal colour temperature for kitchens, offices, workshops, medical practices and commercial spaces.
6000 K Cool White	Clear, bright working light for laboratories, production, cold areas and technical workstations.

Specifications

Specifications of the IP65 LED Panel

Property	Value
Product type	IP65 LED Edge-Lit Panel

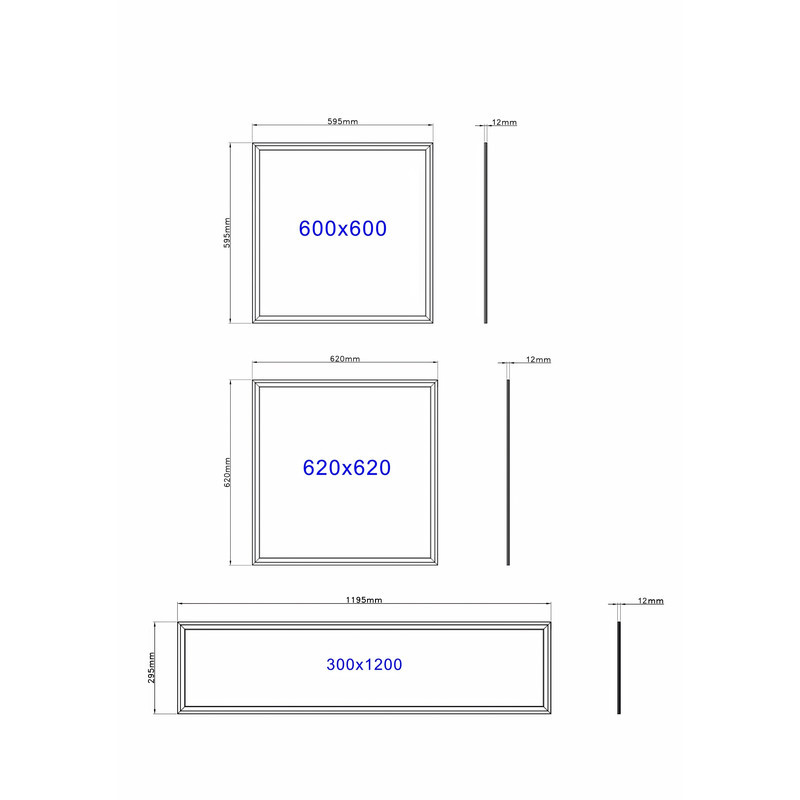

Dimensions	595 × 595 × 12 mm
Cut-out size	575 × 575 mm
Power	36 W
Luminous flux	4,320 lm
Luminous efficacy	120 lm/W
Colour temperature	3000 K, 4000 K or 6000 K selectable
Protection rating	IP65
Colour rendering	CRI / Ra ≥ 80
Beam angle	120°
LED type	SMD 4014, 210 pcs
Driver	IP65 constant-current driver, PF ≥ 0.95
Operating voltage	AC 200–240 V, 50/60 Hz
Operating temperature	-20 °C to +50 °C
Lifespan	up to 50,000 hours
Certificates	CE, RoHS

Installation

Flexible Mounting for Grid Ceilings, Surface or Suspension

The LED panel can be mounted flexibly depending on the location. In grid ceilings it simply slots into place. For solid ceilings or open room concepts, a surface-mount frame or suspension cable is available as an option.

Recessed: fits common 60x60 cm grid ceilings
Surface-mount: with optional surface frame for solid ceilings
Suspension: with optional suspension cable as pendant lamp

FAQ

Frequently Asked Questions About the IP65 LED Panel

What does IP65 mean for an LED panel?

IP65 means dust-tight and protected against water jets. The panel is therefore suitable for many damp and wet areas, but not for permanent immersion in water.

Is the LED driver also protected?

Yes, a splash-proof IP65 constant-current driver is included in the package.

Which colour temperature should I choose?

3000 K is suitable for warm, pleasant lighting atmospheres. 4000 K is the universal choice for task and general lighting. 6000 K is recommended for particularly bright, functional working areas.

Is the LED panel dimmable?

By default, the panel is supplied with a non-dimmable driver. A matching splash-proof dimming driver is available on request.

Package Contents

1× IP65 LED Edge-Lit Panel 60x60 cm in selected colour temperature · 1× IP65 LED driver · Installation guide
Note: Surface-mount frame, suspension cable and dimming driver are available as optional accessories.
