IP65 LED Panel 62x62 cm 3000K Warm White 40W

IP65 LED edge-lit panel 62x62 cm 40W 3000K

Description

IP65 LED Panel 62x62 cm 3000 K Warm White – European Grid Size, IP65 Protection

The IP65 LED Edge-Lit Panel 62x62 cm with European grid size 620 × 620 mm combines reliable splash protection with a powerful 4,800 lm luminous flux at just 40 W. The higher power class makes this panel the first choice for European offices, hotels, wellness areas, sanitary facilities, laboratory rooms and damp areas with elevated brightness requirements.

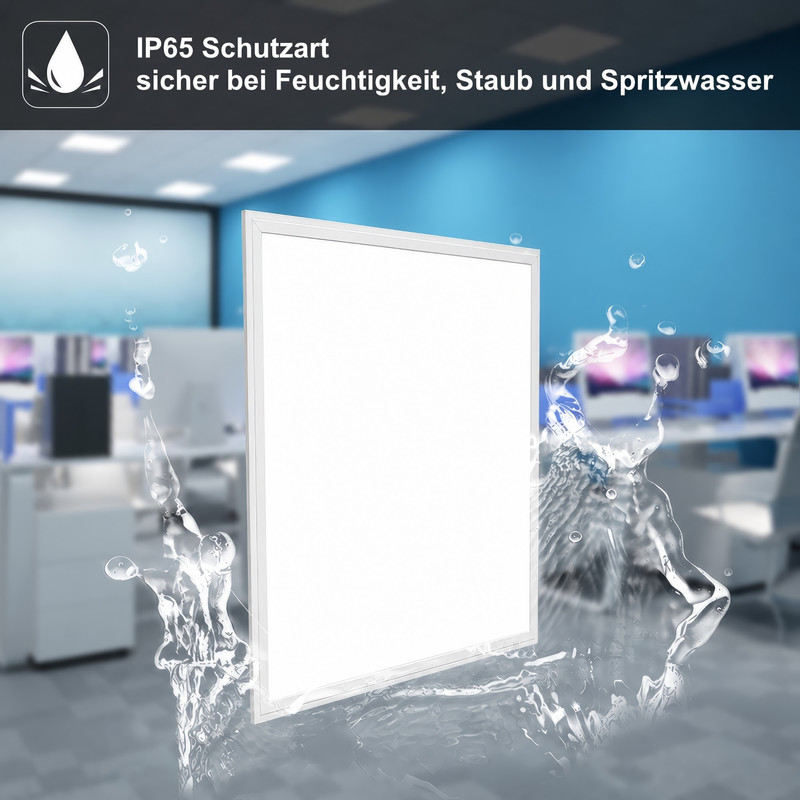

IP65

Dust & Water Jet Protection

40 W

Power

4,800 lm

Luminous Flux

120 lm/W

Efficacy

620×620

Grid Size

3000 K

Warm White

The 62x62 cm Panel for European Ceiling Grids – with Extra Power Reserve

Many buildings across Europe use ceiling grids with a 625 mm module – making this 62x62 cm panel an exact fit. With IP65 protection, the LED panel stays sealed even under direct water jets and can be cleaned with wet cloths or low-pressure water. The 40 W power class delivers 480 lm more than the 36 W variant – ideal wherever a stronger illumination level is needed. This version is supplied in 3000 K (Warm White) – Warm white light (3000 K) creates a pleasant, welcoming ambience – ideal for hotels, wellness areas, reception zones and sanitary spaces.

Your Benefits

Key Strengths of the 62x62 cm IP65 Panel at a Glance

IP65 Protection for Wet and Damp Areas

Full dust tightness and protection against water jets – the 62x62 cm panel is also suitable for demanding wellness, sanitary and kitchen environments.

More Lumens with the 40 W Class

Compared to the 36 W version, this panel provides 480 lm more light – ideal for larger rooms or areas with higher brightness demand.

Flat Edge-Lit Profile (12 mm)

The slim profile fits into many European ceiling grid systems without any custom adjustments to the grid.

Calm Light Without Flicker

The premium constant-current driver operates vibration-free and delivers pleasant, eye-friendly light.

3000 K Warm White

Warm white light (3000 K) creates a pleasant, welcoming ambience – ideal for hotels, wellness areas, reception zones and sanitary spaces.

Over 50,000 Hours of Service Life

Thanks to modern SMD 4014 LEDs, the panel achieves a very long usage period – reducing maintenance effort and operating costs significantly.

Applications

Ideal Applications for the 62x62 cm IP65 Panel

The 62x62 cm panel fits into many European ceiling grids and delivers reliable light wherever moisture, frequent cleaning or dust would quickly push conventional LED panels to their limits.

Hotel areas, spas and wellness facilities with moisture exposure
Sanitary facilities, shower areas and public washrooms
Food production, commercial kitchens and canteens
Office floors and conference rooms with European ceiling grids
Laboratories, pharmacies and medical facilities
Industrial halls, workshops and storage areas

Colour Temperature

Colour Temperature by Application: Warm, Neutral or Cool

3000 K Warm White	Warm, welcoming light for hotel lobbies, spas, hotel bathrooms and lounge-style retail spaces.
4000 K Neutral White	Balanced daylight-like task lighting for office spaces, medical practices, reception areas and retail rooms.
6000 K Cool White	Powerful cool light for industrial use, storage areas, cold rooms, clean rooms and concentration-intensive tasks.

Specifications

Technical Specifications of the 62x62 cm IP65 Panel

Property	Value
Product type	IP65 LED Edge-Lit Panel

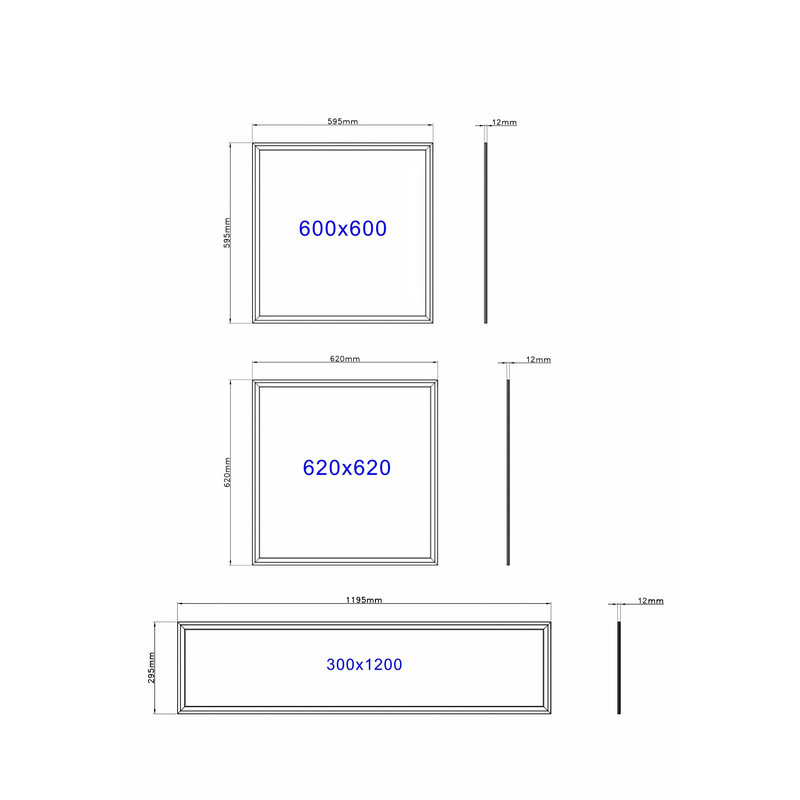

Dimensions	620 × 620 × 12 mm
Cut-out size	600 × 600 mm
Power	40 W
Luminous flux	4,800 lm
Luminous efficacy	120 lm/W
Colour temperature	3000 K (Warm White)
Protection rating	IP65
Colour rendering	CRI / Ra ≥ 80
Beam angle	120°
LED type	SMD 4014, 224 pcs
Driver	IP65 constant-current driver, PF ≥ 0.95
Operating voltage	AC 200–240 V, 50/60 Hz
Operating temperature	-20 °C to +50 °C
Lifespan	up to 50,000 hours
Certificates	CE, RoHS

Installation

Three Installation Options: For European Ceiling Grids and Solid Ceilings

The 62x62 cm panel is specifically designed for European standard ceiling grids and simply slots into place there. Where no ceiling grid is available, the panel can be mounted directly to the ceiling using the optional surface frame or installed as a pendant lamp with a suspension cable.

Grid ceiling: precise fit for European 625 mm grid systems
Solid ceiling: surface mounting with optional frame
Pendant: suspension cable for open ceilings and high rooms

FAQ

Questions & Answers About the 62x62 cm IP65 Panel

Which European grid systems does this panel fit?

The panel has external dimensions of exactly 620 × 620 mm and therefore fits into common European ceiling grids with a 625 mm module. This is the widely used standard in office buildings, public facilities and hotels in Germany, Austria, Switzerland and the Benelux countries.

Is the included LED driver also IP65-rated?

Yes – a full splash-proof IP65 constant-current driver is included in the package. This means the entire lighting system is approved for damp and wet environments, not just the panel itself.

What are the advantages of the 40 W variant over the 36 W model?

The 40 W panel delivers 4,800 lm – that is approximately 480 lm more than the 36 W version. For slightly larger rooms, brighter workplaces or applications with elevated brightness needs, this variant is often the more economical solution, as fewer luminaires are needed for the same brightness.

Which colour temperature fits my application?

For hotel lobbies, wellness and residential areas we recommend 3000 K. For offices, medical practices and general retail spaces, 4000 K is the universal choice. For industry, laboratories, cold storage and concentration-intensive workplaces, 6000 K is the right choice. An optional splash-proof dimming driver is available on request.

Package Contents

1× IP65 LED Edge-Lit Panel 62x62 cm in 3000 K (Warm White) · 1× IP65 LED driver · Installation guide
Note: For surface or pendant mounting as well as dimmable applications, matching accessories (surface frame, suspension cable, dimming driver) are available separately.
