Description
NEO T-TDV – LED Desk Lamp 100 W, Direct/Indirect, UGR < 13, Tunable White
9,000 lm · 2700–5000 K · Ra > 95 · touch dimming · motion and daylight sensor
This luminaire is made for workplaces with many hours of screen work – and without room next to the desk: it is fixed directly to the desktop with a clamp fixture, with no base and no floor footprint. The large upward share provides even room brightness via the ceiling, the direct share lights the working surface glare-free and without reflections in the monitor. The result is the same light quality as a floor lamp – without its space requirement. Visually it stays pleasantly restrained with its flat head and slender pole.
Key benefits at a glance
Glare-free to standard UGR < 13 – well below the limit for screen work. | Direct and indirect 70 W via the ceiling, 30 W straight onto the desk. |
No drilling Clamped to the desk – no work on the ceiling. | Sensors included Motion and daylight sensors reduce consumption. |
Tunable white Colour temperature 2700–5000 K steplessly adjustable. | Long service life L80(B10) at 50,000 h, no lamp changes. |
Features in detail
- Direct/indirect luminaire with 70 W upward and 30 W downward
- Glare limitation UGR < 13 through micro-reflector optics
- Colour temperature 2700–5000 K steplessly adjustable (tunable white)
- Colour rendering Ra > 95 with R9 > 95
- Touch dimming
- Motion sensor and daylight sensor as standard
- BOKE driver, full-spectrum SMD 2835 LEDs
- Housing available in silver, black or white
Direct and indirect light: why the split?
Why direct and indirect at all? Purely direct light from above creates harsh shadows and easily reflects in the screen. Purely indirect light looks soft but often puts too little brightness on the desk. This luminaire therefore splits its output: 70 watts shine upwards to the ceiling, 30 watts directly downwards. The ceiling acts as a large reflector that scatters the light and creates base brightness in the room. The direct share ensures the necessary illuminance arrives on the working surface.
UGR < 13 – what it means for screen work

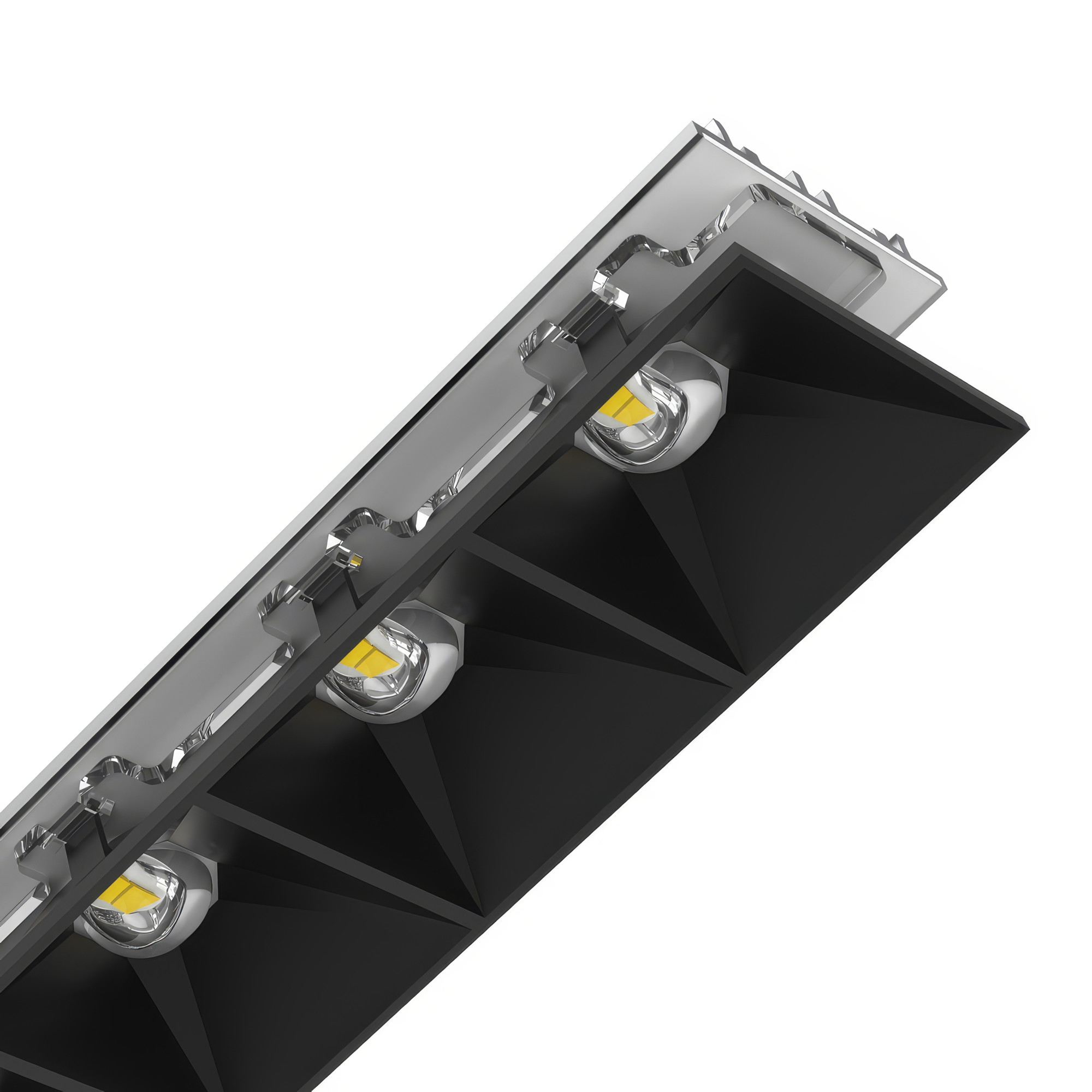

The UGR value describes how strongly a luminaire glares – the lower, the more comfortable. For screen workplaces, workplace regulations usually require a value below 19. This luminaire sits considerably lower at UGR below 13. That is achieved with micro-reflector optics that direct light downwards and limit sideways emission. Looking towards the luminaire while seated, you do not look into bright points of light.

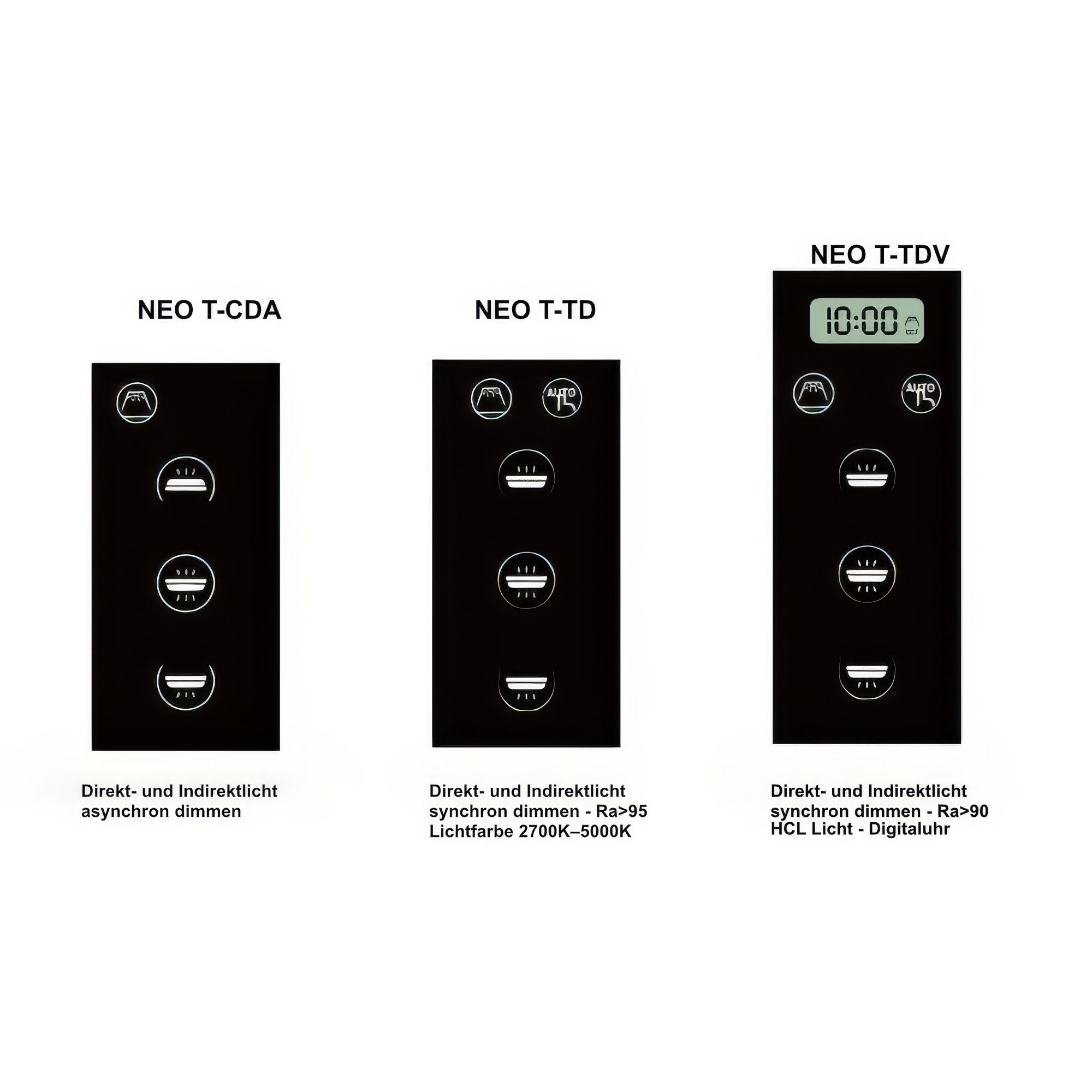

Touch control with synchronous dimming
The luminaire is operated via touch buttons on the housing: a short tap switches direct or indirect light, holding dims steplessly. Dimming is synchronous – the direct and indirect shares change their brightness together, and the set ratio of 70 % upwards and 30 % downwards is maintained. The buttons also change the colour temperature, from warm to cool white.
Motion sensor and daylight sensor
Two sensors are built in. The motion sensor detects whether someone is present: if no movement is registered for 20 minutes, the luminaire dims to 30 percent; after a further 10 minutes it switches off. When someone returns, it comes on again immediately. The daylight sensor additionally measures incoming daylight and compensates: when the sun shines into the office it dims, when it clouds over it brightens again. Together these noticeably reduce consumption without anyone having to think about a switch.
Tunable white – colour temperature 2700–5000 K
Tunable white means the colour temperature can be adjusted – on this luminaire across 2700–5000 K. Warm light feels calm and is perceived as more pleasant in the evening, cooler light supports alertness and suits concentrated work in the morning. Instead of committing to one colour temperature at purchase, you simply change it during the day or according to the task.
Full-spectrum LED with Ra > 95 and R9 > 95
This version works with full-spectrum LEDs and achieves a colour rendering index above Ra 95 with an R9 value above 95. The general Ra value describes how natural colours look overall; R9 stands specifically for saturated red – the range where simple LEDs are weakest. Both values above 95 mean light that comes very close to daylight. For workplaces where colours are assessed – graphics, printing, textiles, medicine or cosmetics – this is the decisive difference. The price for it is slightly lower efficacy, as a full spectrum requires more energy.
Service life and colour consistency
Service life is stated as L80(B10) at 50,000 hours. It reads awkwardly but simply means: after 50,000 operating hours at most 10 percent of the luminaires emit less than 80 percent of their original brightness. In typical office use of around 2,500 hours a year that corresponds to roughly 20 years. Lamp replacement is eliminated entirely.
Clamped instead of placed
The big advantage of this design lies in the mounting: the clamp fixture is tightened onto the desktop and fits tops of up to 75 mm thickness – no drilling, no work on ceiling or wall. The pole sits firmly at the edge of the desk and the lamp head floats above the workplace without occupying space on the floor or the desk. If the workplace moves, the clamp is released and refitted to the new desk.

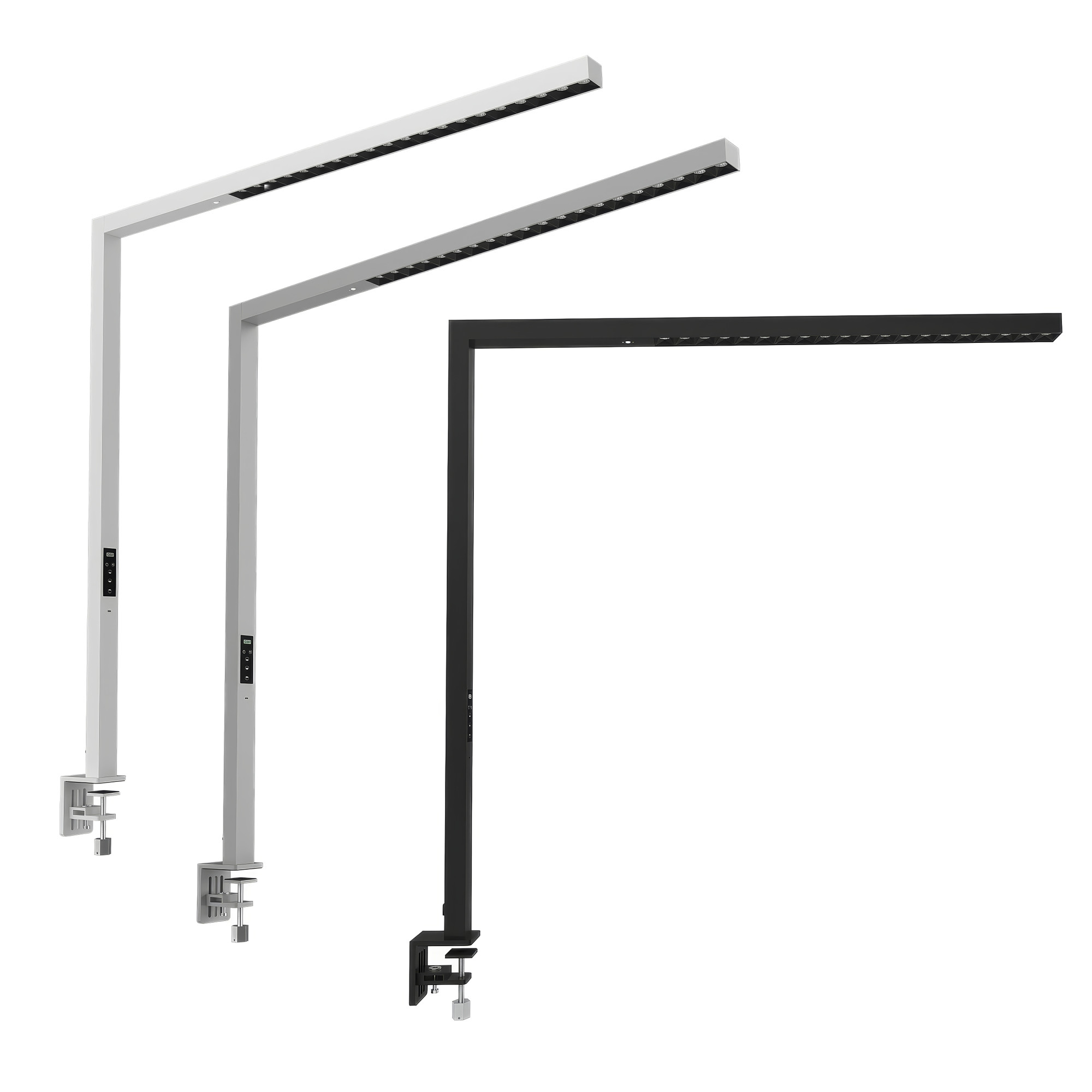

Housing colour: silver, black or white
The luminaire is available in three housing colours: silver, black and white. Silver looks neutral and suits metal frames and classic office equipment, black sets a modern accent and emphasises the straight lines, white blends discreetly into bright rooms. Technically all three versions are identical – simply choose the colour that suits your interior.
Technical data
| Model | NEO T-TDV |
| Type | desk luminaire with clamp mount, direct and indirect light |
| Power | 100 W (70 W upward / 30 W downward) |
| Luminous flux | 9,000 lm |
| Efficacy | 90 lm/W |
| Colour temperature | 2700–5000 K (adjustable) |
| Colour rendering | Ra > 95 |
| R9 value | > 95 |
| Glare rating | UGR < 13 |
| Colour consistency | SDCM 3 |
| Beam angle | 140° upward / 80° downward |
| LED | full-spectrum SMD 2835 |
| Driver | BOKE |
| Voltage | AC 200–240 V |
| Power factor | ≥ 0.9 |
| Dimming | touch dimming, synchronous; direct and indirect switch individually |
| Sensors | motion sensor and daylight sensor |
| Tunable white | yes, colour temperature steplessly adjustable |
| Service life | L80(B10) 50,000 h |
| Housing colour | silver, black or white |
| Mounting | clamp fixture for desktops from 0 to 75 mm thick |

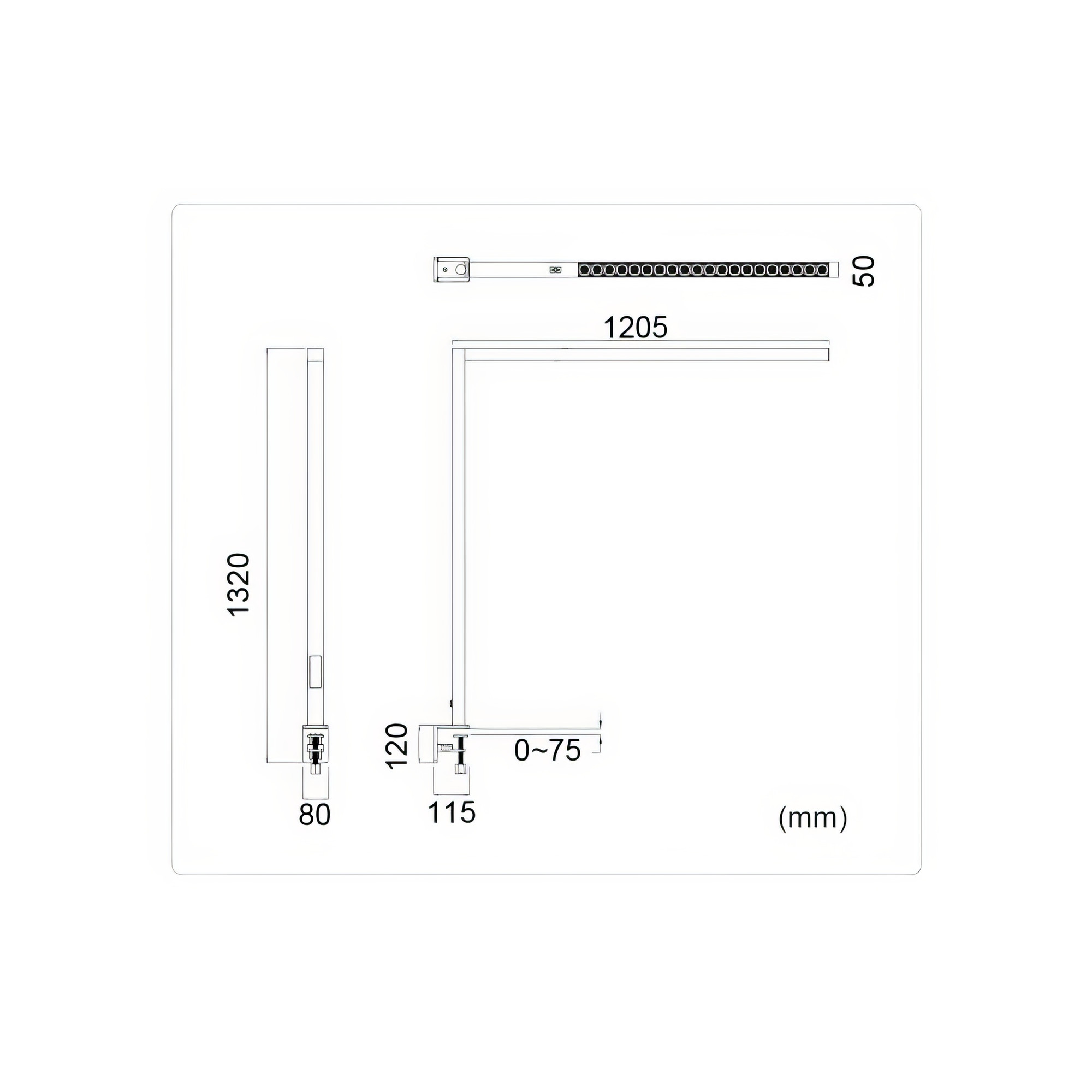

| Dimensions | lamp head 1,205 × 50 × 40 mm · pole 1,320 mm · clamp 115 × 120 mm |
| Energy efficiency class | F (EU scale A–G, EU 2019/2015) |
Applications
The luminaire is used in private offices, open-plan offices, coworking spaces, meeting rooms and home offices. Wherever people work at screens and the existing ceiling lighting is insufficient or glares too much, it noticeably improves the situation – with no electrical work. It is also a sensible addition to existing lighting at individual, particularly demanding workplaces.
Scope of delivery
- 1× LED desk luminaire with lamp head, pole and clamp fixture
- Connection cable with plug
- Installation and operating instructions
