Description
Three Lighting Moods - Easily Selectable via CCT Switch

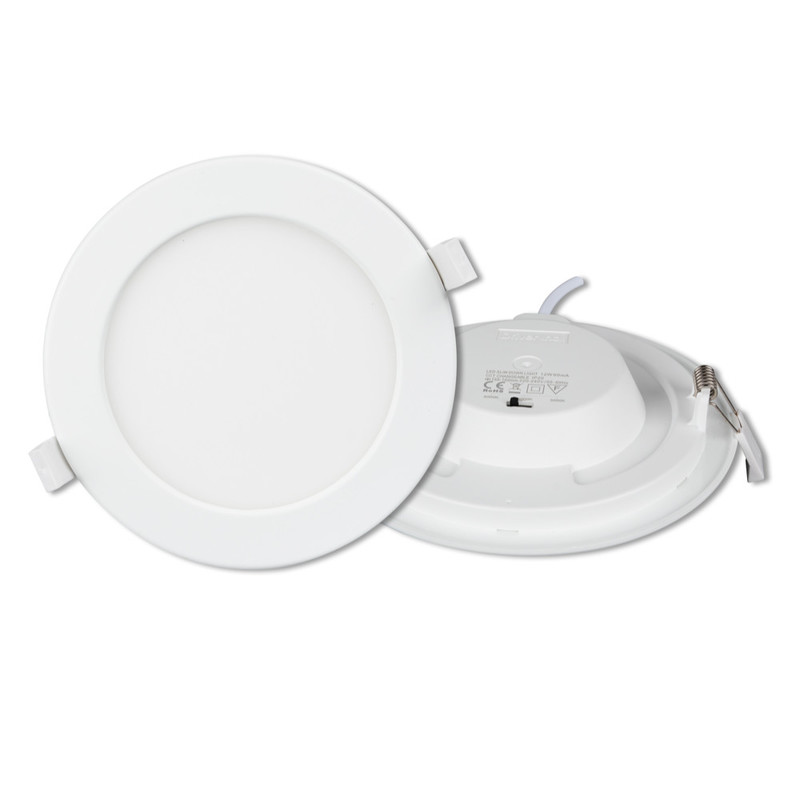

You decide the atmosphere your rooms exude. Before installation, set the desired colour temperature on the downlight's housing: 3000 K creates a warm, inviting ambiance, 4000 K provides neutral task lighting, and 6000 K produces a daylight-bright, activating room feeling. One model - three possibilities, with no extra components or complex wiring required.
Your Advantages at a Glance
Classic Standard Cutout Designed for ceiling openings of 150-160 mm - perfect for cleanly replacing old halogen recessed installations. |
CCT Colour Switch Choose 3000 / 4000 / 6000 K directly on the housing - one luminaire, three colour temperatures. |
Integrated Driver No external driver needed - simply connect to 230 V, snap in, done. |
1000 Lumens - Bright & Glare-Free The opal diffuser distributes light evenly across a 120° angle - no flickering, no glare. |
Low Energy Consumption Only 12 kWh per 1000 operating hours - gentle on your electricity bill while delivering solid brightness. |
Compact & Lightweight Only 0.25 kg and 32 mm deep - fits into shallow ceiling voids and makes installation effortless. |
How to Choose Your Preferred Colour
Before installation, set the small switch on the housing to your desired colour temperature:
| 3000 K Warm White - Cosy light for living rooms, bedrooms, and hospitality areas. | |
| 4000 K Neutral White - Promotes concentration in offices, kitchens, and work areas. | |
| 6000 K Cool White - Activating and bright for bathrooms, hallways, and hobby rooms. |
Technical Specifications
| Property | Value |
| Rated Power | 12 W |
| Rated Voltage | 220-240 V AC |
| Luminous Flux | 1000 lm |
| Luminous Efficacy | 83 lm/W |
| Beam Angle | 120° |
| Colour Rendering (CRI) | > 80 (Ra) |
| Colour Temperature (CCT) | 3000 / 4000 / 6000 K (switchable) |
| Energy Efficiency Class | G (EU 2019/2015, Scale A-G) |
| Energy Consumption | 12 kWh / 1000 h |
| Power Factor | > 0.90 |
| Ingress Protection | IP20 |
| Lifespan | 30,000 h (L90 / Tc=55°C) |
| Operating Temperature | -20 °C to +50 °C |
| Housing Material | PVC, White |
| Dimmable | No |
| Driver | Integrated |
| Outer Dimensions (ØxH) | 170 x 32 mm |
| Recess Depth | 32 mm |
| Cutout | Ø 150 - 160 mm |
| Weight | 0.25 kg |
| Certifications | ISO9001, ISO14001, CE, RoHS |
Installation - Quick, Clean, and Safe
This recessed downlight is designed for hassle-free replacement. Drill a cutout with a diameter of 150 to 160 mm, insert the luminaire, and secure it with the spring clips. The connection is made directly to 230 V - no external driver required. Please ensure installation is carried out exclusively by qualified personnel and with the power supply switched off beforehand.
Application Areas - The Classic Choice for Many Spaces
With its classic cutout dimensions, this LED downlight is perfect for replacing outdated halogen recessed lights. It delivers wide, glare-free light to living rooms, hallways, and bathrooms (IP20, outside splash-water zones). In commercial settings - such as offices, meeting rooms, medical practices, or retail stores - it ensures uniform illumination. The simple white housing blends discreetly into any ceiling.
Why This Recessed Downlight Stands Out
You get a well-thought-out all-in-one solution that leaves nothing to be desired: 1000 lumens for bright basic lighting, three selectable colour temperatures, an integrated driver for direct 230 V wiring, and a solid lifespan of 30,000 hours. Its light weight of just 0.25 kg facilitates installation, and the proven standard cutout ensures a quick 1:1 replacement of old recessed lights. Choose a reliable, energy-saving luminaire that can be installed in no time.
Frequently Asked Questions About the LED Eco Downlight
The downlight fits ceiling openings with a diameter of 150 to 160 mm. This is a common standard size, often allowing you to replace old halogen recessed lights without reworking the ceiling.
The CCT selector switch is located on the back of the housing. If you wish to change the colour after mounting, simply remove the downlight briefly, flip the switch, and reinsert it - it takes just seconds.
No, this model does not support dimming. In return, you get a particularly simple and robust solution with an integrated driver and direct 230 V connection.
The recess depth is only 32 mm. Since the driver is integrated, you only need minimal space behind the luminaire - ideal for shallow suspended ceilings.
