LED Floor Lamp NEO CDA 80W Direct/Indirect UGR<13 Dimmable + Sensor white

Description

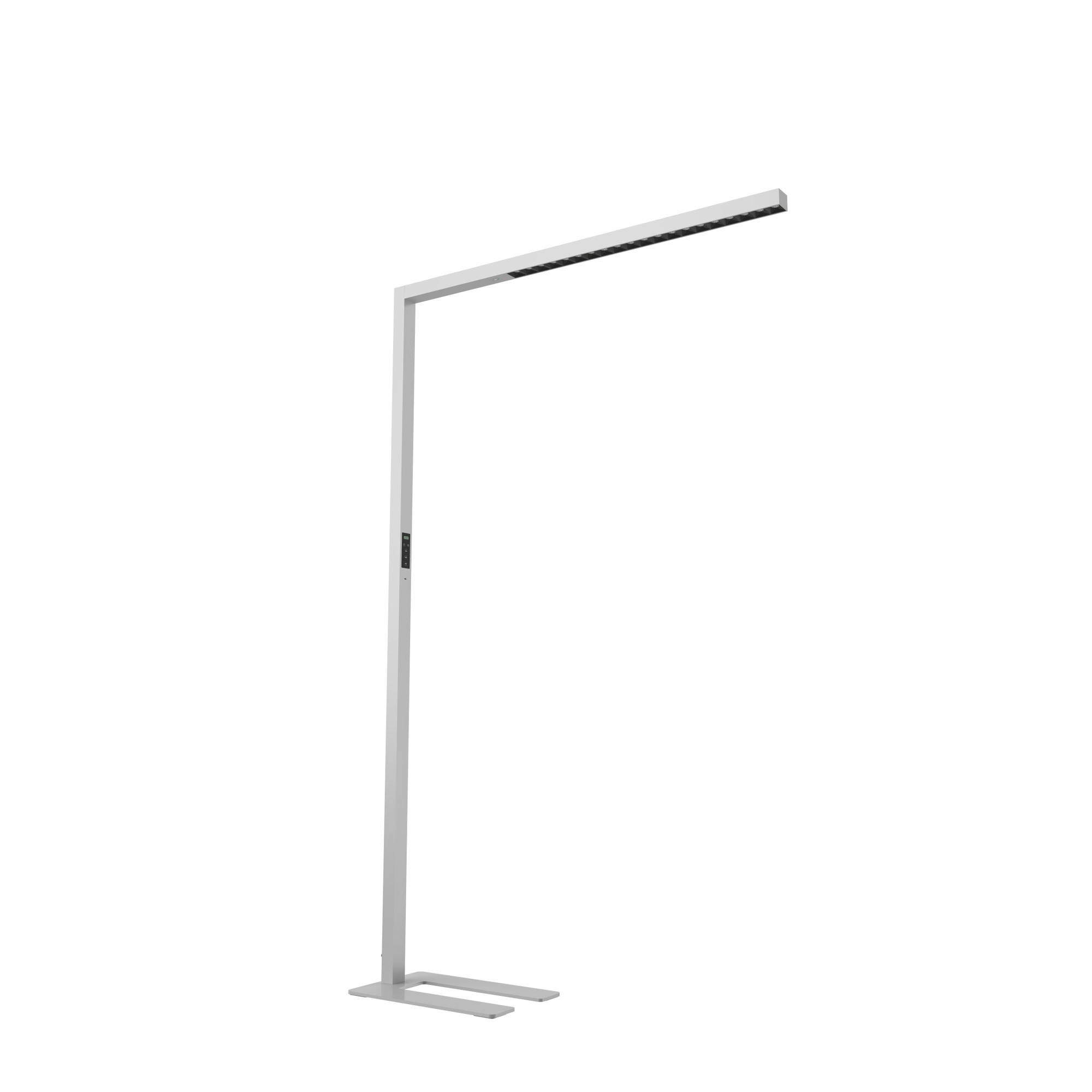

NEO CDA – LED Office Floor Lamp 80 W, Direct/Indirect, UGR < 13 – white housing

11,200 lm · 4000 K · Ra > 80 · touch dimming · motion and daylight sensor · white housing

80 W11,200 lmUGR < 134000 KRa > 80touch dimmingsensorswhite housing

With this LED floor luminaire you equip a workplace completely without working at the ceiling. It combines a strong indirect share radiating via the ceiling with a targeted direct share onto the working surface. The result is calm, low-shadow light that stays comfortable over many hours. At the same time its appearance stays discreet: the flat lamp head and slender pole take up hardly any space and give the workplace a calm, modern look.

Key benefits at a glance

Glare-free to standard UGR < 13 – well below the limit for screen work.	Direct and indirect 60 W via the ceiling, 20 W straight onto the desk.
No installation Place it, plug it in – no work on the ceiling.	Sensors included Motion and daylight sensors reduce consumption.
High efficiency 140 lm/W – 11,200 lm from 80 W.	Long service life L80(B10) at 50,000 h, no lamp changes.

Features in detail

Direct/indirect luminaire with 60 W upward and 20 W downward

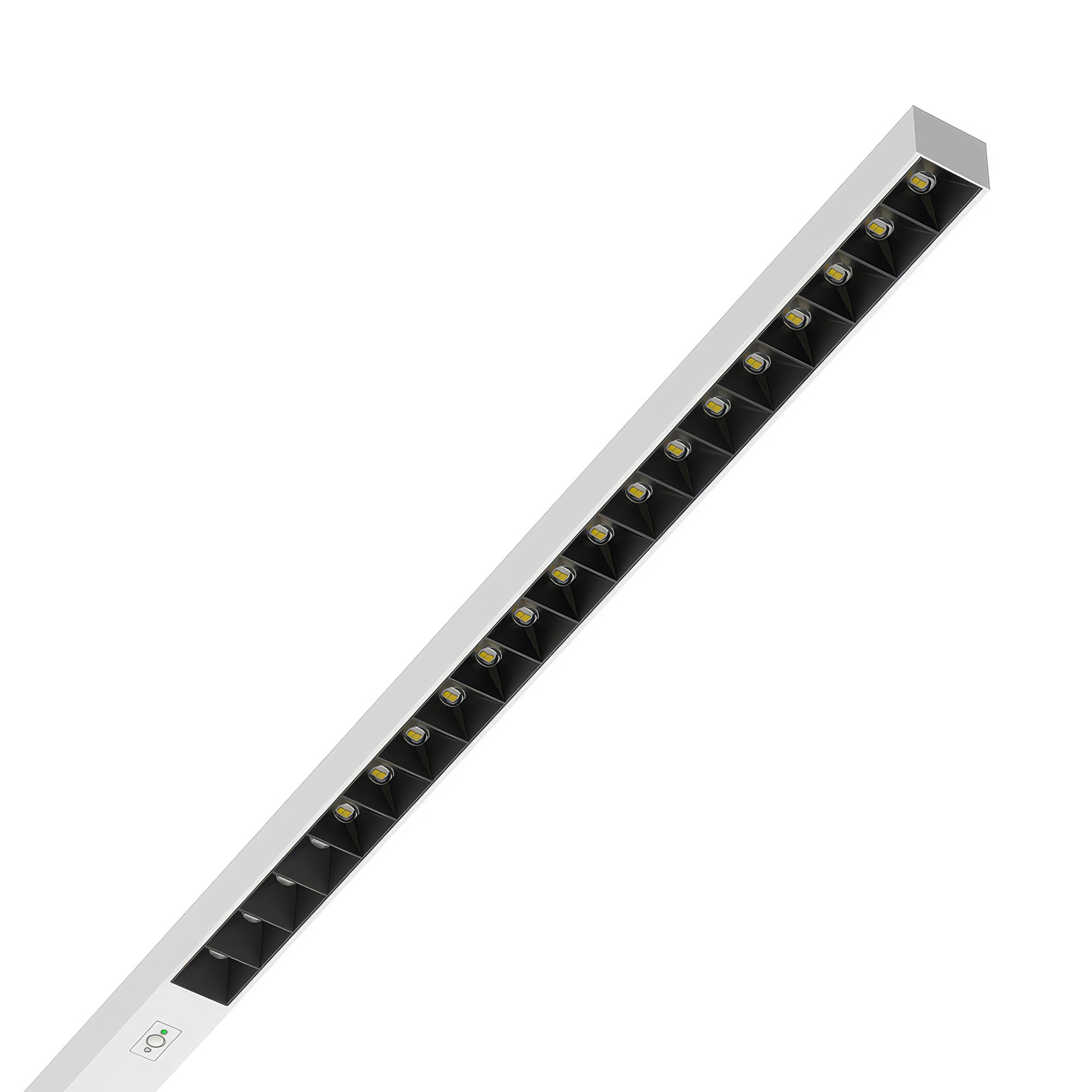

Glare limitation UGR < 13 through micro-reflector optics
Colour temperature 4000 K
Colour rendering Ra > 80
Touch dimming, direct and indirect light adjustable asynchronously
Motion sensor and daylight sensor as standard
BOKE driver, SMD 2835 LEDs
Housing available in silver, black or white

Direct and indirect light: why the split?

The output is split into two directions: 60 watts go upwards, 20 watts downwards. The principle is simple: light arriving via the ceiling looks soft and low in shadow because it comes from a large area rather than a point. So that enough still reaches the desk, the direct share supplements the lighting from above. In practice this means bright working light without harsh contrasts and without reflections in the monitor.

UGR < 13 – what it means for screen work

UGR stands for Unified Glare Rating and is the measure of glare. Ordinary office luminaires must stay below 19; this floor lamp reaches a value below 13 and therefore sits in the range recommended for demanding visual tasks. This is made possible by precise micro-reflector optics with a defined cut-off angle: light is focused downwards instead of scattering widely into the room.

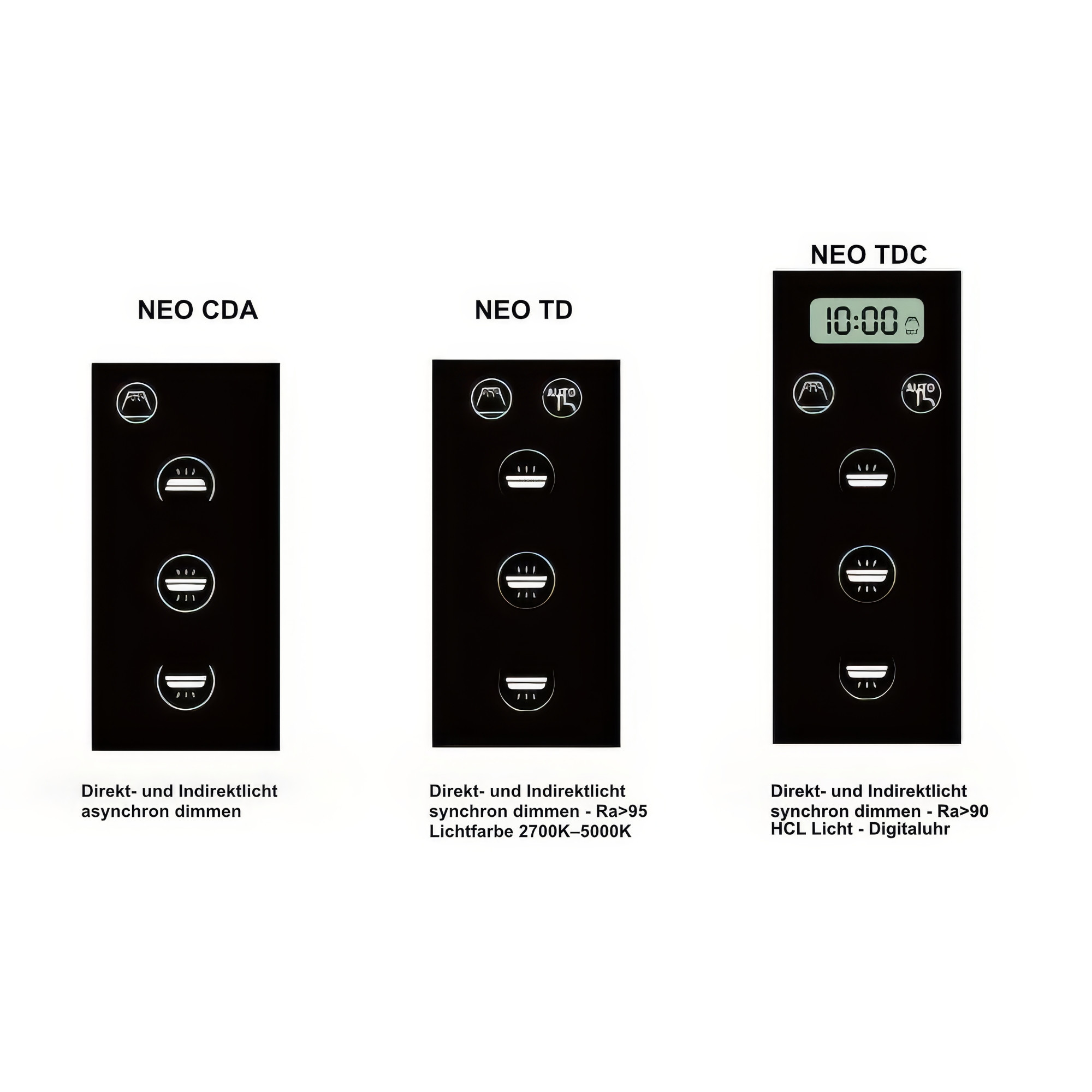

Touch control: dim direct and indirect light asynchronously

Control is via touch-sensitive buttons. Asynchronous means: top and bottom are two separate lighting systems with their own controls. Each direction has its own button for switching and stepless dimming – the brightness of one direction does not affect the other. That is practical because the light needed at the desk and in the room is rarely the same: mornings may call for more room brightness, afternoons for more light on the working surface.

Motion sensor and daylight sensor

The luminaire works with motion and daylight sensors. The motion sensor monitors the area in front of the luminaire; if it stays empty for 20 minutes, brightness drops to 30 percent, and after a further 10 minutes the luminaire switches off. As soon as someone approaches again it switches on automatically. The daylight sensor memorises the brightness once set as a target value and keeps it constant by compensating for incoming daylight. On bright days the luminaire therefore runs at lower power.

Service life and colour consistency

L80(B10) at 50,000 hours describes how reliably brightness is retained over the years: after this operating period at least 90 percent of the luminaires still deliver over 80 percent of their initial luminous flux. Added to this is tight colour consistency of SDCM 3 – neighbouring luminaires in an office therefore show no visible colour differences.

Placed instead of installed

Placed rather than installed: the luminaire stands on a base of 480 × 300 millimetres and brings the lamp head to a height of 1,960 millimetres. A socket is all that is needed for commissioning. That saves not only installation costs but preserves flexibility: if a workplace moves, the luminaire simply moves with it. For rented premises where work on the ceiling is not permitted, this is often the only way to retrofit compliant working light.

Housing colour: white

The housing of this variant is white. The light colour makes the luminaire appear light and unobtrusive and particularly suits friendly, bright office environments and Scandinavian-inspired interiors; alternatively the luminaire is also available in silver and black.

Technical data

Model	NEO CDA
Type	floor luminaire with direct and indirect light
Power	80 W (60 W upward / 20 W downward)
Luminous flux	11,200 lm
Efficacy	140 lm/W
Colour temperature	4000 K
Colour rendering	Ra > 80
Glare rating	UGR < 13
Colour consistency	SDCM 3
Beam angle	140° upward / 80° downward
LED	SMD 2835
Driver	BOKE
Voltage	AC 200–240 V
Power factor	≥ 0.9
Dimming	touch dimming, asynchronous for direct and indirect light
Sensors	motion sensor and daylight sensor
Service life	L80(B10) 50,000 h
Housing colour	white

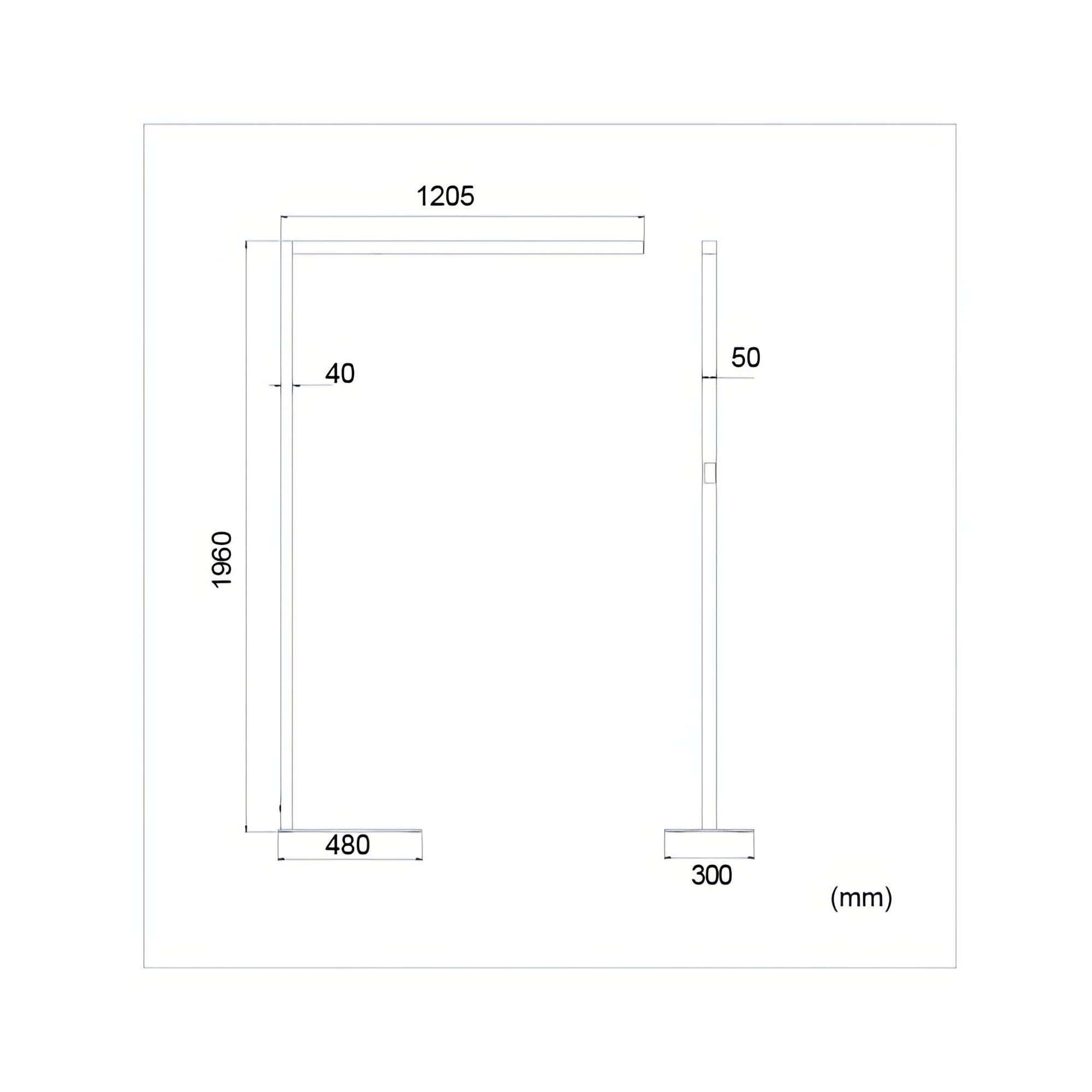

Dimensions	lamp head 1,205 × 50 × 40 mm · pole 1,960 mm · base 480 × 300 mm
Weight	approx. 10 kg
Energy efficiency class	D (EU scale A–G, EU 2019/2015)

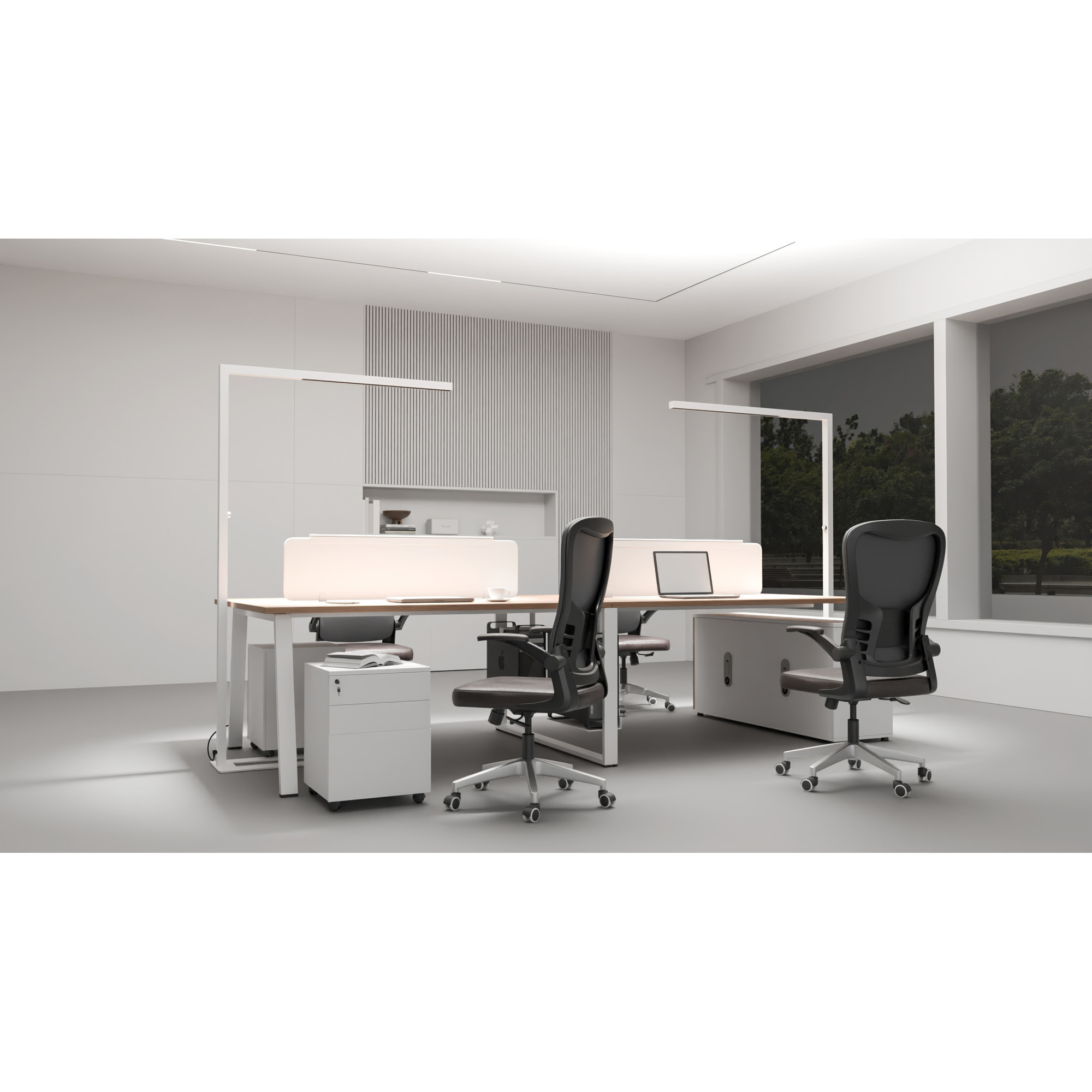

Applications

Typical locations are office workplaces of all kinds: private office, open space, coworking, conference room and home office. The luminaire is particularly useful in rooms with concrete ceilings or in rented premises where ceiling luminaires may not be installed. It equally suits situations where individual workplaces need better light than the rest of the room – at design, inspection or graphics stations, for example.

Scope of delivery

1× LED floor luminaire with lamp head, pole and base
Connection cable with plug
Installation and operating instructions
