Description

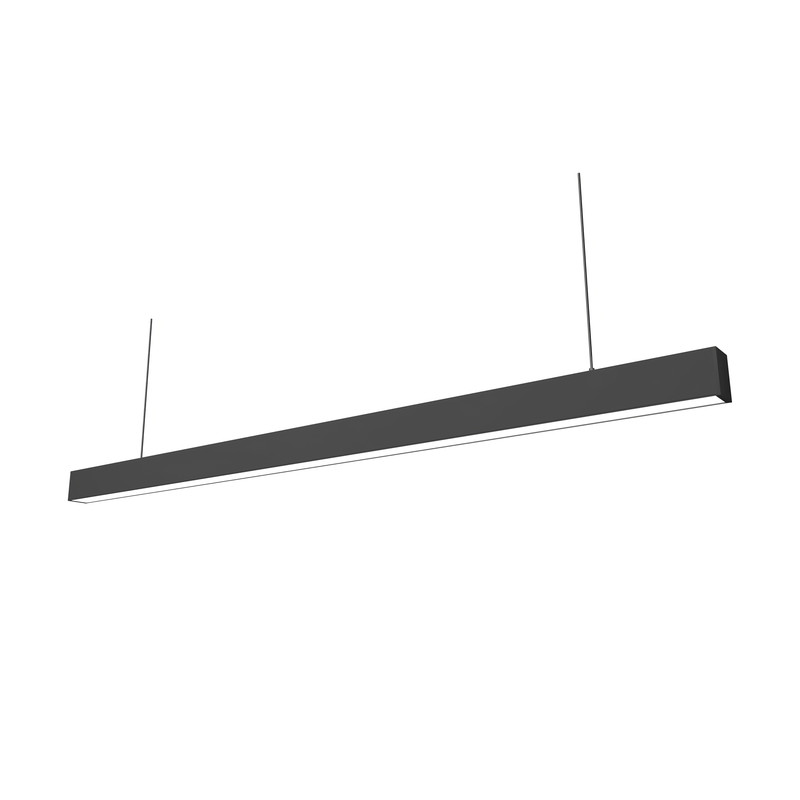

LED Linear Light 18 W – 3000 K Warm white in a Black Housing
Warm white linear light with 2,160 lumens, a 120° beam and series connection – a slim 0.6 m pendant luminaire in black.
This version of the LED linear light shines in warm white 3000 K: warm white light creates a cosy, inviting atmosphere and is ideal for receptions, hotels, hospitality and living areas. With 2,160 lumens at 18 W, a 120° beam and a slim black aluminium housing it blends harmoniously into modern ceilings and can be linked in series into continuous light lines.
- Colour temperature 3000 K warm white
- 2,160 lumens at 18 W, up to 120 lm/W
- 120° beam, flicker-free, CRI ≥ 80
- Optional dimming (1–10 V / thyristor / DALI)
- Linkable in series, combinable with connectors
- Black aluminium housing, IP20, up to 50,000 h
Impressive light formations

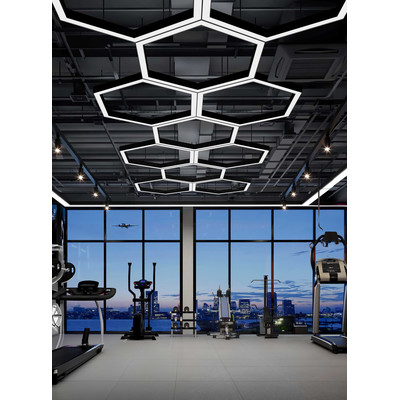

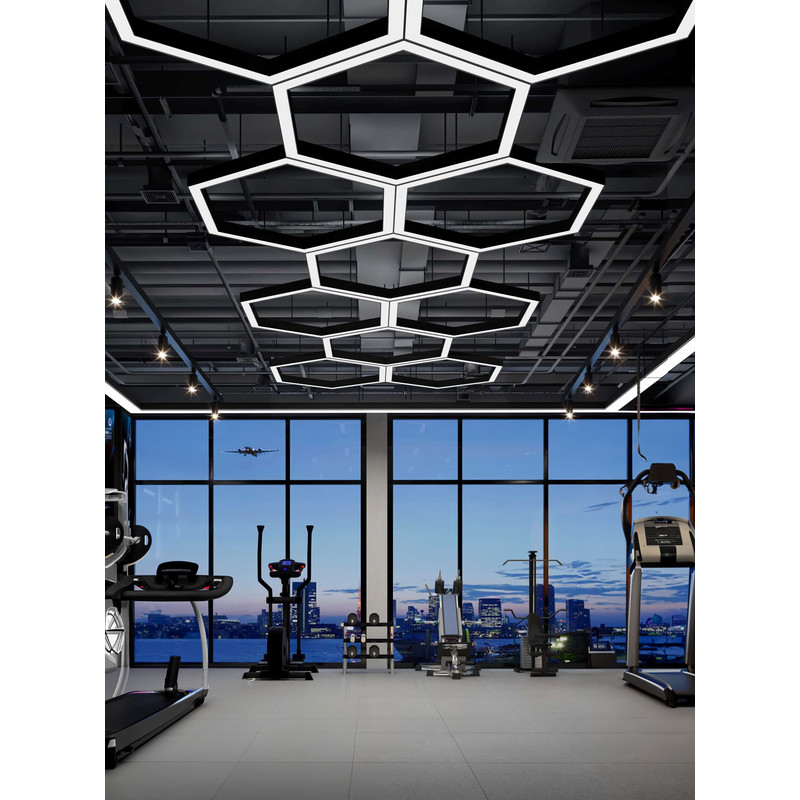

Individual luminaires can be linked in series into continuous lines and combined with the matching L-, T-, Y- and X-connectors to form rectangles, squares, hexagons or honeycomb patterns. This lets you create striking, custom light formations that transform large rooms, conference rooms, offices, workshops, car dealerships and gyms – from a clean line to an eye-catching ceiling sculpture.
Mounting & series connection

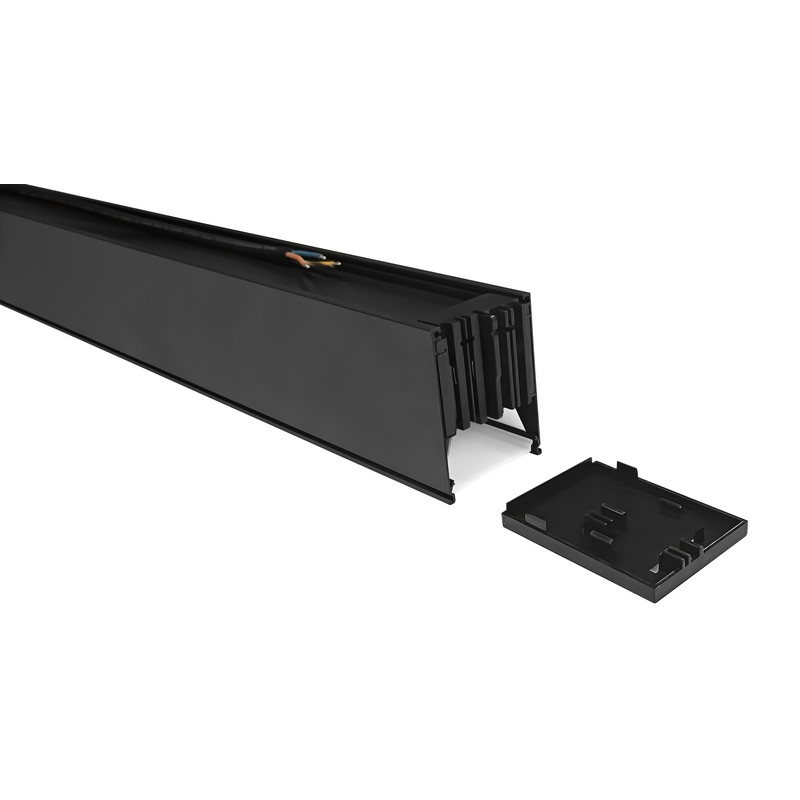

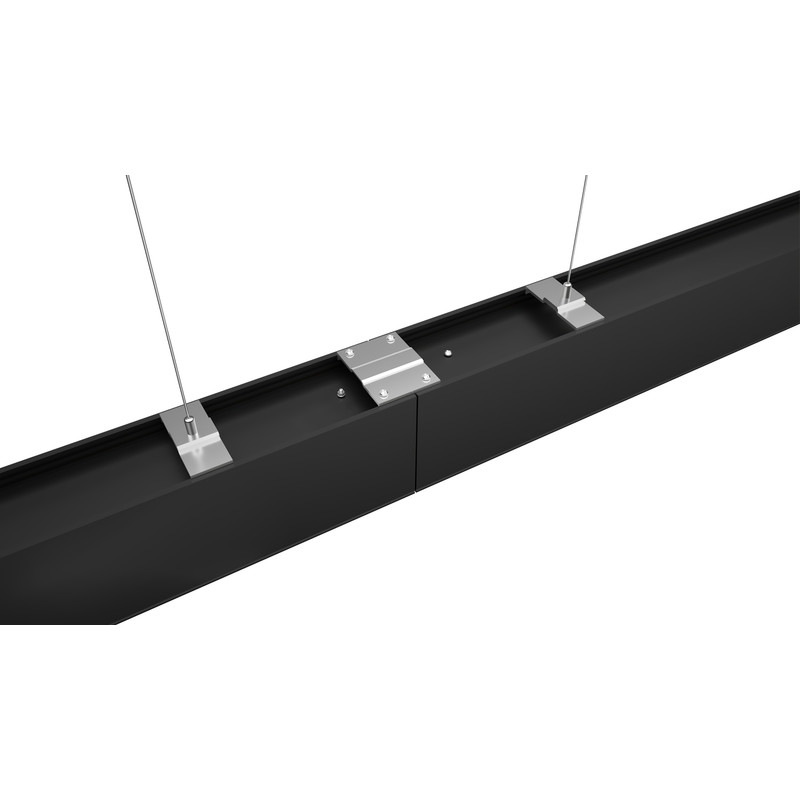

The luminaire is suspended from the ceiling on wire ropes – the standard 1,000 mm drop is infinitely height-adjustable. After removing the side protective cap, adjacent luminaires are coupled via the supplied aluminium connecting piece and wired in series (L / N / PE). Up to 40 luminaires of this wattage, or a load below 800 W, can be connected per feed.
Technical data
| Product | LED linear pendant light |
| Colour temperature | 3000 K (warm white) |
| Power | 18 W |
| Luminous flux | 2,160 lm |
| Efficacy | 120 lm/W |
| Colour rendering (CRI) | ≥ 80 |
| Beam angle | 120° |
| LED type | SMD2835 (120 LEDs) |
| Input voltage | AC 200–240 V |
| Dimming | optional 1–10 V / thyristor / DALI |
| Housing / colour | Aluminium, black |
| Protection | IP20 / class I |

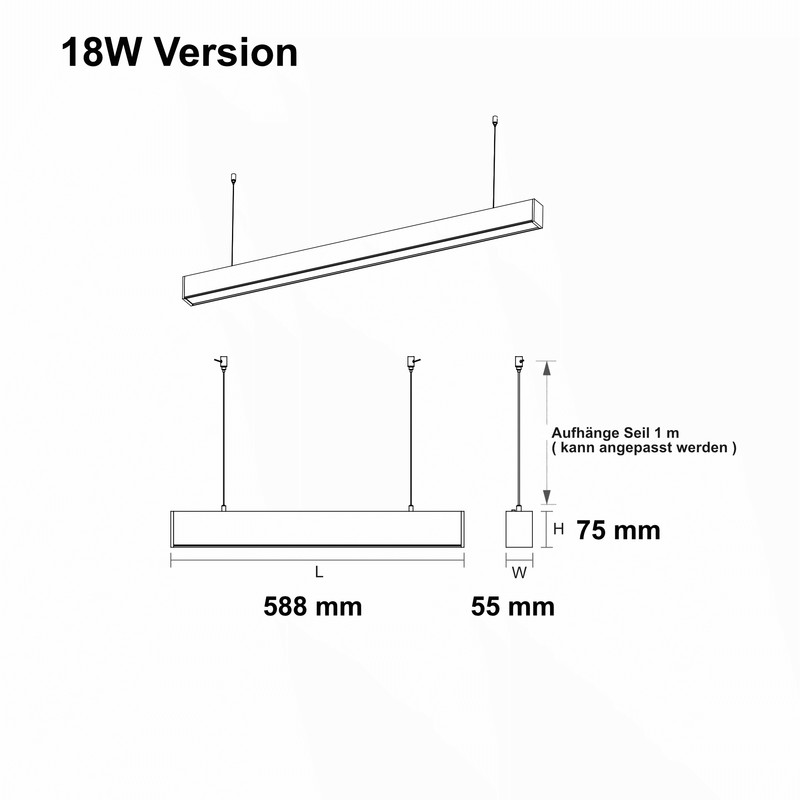

| Dimensions (L × W × H) | 588 × 55 × 75 mm |
| Series connection | up to 40 pcs per feed |
| Net weight | 0.9 kg |
| Rated life | up to 50,000 h |
| Certification | CE, RoHS |
| Energy efficiency class | E (EU scale A–G, EU 2019/2015) |
Applications
Particularly suited to hotels, receptions and living areas and other areas where warm white linear light is required.
Scope of delivery
- 1 × LED linear light 18 W (3000 K warm white, black)
- Wire suspension incl. ceiling mount
- End cap / insulating cap
- Installation guide
Note: Connectors available separately. Installation by a qualified electrician (L / N / PE).
