Description

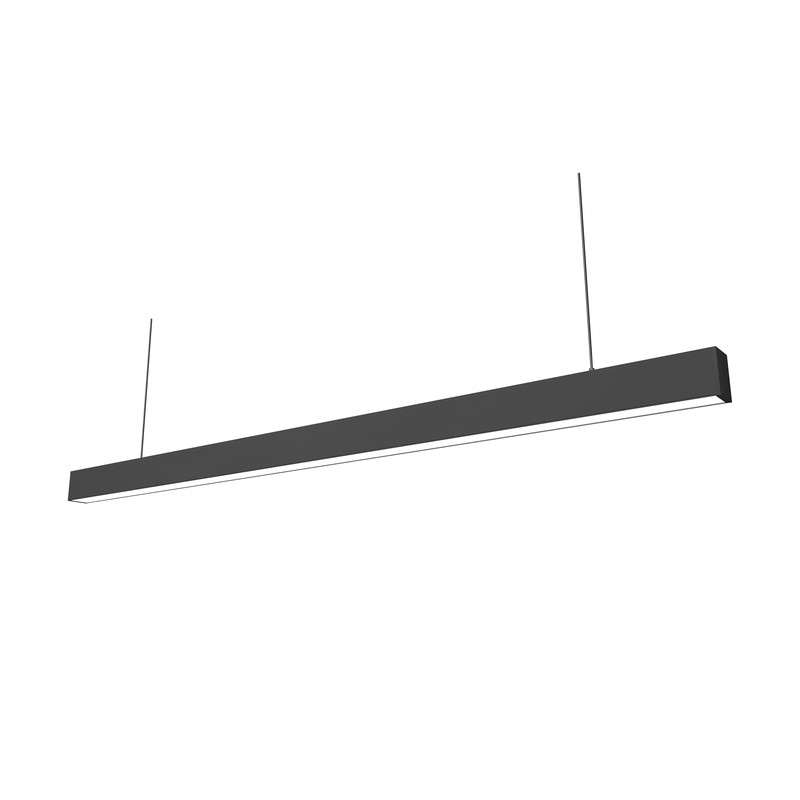

LED Linear Light 18 W – Slim Pendant Luminaire in a Black Housing
Linear LED pendant luminaire (0.6 m) with 2,160 lumens, a 120° beam, optional dimming and series connection – available in warm white (3000 K), neutral white (4000 K) and daylight white (6000 K).
The 18 W LED linear light combines clear, low-glare illumination with a slim, modern linear form. The black aluminium housing looks elegant and modern and sets a clean accent against light or dark ceilings. The even, flicker-free light distribution provides high visual comfort at workstations, in conference rooms and in retail.
At a glance
- 2,160 lumens (4000 K) at 18 W – efficacy up to 120 lm/W
- 120° beam angle, flicker-free, high visual comfort
- Optional dimming: 1–10 V, phase-cut (thyristor) or DALI
- Linkable in series for continuous light lines
- Combinable with L, T, Y and X connectors
- High-quality SMD2835 LEDs, CRI ≥ 80, life up to 50,000 h
- Slim black aluminium housing, CE and RoHS compliant

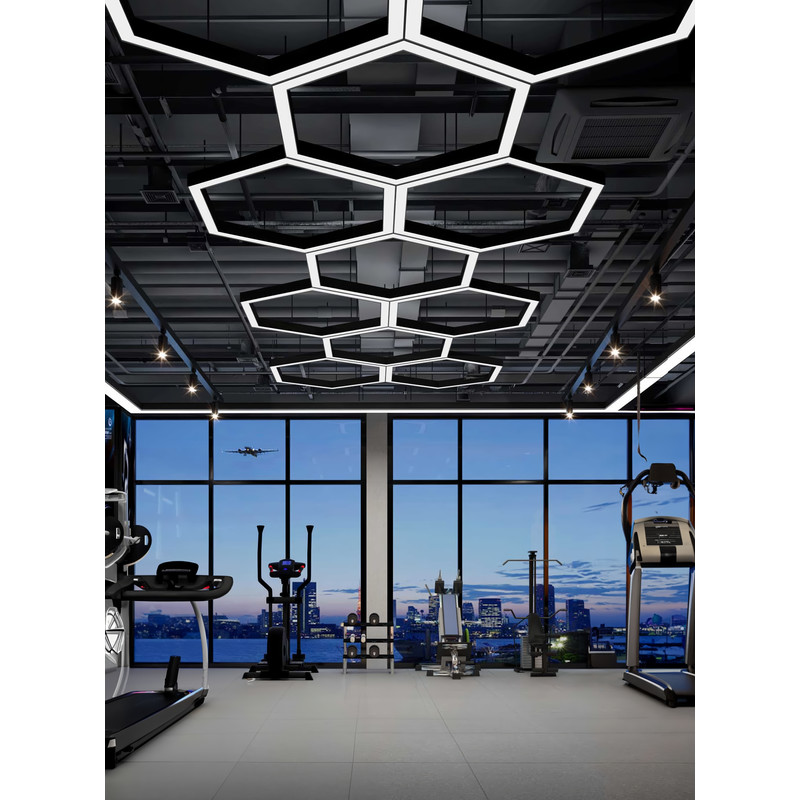

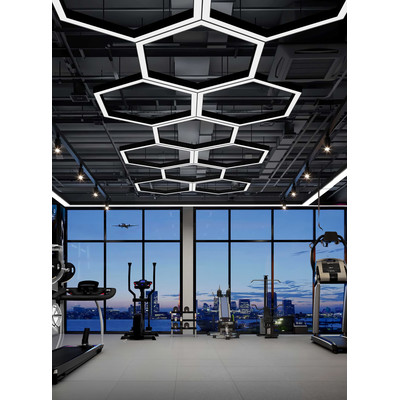

Impressive light formations
Individual luminaires can be linked in series into continuous lines and combined with the matching L-, T-, Y- and X-connectors to form rectangles, squares, hexagons or honeycomb patterns. This lets you create striking, custom light formations that transform large rooms, conference rooms, offices, workshops, car dealerships and gyms – from a clean line to an eye-catching ceiling sculpture.
Mounting & series connection

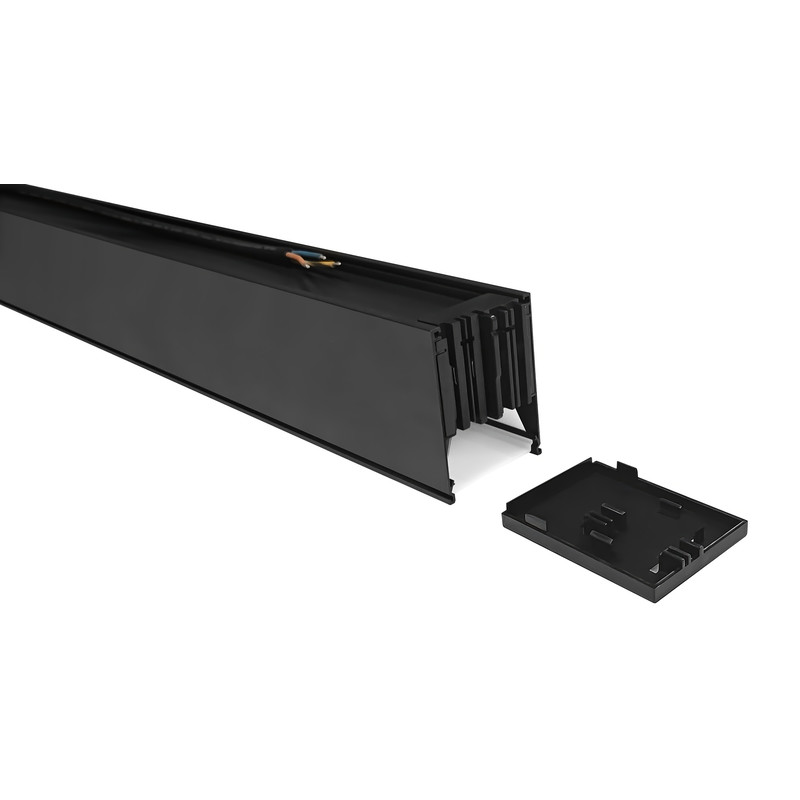

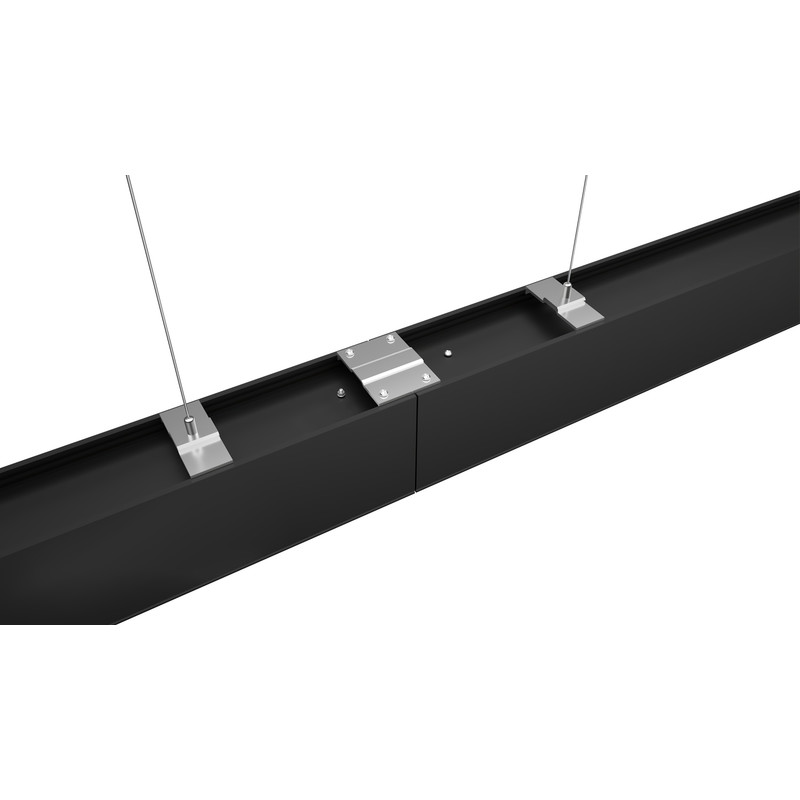

The luminaire is suspended from the ceiling on wire ropes – the standard 1,000 mm drop is infinitely height-adjustable. After removing the side protective cap, adjacent luminaires are coupled via the supplied aluminium connecting piece and wired in series (L / N / PE). Up to 40 luminaires of this wattage, or a load below 800 W, can be connected per feed.
Choose your colour temperature
- 3000 K warm white – warm and inviting for hotels, receptions and living areas
- 4000 K neutral white – balanced and focused for offices and conference rooms
- 6000 K daylight white – bright and high-contrast for workshops and car dealerships
Technical data
| Product | LED linear pendant light |
| Power | 18 W |
| Luminous flux | 2,160 lm (3000 K) / 2,160 lm (4000 K) / 2,160 lm (6000 K) |
| Efficacy | up to 120 lm/W |
| Colour temperature | 3000 K / 4000 K / 6000 K |
| Colour rendering (CRI) | ≥ 80 |
| Beam angle | 120° |
| LED type | SMD2835 (120 LEDs) |
| Input voltage | AC 200–240 V |
| Input current (max.) | 0.15 A |
| Dimming | optional 1–10 V / thyristor / DALI |
| Housing / colour | Aluminium, black |
| Protection | IP20 / class I |
| Operating temperature | −20 °C to +50 °C |

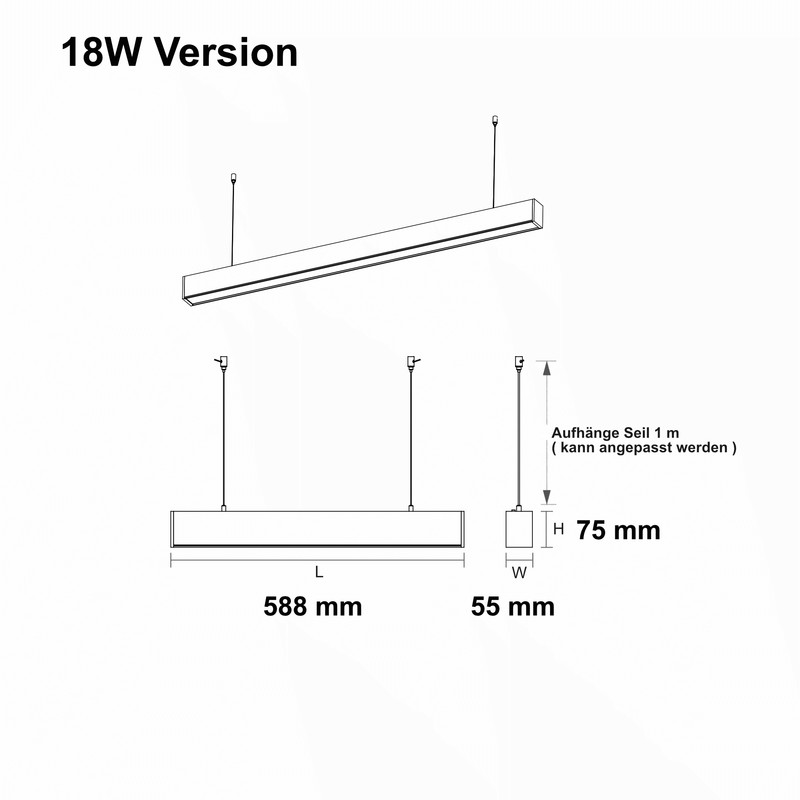

| Dimensions (L × W × H) | 588 × 55 × 75 mm |
| Suspension | wire rope, 1,000 mm (height-adjustable) |
| Series connection | up to 40 pcs per feed (< 800 W) |
| Net weight | 0.9 kg |
| Rated life | up to 50,000 h |
| Certification | CE, RoHS |
| Energy efficiency class | E (EU scale A–G, EU 2019/2015) |
Applications
- Offices and open-plan offices
- Conference and meeting rooms
- Workshops and car dealerships
- Retail and showrooms
- Reception and waiting areas
- Gyms, hallways and corridors
Scope of delivery
- 1 × LED linear light 18 W (black)
- Wire suspension incl. ceiling mount
- End cap / insulating cap
- Installation guide
Note: Connectors and additional feed-in points available separately. Installation must be carried out by a qualified electrician (L / N / PE).
