LED Post Top Luminaire R1 Series 3000/3500/4000K 20/40/60W IP66 165lm

LED Post Top Luminaire R1 Series – V-shape (single arm, single lamp head)

20/40/60 W and 3000/3500/4000 K by switch · Type V · IP66 · up to 9,900 lm

This LED post top luminaire combines clean design with very practical technology. Two small switches inside let you choose colour temperature and power – one product therefore covers several applications and you need fewer different luminaires in stock. For controllable installations the luminaire is also available as a DALI version on request. It can then be dimmed steplessly, switched in groups and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Colour temperature 3000 / 3500 / 4000 K by switch, 1800 K optional on request
• Power 20 W / 40 W / 60 W selectable by switch
• All-round Type V light distribution for evenly illuminated areas
• Optionally available with DALI dimming on request
• Pluggable lamp head and pluggable driver for quick maintenance
• LED module and driver available as spare parts – repair instead of replace
• Lumileds 2835 LEDs and Sosen driver for reliable continuous operation
• Die-cast aluminium housing, IP66, IK08, 10 kV surge protection
• Suitable for poles with Ø 60 mm and Ø 76 mm

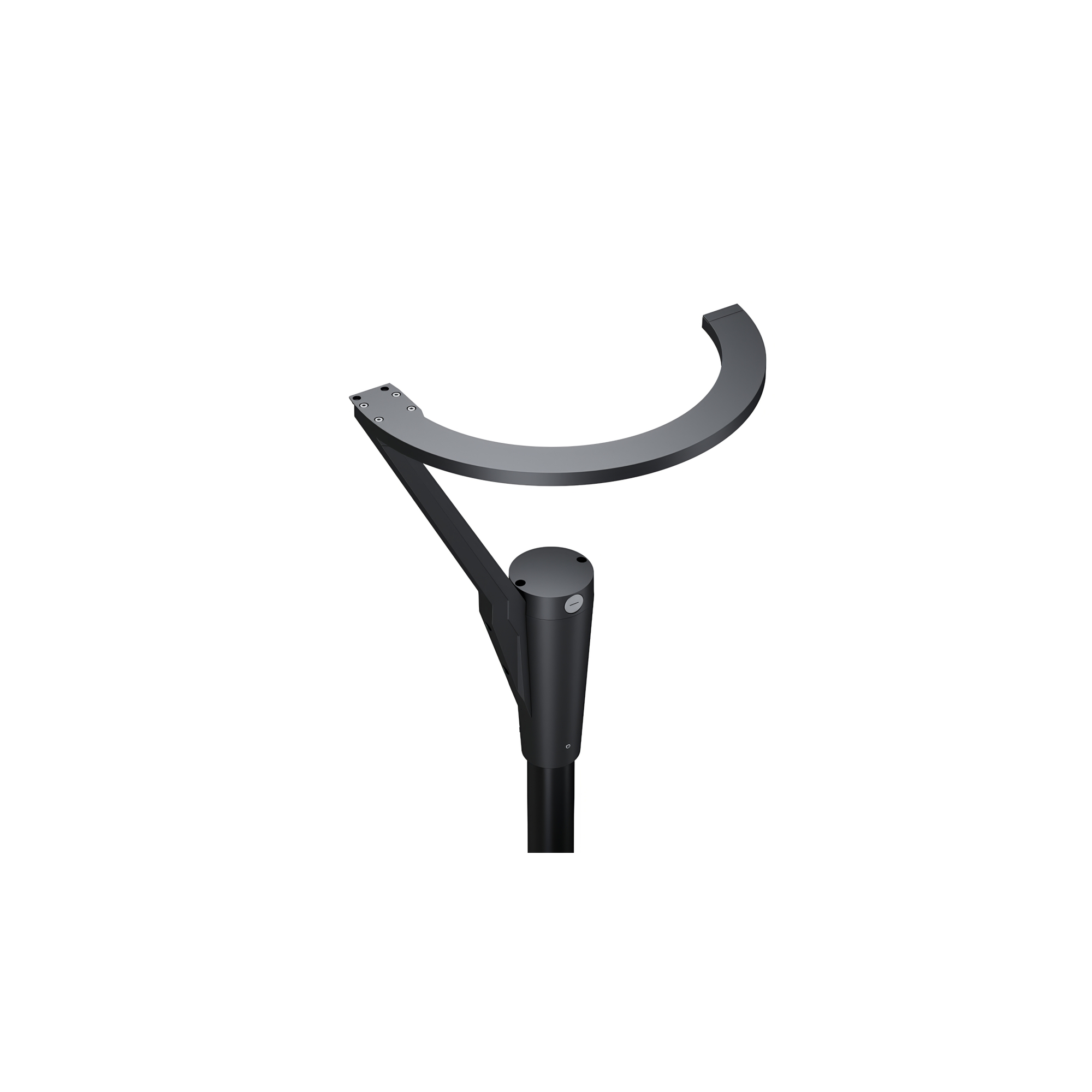

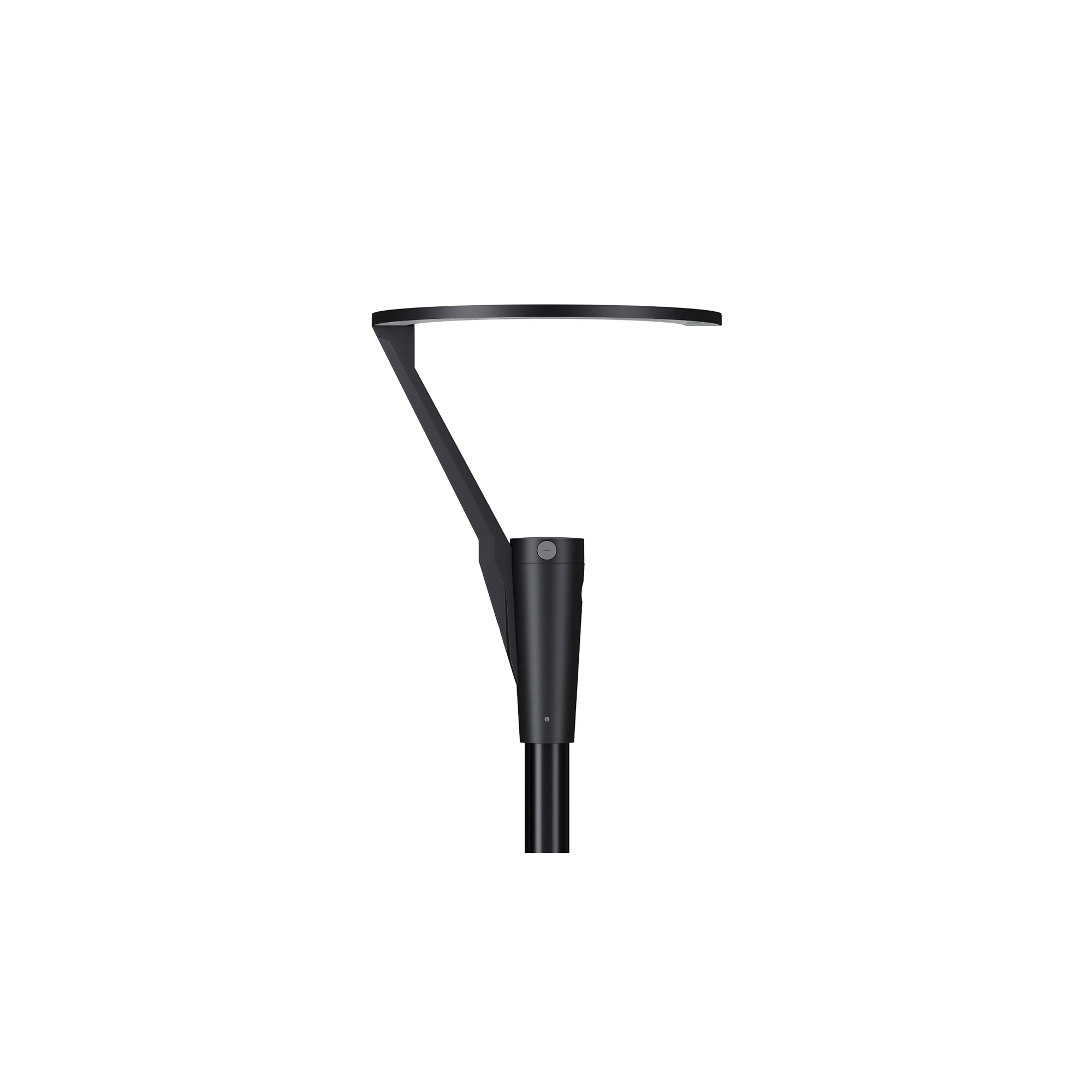

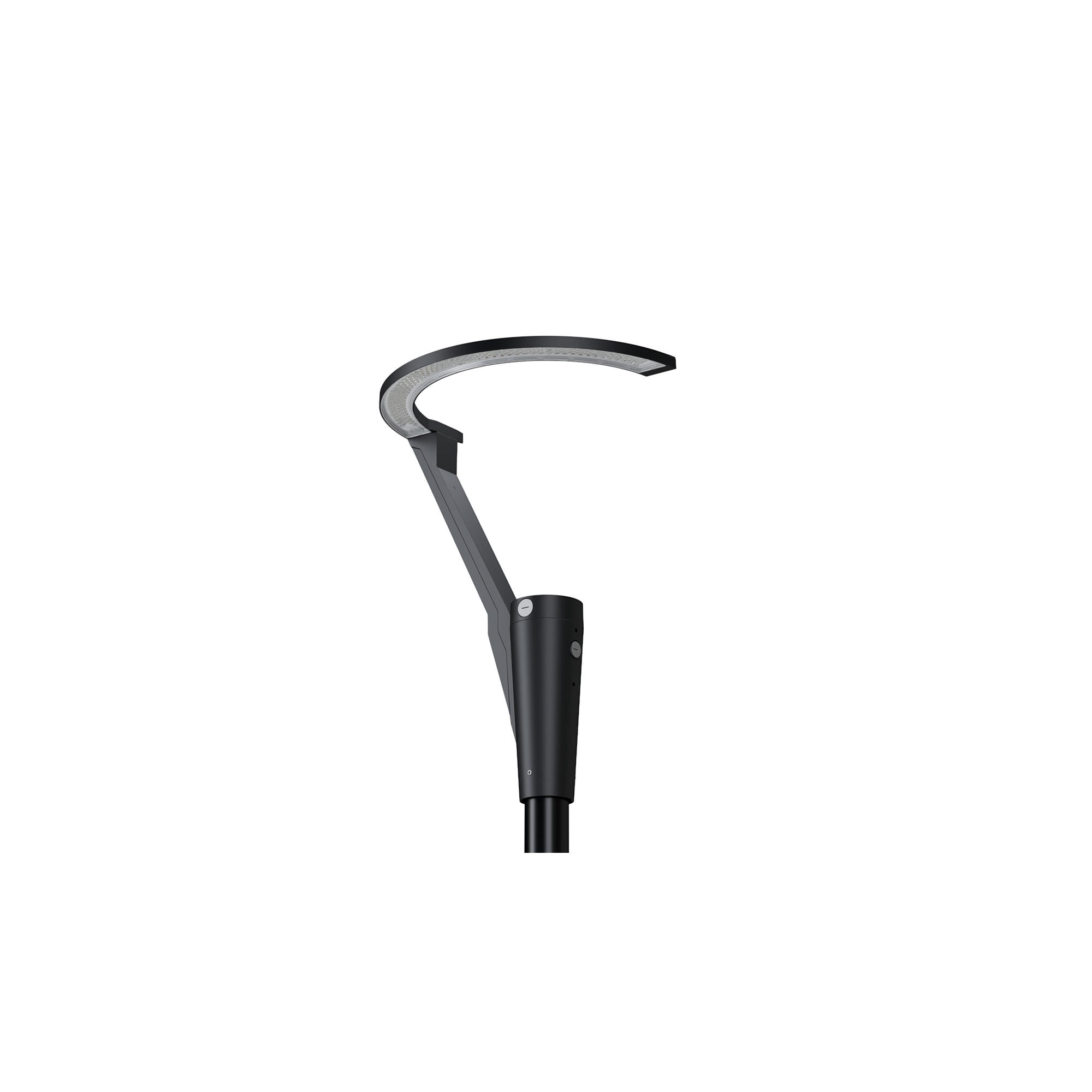

Lamp head: round lamp head

The lamp head is round and recalls a classic park luminaire, yet its ring design makes it look considerably more modern. This shape suits parks, residential areas and courtyards where the luminaire should also look good during the day.

Setting the colour temperature by switch

Instead of committing in advance, you set the colour temperature during installation. Available are 3000 K, 3500 K and 4000 K – from warm and inviting to neutral and crisp. The switch sits within easy reach under the cover. If you need particularly insect-friendly lighting, 1800 K can be ordered on request.

Setting the power by switch

The wattage is also set by switch. This lets you match brightness precisely to the surroundings instead of permanently producing too much light. Fewer watts mean directly lower energy costs – and across many luminaires in one installation that adds up noticeably.

Type V light distribution – even light all around

Type V stands for an all-round light distribution. Unlike street lights that throw light in one specific direction, this luminaire emits its light evenly to all sides. This suits anywhere the luminaire stands free in an area and the surroundings need to be lit – from the park and the courtyard to the building forecourt.

As standard the luminaire is supplied exclusively with the Type V optic. For larger projects, however, other light distributions can be arranged: from a corresponding order quantity onwards we manufacture the luminaire with a directional optic on request, for example for narrow paths or areas that need to be lit from one side. Simply get in touch with your planned quantity and we will check what can be realised for your project.

Not sure whether this luminaire suits your project? Get in touch – we are happy to advise you on pole height, pole spacing and the power you need.

Modular design: quick installation, easy maintenance

A well thought-out plug system connects lamp head and pole adapter. The head is placed, clicked in and screwed – with no electrical tooling required. This considerably shortens installation time and allows a later change to a different head shape. The driver is pluggable too and quickly replaced during maintenance.

Brand components: Lumileds LEDs and Sosen driver

It is worth looking at the components fitted: the light source consists of Lumileds 2835 LEDs, the driver comes from Sosen. Lumileds is among the world's leading LED manufacturers, Sosen specialises in rugged control gear for outdoor lighting. Good components cost a little more to buy – but over their service life they save many times that in maintenance and downtime.

Spare parts available – LED module and driver individually replaceable

Spare part availability is a real cost factor with outdoor luminaires. With this luminaire you can obtain both the LED module and the driver individually – both are pluggable and replaced in a short time, with no wiring work at all. Instead of scrapping the entire luminaire after a defect, you replace only the affected component. That saves money, conserves resources and keeps your installation consistent for many years.

Long service life – L70, L80 and L90 explained

What do L70, L80 and L90 mean? The number states how much of the original brightness remains. The luminaire reaches L90 after 52,000 hours, L80 after 76,000 hours and L70 after 100,000 hours. For street lighting with around 4,000 operating hours a year, the L80 figure corresponds to roughly 19 years – keeping maintenance effort and replacement costs low.

Ruggedly built for outdoor use

A die-cast aluminium housing, powder coated, with a polycarbonate lens: this combination withstands wind and weather permanently. Protection rating IP66 reliably keeps out dust and water jets, IK08 provides resistance to impact and vandalism. A 10 kV surge protection additionally safeguards the electronics.

Mounting on the pole

A standard lighting pole is all you need for installation: the supplied adapter fits 60 mm and 76 mm pole diameters. This makes the luminaire well suited to replacing old post top fittings without changing the poles themselves. Connection at 100–277 V, Safety Class I.

Technical data

Applications

Typical locations are public parks, walking and cycle paths, housing estates, courtyards, company premises, car parks and hotel grounds. Because colour temperature and power are adjustable, the same luminaire suits both a quiet residential street and a car park that needs bright lighting.

Scope of delivery

• 1× LED post top luminaire R1 Series (V-shape (single arm, single lamp head))
• Pole adapter for Ø 60 mm and Ø 76 mm
• Installation instructions
