LED Post Top Luminaire R2 Series 3000/3500/4000K 20/40/60W IP66 165lm

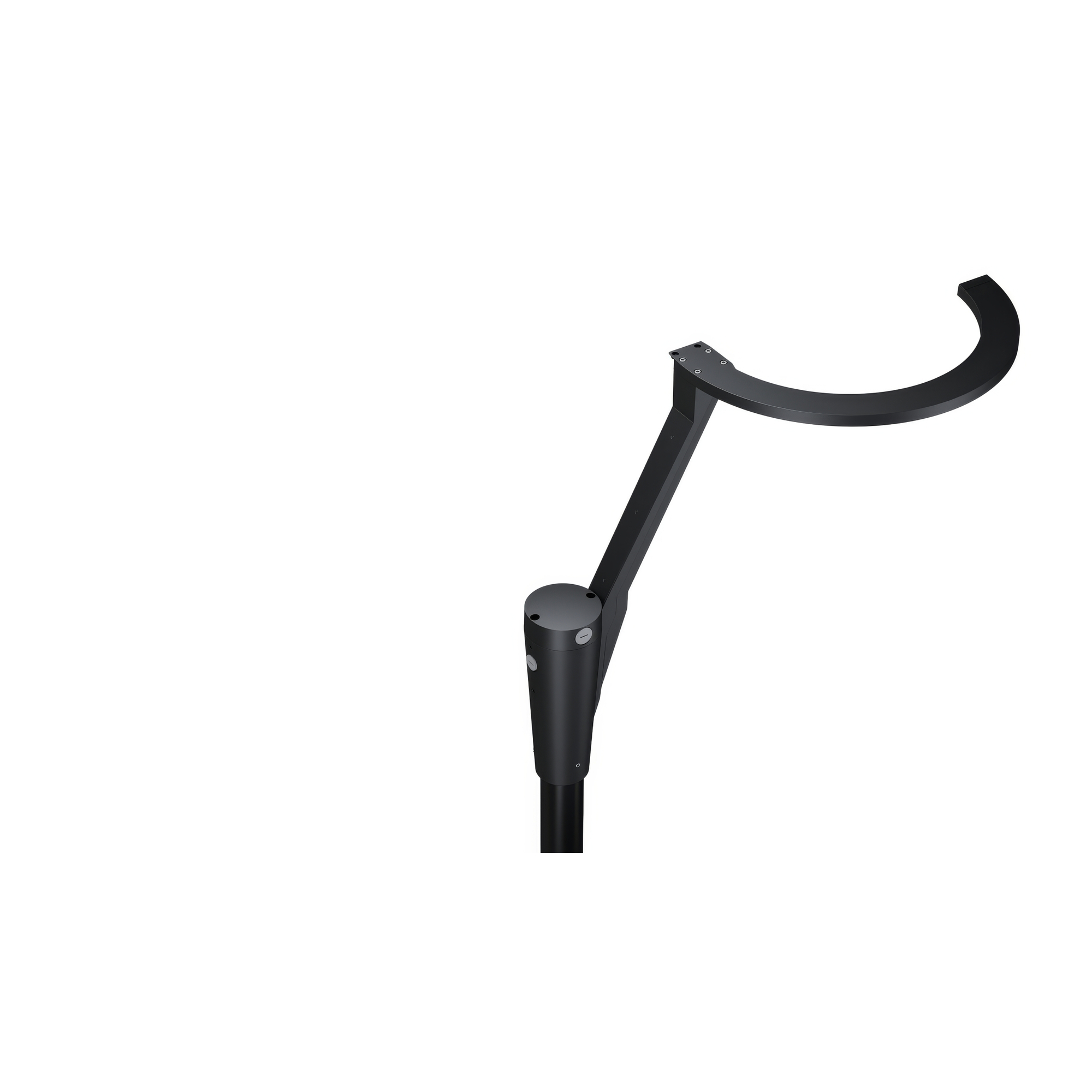

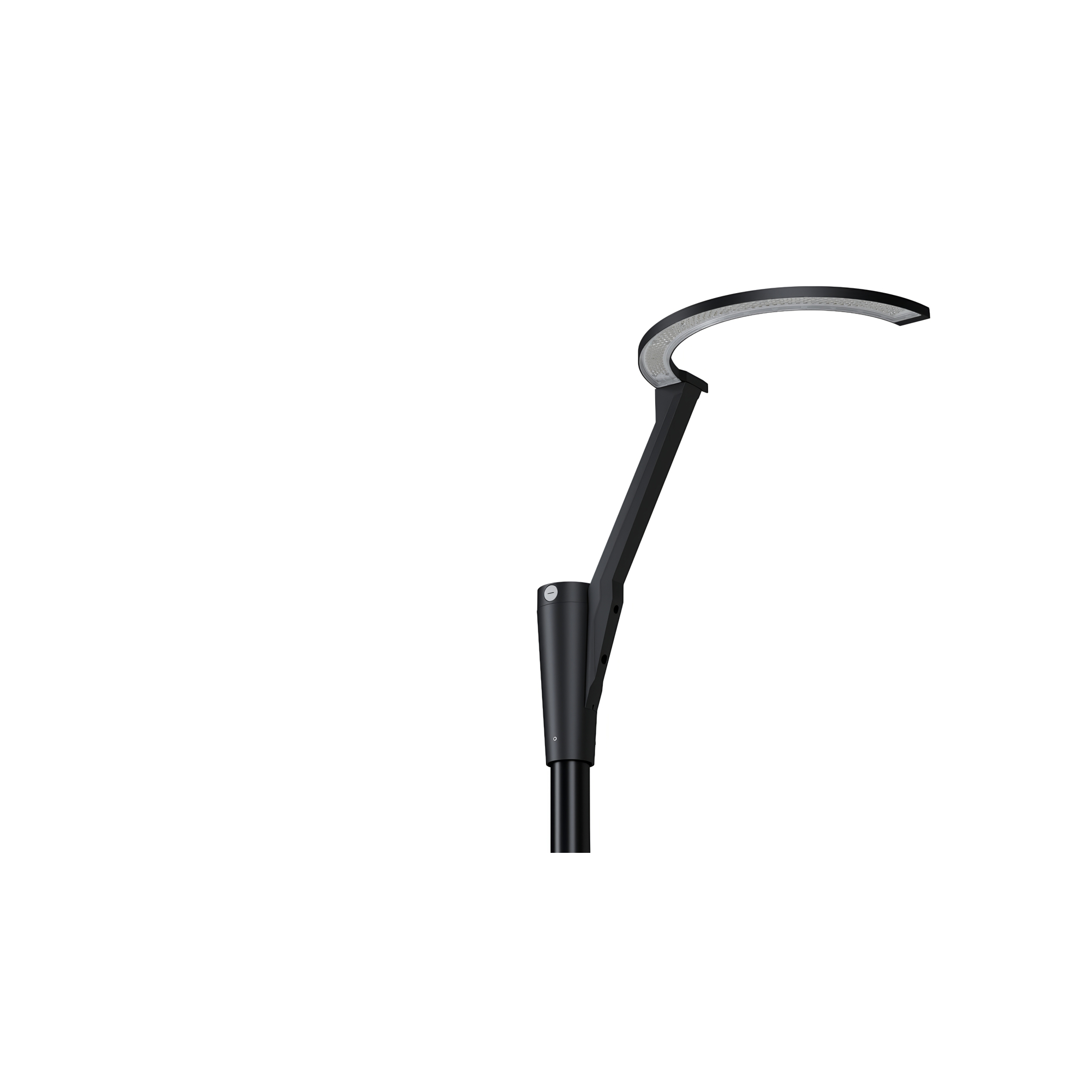

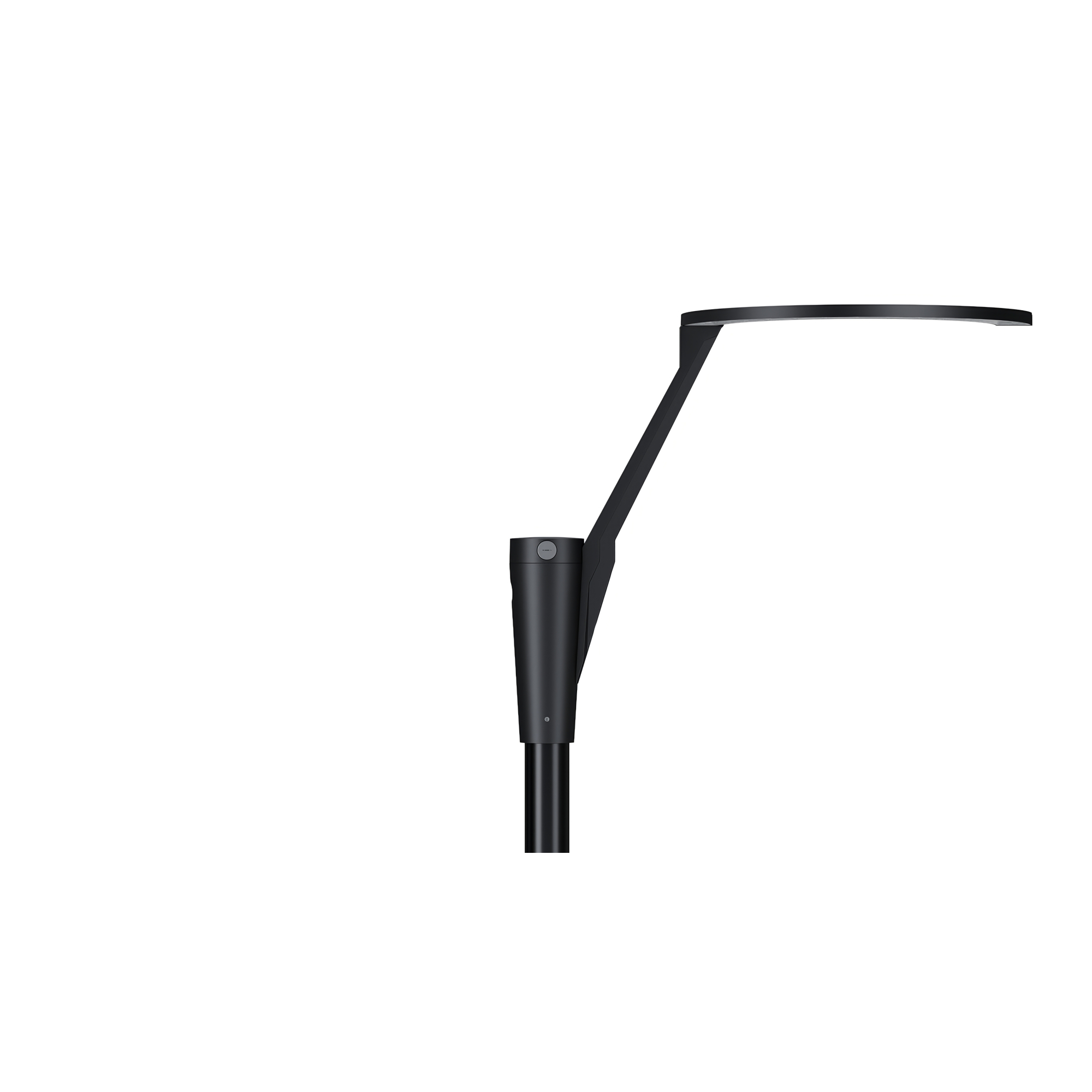

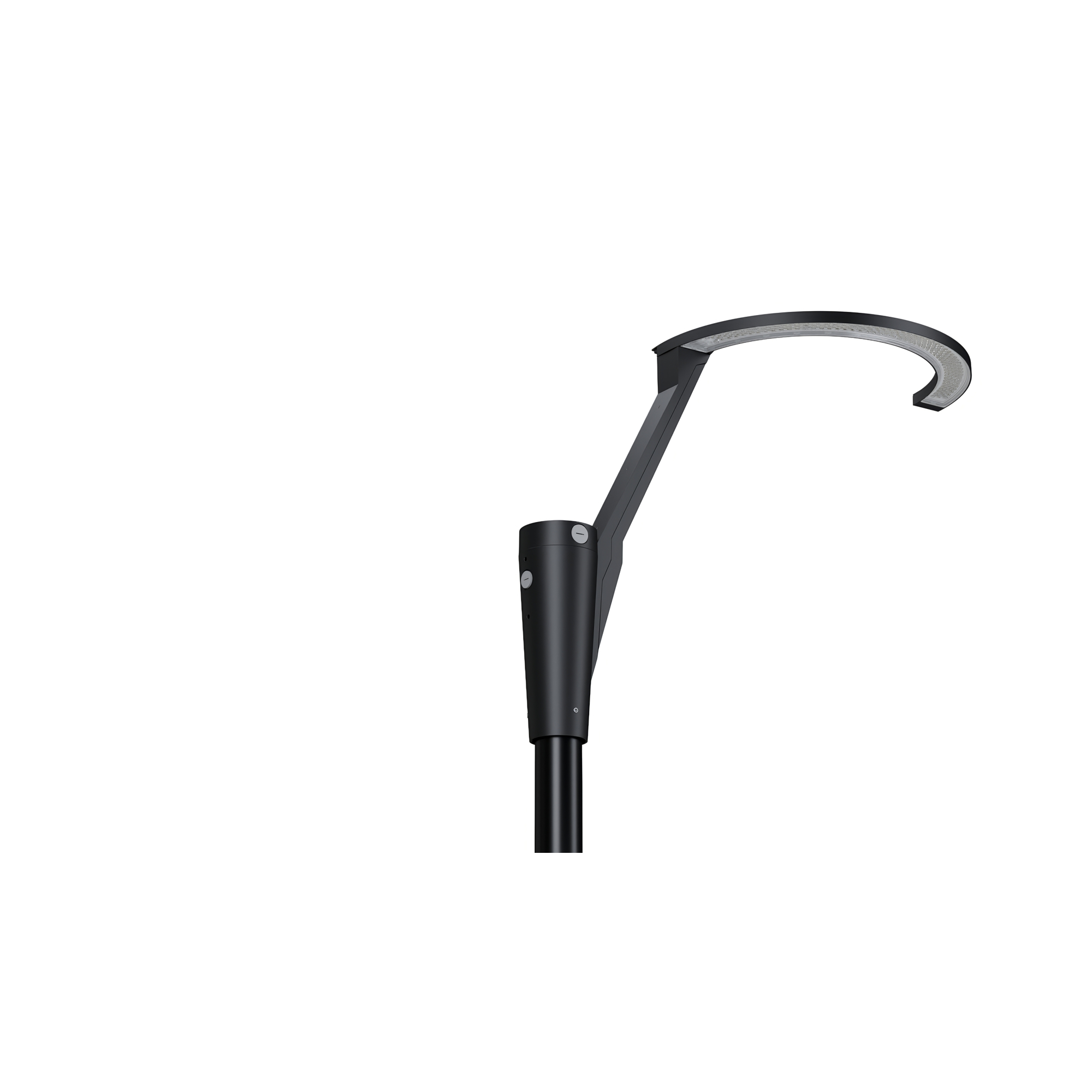

LED Post Top Luminaire R2 Series – Curved arm (single arm)

20/40/60 W and 3000/3500/4000 K by switch · Type V · IP66 · up to 9,900 lm

With this LED post top luminaire you light paths, car parks and green spaces evenly and efficiently. The special feature: colour temperature and wattage can be selected on site by switch. So you do not commit at the time of purchase but decide during installation. For controllable installations the luminaire is also available as a DALI version on request. It can then be dimmed steplessly, switched in groups and integrated into a central lighting control system.

Key benefits at a glance

Features in detail

• Colour temperature 3000 / 3500 / 4000 K by switch, 1800 K optional on request
• Power 20 W / 40 W / 60 W selectable by switch
• All-round Type V light distribution for evenly illuminated areas
• Optionally available with DALI dimming on request
• Pluggable lamp head and pluggable driver for quick maintenance
• LED module and driver available as spare parts – repair instead of replace
• Lumileds 2835 LEDs and Sosen driver for reliable continuous operation
• Die-cast aluminium housing, IP66, IK08, 10 kV surge protection
• Suitable for poles with Ø 60 mm and Ø 76 mm

Lamp head: round lamp head

The lamp head is round and recalls a classic park luminaire, yet its ring design makes it look considerably more modern. This shape suits parks, residential areas and courtyards where the luminaire should also look good during the day.

Setting the colour temperature by switch

Instead of committing in advance, you set the colour temperature during installation. Available are 3000 K, 3500 K and 4000 K – from warm and inviting to neutral and crisp. The switch sits within easy reach under the cover. If you need particularly insect-friendly lighting, 1800 K can be ordered on request.

Setting the power by switch

The wattage is also set by switch. This lets you match brightness precisely to the surroundings instead of permanently producing too much light. Fewer watts mean directly lower energy costs – and across many luminaires in one installation that adds up noticeably.

Type V light distribution – even light all around

This luminaire uses a Type V light distribution. This means light is emitted evenly all around, reaching equally far in every direction. This distribution is the right choice when the luminaire stands in the middle of an area – on squares, in courtyards, on car parks or at path junctions. The beam fades out softly so that no hard light-and-dark edges appear and dark corners are avoided.

As standard the luminaire is supplied exclusively with the Type V optic. For larger projects, however, other light distributions can be arranged: from a corresponding order quantity onwards we manufacture the luminaire with a directional optic on request, for example for narrow paths or areas that need to be lit from one side. Simply get in touch with your planned quantity and we will check what can be realised for your project.

Not sure whether this luminaire suits your project? Get in touch – we are happy to advise you on pole height, pole spacing and the power you need.

Modular design: quick installation, easy maintenance

The luminaire is part of a modular system. The lamp head is fitted via a plug connector and secured with a few screws – with no wiring on site. A head can therefore be mounted in seconds or later swapped for a different shape. The driver is connected via plug contacts too and can be replaced during service without rewiring.

Brand components: Lumileds LEDs and Sosen driver

It is worth looking at the components fitted: the light source consists of Lumileds 2835 LEDs, the driver comes from Sosen. Lumileds is among the world's leading LED manufacturers, Sosen specialises in rugged control gear for outdoor lighting. Good components cost a little more to buy – but over their service life they save many times that in maintenance and downtime.

Spare parts available – LED module and driver individually replaceable

Spare part availability is a real cost factor with outdoor luminaires. With this luminaire you can obtain both the LED module and the driver individually – both are pluggable and replaced in a short time, with no wiring work at all. Instead of scrapping the entire luminaire after a defect, you replace only the affected component. That saves money, conserves resources and keeps your installation consistent for many years.

Long service life – L70, L80 and L90 explained

The lifetime figures L70B50: 100,000 h, L80B50: 76,000 h and L90B50: 52,000 h describe how slowly brightness declines over the years. After around 100,000 operating hours the luminaire still delivers about 70 % of its original luminous flux. For operators that means predictable maintenance, no regular lamp changes and an even lighting result over a long time.

Ruggedly built for outdoor use

A die-cast aluminium housing, powder coated, with a polycarbonate lens: this combination withstands wind and weather permanently. Protection rating IP66 reliably keeps out dust and water jets, IK08 provides resistance to impact and vandalism. A 10 kV surge protection additionally safeguards the electronics.

Mounting on the pole

The luminaire is placed horizontally on the pole top and screwed down. Because the adapter is designed for pole diameters of 60 mm and 76 mm, existing poles can usually be reused – an important point when modernising an old installation. It runs on 100–277 V, Safety Class I.

Technical data

Applications

This luminaire is made for outdoor lighting: parks and green spaces, footpaths and cycle paths, residential areas and courtyards, car parks, driveways and building forecourts. At roundabouts, pedestrian crossings and in residential streets it also provides even light without harsh shadows.

Scope of delivery

• 1× LED post top luminaire R2 Series (curved arm (single arm))
• Pole adapter for Ø 60 mm and Ø 76 mm
• Installation instructions
